5IK40GN-AT/5GN10K
Output Shaft TypeKeyway
Input Voltage(V)1PH 110VAC
Frame Size(mm)90 x 90
Current(A)0.66
Question

Downloads

5IK40GN-XXT_5GNXXK_manual.pdfPDF · 2.22MB
Same series
ModelOutput Shaft TypeInput Voltage(V)Frame Size(mm)Current(A)PriceStock
5IK120GU-S/S3FT/5GU100KBKeyway3PH 220VAC/380VAC90 x 900.60,0.70,0.42,0.40C$87.44In stock
5IK120GU-S/S3FT/5GU10KBKeyway3PH 220VAC/380VAC90 x 900.60,0.70,0.42,0.40C$80.58In stock
5IK120GU-S/S3FT/5GU15KBKeyway3PH 220VAC/380VAC90 x 900.60,0.70,0.42,0.40C$80.58In stock
5IK120GU-S/S3FT/5GU200KBKeyway3PH 220VAC/380VAC90 x 900.60,0.70,0.42,0.40C$87.44In stock
5IK120GU-S/S3FT/5GU20KBKeyway3PH 220VAC/380VAC90 x 900.60,0.70,0.42,0.40C$83.74In stock
5IK120GU-S/S3FT/5GU30KBKeyway3PH 220VAC/380VAC90 x 900.60,0.70,0.42,0.40C$83.74In stock
5IK120GU-S/S3FT/5GU3KBKeyway3PH 220VAC/380VAC90 x 900.60,0.70,0.42,0.40C$76.60In stock
5IK120GU-S/S3FT/5GU50KBKeyway3PH 220VAC/380VAC90 x 900.60,0.70,0.42,0.40C$83.74In stock
5IK120GU-S/S3FT/5GU5KBKeyway3PH 220VAC/380VAC90 x 900.60,0.70,0.42,0.40C$76.60In stock
5IK40GN-AT/5GN100KKeyway1PH 110VAC90 x 900.66C$66.31In stock
5IK40GN-AT/5GN10KKeyway1PH 110VAC90 x 900.66C$61.29In stock
5IK40GN-AT/5GN15KKeyway1PH 110VAC90 x 900.66C$61.29In stock
5IK40GN-AT/5GN200KKeyway1PH 110VAC90 x 900.66C$66.31In stock
5IK40GN-AT/5GN20KKeyway1PH 110VAC90 x 900.66C$63.67In stock
5IK40GN-AT/5GN30KKeyway1PH 110VAC90 x 900.66C$63.67In stock
5IK40GN-AT/5GN3KKeyway1PH 110VAC90 x 900.66C$61.29In stock
5IK40GN-AT/5GN50KKeyway1PH 110VAC90 x 900.66C$66.31In stock
5IK40GN-AT/5GN5KKeyway1PH 110VAC90 x 900.66C$61.29In stock
5IK40GN-CT/5GN100KKeyway1PH 220VAC90 x 900.35C$66.31In stock
5IK40GN-CT/5GN10KKeyway1PH 220VAC90 x 900.35C$61.29In stock
5IK40GN-CT/5GN15KKeyway1PH 220VAC90 x 900.35C$61.29In stock
5IK40GN-CT/5GN200KKeyway1PH 220VAC90 x 900.35C$66.31In stock
5IK40GN-CT/5GN20KKeyway1PH 220VAC90 x 900.35C$63.67In stock
5IK40GN-CT/5GN30KKeyway1PH 220VAC90 x 900.35C$63.67In stock
5IK40GN-CT/5GN3KKeyway1PH 220VAC90 x 900.35C$61.29In stock
5IK40GN-CT/5GN50KKeyway1PH 220VAC90 x 900.35C$66.31In stock
5IK40GN-CT/5GN5KKeyway1PH 220VAC90 x 900.35C$61.29In stock
5IK40GN-S/S3T/5GN100KKeyway3PH 220VAC/380VAC90 x 900.32,0.28,0.18,0.16C$66.31In stock
5IK40GN-S/S3T/5GN10KKeyway3PH 220VAC/380VAC90 x 900.32,0.28,0.18,0.16C$61.29In stock
5IK40GN-S/S3T/5GN10K-SALEKeyway3PH 220VAC/380VAC90 x 900.32,0.28,0.18,0.16C$62.26In stock
View all in category
40W 110VAC 60Hz 155RPM 1.88Nm(266.23oz.in) Flange 90mm Spur Gearbox Single-phase AC Induction Motor
This 90x90mm single-phase AC induction gear motor is powered by 110VAC and has a gear ratio of 10, a... Read More
0 reviews • Write a review
from
C$61.29
5 + C$59.64
10 + C$58.09
50 + C$56.61
100 + C$55.20

Click country for real-time stock

Add to Cart
Add to Wish List Compare this Product
Easy Returns

Return within 30 days of delivery. Contact us first and we'll take it from there.

Read more
Ships within 24 hours!
Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.

This 90x90mm single-phase AC induction gear motor is powered by 110VAC and has a gear ratio of 10, a torque of 1.88Nm(266.23oz.in) and a speed of 155rpm. The simple brushless structure, high reliability, relatively high efficiency and long service life make it an excellent cost-effective choice for constant speed applications like industrial equipments, household appliances, power supply systems, transportation, mechanical equipment, etc.

Electrical Specifications

  • P/N: 5IK40GN-AT/5GN10K
  • Gearbox Type: Spur Gearbox
  • Output Power: 40W
  • Voltage: 1PH 110VAC
  • Frequency: 60Hz
  • Current: 0.66A
  • Gear Ratio: 10:1
  • Speed: 155rpm
  • Torque: 1.88Nm(266.23oz.in)
  • Capacitor: 10.0μF/250VAC

Physical Specifications

  • Frame Size: 90x90mm
  • Body Length: 165mm
  • Shaft Type: Keyway
  • Shaft Diameter: Φ12mm
  • Shaft Length: 32mm
  • Weight: 3.53kg

Wiring

Electrical Specification
Current(A) 0.66
Frequency(Hz) 60
Input Voltage(V) 1PH 110VAC
Output Power(W) 40
Speed(rpm) 155
Torque(Nm) 1.88
Physical Specification
Frame Size(mm) 90 x 90
Gear Ratio(xx:1) 10
Gearbox Type Spur Gearbox
Output Shaft Type Keyway

Write a review

Not published. We only use it to follow up on your review.
Note: HTML is not translated!
Rating
Bad Good
Quickview
Nema 23 Bipolar 3Nm(425oz.in) 4.2A 57x57x113mm 4 Wires Stepper Motor CNC
Nema 23 Bipolar 3Nm(425oz.in) 4.2A 57x57x113mm 4 Wires Stepper Motor CNC
This is the strongest Nema 23 stepper cnc motors, it with step angle 1.8deg and size 57x57x113mm. It has 4 wires, each phase draws 4.2A, with holding ..
from
C$41.62
Add to Cart
Add to Wish List Compare this Product
Quickview

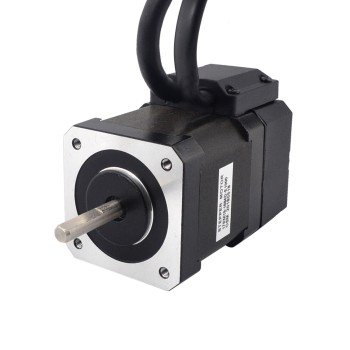

0.9deg Nema 17 Closed Loop Stepper Motor 44Ncm(62.31oz.in) Encoder 1000PPR(4000CPR)
0.9deg Nema 17 Closed Loop Stepper Motor 44Ncm(62.31oz.in) Encoder 1000PPR(4000CPR)
Motor Specification Manufacturer Part Number: 17HM19-1684D-E1000 Motor Type: Bipolar Stepper Step Angle: 0.9deg Holding Torque: 0.44Nm(62.31oz.i..
from
C$0.00
Add to Cart
Add to Wish List Compare this Product
Quickview

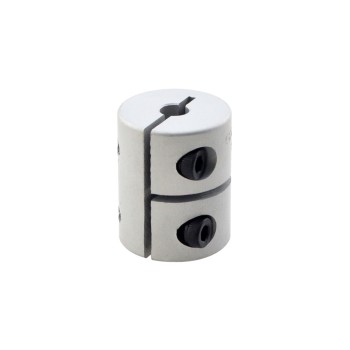

5mm - 5mm Rigid Coupling 20x25mm CNC Stepper Motor Shaft Coupler
5mm - 5mm Rigid Coupling 20x25mm CNC Stepper Motor Shaft Coupler
Specification Part Number: GX2025-5-5 Type: Rigid Rated Torque: 10Nm(1415.78oz.in) Max. Torque: 20Nm(2831.57oz.in) Max. Spe..
from
C$1.99
Add to Cart
Add to Wish List Compare this Product
Quickview
Nema 17 Bracket for Stepper Motor and Geared Stepper Motor Alloy Steel Bracket
🔥 Bestseller
Nema 17 Bracket for Stepper Motor and Geared Stepper Motor Alloy Steel Bracket
Manufacturer P/N: ST-M1 The new designed NEMA 17 Stepper Motor Alloy Steel Mounting Bracket can match standard Nema 17 stepper motor, and also includ..
from
C$2.67
Add to Cart
Add to Wish List Compare this Product
Quickview
Dual Shaft Nema 17 Bipolar 0.9deg 44Ncm(62.3oz.in) 1.68A 42x42x48mm 4 Wires
Dual Shaft Nema 17 Bipolar 0.9deg 44Ncm(62.3oz.in) 1.68A 42x42x48mm 4 Wires
This model is dual shaft Nema 17 Bipolar stepper motor,it with step angle 0.9deg and size 42x42x48mm. It has 4 wires, each phase draws 1.68A, with hol..
from
C$17.17
Add to Cart
Add to Wish List Compare this Product
Quickview
Dual Shaft Nema 17 Bipolar 1.8deg 44Ncm(62.3oz.in) 1.68A 42x42x48mm 4 Wires
Dual Shaft Nema 17 Bipolar 1.8deg 44Ncm(62.3oz.in) 1.68A 42x42x48mm 4 Wires
This bipolar Nema 17 stepper motor with step angle 1.8deg and size 42x42x48mm. It has 4 wires, each phase draws 1.68A, with holding torque 44Ncm(62.3o..
from
C$15.14
Add to Cart
Add to Wish List Compare this Product
Quickview

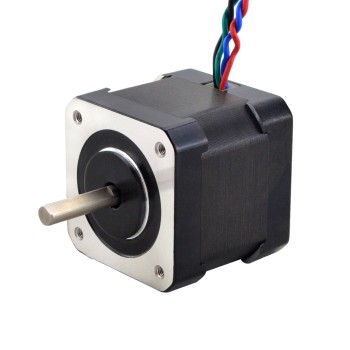

Nema 17 Bipolar 0.9deg 33Ncm(46.74oz.in) 1.0A 42x42x40mm 4 Wires
