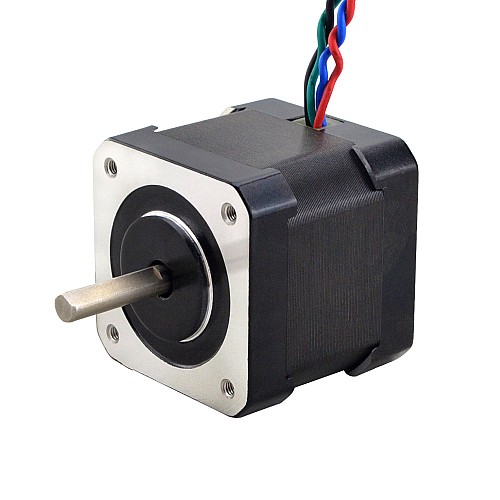

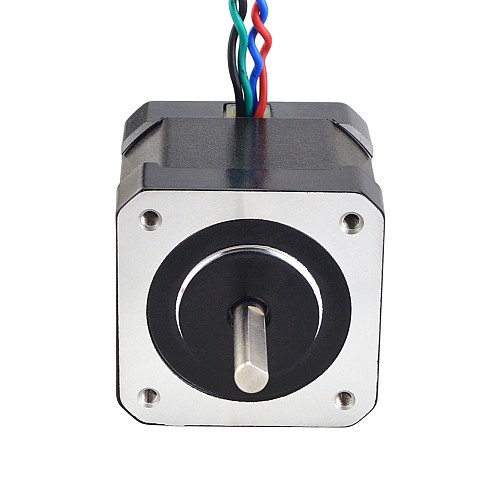

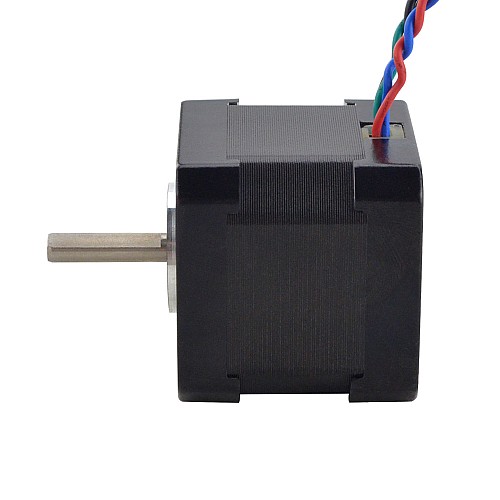

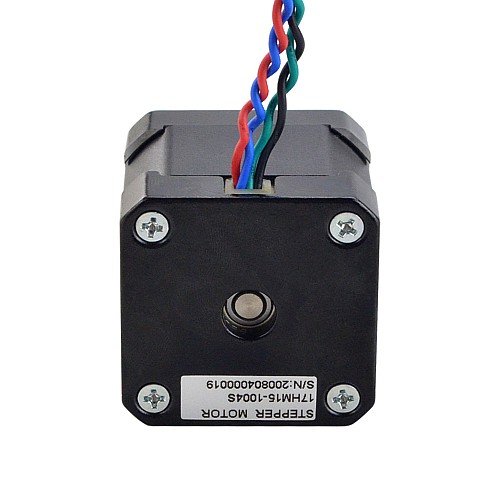

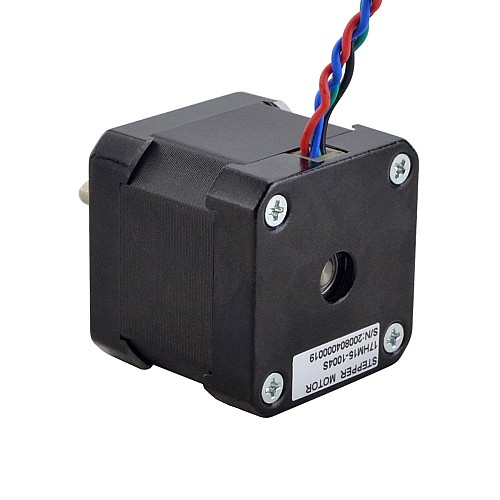

Nema 17 Bipolar 0.9deg 33Ncm(46.74oz.in) 1.0A 42x42x40mm 4 Wires

0 reviews - Write a review

C$14.86

5 + C$14.16

10 + C$13.53

50 + C$12.95

100 + C$12.42

In Stock: 10000
Model: 17HM15-1004S
Gross Weight: 0.36kg
Certificated: ISO, CE, UKCA, RoHS

Available Options

Ships from

China

Qty

Add to Cart

Question

Add to Wish List Compare this Product

Choose a Local Warehouse, Get More Benefits!

Customers in US, UK, EU, Australia & Russia: Please choose local warehouses first (German warehouse for EU). This ensures faster delivery and avoids customs duties, reducing total costs.

Ships within 24 hours!

Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.

Electrical Specification

Manufacturer Part Number: 17HM15-1004S
Motor Type: Bipolar Stepper
Step Angle: 0.9deg
Holding Torque: 33Ncm(46.74oz.in)
Rated Current/phase: 1.0A
Phase Resistance: 4.5ohms
Inductance: 12.5mH±20%(1KHz)
Insulation Class: B 130°C[266°F]

Physical Specifications

Frame Size: 42 x 42mm
Body Length: 40mm
Shaft Diameter: Φ5mm
Shaft Length: 22mm
D-cut Shaft Length: 19mm
Number of Leads: 4
Lead Length: 1000mm
Weight: 0.31kg

Connection

A+	A-	B+	B-
Black	Green	Red	Blue

Product Type
Product Type	Hybrid Stepper Motor
Electrical Specification
Bipolar/Unipolar	Bipolar
Has Torque/Thrust Curve?	Yes
Holding Torque(Ncm)	33
Holding Torque(oz.in)	46.74
Inductance(mH)	12.5
Phase Resistance(ohms)	4.5
Rated Current(A)	1.0
Step Angle(deg.)	0.9
Physical Specification
Body Length(mm)	40
Frame Size(mm)	Nema 17 (42 x 42)
Inventory Method	Dedicated Inventory
Lead Length(mm)	1000
No. of Lead	4
Output Shaft Type	D
Product Series	S
Shaft Diameter(mm)	5
Shaft Length(mm)	22
Single Shaft/Dual Shaft	Single Shaft
Weight(g)	310
