48V 250W 30RPM Geared Brushless DC Motor 40.00Nm(5664.48oz.in) 100:1 Spur Gearbox
This is a 48V 250W brushless DC gear Motor with a flange of 104x104mm. The built-in 100:1 spur gearb... Read More
0 reviews • Write a review
from
C$119.67
5 + C$116.28
10 + C$113.06
50 + C$110.03
100 + C$107.16

Click country for real-time stock

Add to Cart
Add to Wish List Compare this Product
Easy Returns

Return within 30 days of delivery. Contact us first and we'll take it from there.

Read more
Ships within 24 hours!
Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.

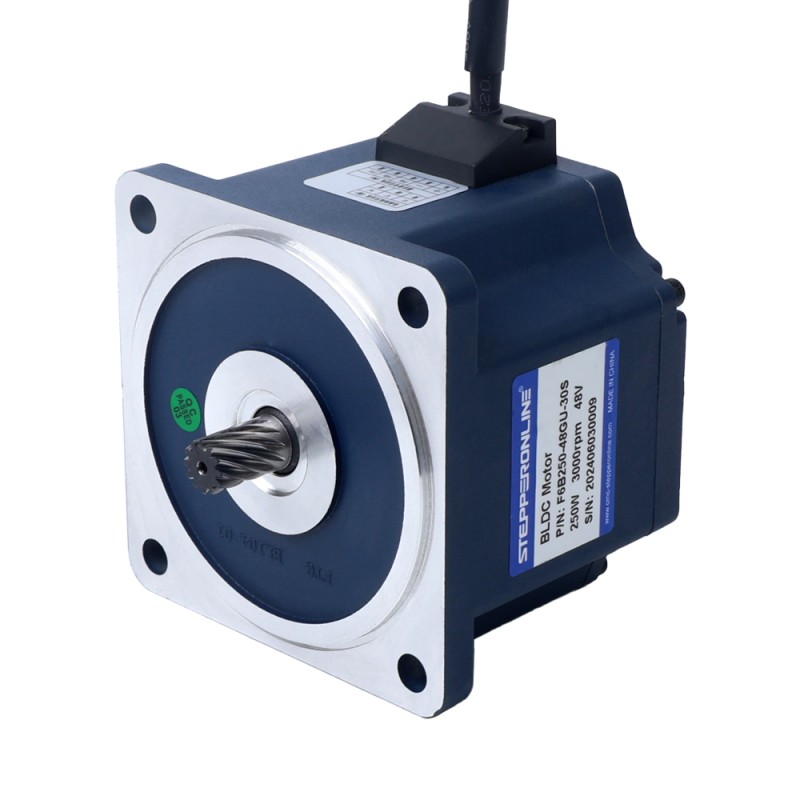

This is a 48V 250W brushless DC gear Motor with a flange of 104x104mm. The built-in 100:1 spur gearbox brings speed and torque to 30rpm and 40.00Nm(5664.48oz.in). Due to its compact structure, high efficiency, low noise, long life, strong controllability, brushless DC gear motors are widely used in industrial automation, home appliances, medical equipment, automotive industry and aerospace fields,etc.

The recommended BLDC driver to match this motor is BLD-515C.

Electrical Specifications

  • P/N: F6B250-48GU-30S/6GU100K
  • Phase: 3
  • Poles: 10
  • Rated Current: 6.40A
  • Rated Voltage: 48V
  • Rated Speed: 30rpm
  • Rated Torque: 40.00Nm(5664.48oz.in)
  • No-load Current: 1.00A
  • Rated Power: 250W
  • Insulation Class: E 120°C[248°F]
  • Insulation Resistance: 50MΩ Min @500V
  • Sensor: Hall Sensor
  • Life: More than 5000 hours

Physical Specifications

  • Frame Size: 104x104mm
  • Body Length: 152mm
  • Gearbox Type: Spur Gearbox
  • Gearbox Ratio: 100:1
  • Shaft Type: Keyway
  • Shaft Diameter: Φ15mm
  • Shaft Length: 42mm
  • Keyway Length: 25mm
  • Bearing: Deep Groove Ball
  • Weight: 4.78kg

Connection

1
2
3
4
5
6
7
8
U
W
Hb
Ha
V
-
Hc
+
Yellow(Thick)
Blue(Thick)
Green
Yellow
Green(Thick)
Black
Blue
Red
Product Type
Product TypeGeared BLDC Motor
Electrical Specification
No-load Current(A)1.0
No. of Phase3
Rated Current(A)6.40
Rated Power(W)250
Rated Speed(rpm)30
Rated Torque(Nm)40.00
Rated Voltage(V)48
Physical Specification
Body Length(mm)152
Frame Size(mm)104 x 104
Gear Ratio(xx:1)100
Gearbox TypeSquare Spur Gearbox
Output Shaft TypeKeyway
Shaft Diameter(mm)15
Shaft Length(mm)42
With GearboxYes
