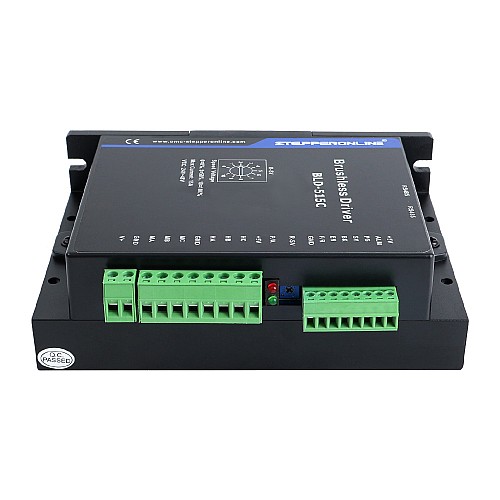

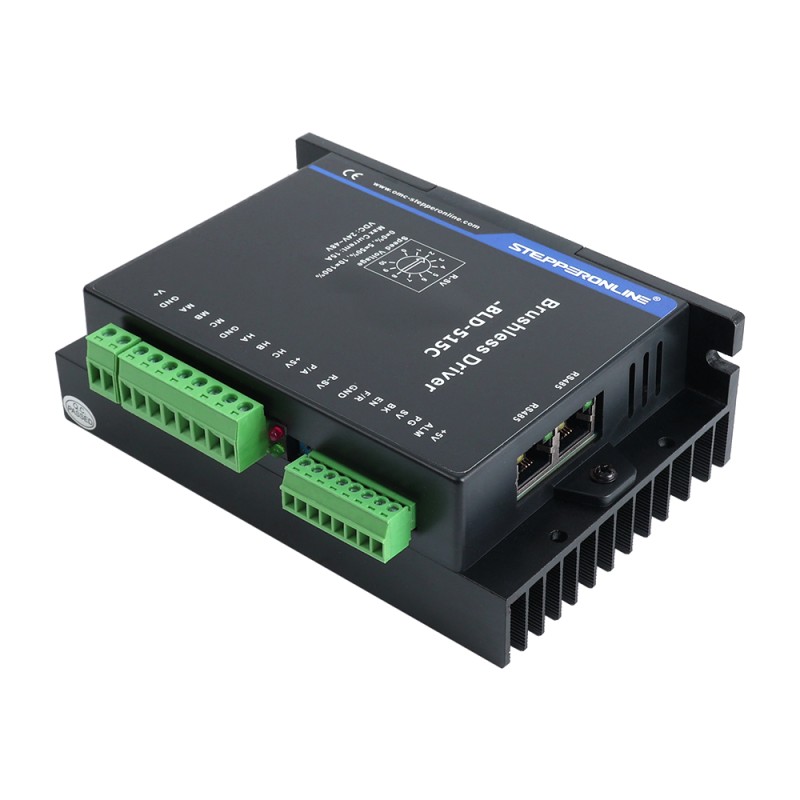

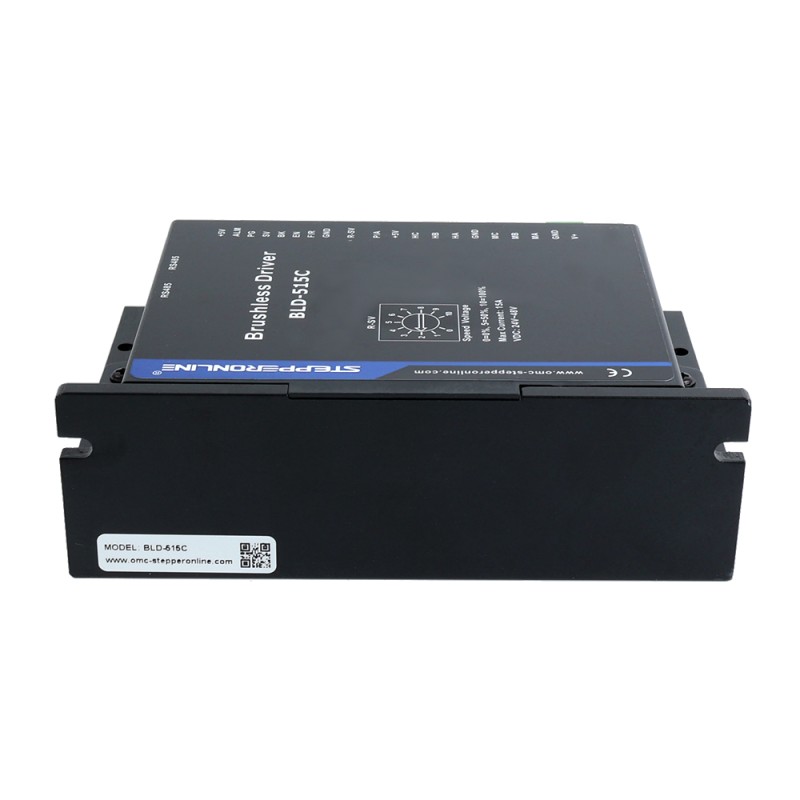

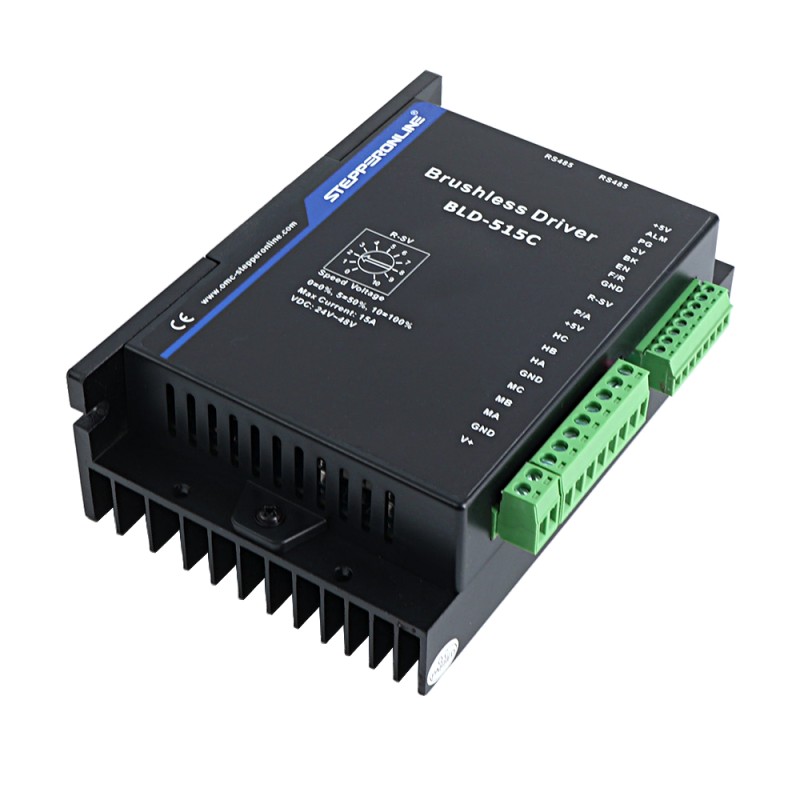

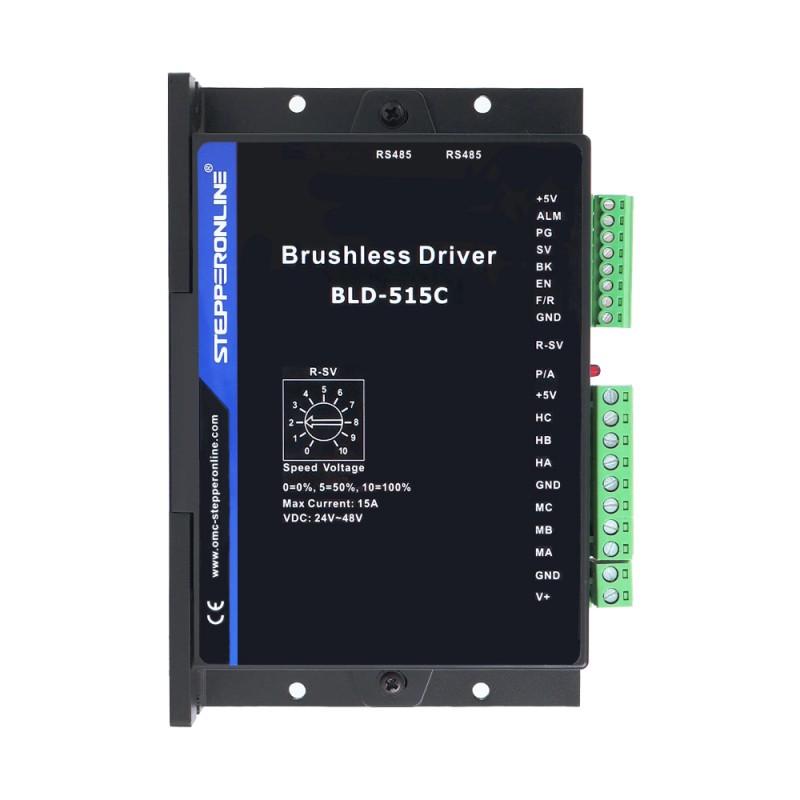

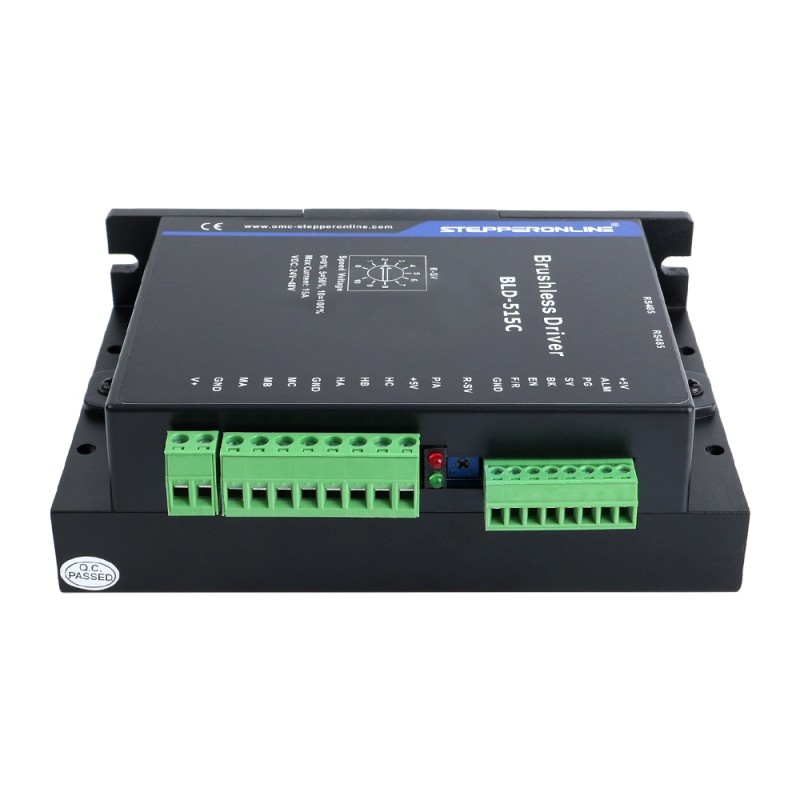

Digital Brushless DC Motor Driver 24-48VDC Max 15.0A 400W

0 reviews - Write a review

C$83.04

5 + C$80.20

10 + C$77.55

50 + C$75.07

100 + C$72.74

In Stock: 10000
Model: BLD-515C
Gross Weight: 1.00kg
Certificated: ISO, CE

Sold: 319

Click country for real-time stock

Ships from

China

United States

Germany

Qty

Add to Cart

Question

Add to Wish List Compare this Product

Ships within 24 hours!

Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.

Choose a Local Warehouse, Get More Benefits!

Customers in US, UK, EU, Australia & Russia: Please choose local warehouses first (German warehouse for EU). This ensures faster delivery and avoids customs duties, reducing total costs.

This 24-48VDC 400W brushless motor driver is a driver independently developed by STEPPERONLINE to work with the field of modern industrial automatic control. It mainly uses high performance dedicated brushless DC motor driver chips, the latest IGBT and MOS power devices and adopts PWM technology. It is characterised by high integration, small size, complete protection, simple and clear wiring and high reliability. The driver supports CAN bus protocol and is suitable for driving medium-sized brushless DC motors with a rated power below 400W.

Features

20kHz chopper frequency
Support baud rate modification
High performance at a low price
Compatible with Hall and non-Hall sensors
PID speed and current dual-loop regulator
Support CAN bus protocol, support Modbus communication protocol, RS485 interface
It has stall protection function to make the motor respond quickly
The overload multiple is greater than 2, and the torque can always reach the maximum at low speed
Build with over-voltage, under-voltage, over-current, over-temperature, illegal Hall signal and other error alarm functions

Electrical Specification

Parameters	BLD-515C
Input Voltage(VDC)	12	24	36	48
Continuous Output Current(A)	12.5	12.5	10.0	8.3
Rated Output Power(W)	150	300	360	400
Peak Current(A)	15.0

As a medium-to-high-speed motor, we do not recommend brushless motors to operate within 150rpm.

Operating Environment

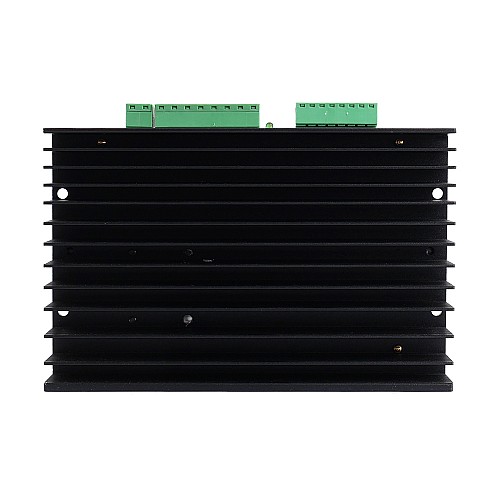

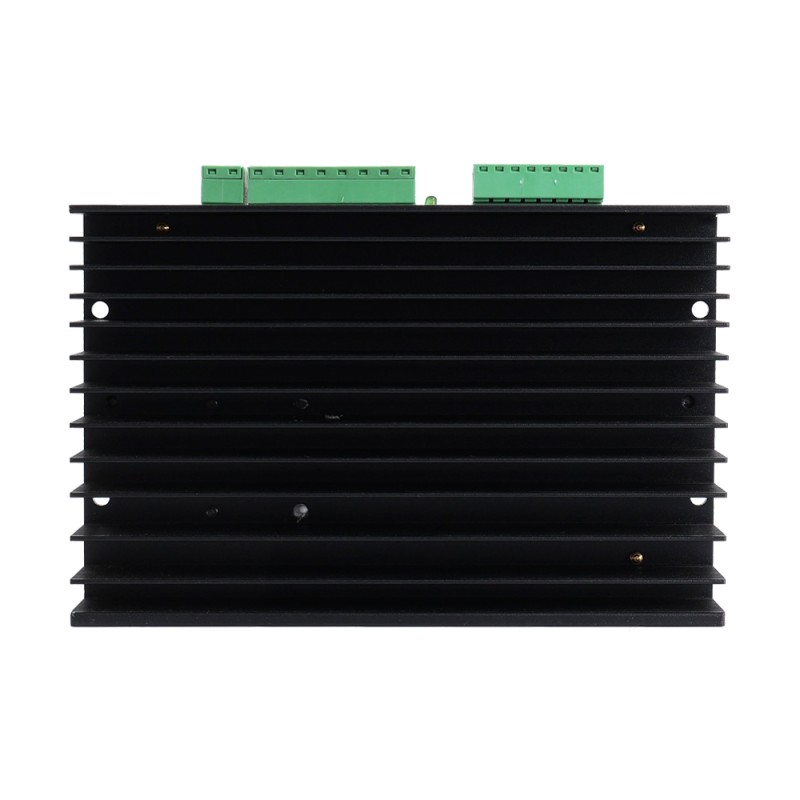

Cooling Method	Radiator
Humidity	<85%(No Frosting)
Operating Temperature	0℃ - 45℃
Store Temperature	-20℃ - 85℃
Product Type
Product Type	Brushless DC Driver
Electrical Specification
Alarm Output	Yes
Continuous Output Current(A)	12.5A(12VDC), 12.5A(24VDC), 10.0A(36VDC), 8.3A(48VDC)
Control Modes	Analog Voltage, RS-485, CAN
E-STOP	Yes
Max. Output Power(W)	400
Operating Voltage(V)	12DC, 24DC, 36DC, 48DC
Peak Current(A)	15.0
Power(W)	150W(12VDC), 300W(24VDC), 360W(36VDC), 400W(48VDC)
Speed Signal Output	Yes
Physical Specification
Inventory Method	Dedicated Inventory
