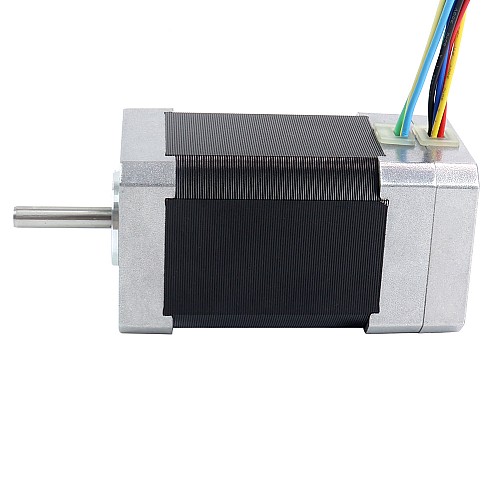

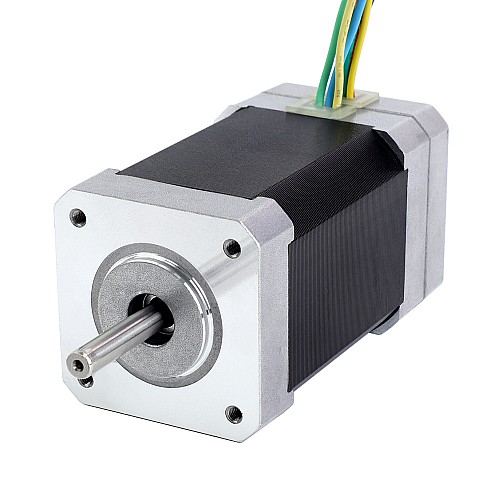

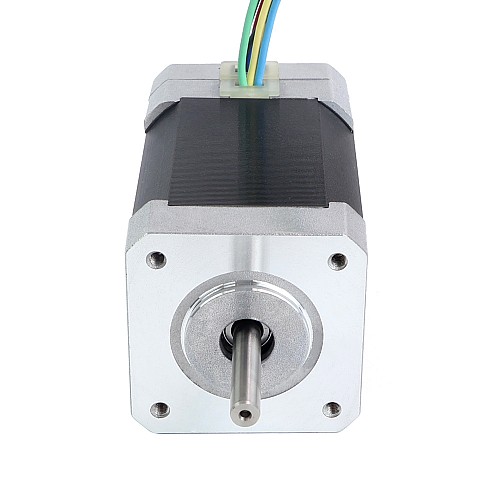

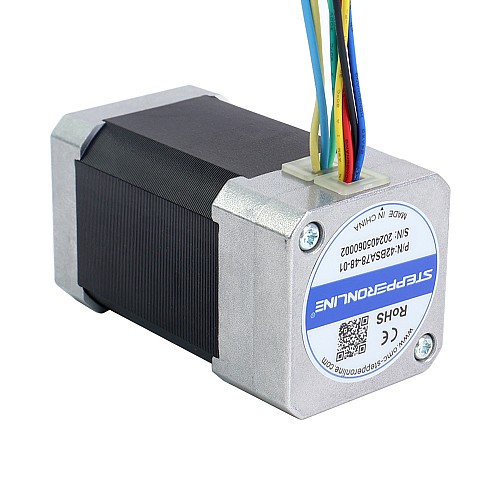

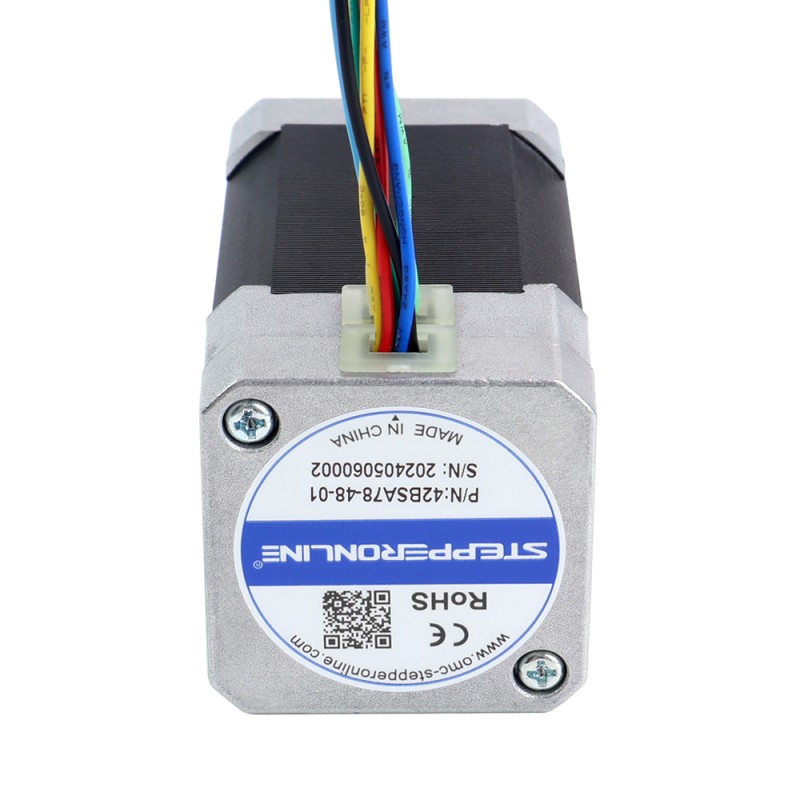

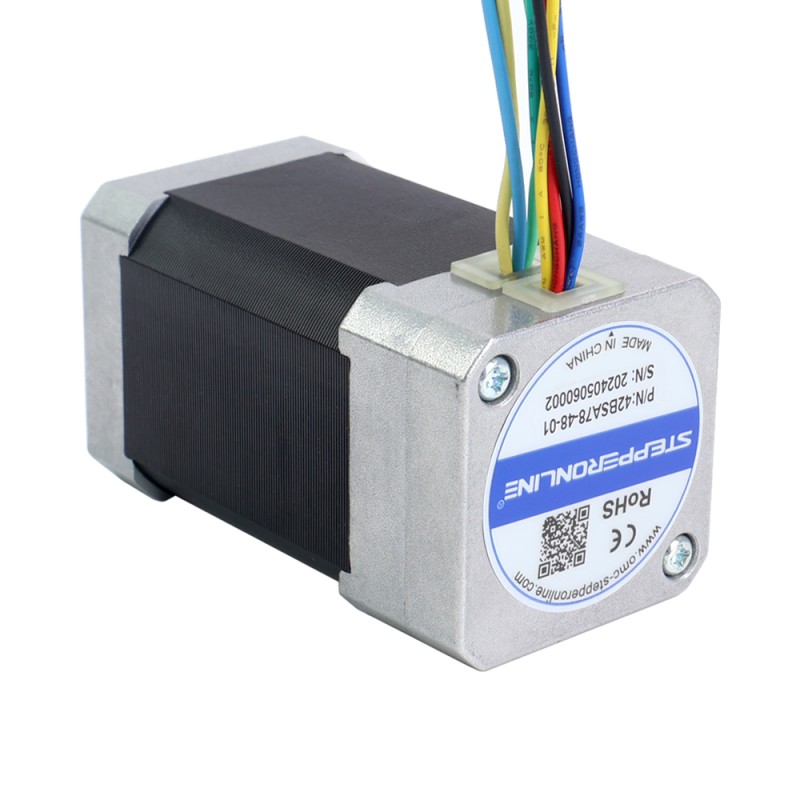

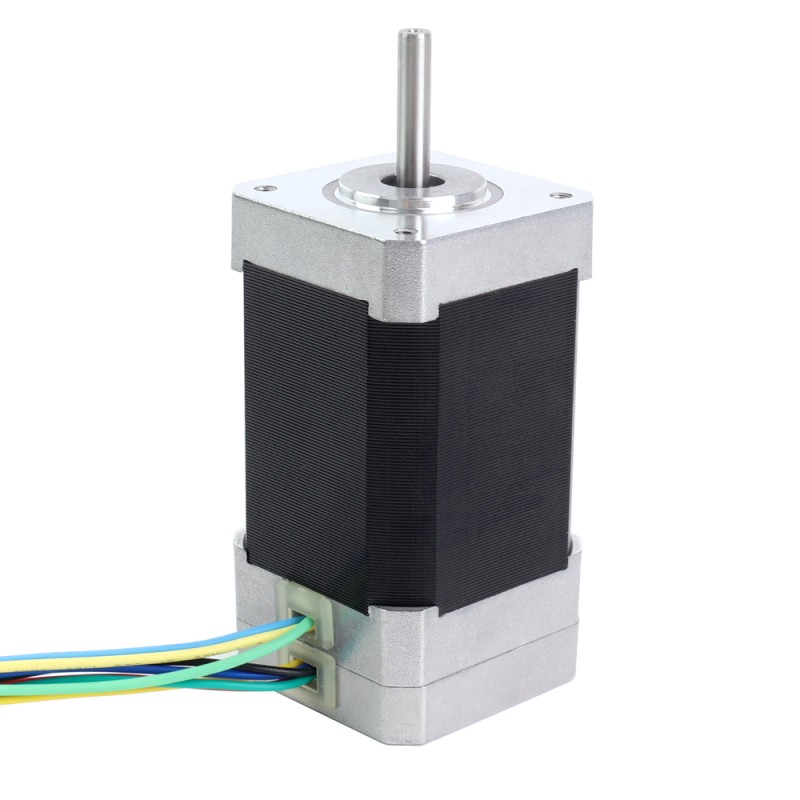

48V 3000RPM 0.24Nm 75W 2.40A 42x42x78mm Brushless DC Motor

48V 3000RPM 0.24Nm 75W 2.40A 42x42x78mm Brushless DC Motor - 42BSA78-48-01 | StepperOnline CA
48V 3000RPM 0.24Nm 75W 2.40A 42x42x78mm Brushless DC Motor - 42BSA78-48-01 | StepperOnline CA
48V 3000RPM 0.24Nm 75W 2.40A 42x42x78mm Brushless DC Motor - 42BSA78-48-01 | StepperOnline CA
48V 3000RPM 0.24Nm 75W 2.40A 42x42x78mm Brushless DC Motor - 42BSA78-48-01 | StepperOnline CA
48V 3000RPM 0.24Nm 75W 2.40A 42x42x78mm Brushless DC Motor - 42BSA78-48-01 | StepperOnline CA
48V 3000RPM 0.24Nm 75W 2.40A 42x42x78mm Brushless DC Motor - 42BSA78-48-01 | StepperOnline CA
48V 3000RPM 0.24Nm 75W 2.40A 42x42x78mm Brushless DC Motor - 42BSA78-48-01 | StepperOnline CA
48V 3000RPM 0.24Nm 75W 2.40A 42x42x78mm Brushless DC Motor - 42BSA78-48-01 | StepperOnline CA
48V 3000RPM 0.24Nm 75W 2.40A 42x42x78mm Brushless DC Motor - 42BSA78-48-01 | StepperOnline CA
48V 3000RPM 0.24Nm 75W 2.40A 42x42x78mm Brushless DC Motor - 42BSA78-48-01 | StepperOnline CA
48V 3000RPM 0.24Nm 75W 2.40A 42x42x78mm Brushless DC Motor - 42BSA78-48-01 | StepperOnline CA
48V 3000RPM 0.24Nm 75W 2.40A 42x42x78mm Brushless DC Motor - 42BSA78-48-01 | StepperOnline CA
42BSA78-48-01
Output Shaft TypeO
Shaft Diameter(mm)5
Shaft Length(mm)24
Rated Voltage(V)48
Question

Downloads

42BSA78-48-01 Full DatasheetPDF · 118.44KB
Same series
ModelOutput Shaft TypeShaft Diameter(mm)Shaft Length(mm)Rated Voltage(V)PriceStock
36BLR65-24-01 DiscontinuedO41524—
42BLR43-24-01O52024C$28.81Backorder
42BLS40-24-01O52024C$24.88In stock
42BLS60-24-01O52024C$31.08In stock
42BSA46-24-01O52424C$23.04In stock
42BSA62-24-01O52424C$25.92In stock
42BSA62-36-01O52436C$25.92In stock
42BSA78-24-01O52424C$34.56In stock
42BSA78-48-01O52448C$34.56In stock
42BSB101-24-01O52024C$31.68In stock
42BSB101-48-01O52048C$31.68In stock
42BSB41-24-01O52024C$20.16In stock
42BSB61-24-01O52024C$23.04In stock
42BSB61-48-01O52048C$23.04In stock
42BSB81-24-01O52024C$28.80In stock
42BSB81-48-01O52048C$28.80In stock
42BYA43-24-01O52024C$21.60In stock
42BYA51-24-01O52024C$24.48In stock
42BYA73-24-01O52024C$34.56In stock
57BLR110-36-01O82536C$52.37In stock
57BLR50-24-01O82524C$32.20In stock
57BLR50-36-01D82536C$32.20In stock
57BLR70-24-02O82524C$45.76In stock
57BLR70-36-01O82536C$37.29In stock
57BLY54-24-01O82124C$27.12In stock
57BSA100-36-01D82136C$63.36In stock
57BSA100-48-01D82148C$63.36In stock
57BSA58-24-01D82124C$31.68In stock
57BSA79-36-01D82136C$46.08In stock
57BSD116-36-01D82136C$41.76In stock
View all in category
48V 3000RPM 0.24Nm 75W 2.40A 42x42x78mm Brushless DC Motor
This is a 48V brushless DC motor with 3 phases and 8 poles. It offers a rated speed of 3000rpm and t... Read More
0 reviews • Write a review
from
C$34.56
5 + C$33.55
10 + C$32.60
50 + C$31.70
100 + C$30.85

Click country for real-time stock

Add to Cart
Add to Wish List Compare this Product
Easy Returns

Return within 30 days of delivery. Contact us first and we'll take it from there.

Read more
Ships within 24 hours!
Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.

This is a 48V brushless DC motor with 3 phases and 8 poles. It offers a rated speed of 3000rpm and torque of 0.24Nm(33.99oz.in).
42BSA series brushless motors are high-performance motors with square body and larger torque that are suitable for textile machines, robotics, autobikes and other industrial applications.

Electrical Specification

  • Manufacturer Part Number: 42BSA78-48-01
  • Phase: 3
  • Poles: 8
  • Rated Voltage: 48V
  • Rated Torque: 0.24Nm(33.99oz.in)
  • Rated Power: 75W
  • Rated Speed: 3000±10%RPM
  • Rated Current: 2.40A
  • No-load Speed: 3850±10%RPM
  • Resistance/phase: 3.20±10%Ohms
  • Inductance/phase: 1.90±20%mH
  • BACK EMF: 8.92±5%V/krpm
  • Insulation Class: B 130°C[266°F]

Physical Specification

  • Frame Size: 42 x 42mm
  • Body Length: 78mm
  • Shaft Diameter: Φ5mm
  • Shaft Length: 24mm
  • Shaft Type: Round
  • Number of Leads: 8
  • Lead Length: 500mm
  • Sensor: Hall Sensor
  • Weight: 0.58kg

Connection

U
V
W
+5V
GND
A
B
C
Yellow
Green
Blue
Red
Black
Yellow
Green
Blue
Product Type
Product Type BLDC Motor
Electrical Specification
No. of Phase 3
Rated Current(A) 2.40
Rated Power(W) 75
Rated Speed(rpm) 3000
Rated Torque(Nm) 0.24
Rated Voltage(V) 48
Physical Specification
Body Length(mm) 78
Frame Size(mm) Nema 17 (42 x 42)
IP Rating 20
Output Shaft Type O
Shaft Diameter(mm) 5
Shaft Length(mm) 24
With Gearbox No

Write a review

Not published. We only use it to follow up on your review.
Note: HTML is not translated!
Rating
Bad Good
Quickview
Nema 17 Closed Loop Stepper Motor 65Ncm(92.05oz.in) with Magnetic Encoder 1000PPR(4000CPR)
Nema 17 Closed Loop Stepper Motor 65Ncm(92.05oz.in) with Magnetic Encoder 1000PPR(4000CPR)
This nema 17 closed loop stepper motor with 63.5mm thickness include encoder. The encoder is a magnetic encoder with 3 channels and 1000PPR(4000CPR) r..
from
C$31.62
Add to Cart
Add to Wish List Compare this Product
Quickview
Nema 17 Closed Loop Stepper Motor 45Ncm(63.7oz.in) with Magnetic Encoder 1000PPR(4000CPR)
Nema 17 Closed Loop Stepper Motor 45Ncm(63.7oz.in) with Magnetic Encoder 1000PPR(4000CPR)
This nema 17 closed loop stepper motor with 43.5mm thickness include encoder. The encoder is a magnetic encoder with 3 channels and 1000PPR(4000CPR) r..
from
C$26.36
Add to Cart
Add to Wish List Compare this Product
Quickview
1000PPR Optical Rotary Encoder AB 2-Channel ID 5mm w/ Shielded Cable HKT30
1000PPR Optical Rotary Encoder AB 2-Channel ID 5mm w/ Shielded Cable HKT30
Encoder Specification Output Circuit Type: Push-Pull (Single-Ended) Controlled By: Encoder Interface Encoder Resolution: 1000PPR Output Signal C..
from
C$30.73
Add to Cart
Add to Wish List Compare this Product
Quickview
250W 48V 5.2A 115/230V Switching Power Supply Stepper Motor CNC Router Kits
250W 48V 5.2A 115/230V Switching Power Supply Stepper Motor CNC Router Kits
This LE series switching power supply has an output power of 250W, an output voltage of 48V, and an output current of 5.2A. Selectable input voltage o..
from
C$21.61
Add to Cart
Add to Wish List Compare this Product
Quickview
8mm - 10mm Flexible Jaw Coupling 25x30mm CNC Stepper Motor Shaft Coupler
8mm - 10mm Flexible Jaw Coupling 25x30mm CNC Stepper Motor Shaft Coupler
Specification Part Number: MH2530-8-10 Type: Jaw Type Rated Torque: 6Nm(849.47oz.in) Max. Torque: 12Nm(1698.94oz.in) Max. S..
from
C$5.22
Add to Cart
Add to Wish List Compare this Product
Quickview
400W 48V 8.3A 115/230V Switching Power Supply Stepper Motor CNC Router Kits
400W 48V 8.3A 115/230V Switching Power Supply Stepper Motor CNC Router Kits
This LE series switching power supply has an output power of 400W, an output voltage of 48V, and an output current of 8.3A. Selectable input voltage o..
from
C$28.80
Add to Cart
Add to Wish List Compare this Product
Quickview
Digital Brushless DC Motor Driver 24V-48VDC Max 15.0A 400W
Digital Brushless DC Motor Driver 24V-48VDC Max 15.0A 400W
This 12V-48VDC 400W brushless motor driver is a driver independently developed by STEPPERONLINE to work with the field of modern industrial autom..
from
C$28.80
Add to Cart
Add to Wish List Compare this Product
Quickview

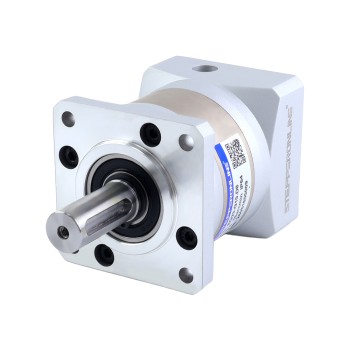

EG Series Planetary Gearbox Gear Ratio 10:1 Backlash 15arc-min for 8mm Shaft Nema 23 Stepper Motor
