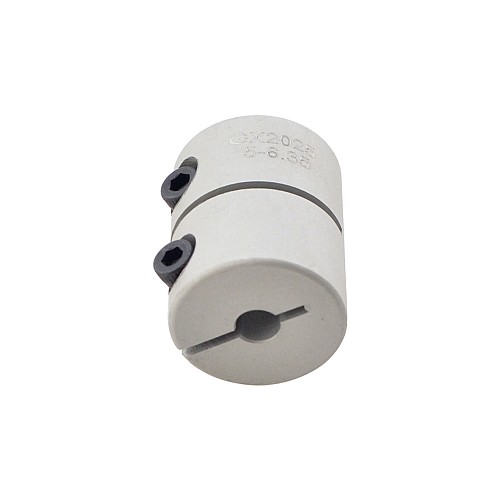

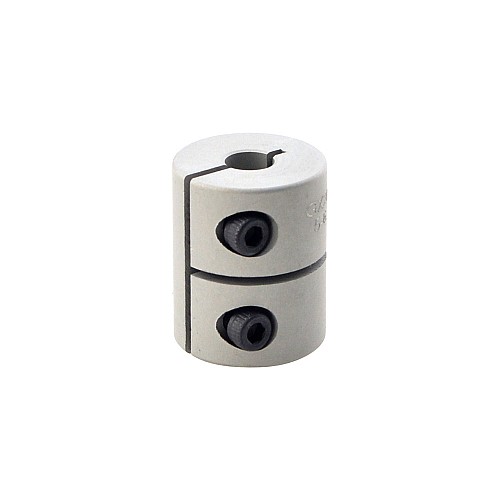

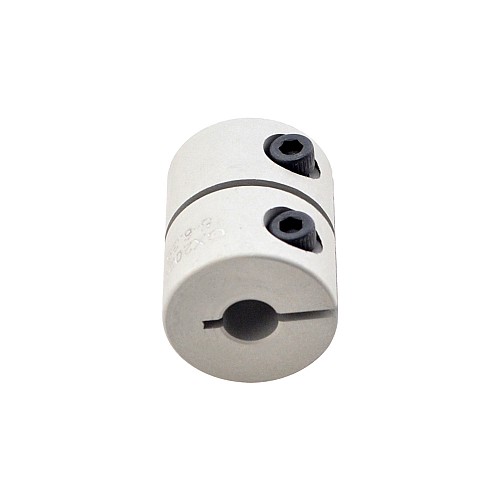

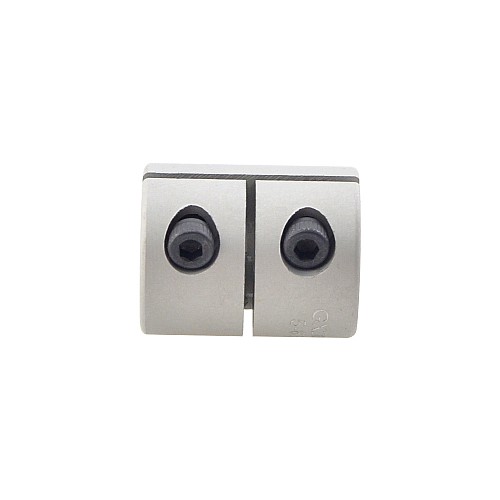

5mm - 6.35mm Rigid Coupling 20x25mm CNC Stepper Motor Shaft Coupler
C$2.03
5 + C$1.92
10 + C$1.84
50 + C$1.76
100 + C$1.69
- In Stock: 10000
- Model: GX2025-5-6.35
- Gross Weight: 0.08kg
- Certificated: ISO
Specification
- Part Number: GX2025-5-6.35
- Type: Rigid
- Rated Torque: 10Nm(1415.78oz.in)
- Max. Torque: 20Nm(2831.57oz.in)
- Max. Speed: 31000rpm
- Moment of Inertia: 3.4*10-8kg*m2
- Bore Diameter(d1-d2): 5mm - 6.35mm
- Body Outside Diameter(D): 20mm
- Body Length(L): 25mm
- Material Type: Aluminum
| Model(Rigid) | d1(mm) | d2(mm) | D(mm) | L(mm) | t(mm) | L2(mm) | M(mm) | A(mm) | Rated Torque(Nm) | Max.Torque(Nm) | Max.Speed(rpm) | Moment of Inertia(kg.cm2) | Tightening Torque(N.M) |
| GX2025-5-5 | 5 | 5 | 20 | 25 | 1 | 12 | 2-M3 | 7 | 10 | 20 | 31000 | 3.4*10-7 | 3 |
| GX2025-5-6.35 | 5 | 6.35 | 20 | 25 | 1 | 12 | 2-M3 | 7 | 10 | 20 | 31000 | 3.4*10-8 | 3 |
| GX2025-5-8 | 5 | 8 | 20 | 25 | 1 | 12 | 2-M3 | 7 | 10 | 20 | 31000 | 3.4*10-9 | 3 |
| GX2025-6.35-8 | 6.35 | 8 | 20 | 25 | 1 | 12 | 2-M3 | 7 | 10 | 20 | 31000 | 3.4*10-10 | 3 |
| GX2025-8-10 | 8 | 10 | 20 | 25 | 1 | 12 | 2-M3 | 7 | 10 | 20 | 31000 | 3.4*10-11 | 3 |
| GX2025-8-8 | 8 | 8 | 20 | 25 | 1 | 12 | 2-M3 | 7 | 10 | 20 | 31000 | 3.4*10-12 | 3 |
