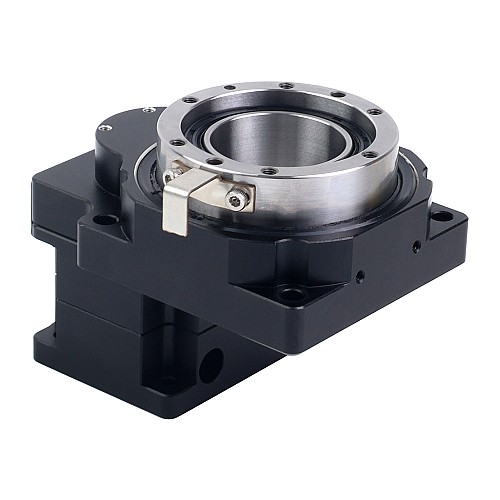

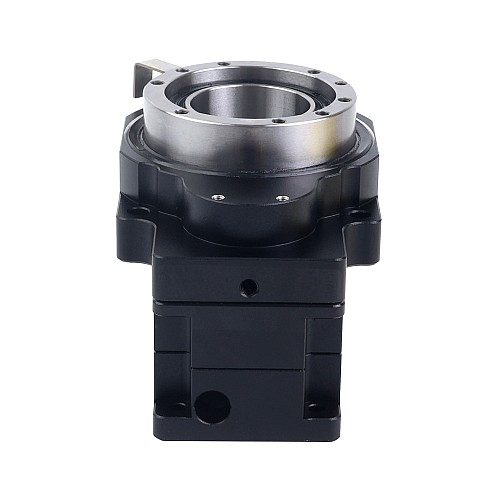

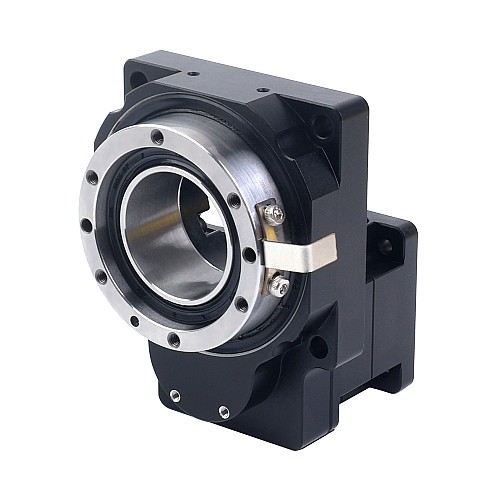

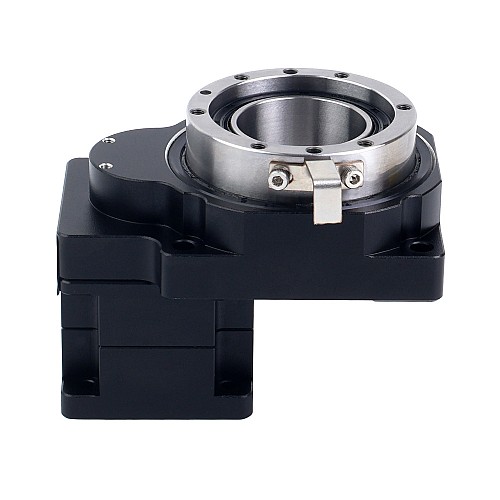

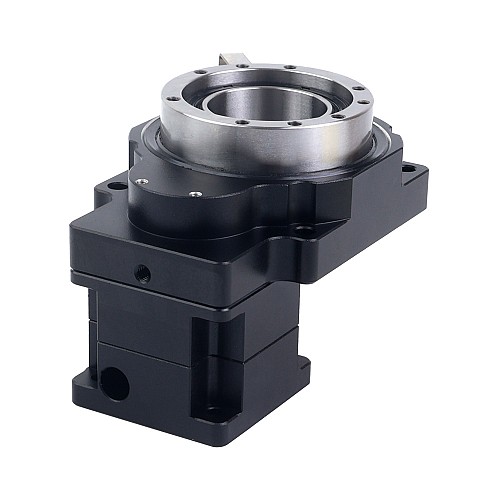

60mm Hollow Rotary Actuator Platform Gear Ratio 10:1 Backlash 3arc-min for Nema 17 Stepper Motor

0 reviews - Write a review

C$159.16

5 + C$153.71

10 + C$148.64

50 + C$143.87

100 + C$139.42

In Stock: 10000
Model: HRP60KE-G10-D5
Gross Weight: 0.60kg
Certificated: ISO, CE

Sold: 57

Click country for real-time stock

Ships from

China

United States

Qty

Add to Cart

Question

Add to Wish List Compare this Product

Choose a Local Warehouse, Get More Benefits!

Customers in US, UK, EU, Australia & Russia: Please choose local warehouses first (German warehouse for EU). This ensures faster delivery and avoids customs duties, reducing total costs.

This hollow rotary actuator platform fits for standard Nema 17 stepper motors. It features a gear ratio of 10:1, permissible torque of 4.50Nm(637.25oz.in), 3arcmin positioning accuracy and 15arcsec repeated positioning accuracy.
Its crossed roller bearing ensures high precision, stable torque, and strong load capacity. The 360-degree hollow design allows precise positioning at any angle, compatible with stepper or servo motors. Ideal for automation, glue dispensing, packaging, inspection, laser printing, sorting, and robotics.

Physical Specifications

Part Number: HRP60KE-G10-D5
Gear Ratio: 10:1
Gearbox Type: Hollow Rotary Actuator Platform
Gear Material: Alloy Steel
Efficiency: 95%
Position Accuracy: 3arcmin
Repeated Position Accuracy: ±15arcsec
Permissible Torque: 4.50Nm(637.25oz.in)
Allowable Moment of Inertia: 5.60Nm(793.03oz.in)
Moment of inertia: 3500g·cm²
Maximum Axial Load: 280N
Recommended Axial Load: 50N
Maximum Radial Load: 510N
Permissible Output Speed: 200rpm
Platform Parallelism: ≤0.010mm
Platform Jumping: ≤0.010mm
Noise: <=65dB
Waterproof Rating: IP40
Lifetime: 20000hours
Lubrication Method: Lubricating Grease
Platform Frame Size: 60 x 60mm
Mounting Flange Size: 42 x 42mm
Input Shaft Diameter: Φ5mm
Maximum Input Shaft Length: 26mm
Diameter of Hollow Section: 28mm
Platform Height: 65.5mm

Physical Specification
Diameter of Hollow Section(mm)	28
Frame Size(mm)	60 x 60
Gear Material	Alloy Steel
Gear Ratio(xx:1)	10
Gearbox Length(mm)	65.5
Gearbox Type	Hollow Rotary Actuator Platform
Input Shaft Diameter(mm)	5
Matching Motor Size	Nema 17 Stepper Motor
Max. Axial Load(N)	280
Max. Radial Load(N)	510
Permissible Torque(Nm)	4.5
