P Series Nema 17 Closed Loop Stepper Motor 48Ncm(67.97oz.in) with Encoder 1000PPR(4000CPR)
1 reviews - Write a review
C$45.20
5 + C$43.33
10 + C$41.62
50 + C$40.03
100 + C$38.55
  • In Stock: 10000
  • Model: 17E1K-05
  • Gross Weight: 0.53kg
  • Certificated: ISO, CE, UKCA, RoHS

Available Options

Add to Cart
Question
Add to Wish List Compare this Product
How to Choose a Shipping Warehouse？
For customers in the US, the UK, EU, Australia and Russia, please prioritize selecting a local warehouse. For the EU countries, choose the German warehouse.
The benefits of this selection include faster delivery times and lower overall costs, as no customs duties are incurred.
Ships within 24 hours!
Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.

Electrical Specification

  • Manufacturer Part Number: 17E1K-05
  • Number of phase: 2
  • Step Angle: 1.8deg
  • Holding Torque: 48Ncm(67.97oz.in)
  • Rated Current/phase: 2.0A
  • Phase Resistance: 1.35ohms
  • Inductance: 2.8mH ± 20%(1KHz)
  • Insulation Class: B 130°C[266°F]

Physical Specification

  • Frame Size: 42 x 42mm
  • Body Length: 68mm
  • Shaft Diameter: Φ5mm
  • Shaft Length: 24mm
  • D-Cut Shaft Length: 15mm
  • Lead Length: 270mm
  • Weight: 0.36kg

Encoder Specification

  • Output Circuit Type: Differential type
  • Encoder Type: Optical Incremental
  • Encoder Resolution: 1000PPR(4000CPR)
  • Output Signal Channels: 2 channels
  • Supply Voltage Min: 5V
  • Supply Voltage Max: 5V
  • Output High Voltage: ＜4V
  • Output Low Voltage: ＜1V

Connection

PIN
1
2
3
4
Motor
A+
A-
B+
B-

PIN
2
3
1
13
11
12
Encoder
VCC
EGND
EA+
EA-
EB+
EB-

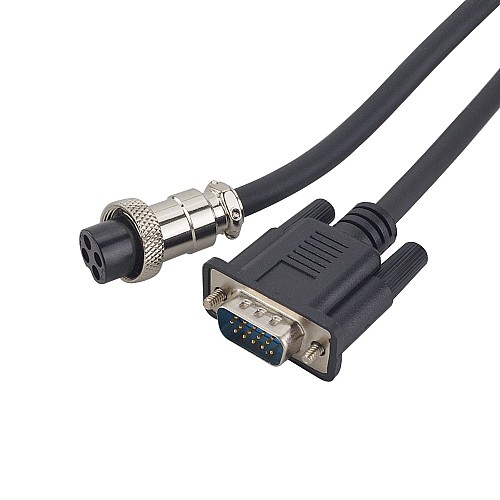

The motor comes with a highly flexible cable that can be bent 8 million times without failure.
Product Type
Product Type Closed Loop Stepper Motor
Electrical Specification
Encoder Resolution 1000PPR
Encoder Type Optical Incremental
Has Torque/Thrust Curve? Yes
Holding Torque(Ncm) 48
Holding Torque(oz.in) 67.97
Inductance(mH) 2.8
Output Circuit Type Differential
Output Signal Channels 2
Phase Resistance(ohms) 1.35
Rated Current(A) 2.0
Physical Specification
Body Length(mm) 68
Frame Size(mm) Nema 17 (42 x 42)
Inventory Method Dedicated Inventory
Product Series P
Shaft Diameter(mm) 5
Shaft Length(mm) 24




File Size
17E1K-05_Full_Datasheet.pdf 173.63KB Download
17E1K-05.STEP 7.5MB Download
17E1K-05_Torque_Curve.pdf 209.69KB Download
