2IK6GN-C/2GN200K
Output Shaft TypeD
Input Voltage(V)1PH 220VAC
Frame Size(mm)60 x 60
Current(A)0.13
Question

Downloads

2IK6GN-C_2GNXXK_manual.pdfPDF · 1.97MB2IK6GN-C_2GNXXK.STEPSTEP · 1.6MBLog in to download
Same series
ModelOutput Shaft TypeInput Voltage(V)Frame Size(mm)Current(A)PriceStock
2IK6GN-A/2GN100KD1PH 110VAC60 x 600.21C$33.29In stock
2IK6GN-A/2GN10KD1PH 110VAC60 x 600.21C$29.58In stock
2IK6GN-A/2GN15KD1PH 110VAC60 x 600.21C$29.58In stock
2IK6GN-A/2GN200KD1PH 110VAC60 x 600.21C$33.29In stock
2IK6GN-A/2GN20KD1PH 110VAC60 x 600.21C$31.44In stock
2IK6GN-A/2GN30KD1PH 110VAC60 x 600.21C$31.44In stock
2IK6GN-A/2GN3KD1PH 110VAC60 x 600.21C$29.58In stock
2IK6GN-A/2GN50KD1PH 110VAC60 x 600.21C$31.44In stock
2IK6GN-A/2GN5KD1PH 110VAC60 x 600.21C$29.58In stock
2IK6GN-C/2GN100KD1PH 220VAC60 x 600.13C$33.29In stock
2IK6GN-C/2GN10KD1PH 220VAC60 x 600.13C$29.58In stock
2IK6GN-C/2GN15KD1PH 220VAC60 x 600.13C$29.58In stock
2IK6GN-C/2GN200KD1PH 220VAC60 x 600.13C$33.29In stock
2IK6GN-C/2GN20KD1PH 220VAC60 x 600.13C$31.44In stock
2IK6GN-C/2GN30KD1PH 220VAC60 x 600.13C$31.44In stock
2IK6GN-C/2GN3KD1PH 220VAC60 x 600.13C$29.58In stock
2IK6GN-C/2GN50KD1PH 220VAC60 x 600.13C$31.44In stock
2IK6GN-C/2GN5KD1PH 220VAC60 x 600.13C$29.58In stock
6W 220VAC 50Hz 6.75RPM 3.00Nm(424.83oz.in) Flange 60mm Spur Gearbox Single-phase AC Induction Motor
This 60x60mm single-phase AC induction gear motor is powered by 220VAC and has a gear ratio of 200, ... Read More
0 reviews • Write a review
from
C$33.29
5 + C$32.39
10 + C$31.54
50 + C$30.74
100 + C$29.97

Click country for real-time stock

Add to Cart
Add to Wish List Compare this Product
Easy Returns

Return within 30 days of delivery. Contact us first and we'll take it from there.

Read more
Ships within 24 hours!
Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.

This 60x60mm single-phase AC induction gear motor is powered by 220VAC and has a gear ratio of 200, a torque of 3.00Nm(424.83oz.in) and a speed of 6.75rpm. The simple brushless structure, high reliability, relatively high efficiency and long service life make it an excellent cost-effective choice for constant speed applications like industrial equipments, household appliances, power supply systems, transportation, mechanical equipment, etc.

Electrical Specifications

  • P/N: 2IK6GN-C/2GN200K
  • Gearbox Type: Spur Gearbox
  • Output Power: 6W
  • Voltage: 1PH 220VAC
  • Frequency: 50Hz
  • Current: 0.13A
  • Gear Ratio: 200:1
  • Speed: 6.75rpm
  • Torque: 3.00Nm(424.83oz.in)
  • Capacitor: 0.8μF/450VAC

Physical Specifications

  • Frame Size: 60x60mm
  • Body Length: 118mm
  • Shaft Type: D-cut
  • Shaft Diameter: Φ8mm
  • Shaft Length: 30mm
  • Weight: 1.15kg

Wiring

Electrical Specification
Current(A) 0.13
Frequency(Hz) 50
Input Voltage(V) 1PH 220VAC
Output Power(W) 6
Speed(rpm) 6.75
Torque(Nm) 3
Physical Specification
Frame Size(mm) 60 x 60
Gear Ratio(xx:1) 200
Gearbox Type Spur Gearbox
Output Shaft Type D

Write a review

Not published. We only use it to follow up on your review.
Note: HTML is not translated!
Rating
Bad Good
Quickview
Dual Shaft Nema 8 Bipolar 4Ncm(5.7oz.in) 0.6A 20x20x38mm 4 Wires
Dual Shaft Nema 8 Bipolar 4Ncm(5.7oz.in) 0.6A 20x20x38mm 4 Wires
This dual shaft nema 8 stepper motors with step angle 1.8deg and size 20x20x38mm. It has 4 wires, each phase draws 0.6A, with holding torque 4Ncm(5.7o..
from
C$24.17
Add to Cart
Add to Wish List Compare this Product
Quickview
Nema 14 Bipolar 0.9deg 11Ncm(15.58oz.in) 0.4A 35x35x28.2mm 4 Wires
Nema 14 Bipolar 0.9deg 11Ncm(15.58oz.in) 0.4A 35x35x28.2mm 4 Wires
This bipolar Nema 14 stepper motor with step angle 0.9deg and size 35x35x28.2mm. It has 4 wires, each phase draws 0.4A, with holding torque 11Ncm(15.5..
from
C$16.27
Add to Cart
Add to Wish List Compare this Product
Quickview
Nema 17 Bipolar 1.8deg 40Ncm(56.64oz.in) 0.4A 42x42x39mm 4 Wires
Nema 17 Bipolar 1.8deg 40Ncm(56.64oz.in) 0.4A 42x42x39mm 4 Wires
This bipolar Nema 17 stepper motor with step angle 1.8deg and size 42x42x39mm. It has 4 wires, each phase draws current 0.4A, with holding torque 40Nc..
from
C$14.21
Add to Cart
Add to Wish List Compare this Product
Quickview

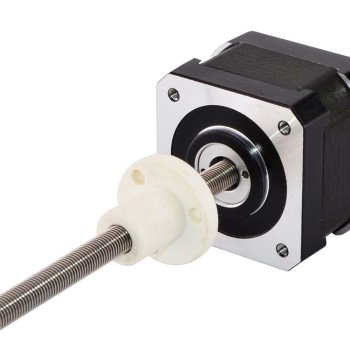

Nema 17 External 34mm Stack 0.7A Lead 0.794mm(0.031") Length 150mm
Nema 17 External 34mm Stack 0.7A Lead 0.794mm(0.031") Length 150mm
The motor part is 34mm body 1.8 degree 0.7A Nema 17 stepper motor, and it has integrated with a 6.35mm(0.25") diameter 150mm(5.9055") length lead scre..
from
C$0.00
Add to Cart
Add to Wish List Compare this Product
Quickview

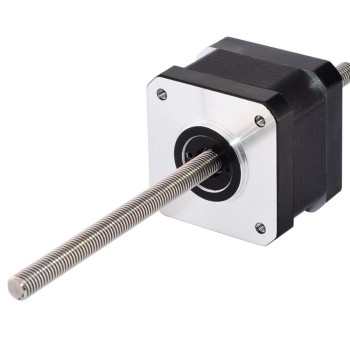

Nema 17 Non-captive 34mm Stack 0.4A Lead 2mm(0.07874") Length 100mm
