Dual Shaft Nema 8 Bipolar 4Ncm(5.7oz.in) 0.6A 20x20x38mm 4 Wires

Hot

Dual Shaft Nema 8 Bipolar 4Ncm(5.7oz.in) 0.6A 20x20x38mm 4 Wires

3 reviews - Write a review

C$24.67

5 + C$23.50

10 + C$22.45

50 + C$21.47

100 + C$20.60

In Stock: 10000
Model: 8HS15-0604D
Gross Weight: 0.20kg
Certificated: ISO, CE, UKCA, RoHS

Available Options

Ships from

China

United States

Germany

Qty

Add to Cart

Question

Add to Wish List Compare this Product

Ships within 24 hours!

Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.

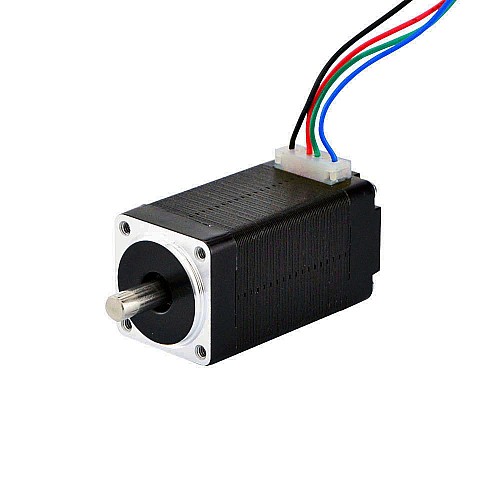

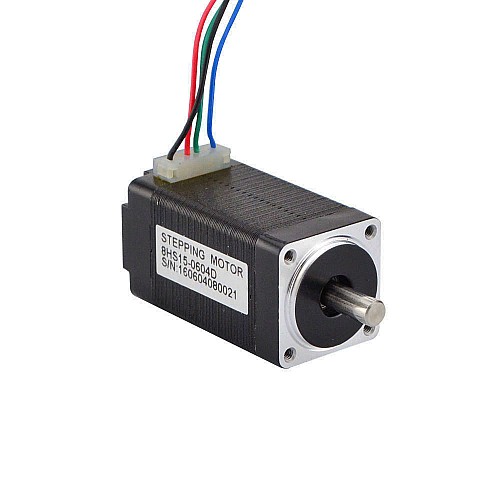

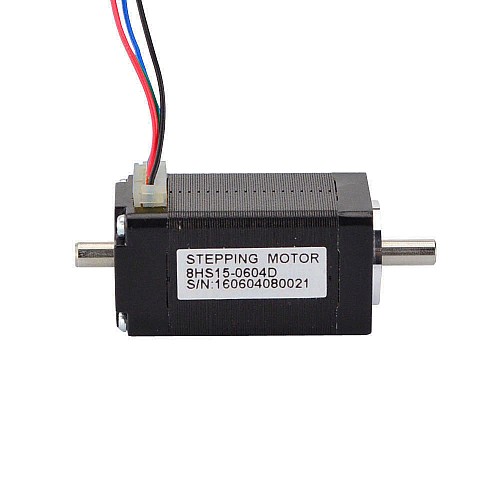

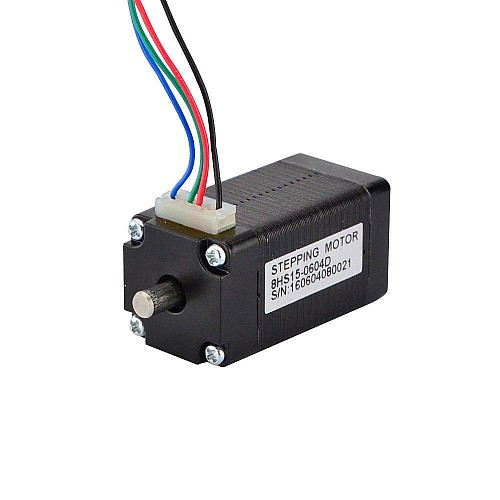

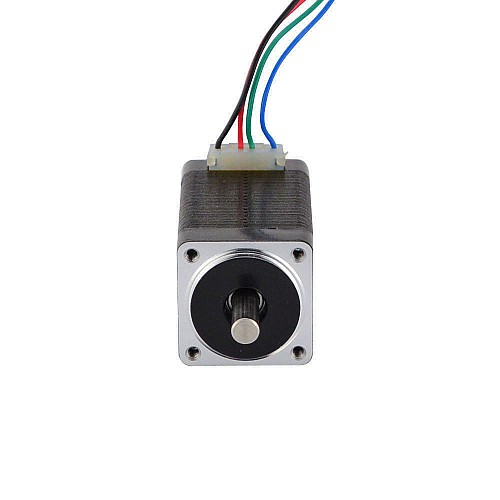

This dual shaft nema 8 stepper motors with step angle 1.8deg and size 20x20x38mm. It has 4 wires, each phase draws 0.6A at 6.0V, with holding torque 4Ncm(5.7oz.in). A rear shaft is available.

Electrical Specification

Manufacturer Part Number: 8HS15-0604D
Motor Type: Bipolar Stepper
Step Angle: 1.8deg
Holding Torque: 4Ncm(5.7oz.in)
Rated Current/phase: 0.6A
Phase Resistance: 10ohms
Inductance: 5.5mH±20%(1KHz)
Insulation Class: B 130°C[266°F]

Physical Specification

Frame Size: 20 x 20mm
Body Length: 38mm
Shaft Shape: "O"
Shaft Diameter: Φ4mm
Front Shaft Length: 10mm
Rear Shaft Length: 6mm
Number of Leads: 4
Cable Length: 300mm
Weight: 80g

Connection

A+	A-	B+	B-
Black	Green	Red	Blue

Product Type
Product Type	Hybrid Stepper Motor
Electrical Specification
Bipolar/Unipolar	Bipolar
Has Torque/Thrust Curve?	Yes
Holding Torque(Ncm)	4
Holding Torque(oz.in)	5.7
Inductance(mH)	5.5
Phase Resistance(ohms)	10
Rated Current(A)	0.6
Step Angle(deg.)	1.8
Physical Specification
Body Length(mm)	38
Cable Length(mm)	300
Frame Size(mm)	Nema 08 (20 x 20)
Inventory Method	Dedicated Inventory
IP Rating	40
No. of Lead	4
Output Shaft Type	O
Product Series	S
Shaft Diameter(mm)	4
Shaft Length(mm)	10
Single Shaft/Dual Shaft	Dual Shaft
Weight(g)	80
