90W 220/380VAC 135RPM 4.60Nm(651.41oz.in) Flange 90mm Right Angle Gearbox Hollow Shaft Three-phase AC Induction Motor

90W 220VAC/380VAC 50/60Hz 135RPM 4.60Nm(651.41oz.in) Flange 90mm Right Angle Gearbox Hollow Shaft Three-phase AC Induction Motor - 5IK90GU-S/S3FT/5GU10RC | StepperOnline CA
90W 220VAC/380VAC 50/60Hz 135RPM 4.60Nm(651.41oz.in) Flange 90mm Right Angle Gearbox Hollow Shaft Three-phase AC Induction Motor - 5IK90GU-S/S3FT/5GU10RC | StepperOnline CA
90W 220VAC/380VAC 50/60Hz 135RPM 4.60Nm(651.41oz.in) Flange 90mm Right Angle Gearbox Hollow Shaft Three-phase AC Induction Motor - 5IK90GU-S/S3FT/5GU10RC | StepperOnline CA
90W 220VAC/380VAC 50/60Hz 135RPM 4.60Nm(651.41oz.in) Flange 90mm Right Angle Gearbox Hollow Shaft Three-phase AC Induction Motor - 5IK90GU-S/S3FT/5GU10RC | StepperOnline CA
90W 220VAC/380VAC 50/60Hz 135RPM 4.60Nm(651.41oz.in) Flange 90mm Right Angle Gearbox Hollow Shaft Three-phase AC Induction Motor - 5IK90GU-S/S3FT/5GU10RC | StepperOnline CA
90W 220VAC/380VAC 50/60Hz 135RPM 4.60Nm(651.41oz.in) Flange 90mm Right Angle Gearbox Hollow Shaft Three-phase AC Induction Motor - 5IK90GU-S/S3FT/5GU10RC | StepperOnline CA
90W 220VAC/380VAC 50/60Hz 135RPM 4.60Nm(651.41oz.in) Flange 90mm Right Angle Gearbox Hollow Shaft Three-phase AC Induction Motor - 5IK90GU-S/S3FT/5GU10RC | StepperOnline CA
90W 220VAC/380VAC 50/60Hz 135RPM 4.60Nm(651.41oz.in) Flange 90mm Right Angle Gearbox Hollow Shaft Three-phase AC Induction Motor - 5IK90GU-S/S3FT/5GU10RC | StepperOnline CA
90W 220VAC/380VAC 50/60Hz 135RPM 4.60Nm(651.41oz.in) Flange 90mm Right Angle Gearbox Hollow Shaft Three-phase AC Induction Motor - 5IK90GU-S/S3FT/5GU10RC | StepperOnline CA
90W 220VAC/380VAC 50/60Hz 135RPM 4.60Nm(651.41oz.in) Flange 90mm Right Angle Gearbox Hollow Shaft Three-phase AC Induction Motor - 5IK90GU-S/S3FT/5GU10RC | StepperOnline CA
90W 220VAC/380VAC 50/60Hz 135RPM 4.60Nm(651.41oz.in) Flange 90mm Right Angle Gearbox Hollow Shaft Three-phase AC Induction Motor - 5IK90GU-S/S3FT/5GU10RC | StepperOnline CA
90W 220VAC/380VAC 50/60Hz 135RPM 4.60Nm(651.41oz.in) Flange 90mm Right Angle Gearbox Hollow Shaft Three-phase AC Induction Motor - 5IK90GU-S/S3FT/5GU10RC | StepperOnline CA
90W 220VAC/380VAC 50/60Hz 135RPM 4.60Nm(651.41oz.in) Flange 90mm Right Angle Gearbox Hollow Shaft Three-phase AC Induction Motor - 5IK90GU-S/S3FT/5GU10RC | StepperOnline CA
90W 220VAC/380VAC 50/60Hz 135RPM 4.60Nm(651.41oz.in) Flange 90mm Right Angle Gearbox Hollow Shaft Three-phase AC Induction Motor - 5IK90GU-S/S3FT/5GU10RC | StepperOnline CA
90W 220VAC/380VAC 50/60Hz 135RPM 4.60Nm(651.41oz.in) Flange 90mm Right Angle Gearbox Hollow Shaft Three-phase AC Induction Motor - 5IK90GU-S/S3FT/5GU10RC | StepperOnline CA
90W 220VAC/380VAC 50/60Hz 135RPM 4.60Nm(651.41oz.in) Flange 90mm Right Angle Gearbox Hollow Shaft Three-phase AC Induction Motor - 5IK90GU-S/S3FT/5GU10RC | StepperOnline CA
90W 220VAC/380VAC 50/60Hz 135RPM 4.60Nm(651.41oz.in) Flange 90mm Right Angle Gearbox Hollow Shaft Three-phase AC Induction Motor - 5IK90GU-S/S3FT/5GU10RC | StepperOnline CA
90W 220VAC/380VAC 50/60Hz 135RPM 4.60Nm(651.41oz.in) Flange 90mm Right Angle Gearbox Hollow Shaft Three-phase AC Induction Motor - 5IK90GU-S/S3FT/5GU10RC | StepperOnline CA
5IK90GU-S/S3FT/5GU10RC
Output Shaft TypeHollow
Input Voltage(V)3PH 220VAC/380VAC
Frame Size(mm)90 x 90
Current(A)0.53,0.61,0.37,0.35
Question

Downloads

5IK90GU-XXFT_5GUXXRX_manual.pdfPDF · 1.73MB
Same series
ModelOutput Shaft TypeInput Voltage(V)Frame Size(mm)Current(A)PriceStock
5IK90GU-AFT/5GU50RTKeyway1PH 110VAC90 x 901.4C$110.42In stock
5IK90GU-CFT/5GU100RCHollow1PH 220VAC90 x 900.64C$110.42In stock
5IK90GU-CFT/5GU100RTKeyway1PH 220VAC90 x 900.64C$110.42In stock
5IK90GU-CFT/5GU10RCHollow1PH 220VAC90 x 900.64C$107.52In stock
5IK90GU-CFT/5GU10RTKeyway1PH 220VAC90 x 900.64C$107.52In stock
5IK90GU-CFT/5GU15RCHollow1PH 220VAC90 x 900.64C$107.52In stock
5IK90GU-CFT/5GU15RTKeyway1PH 220VAC90 x 900.64C$107.52In stock
5IK90GU-CFT/5GU180RCHollow1PH 220VAC90 x 900.64C$110.42In stock
5IK90GU-CFT/5GU180RTKeyway1PH 220VAC90 x 900.64C$110.42In stock
5IK90GU-CFT/5GU20RCHollow1PH 220VAC90 x 900.64C$107.52In stock
5IK90GU-CFT/5GU20RTKeyway1PH 220VAC90 x 900.64C$107.52In stock
5IK90GU-CFT/5GU30RCHollow1PH 220VAC90 x 900.64C$107.52In stock
5IK90GU-CFT/5GU30RTKeyway1PH 220VAC90 x 900.64C$107.52In stock
5IK90GU-CFT/5GU50RCHollow1PH 220VAC90 x 900.64C$110.42In stock
5IK90GU-CFT/5GU50RTKeyway1PH 220VAC90 x 900.64C$110.42In stock
5IK90GU-S/S3FT/5GU100RCHollow3PH 220VAC/380VAC90 x 900.53,0.61,0.37,0.35C$110.42In stock
5IK90GU-S/S3FT/5GU100RTKeyway3PH 220VAC/380VAC90 x 900.53,0.61,0.37,0.35C$110.42In stock
5IK90GU-S/S3FT/5GU10RCHollow3PH 220VAC/380VAC90 x 900.53,0.61,0.37,0.35C$107.52In stock
5IK90GU-S/S3FT/5GU10RTKeyway3PH 220VAC/380VAC90 x 900.53,0.61,0.37,0.35C$107.52In stock
5IK90GU-S/S3FT/5GU10RT-SALEKeyway3PH 220VAC/380VAC90 x 900.53,0.61,0.37,0.35C$109.23In stock
5IK90GU-S/S3FT/5GU15RCHollow3PH 220VAC/380VAC90 x 900.53,0.61,0.37,0.35C$107.52In stock
5IK90GU-S/S3FT/5GU15RTKeyway3PH 220VAC/380VAC90 x 900.53,0.61,0.37,0.35C$107.52In stock
5IK90GU-S/S3FT/5GU180RCHollow3PH 220VAC/380VAC90 x 900.53,0.61,0.37,0.35C$110.42In stock
5IK90GU-S/S3FT/5GU180RTKeyway3PH 220VAC/380VAC90 x 900.53,0.61,0.37,0.35C$110.42In stock
5IK90GU-S/S3FT/5GU20RCHollow3PH 220VAC/380VAC90 x 900.53,0.61,0.37,0.35C$107.52In stock
5IK90GU-S/S3FT/5GU20RTKeyway3PH 220VAC/380VAC90 x 900.53,0.61,0.37,0.35C$107.52In stock
5IK90GU-S/S3FT/5GU30RCHollow3PH 220VAC/380VAC90 x 900.53,0.61,0.37,0.35C$107.52In stock
5IK90GU-S/S3FT/5GU30RTKeyway3PH 220VAC/380VAC90 x 900.53,0.61,0.37,0.35C$107.52In stock
5IK90GU-S/S3FT/5GU50RCHollow3PH 220VAC/380VAC90 x 900.53,0.61,0.37,0.35C$110.42In stock
5IK90GU-S/S3FT/5GU50RTKeyway3PH 220VAC/380VAC90 x 900.53,0.61,0.37,0.35C$110.42In stock
View all in category
90W 220/380VAC 135RPM 4.60Nm(651.41oz.in) Flange 90mm Right Angle Gearbox Hollow Shaft Three-phase AC Induction Motor
This 90x90mm hollow shaft three-phase AC induction gear motor can be powered by either 220VAC or 380... Read More
0 reviews • Write a review
from
C$107.52
5 + C$104.63
10 + C$101.89
50 + C$99.30
100 + C$96.83

Click country for real-time stock

Add to Cart
Add to Wish List Compare this Product
Easy Returns

Return within 30 days of delivery. Contact us first and we'll take it from there.

Read more
Ships within 24 hours!
Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.

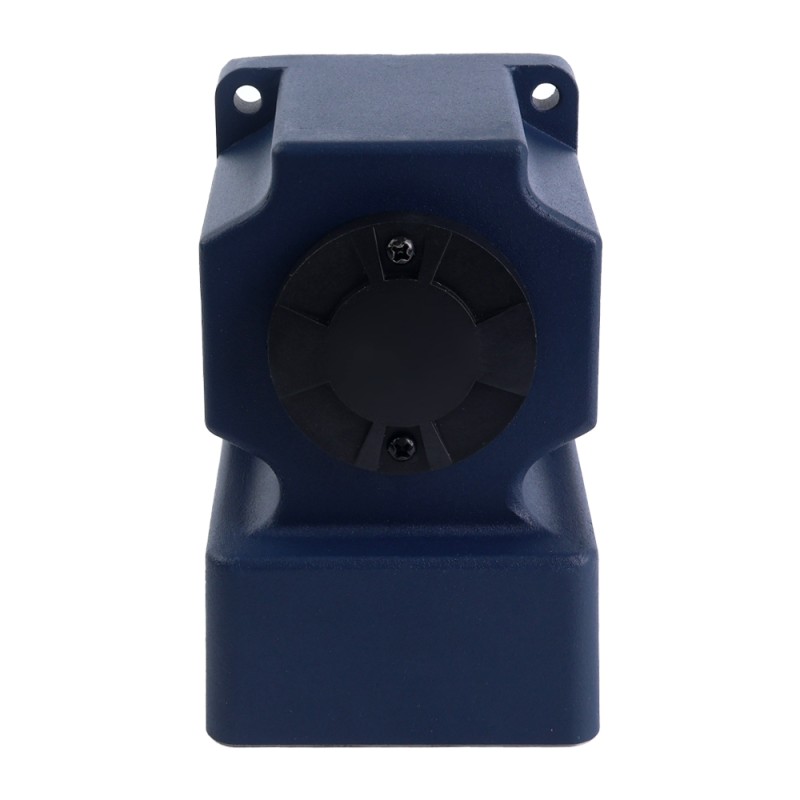

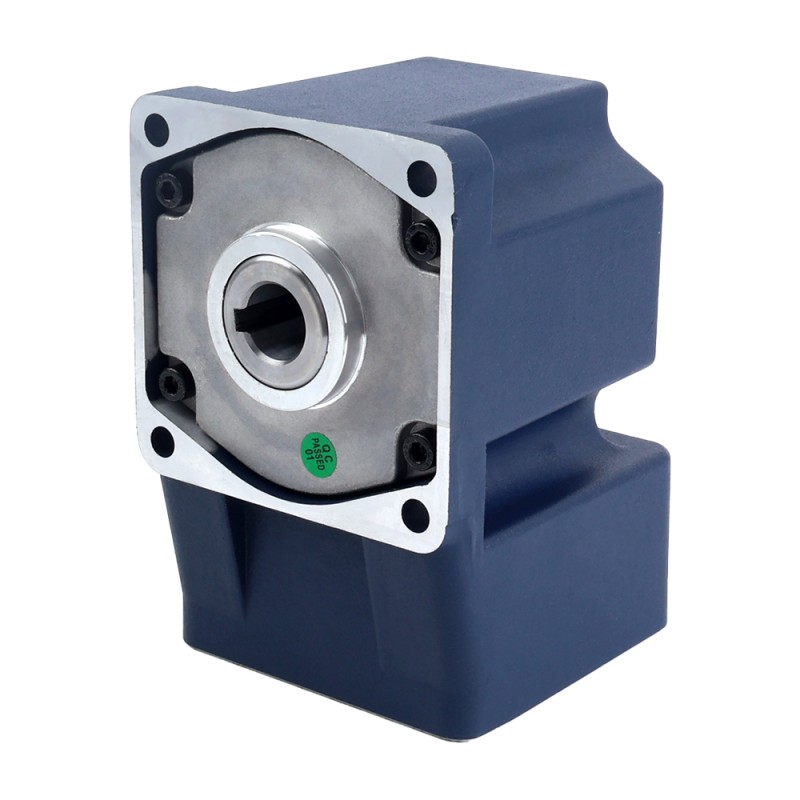

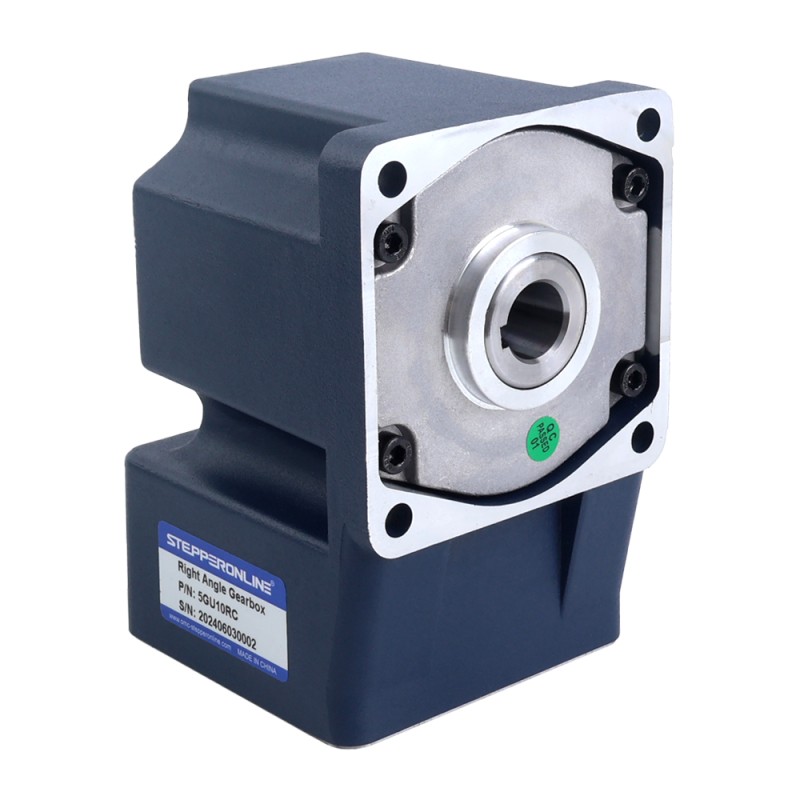

This 90x90mm hollow shaft three-phase AC induction gear motor can be powered by either 220VAC or 380VAC and has a gear ratio of 10. The right angle gearboxes are compact in size, run smoothly and can handle high torques. The simple brushless structure, high reliability, relatively high efficiency and long service life make it an excellent cost-effective choice for constant speed applications like industrial equipments, household appliances, power supply systems, transportation, mechanical equipment, etc.

Electrical Specifications

  • P/N: 5IK90GU-S/S3FT/5GU10RC
  • Gearbox Type: Right Angle Gearbox
  • Output Power: 90W
  • Voltage: 3PH 220VAC/3PH 380VAC
  • Frequency: 50/60Hz
  • Current(220VAC): 0.53A(50Hz)/0.61A(60Hz)
  • Current(380VAC): 0.37A(50Hz)/0.35A(60Hz)
  • Gear Ratio: 10:1
  • Speed: 135rpm
  • Torque: 4.60Nm(651.41oz.in)

Physical Specifications

  • Frame Size: 90x90mm
  • Body Length: 278mm
  • Shaft Type: Hollow
  • Bore Diameter: Φ17mm
  • Weight: 6.4kg

Wiring

Electrical Specification
Current(A)0.53,0.61,0.37,0.35
Frequency(Hz)50,60
Input Voltage(V)3PH 220VAC/380VAC
Output Power(W)90
Speed(rpm)135
Torque(Nm)4.6
Physical Specification
Frame Size(mm)90 x 90
Gear Ratio(xx:1)10
Gearbox TypeRight Angle Gearbox
Output Shaft TypeHollow

Write a review

Not published. We only use it to follow up on your review.
Note: HTML is not translated!
Rating
Bad Good
Quickview
90W 220/380VAC 90RPM 7.00Nm(991.28oz.in) Flange 90mm Right Angle Gearbox Hollow Shaft Three-phase AC Induction Motor
90W 220/380VAC 90RPM 7.00Nm(991.28oz.in) Flange 90mm Right Angle Gearbox Hollow Shaft Three-phase AC Induction Motor
This 90x90mm hollow shaft three-phase AC induction gear motor can be powered by either 220VAC or 380VAC and has a gear ratio of 15. The right angle ge..
from
C$107.52
Add to Cart
Add to Wish List Compare this Product
Quickview

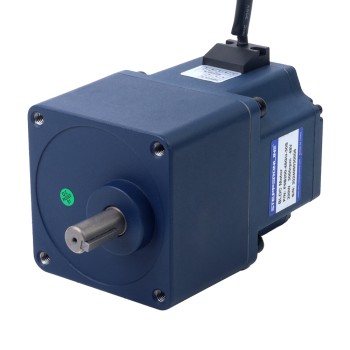

48V 200W 150RPM Geared Brushless DC Motor 8.40Nm(1189.54oz.in) 20:1 Spur Gearbox
