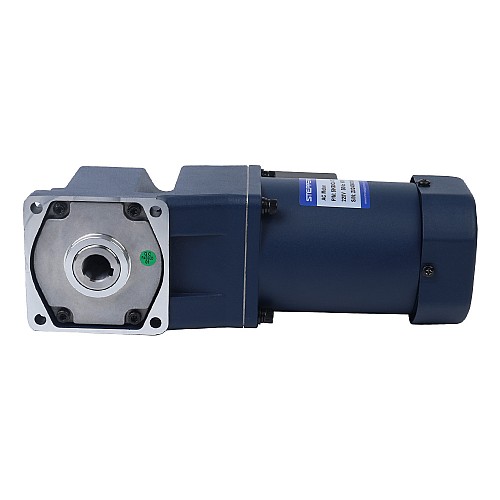

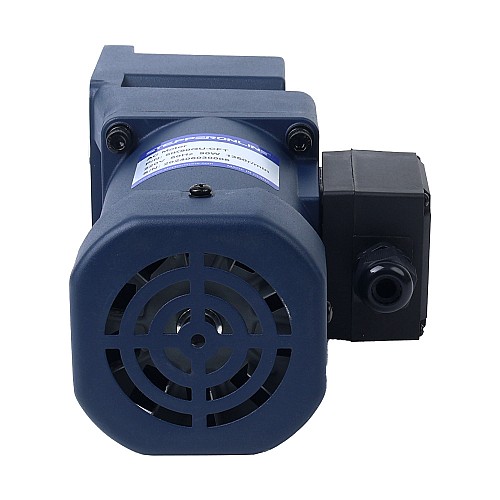

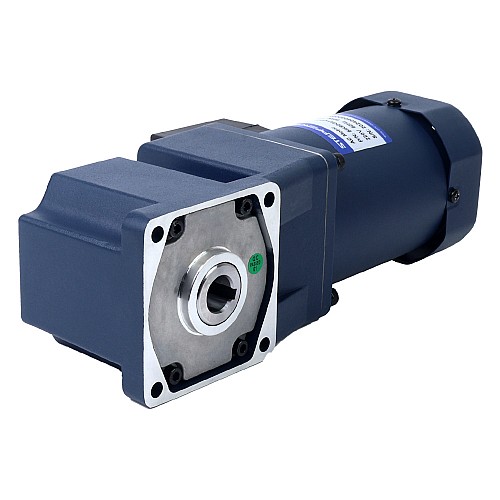

90W 220/380VAC 90RPM 7.00Nm(991.28oz.in) Flange 90mm Right Angle Gearbox Hollow Shaft Three-phase AC Induction Motor

90W 220VAC/380VAC 50/60Hz 90RPM 7.00Nm(991.28oz.in) Flange 90mm Right Angle Gearbox Hollow Shaft Three-phase AC Induction Motor - 5IK90GU-S/S3FT/5GU15RC | StepperOnline CA

90W 220/380VAC 90RPM 7.00Nm(991.28oz.in) Flange 90mm Right Angle Gearbox Hollow Shaft Three-phase AC Induction Motor

0 reviews - Write a review

C$136.00

5 + C$131.51

10 + C$127.29

50 + C$123.36

100 + C$119.64

In Stock: 10000
Model: 5IK90GU-S/S3FT/5GU15RC
Gross Weight: 6.62kg
Certificated: ISO, CE, RoHS

Available Options

Ships from

China

Qty

Add to Cart

Question

Add to Wish List Compare this Product

How to Choose a Shipping Warehouse？

For customers in the US, the UK, EU, Australia and Russia, please prioritize selecting a local warehouse. For the EU countries, choose the German warehouse.
The benefits of this selection include faster delivery times and lower overall costs, as no customs duties are incurred.

Ships within 24 hours!

Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.

This 90x90mm hollow shaft three-phase AC induction gear motor can be powered by either 220VAC or 380VAC and has a gear ratio of 15. The right angle gearboxes are compact in size, run smoothly and can handle high torques. The simple brushless structure, high reliability, relatively high efficiency and long service life make it an excellent cost-effective choice for constant speed applications like industrial equipments, household appliances, power supply systems, transportation, mechanical equipment, etc.

Electrical Specifications

P/N: 5IK90GU-S/S3FT/5GU15RC
Gearbox Type: Right Angle Gearbox
Output Power: 90W
Voltage: 3PH 220VAC/3PH 380VAC
Frequency: 50/60Hz
Current(220VAC): 0.53A(50Hz)/0.61A(60Hz)
Current(380VAC): 0.37A(50Hz)/0.35A(60Hz)
Gear Ratio: 15:1
Speed: 90rpm
Torque: 7.00Nm(991.28oz.in)

Physical Specifications

Frame Size: 90x90mm
Body Length: 278mm
Shaft Type: Hollow
Bore Diameter: Φ17mm
Weight: 6.4kg

Wiring

Note:
The actual speed might vary with the load size, ranging from 2 to 20%.

Electrical Specification
Current(A)	0.53,0.61,0.37,0.35
Frequency(Hz)	50,60
Input Voltage(V)	3PH 220VAC/380VAC
Output Power(W)	90
Speed(rpm)	90
Torque(Nm)	7
Physical Specification
Frame Size(mm)	90 x 90
Gear Ratio(xx:1)	15
Gearbox Type	Right Angle Gearbox
Output Shaft Type	Hollow
