A6-RS750H2A1-M17
Encoder Resolution17bit
Encoder TypeMagnetic Absolute
Peak Torque(Nm)8.36
IP Rating67
Question

Downloads

Same series
ModelEncoder ResolutionEncoder TypePeak Torque(Nm)IP RatingPriceStock
A6-EC750H2A1-M1717bitMagnetic Absolute8.3667C$190.72In stock
A6-EC750H2A1-M17-STO17bitMagnetic Absolute8.3667C$219.78In stock
A6-EC750H2B1-M1717bitMagnetic Absolute8.3667C$226.68In stock
A6-EC750H2B1-M17-STO17bitMagnetic Absolute8.3667C$260.35In stock
A6-PN750H2A1-M1717bitMagnetic Absolute8.3667C$308.39In stock
A6-PN750H2A1-M17-STO17bitMagnetic Absolute8.3667C$324.45In stock
A6-PN750H2B1-M1717bitMagnetic Absolute8.3667C$351.73In stock
A6-PN750H2B1-M17-STO17bitMagnetic Absolute8.3667C$369.33In stock
A6-RS750H2A1-M1717bitMagnetic Absolute8.3667C$168.75In stock
A6-RS750H2B1-M1717bitMagnetic Absolute8.3667C$201.88In stock
T6-RS750H2A1-M2323bitMagnetic Absolute, Magnetic Incremental7.1767C$356.22Backorder
T6-RS750H2A3-M17S17bitMagnetic Incremental7.1765C$331.01In stock
T6-RS750H2B1-M2323bitMagnetic Absolute, Magnetic Incremental7.1767C$436.67Backorder
T6-RS750H2B3-M17S17bitMagnetic Incremental7.1765C$405.75Backorder
A6 Series 750W RS485 AC Servo Motor Kit 3000rpm 2.39Nm 17-Bit Absolute Encoder IP67
This is an A6 series AC servo motor and driver kit consisting of a 220VAC 750W motor and a single-ph... Read More
from
C$168.75
5 or more: C$164.44
10 or more: C$160.37
50 or more: C$156.47
100 or more: C$152.77

Select a country to see live inventory

Easy Returns

Return within 30 days of delivery. Contact us first and we'll take it from there.

Read more
Ships within 24 hours!
Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.

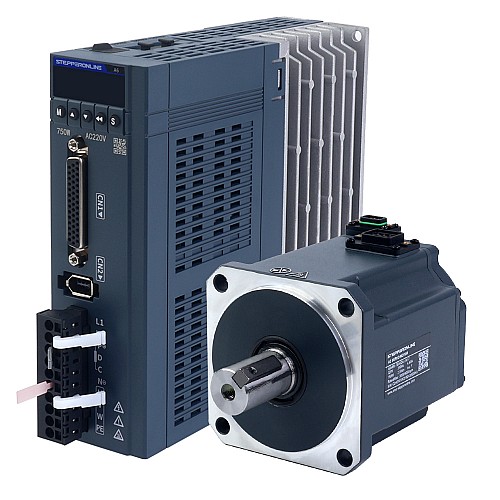

This is an A6 series AC servo motor and driver kit consisting of a 220VAC 750W motor and a single-phase 220V 750W servo driver that supports Pulse/RS485/Analog communication. With the built-in 17-bit multiturn absolute encoder, the motor provides excellent servo control performance.
This series of servo products is easy to operate, economical and efficient with optimal balance between performance and costs.
The A6-RS series servo products feature in high response, hight accuracy and cost-efficiency, providing efficient and convenient motion control solutions for various industries.

Items in Kit

  • 1 x A6-750RS: 750W Pulse/RS485/Analog AC Servo Motor Driver
  • 1 x A6M80-750H2A1-M17: 750W AC Servo Motor 3000rpm 2.39Nm 17-Bit Encoder IP67
  • 1 x AS7-C-PWR075-3.0: 3.0m Motor Cable
  • 1 x AS7-C-ENC076-3.0: 3.0m Encoder Cable

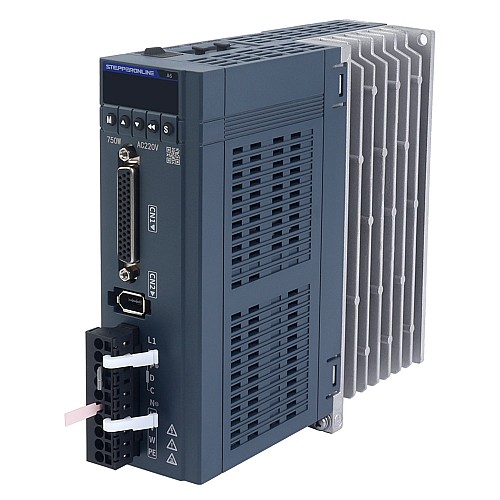

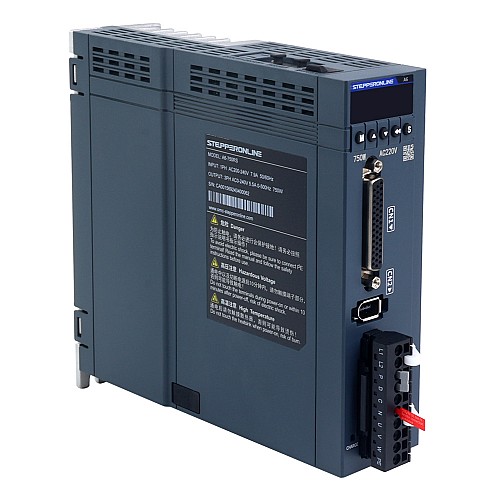

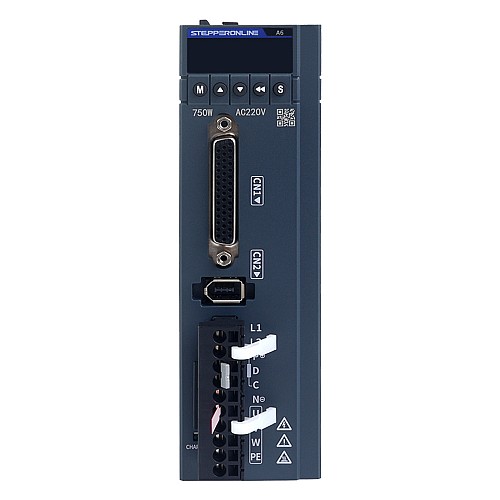

Servo Driver Specification

  • Part Number: A6-750RS
  • Pulse/RS485/Analog communication
  • 2KHz speed loop bandwith
  • 17-bit absolute encoder
  • Rated voltage single-phase 220VAC
  • Rated power 750W
  • Dimension: 170*174*50mm

Servo Motor Specification

  • Part Number: A6M80-750H2A1-M17
  • Rated Voltage: 220VAC
  • Rated Power: 750W
  • Rated Torque: 2.39Nm
  • Peak Torque: 8.36Nm
  • Rated Speed: 3000rpm
  • Peak Speed: 6000rpm
  • Rated Current: 4.60A
  • Peak Current: 16.30A
  • Torque Const: 0.52N.m/A
  • Back EMF Const: 34.40V/krpm
  • Resistance: 0.47ohms
  • Inductance: 2.80mH
  • Inertia: 1.72kg*m2*10-4
  • Poles: 10
  • Encoder: Magnetic encoder, 17-bit single-turn absolute(multi-turn available)
  • IP Rating: IP67
  • Shaft diameter: 19mm
  • Axial Load: Max.147N
  • Radial Load @ Shaft Length 35mm: Max.392N
Electrical Specification
Control Modes Pulse/RS485/Analog
Encoder Resolution 17bit
Encoder Type Magnetic Absolute
Input Voltage(V) 220VAC
Integrated STO or not? No
Peak Speed(rpm) 6000
Peak Torque(Nm) 8.36
Rated Power(W) 750
Rated Speed(rpm) 3000
Rated Torque(Nm) 2.39
With Brake No
Physical Specification
Aviation Plug or Not No
Frame Size(mm) 80 x 80
Integrated or Not No
IP Rating 67
Shaft Diameter(mm) 19
