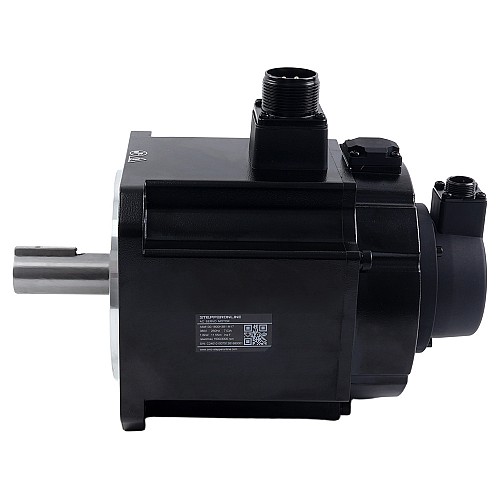

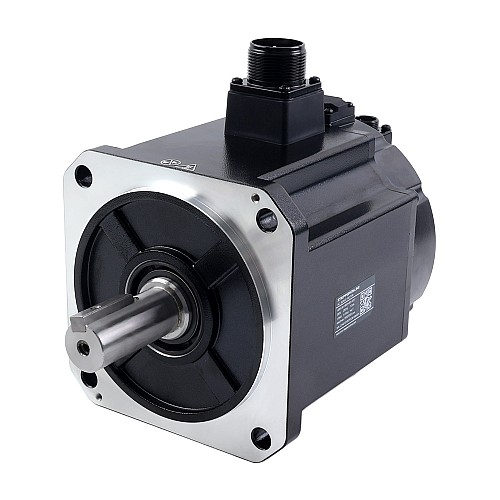

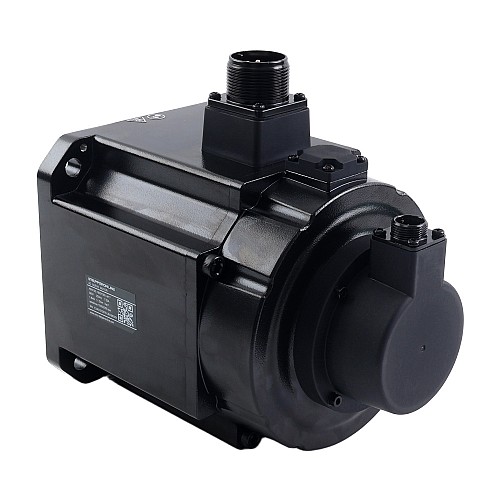

A6H Series 1800W EtherCAT AC Servo Motor Kit 1500rpm 11.50Nm w/ Brake 17-Bit Absolute Encoder IP67

This is an A6H series AC servo motor and driver kit consisting of a 380VAC 1800W motor with the built-in 17-bit multiturn absolute encoder and a 24V 8.5W brake, and a three-phase 380V 2000W servo driver that supports EtherCAT communication. The motor provides excellent servo control performance.

This motor is a high-inertia type, suitable for applications that require high load capacity, such as traditional machine tool industry, rack and pinion transmission mechanisms, etc.
The A6-EC series servo products feature in high response, hight accuracy and cost-efficiency, providing efficient and convenient motion control solutions for various industries.

Items in Kit

• 1 x A6-2000EC: 2000W AC Servo Motor Driver
• 1 x A6M130-1800H3B1-M17: 1800W AC Servo Motor Kit 1500rpm 11.50Nm with Brake 17-Bit Absolute Encoder IP67
• 1 x AS7-C-PWB062-3.0: 3.0m Motor Cable
• 1 x AS7-C-ENC072-3.0: 3.0m Encoder Cable

Servo Driver Specification

• Part Number: A6-2000EC
• EtherCAT communication
• 2KHz speed loop bandwith
• 17-bit absolute encoder
• Rated voltage three-phase 380VAC
• Rated power 2000W
• Dimension: 280*200*120mm

Servo Motor Specification

• Part Number: A6M130-1800H3B1-M17
• Rated Voltage: 380VAC
• Rated Power: 1800W
• Rated Torque: 11.50Nm
• Peak Torque: 28.75Nm
• Rated Speed: 1500rpm
• Peak Speed: 3000rpm
• Rated Current: 7.03A
• Peak Current: 19.03A
• Back EMF Const: 106.06V/krpm
• Poles: 10
• Encoder: Magnetic encoder, 17-bit single-turn absolute(multi-turn available)
• IP Rating: IP67
• Shaft Diameter: 22mm
• Brake Voltage: 24V DC
• Brake Power: 8.5W
• Brake Holding Torque: 3.20Nm
• Axial Load: Max.196N
• Radial Load @ Shaft Length 55mm: Max.686N
