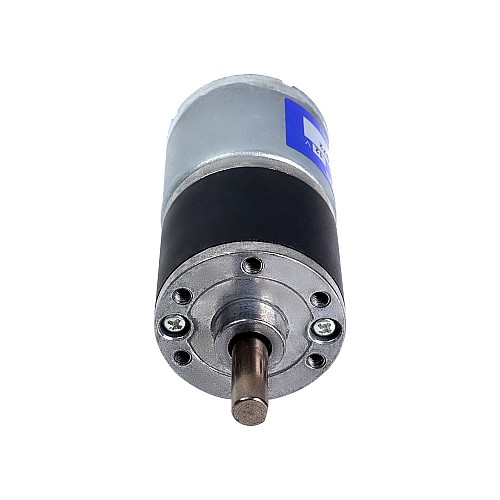

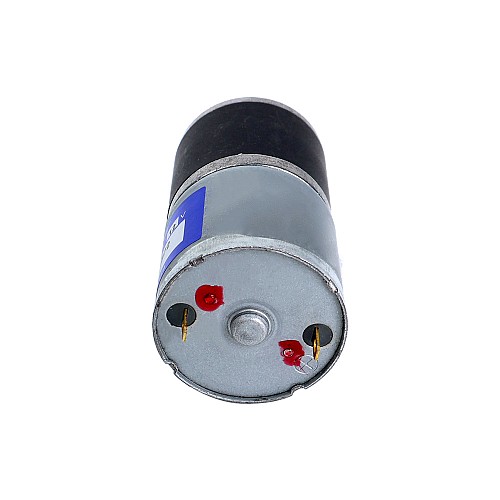

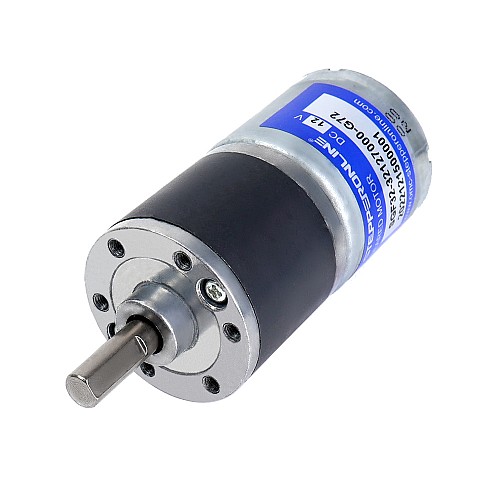

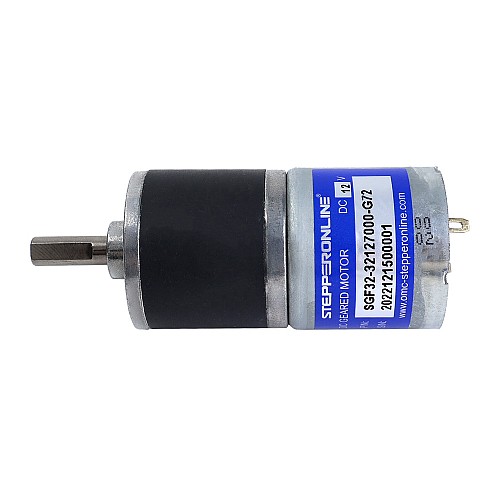

Brushed 12V DC Gear Motor 3.5Kg.cm/80RPM 72:1 Spur Gearbox

0 reviews - Write a review

C$10.37

5 + C$10.02

10 + C$9.69

50 + C$9.38

100 + C$9.09

In Stock: Pre-order
Model: SGF32-32127000-G72
Gross Weight: 0.26kg
Certificated: ISO, CE

Available Options

Ships from

China

Qty

Add to Cart

Question

Add to Wish List Compare this Product

This product has a minimum quantity of 10

What Does Pre-order Mean?

A pre-order product is an item not currently in stock. When you place your order, we will begin production or procurement specifically for your purchase.

How to Choose a Shipping Warehouse？

For customers in the US, the UK, EU, Australia and Russia, please prioritize selecting a local warehouse. For the EU countries, choose the German warehouse.
The benefits of this selection include faster delivery times and lower overall costs, as no customs duties are incurred.

Ships within 24 hours!

Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.

This is a standard 12volt brushed DC gear motor, generating 3.5kg.cm of torque at 80rpm. It's a small, inexpensive motor suitable for low torque, high speed applications. Combined with a 72 : 1 spur gearbox, this motor will provide greater efficiency, higher torque, and quieter motor operation.

Electrical Specification

Part Number: SGF32-32127000-G72
Rated Voltage: 12V
Rated Torque: 3.5kg.cm(48.41oz.in)
Rated Current: <=600mA
Rated Speed: 80rpm
No-load Current: <=200mA
No-load Speed: 98rpm
Rotation Direction: CW/CCW
Motor Type: Brushed DC Motor

Gearbox Specification

Gearbox Type: Spur Gearbox
Gear Ratio: 72 : 1

Physical Specification

Motor Size: Φ32 x 30mm
Gearbox Size: Φ32 x 24.5mm
Front Shaft Diameter: Φ6mm
Front Shaft Length: 15mm
D-cut Length: 12mm
Rear Shaft Diameter: Φ11mm

Electrical Specification
Motor Type	Brushed DC Motor
Rated Current(A)	0.6
Rated Speed(rpm)	80
Rated Torque(kg.cm)	3.5
Rated Torque(oz.in)	48.41
Rated Voltage(V)	12
Physical Specification
Gear Ratio(xx:1)	72
Gearbox Shape	Round
Gearbox Type	Spur Gearbox
Inventory Method	Dedicated Inventory
Output Shaft Type	D
Shaft Diameter(mm)	6
Shaft Length(mm)	15
