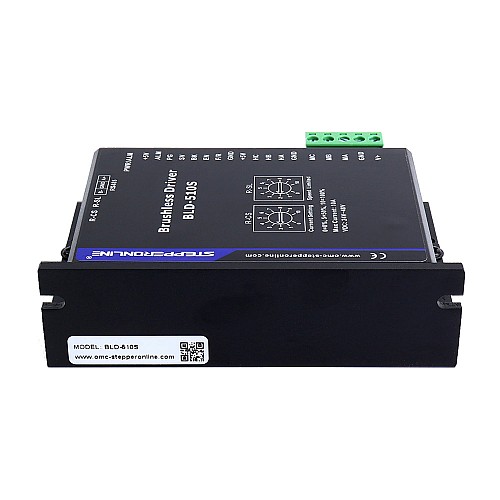

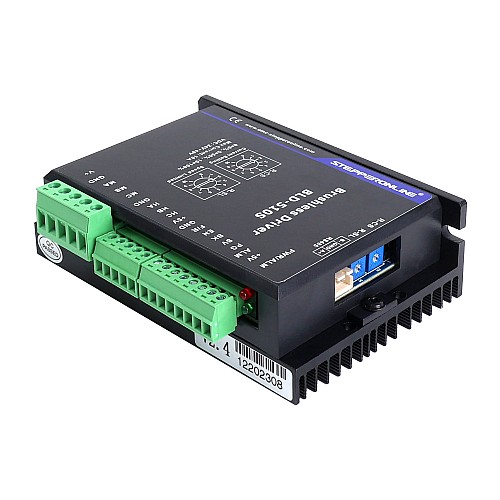

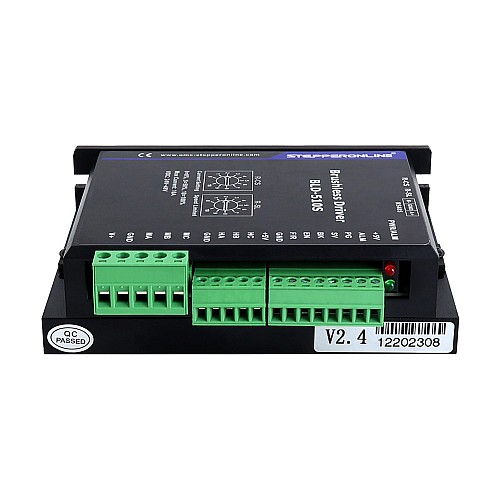

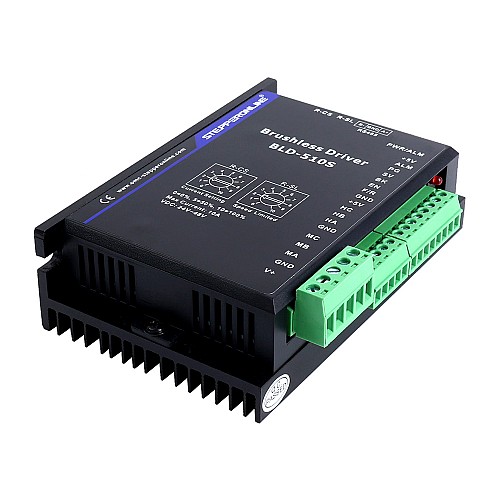

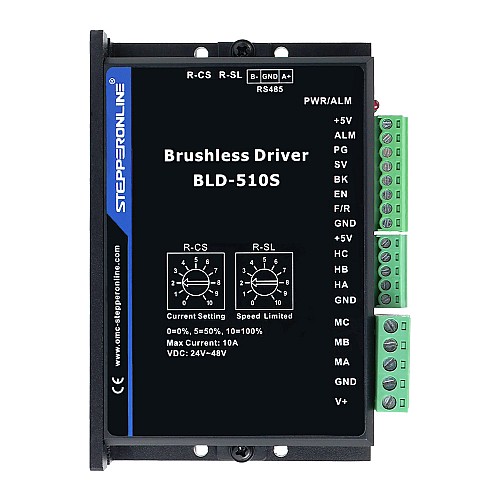

Digital Brushless DC Motor Driver 18V-50VDC Max 13.0A 200W

Hot

Digital Brushless DC Motor Driver 18V-50VDC Max 13.0A 200W

0 reviews - Write a review

C$41.51

5 + C$40.09

10 + C$38.78

50 + C$37.53

100 + C$36.36

In Stock: 10000
Model: BLD-510S
Gross Weight: 0.30kg
Certificated: ISO, CE

Available Options

Ships from

China

Germany

Qty

Add to Cart

Question

Add to Wish List Compare this Product

How to Choose a Shipping Warehouse？

For customers in the US, the UK, EU, Australia and Russia, please prioritize selecting a local warehouse. For the EU countries, choose the German warehouse.
The benefits of this selection include faster delivery times and lower overall costs, as no customs duties are incurred.

Ships within 24 hours!

Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.

This 18V-50VDC 200W brushless motor driver is a driver independently developed by STEPPERONLINE to work with the field of modern industrial automatic control. It mainly uses high performance dedicated brushless DC motor driver chips, the latest IGBT and MOS power devices and adopts PWM technology. It is characterised by high integration, small size, complete protection, simple and clear wiring and high reliability. This driver is suitable for driving small and medium-sized brushless DC motors with a rated power of less than 200W.

Features

20kHz chopper frequency
High performance at a low price
Compatible with Hall and non-Hall sensors
PID speed and current dual-loop regulator
Support Modbus communication protocol, RS485 interface
It has stall protection function to make the motor respond quickly
The overload multiple is greater than 2, and the torque can always reach the maximum at low speed
Build with over-voltage, under-voltage, over-current, over-temperature, illegal Hall signal and other error alarm functions

Electrical Specification

Parameters	BLD-510S
Input Voltage(VDC)	12	24	36	48
Continuous Output Current(A)	10.0	8.3	5.5	4.2
Rated Output Power(W)	120	200	200	200
Peak Current(A)	13.0

New product released: We have now upgraded this brushless driver to BLD-510B, which has a cost advantage while maintaining the same performance.

As a medium-to-high-speed motor, we do not recommend brushless motors to operate within 150rpm.

Operating Environment

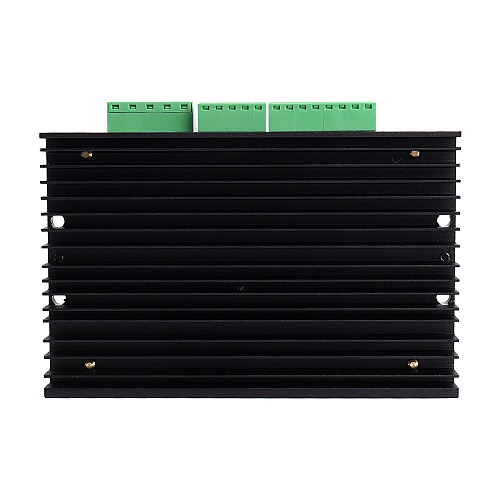

Cooling Method	Radiator
Humidity	<85%(No Frosting)
Operating Temperature	0℃ - 45℃
Store Temperature	-20℃ - 85℃
Product Type
Product Type	Brushless DC Driver
Electrical Specification
Alarm Output	Yes
Continuous Output Current(A)	10.0A(12VDC), 8.3A(24VDC), 5.5A(36VDC), 4.2A(48VDC)
Control Modes	Analog Voltage, RS-485
E-STOP	Yes
Max. Output Power(W)	200
Operating Voltage(V)	12DC, 24DC, 36DC, 48DC
Peak Current(A)	13.0
Power(W)	120W(12VDC), 200W(24VDC), 200W(36VDC), 200W(48VDC)
Speed Signal Output	Yes
Physical Specification
Inventory Method	Dedicated Inventory
