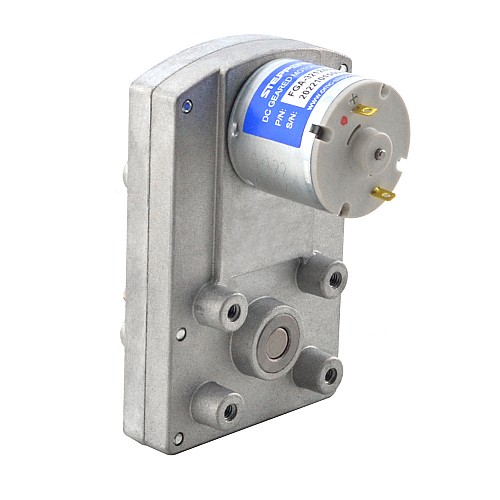

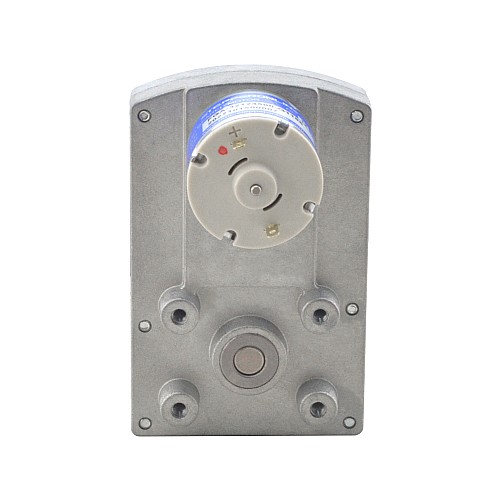

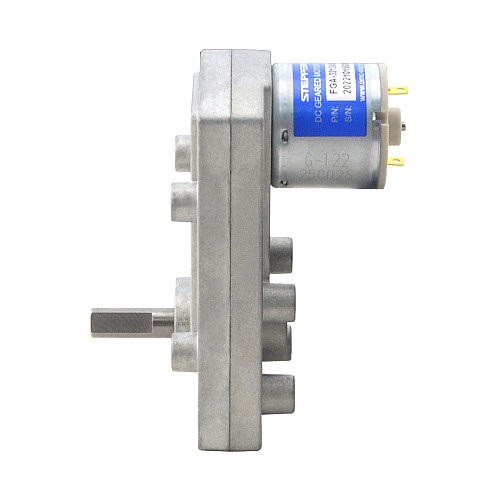

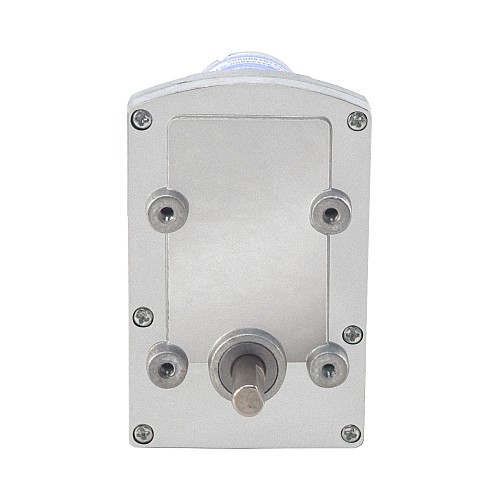

Brushed 12V DC Gear Motor 60Kg.cm/3RPM w/ 1166:1 Rectangular Spur Gearbox

0 reviews - Write a review

C$17.30

5 + C$16.71

10 + C$16.16

50 + C$15.64

100 + C$15.16

In Stock: 10000
Model: FGA-32124500-G1166
Gross Weight: 0.60kg
Certificated: ISO, CE

Available Options

Ships from (Click country for real-time stock)

China

Qty

Add to Cart

Question

Add to Wish List Compare this Product

Choose a Local Warehouse, Get More Benefits!

Customers in US, UK, EU, Australia & Russia: Please choose local warehouses first (German warehouse for EU). This ensures faster delivery and avoids customs duties, reducing total costs.

Ships within 24 hours!

Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.

This is a standard 12 volt brushed DC gear motor, generating 60kg.cm of torque at 3rpm. It's a small, inexpensive motor suitable for low torque, high speed applications. Combined with a 1166 : 1 rectangular gearbox, this motor will provide greater efficiency, higher torque, and quieter motor operation.

Electrical Specification

Part Number: FGA-32124500-G1166
Rated Voltage: 12V
Rated Torque: 60kg.cm(829.8oz.in)
Rated Current: <=600mA
Rated Speed: 3rpm
No-load Current: <=100mA
No-load Speed: 3.8rpm
Rotation Direction: CW/CCW
Motor Type: Brushed DC Motor

Gearbox Specification

Gearbox Type: Spur Gearbox
Gear Ratio: 1166 : 1

Physical Specification

Motor Size: Φ32 x 29mm
Gearbox Size: 95 x 60 x 16mm
Front Shaft Diameter: Φ8mm
Front Shaft Length: 22mm
D-cut Length: 16mm
Rear Shaft Diameter: Φ10mm
Rear Shaft Length: 4mm

Electrical Specification
Motor Type	Brushed DC Motor
Rated Current(A)	0.6
Rated Speed(rpm)	3
Rated Torque(kg.cm)	60
Rated Torque(oz.in)	829.8
Rated Voltage(V)	12
Physical Specification
Gear Ratio(xx:1)	1166
Gearbox Shape	Rectangular
Gearbox Type	Spur Gearbox
Inventory Method	Dedicated Inventory
Output Shaft Type	D
Shaft Diameter(mm)	8
Shaft Length(mm)	22
