Brushed 12V DC Gear Motor 160Kg.cm/9RPM w/ 390:1 Rectangular Spur Gearbox

0 reviews - Write a review

C$41.51

5 + C$40.09

10 + C$38.78

50 + C$37.53

100 + C$36.36

In Stock: 10000
Model: FGE-45124500-G390
Gross Weight: 1.35kg
Certificated: ISO, CE

Available Options

Ships from (Click country for real-time stock)

China

Qty

Add to Cart

Question

Add to Wish List Compare this Product

Choose a Local Warehouse, Get More Benefits!

Customers in US, UK, EU, Australia & Russia: Please choose local warehouses first (German warehouse for EU). This ensures faster delivery and avoids customs duties, reducing total costs.

Ships within 24 hours!

Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.

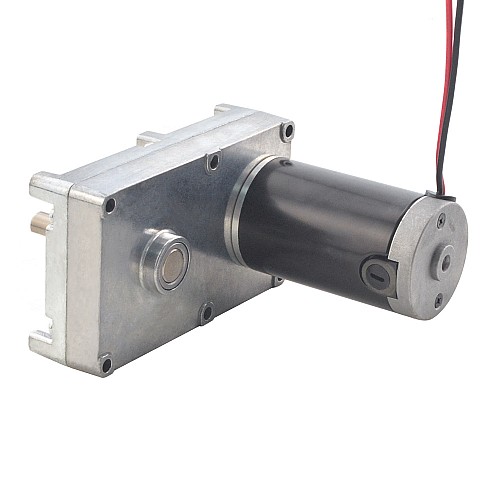

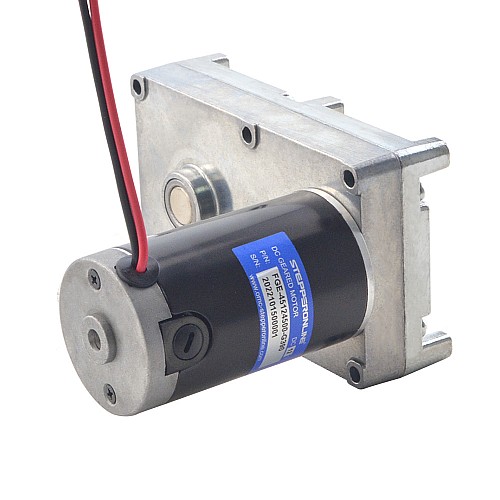

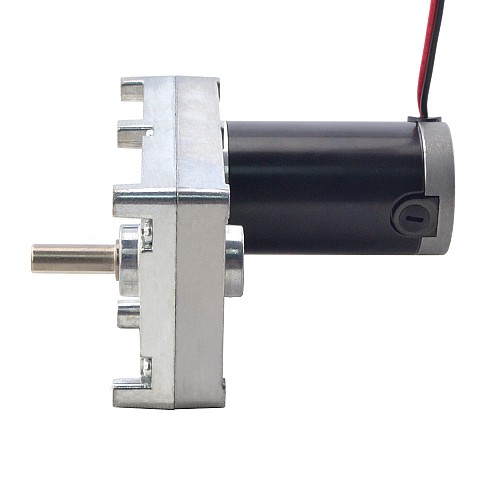

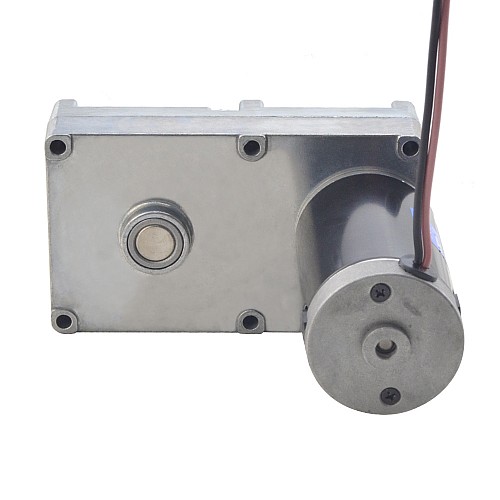

This is a standard 12 volt brushed DC gear motor, generating 160kg.cm of torque at 9rpm. It's a small, inexpensive motor suitable for low torque, high speed applications. Combined with a 390 : 1 rectangular gearbox, this motor will provide greater efficiency, higher torque, and quieter motor operation.

Electrical Specification

Part Number: FGE-45124500-G390
Rated Voltage: 12V
Rated Torque: 160kg.cm(2212.8oz.in)
Rated Current: <=2200mA
Rated Speed: 9rpm
No-load Current: <=500mA
No-load Speed: >=11rpm
Rotation Direction: CW/CCW
Motor Type: Brushed DC Motor

Gearbox Specification

Gearbox Type: Spur Gearbox
Gear Ratio: 390 : 1

Physical Specification

Motor Size: Φ45 x 78mm
Gearbox Size: 119.6 x 70 x 33mm
Shaft Diameter: Φ9.5mm
Shaft Length: 27mm

Electrical Specification
Motor Type	Brushed DC Motor
Rated Current(A)	2.2
Rated Speed(rpm)	9
Rated Torque(kg.cm)	160
Rated Torque(oz.in)	2212.8
Rated Voltage(V)	12
Physical Specification
Gear Ratio(xx:1)	390
Gearbox Shape	Rectangular
Gearbox Type	Spur Gearbox
Inventory Method	Dedicated Inventory
Output Shaft Type	D
Shaft Diameter(mm)	9.5
Shaft Length(mm)	27
