Brushed 24V 150W 8.38Nm(1186.71oz.in) 120RPM w/ 15:1 Right Angle Gearbox DC Gear Motor

Brushed 24V 150W 8.38Nm(1186.71oz.in) 120RPM w/ 15:1 Right Angle Gearbox DC Gear Motor - F5D150-24GU-18S/5GU15RC | StepperOnline CA
Brushed 24V 150W 8.38Nm(1186.71oz.in) 120RPM w/ 15:1 Right Angle Gearbox DC Gear Motor - F5D150-24GU-18S/5GU15RC | StepperOnline CA
Brushed 24V 150W 8.38Nm(1186.71oz.in) 120RPM w/ 15:1 Right Angle Gearbox DC Gear Motor - F5D150-24GU-18S/5GU15RC | StepperOnline CA
Brushed 24V 150W 8.38Nm(1186.71oz.in) 120RPM w/ 15:1 Right Angle Gearbox DC Gear Motor - F5D150-24GU-18S/5GU15RC | StepperOnline CA
Brushed 24V 150W 8.38Nm(1186.71oz.in) 120RPM w/ 15:1 Right Angle Gearbox DC Gear Motor - F5D150-24GU-18S/5GU15RC | StepperOnline CA
Brushed 24V 150W 8.38Nm(1186.71oz.in) 120RPM w/ 15:1 Right Angle Gearbox DC Gear Motor - F5D150-24GU-18S/5GU15RC | StepperOnline CA
Brushed 24V 150W 8.38Nm(1186.71oz.in) 120RPM w/ 15:1 Right Angle Gearbox DC Gear Motor - F5D150-24GU-18S/5GU15RC | StepperOnline CA
Brushed 24V 150W 8.38Nm(1186.71oz.in) 120RPM w/ 15:1 Right Angle Gearbox DC Gear Motor - F5D150-24GU-18S/5GU15RC | StepperOnline CA
Brushed 24V 150W 8.38Nm(1186.71oz.in) 120RPM w/ 15:1 Right Angle Gearbox DC Gear Motor - F5D150-24GU-18S/5GU15RC | StepperOnline CA
Brushed 24V 150W 8.38Nm(1186.71oz.in) 120RPM w/ 15:1 Right Angle Gearbox DC Gear Motor - F5D150-24GU-18S/5GU15RC | StepperOnline CA
Brushed 24V 150W 8.38Nm(1186.71oz.in) 120RPM w/ 15:1 Right Angle Gearbox DC Gear Motor - F5D150-24GU-18S/5GU15RC | StepperOnline CA
Brushed 24V 150W 8.38Nm(1186.71oz.in) 120RPM w/ 15:1 Right Angle Gearbox DC Gear Motor - F5D150-24GU-18S/5GU15RC | StepperOnline CA
F5D150-24GU-18S/5GU15RC
Output Shaft TypeHollow
Rated Voltage(V)24
Gear Ratio(xx:1)15
Rated Speed(rpm)120
Question
Same series
ModelOutput Shaft TypeRated Voltage(V)Gear Ratio(xx:1)Rated Speed(rpm)PriceStock
F4D60-12GN-18S/4GN100RCHollow1210018C$77.40In stock
F4D60-12GN-18S/4GN100RTKeyway1210018C$77.40In stock
F4D60-12GN-18S/4GN10RCHollow1210180C$75.28In stock
F4D60-12GN-18S/4GN10RTKeyway1210180C$75.28In stock
F4D60-12GN-18S/4GN15RCHollow1215120C$75.28In stock
F4D60-12GN-18S/4GN15RTKeyway1215120C$75.28In stock
F4D60-12GN-18S/4GN180RCHollow1218010C$77.40In stock
F4D60-12GN-18S/4GN180RTKeyway1218010C$77.40In stock
F4D60-12GN-18S/4GN20RCHollow122090C$75.28In stock
F4D60-12GN-18S/4GN20RTKeyway122090C$75.28In stock
F4D60-12GN-18S/4GN30RCHollow123060C$75.28In stock
F4D60-12GN-18S/4GN30RTKeyway123060C$75.28In stock
F4D60-12GN-18S/4GN50RCHollow125036C$75.28In stock
F4D60-12GN-18S/4GN50RTKeyway125036C$75.28In stock
F4D60-12GN-30S/4GN100RCHollow1210030C$77.40In stock
F4D60-12GN-30S/4GN100RTKeyway1210030C$77.40In stock
F4D60-12GN-30S/4GN10RCHollow1210300C$75.28In stock
F4D60-12GN-30S/4GN10RTKeyway1210300C$75.28In stock
F4D60-12GN-30S/4GN10RT-SALEKeyway1210300C$76.49In stock
F4D60-12GN-30S/4GN15RCHollow1215200C$75.28In stock
F4D60-12GN-30S/4GN15RTKeyway1215200C$75.28In stock
F4D60-12GN-30S/4GN180RCHollow1218016.67C$77.40In stock
F4D60-12GN-30S/4GN180RTKeyway1218016.67C$77.40In stock
F4D60-12GN-30S/4GN20RCHollow1220150C$75.28In stock
F4D60-12GN-30S/4GN20RTKeyway1220150C$75.28In stock
F4D60-12GN-30S/4GN30RCHollow1230100C$75.28In stock
F4D60-12GN-30S/4GN30RTKeyway1230100C$75.28In stock
F4D60-12GN-30S/4GN50RCHollow125060C$75.28In stock
F4D60-12GN-30S/4GN50RTKeyway125060C$75.28In stock
F4D60-24GN-18S/4GN100RCHollow2410018C$77.40In stock
View all in category
Brushed 24V 150W 8.38Nm(1186.71oz.in) 120RPM w/ 15:1 Right Angle Gearbox DC Gear Motor
This is a 24V 150W DC gear motor with a flange of 90x90mm. The built-in 15:1 hollow shaft right an... Read More
0 reviews • Write a review
from
C$95.63
5 + C$93.06
10 + C$90.63
50 + C$88.32
100 + C$86.13

Click country for real-time stock

Add to Cart
Add to Wish List Compare this Product
Easy Returns

Return within 30 days of delivery. Contact us first and we'll take it from there.

Read more
Ships within 24 hours!
Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.

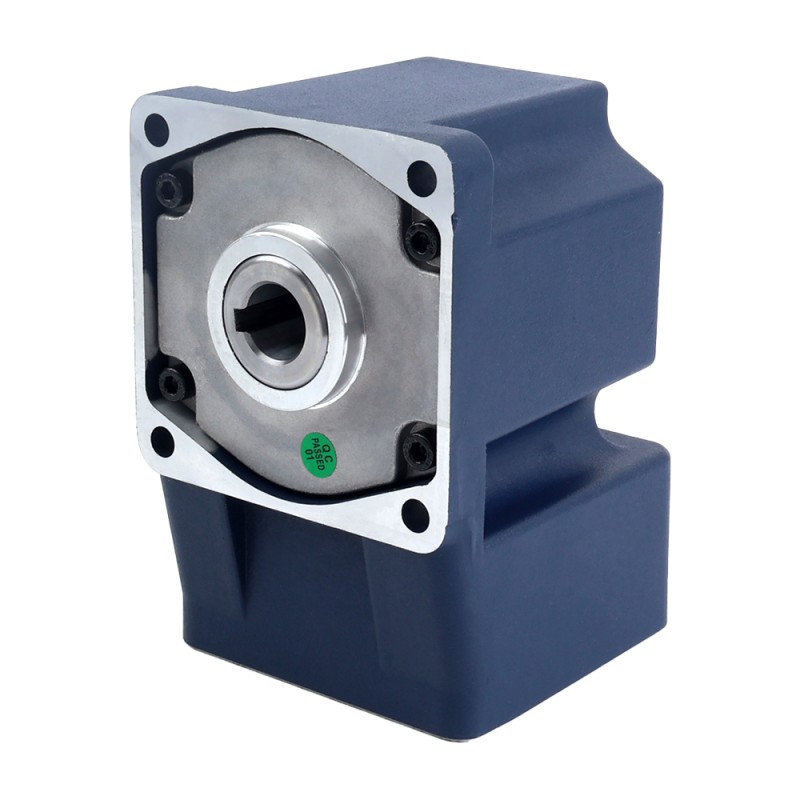

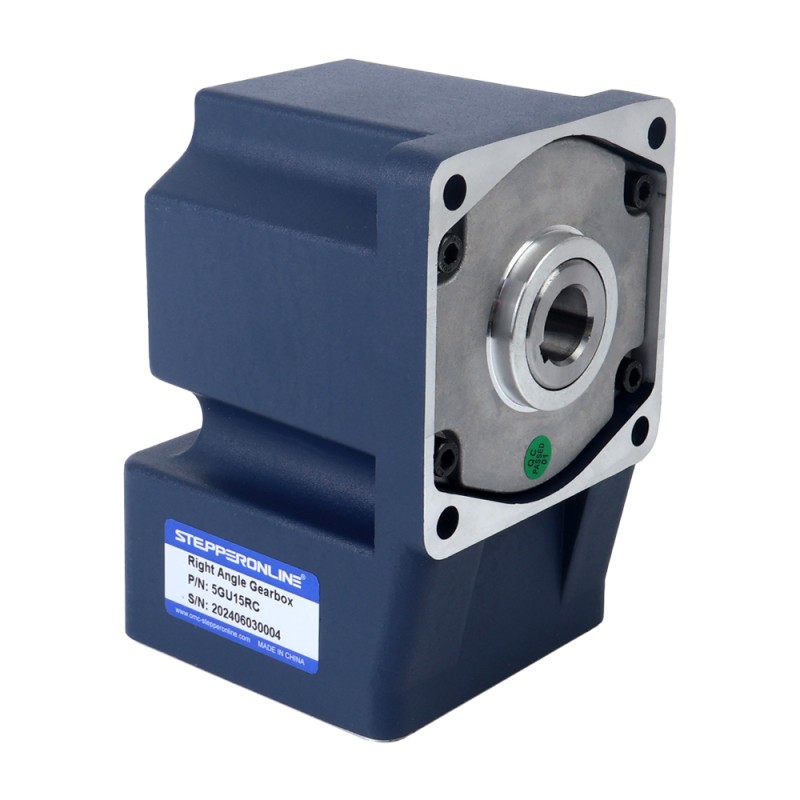

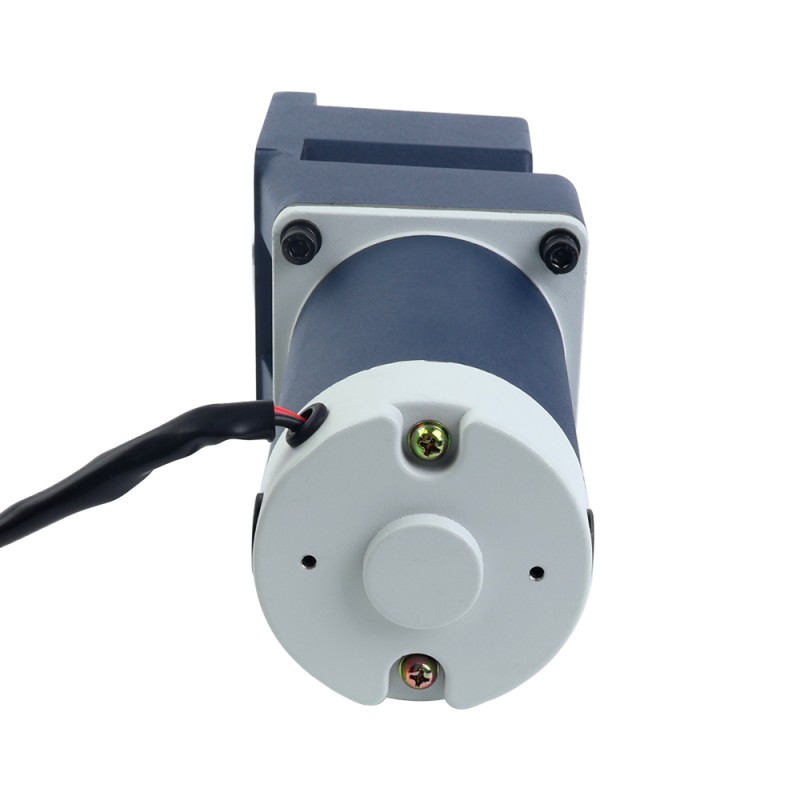

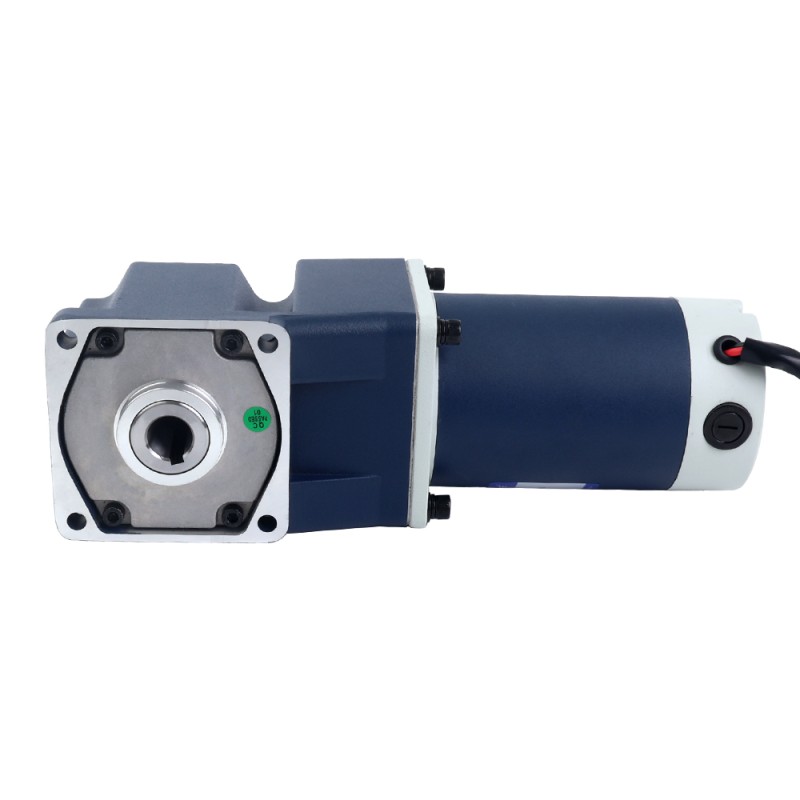

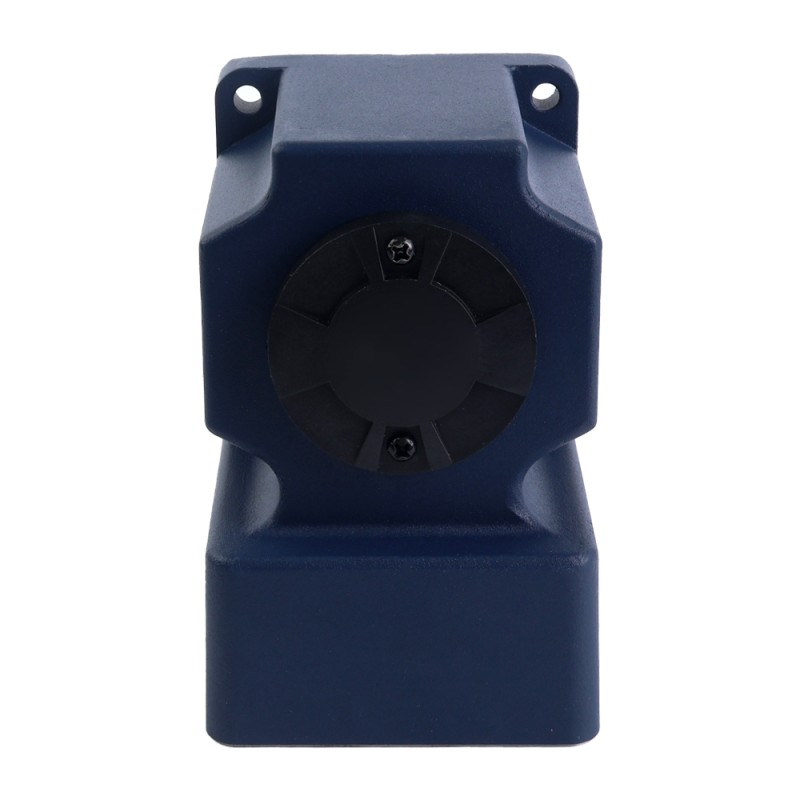

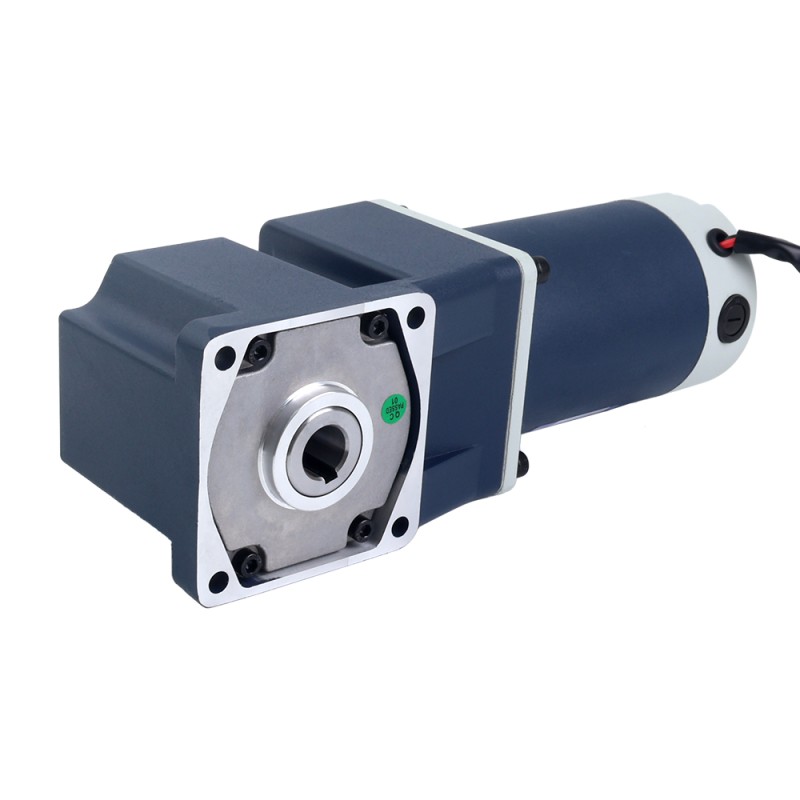

This is a 24V 150W DC gear motor with a flange of 90x90mm. The built-in 15:1 hollow shaft right angle Gearbox brings speed and torque to 120rpm and 8.38Nm(1186.71oz.in). The right-angle gearbox's advantages of efficient transmission, strong load-bearing capacity, ability to change transmission direction make this motor widely used in household appliances, automotive designs, consumer appliances and other fields.

Electrical Specifications

  • P/N: F5D150-24GU-18S/5GU15RC
  • Output Power: 150W
  • Voltage: 24V
  • Rated Speed: 120rpm
  • Rated Torque: 8.38Nm(1186.71oz.in)
  • Brush Service Life: 2000h

Physical Specifications

  • Frame Size: 90x90mm
  • Body Length Includes Gearbox: 288mm
  • Gearbox Type: Right Angle Gearbox
  • Gear Ratio: 15:1
  • Shaft Type: Hollow
  • Bore Diameter: Φ17mm
Electrical Specification
Motor TypeBrushed DC Motor
Rated Speed(rpm)120
Rated Torque(Nm)8.38
Rated Torque(oz.in)1186.71
Rated Voltage(V)24
Physical Specification
Gear Ratio(xx:1)15
Gearbox ShapeSquare
Gearbox TypeRight Angle Gearbox
Output Shaft TypeHollow
