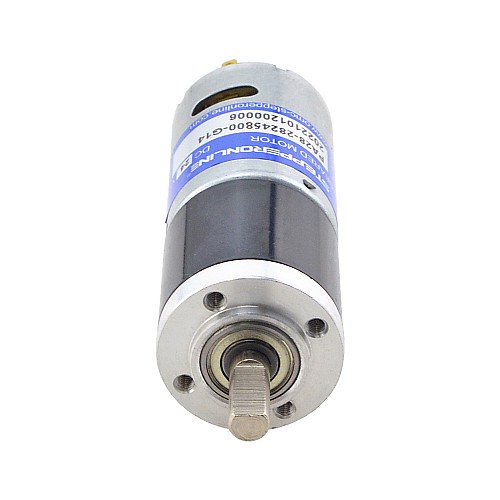

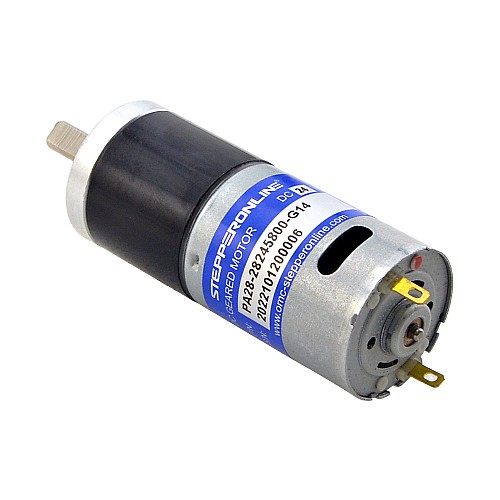

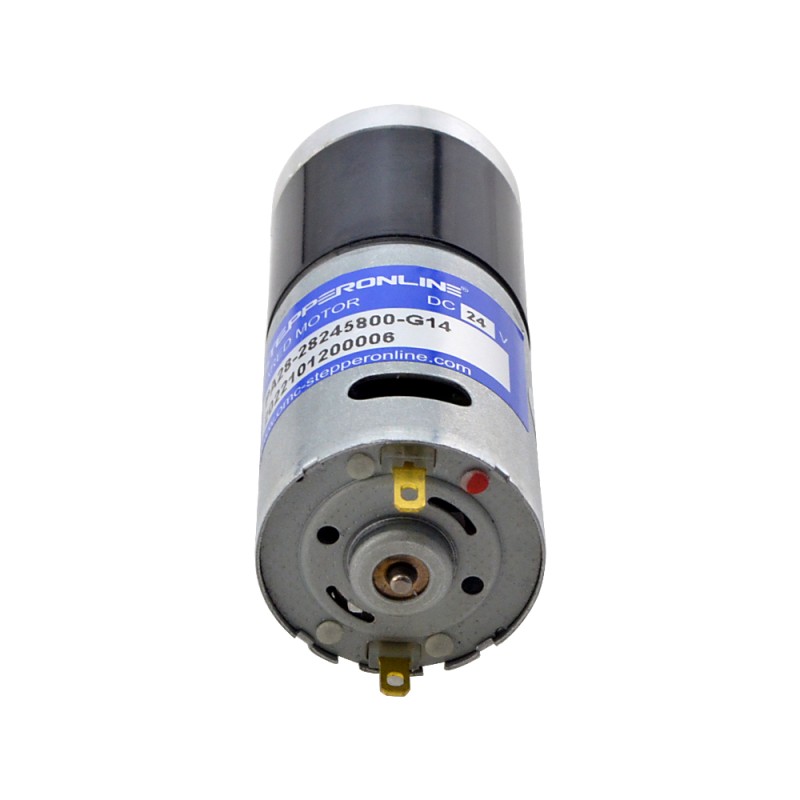

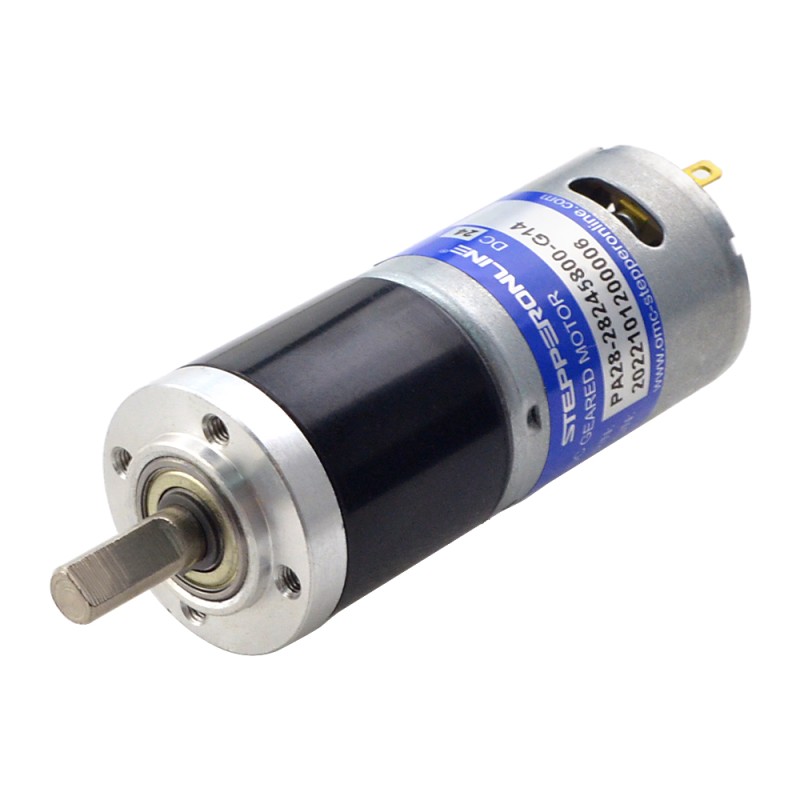

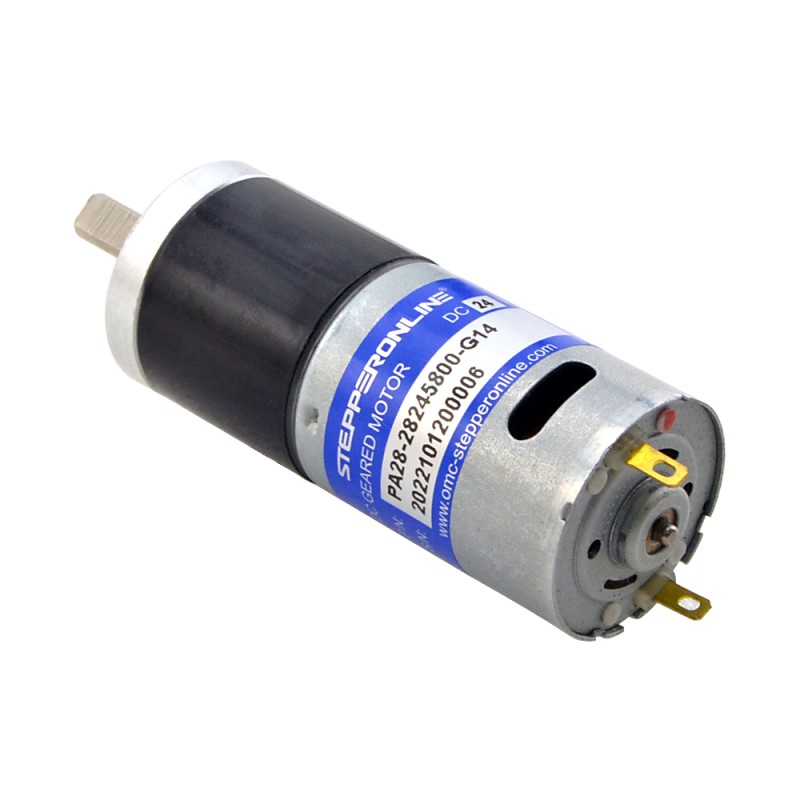

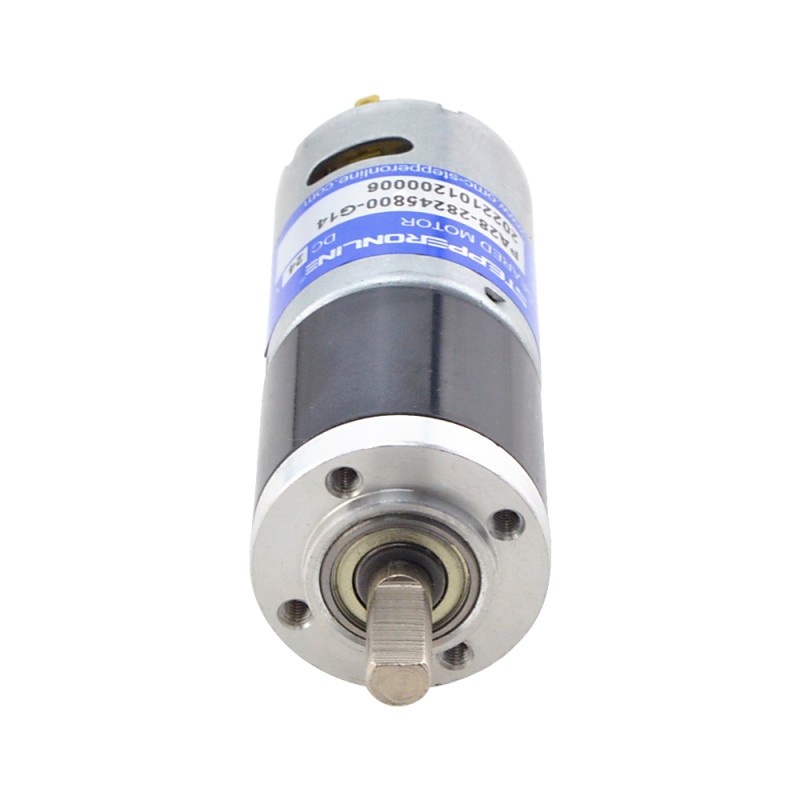

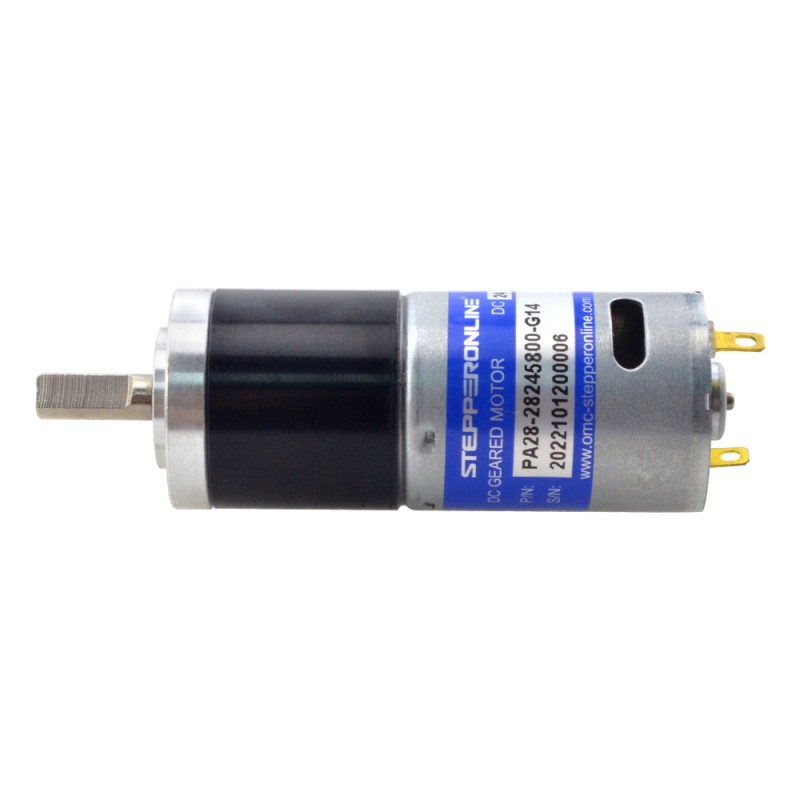

Brushed 24V DC Gear Motor 0.57Kg.cm/334RPM w/ 13.7:1 Planetary Gearbox

Brushed 24V DC Gear Motor 0.57Kg.cm/334RPM w/ 13.7:1 Planetary Gearbox - PA28-28245800-G14 | StepperOnline CA
Brushed 24V DC Gear Motor 0.57Kg.cm/334RPM w/ 13.7:1 Planetary Gearbox - PA28-28245800-G14 | StepperOnline CA
Brushed 24V DC Gear Motor 0.57Kg.cm/334RPM w/ 13.7:1 Planetary Gearbox - PA28-28245800-G14 | StepperOnline CA
Brushed 24V DC Gear Motor 0.57Kg.cm/334RPM w/ 13.7:1 Planetary Gearbox - PA28-28245800-G14 | StepperOnline CA
Brushed 24V DC Gear Motor 0.57Kg.cm/334RPM w/ 13.7:1 Planetary Gearbox - PA28-28245800-G14 | StepperOnline CA
Brushed 24V DC Gear Motor 0.57Kg.cm/334RPM w/ 13.7:1 Planetary Gearbox - PA28-28245800-G14 | StepperOnline CA
Brushed 24V DC Gear Motor 0.57Kg.cm/334RPM w/ 13.7:1 Planetary Gearbox - PA28-28245800-G14 | StepperOnline CA
Brushed 24V DC Gear Motor 0.57Kg.cm/334RPM w/ 13.7:1 Planetary Gearbox - PA28-28245800-G14 | StepperOnline CA
Brushed 24V DC Gear Motor 0.57Kg.cm/334RPM w/ 13.7:1 Planetary Gearbox - PA28-28245800-G14 | StepperOnline CA
Brushed 24V DC Gear Motor 0.57Kg.cm/334RPM w/ 13.7:1 Planetary Gearbox - PA28-28245800-G14 | StepperOnline CA
PA28-28245800-G14
Output Shaft TypeD
Shaft Diameter(mm)6
Shaft Length(mm)18
Rated Current(A)0.19
Question

Downloads

PA28-28245800-G14_Full_Datasheet.pdfPDF · 155.5KBPA28-28245800-G14.STEPSTEP · 285.14KBLog in to download
Same series
ModelOutput Shaft TypeShaft Diameter(mm)Shaft Length(mm)Rated Current(A)PriceStock
PA28-28245800-G100D6180.19C$20.60In stock
PA28-28245800-G139D6180.19C$20.60In stock
PA28-28245800-G14D6180.19C$18.57In stock
PA28-28245800-G14-SALED6180.19C$12.22In stock
PA28-28245800-G189-SALED6180.19C$17.76In stock
PA28-28245800-G19D6180.19C$18.57In stock
PA28-28245800-G264D6180.19C$21.29In stock
PA28-28245800-G27-SALED6180.19C$12.22In stock
PA28-28245800-G369D6180.19C$21.29In stock
PA28-28245800-G369-SALED6180.19C$14.12In stock
PA28-28245800-G5-SALED6180.19C$11.51In stock
PA28-28245800-G51-SALED6180.19C$13.64In stock
PA28-28245800-G720D6180.19C$21.29In stock
PA36-38244500-G189D8200.6C$28.54In stock
PA36-38244500-G369-SALED8200.6C$18.50In stock
PA36-38244500-G4D8200.6C$23.62In stock
PA36-38244500-G5D8200.6C$23.62In stock
PA36-38244500-G720 DiscontinuedD8200.6—
PB65-65241800-G18Keyway15324.5C$121.50In stock
PB65-65241800-G184Keyway15324.5C$127.69In stock
PB65-65241800-G36Keyway15324.5C$121.50In stock
PB84-84242200-G22Keyway25508.0C$166.81In stock
PB84-84242200-G229Keyway25508.0C$175.04In stock
PB84-84242200-G43Keyway25508.0C$166.81In stock
PB94-92242200-G22Keyway255011.0C$191.52In stock
PB94-92242200-G229Keyway255011.0C$199.75In stock
PB94-92242200-G43Keyway255011.0C$191.52In stock
Brushed 24V DC Gear Motor 0.57Kg.cm/334RPM w/ 13.7:1 Planetary Gearbox
This is a standard 24 volt brushed DC gear motor, generating 0.57kg.cm of torque at 334rpm. It's a s... Read More
0 reviews • Write a review
from
C$18.57
5 + C$17.94
10 + C$17.34
50 + C$16.79
100 + C$16.27

Click country for real-time stock

Add to Cart
Add to Wish List Compare this Product
Easy Returns

Return within 30 days of delivery. Contact us first and we'll take it from there.

Read more
Ships within 24 hours!
Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.

This is a standard 24 volt brushed DC gear motor, generating 0.57kg.cm of torque at 334rpm. It's a small, inexpensive motor suitable for low torque, high speed applications. Combined with a 13.7 :1 planetary gearbox, this motor will provide greater efficiency, higher torque, and quieter motor operation.

Electrical Specification

  • Part Number: PA28-28245800-G14
  • Rated Voltage: 24V
  • Rated Torque: 0.57kg.cm(7.92oz.in)
  • Rated Current: 190mA
  • Rated Speed: 334rpm
  • Rated Power: 2.45W
  • No-load Current: 80mA
  • No-load Speed: 421rpm
  • Rotation Direction: CW/CCW
  • Motor Type: Brushed DC Motor

Gearbox Specification

  • Gearbox Type: Planetary
  • Gear Ratio: 13.7 : 1
  • Max. Permissible Torque: 20kg.cm
  • Moment Permissible Torque(within 30S): 90kg.cm
  • Max. Permissible Radial Load: <50N
  • Max. Permissible Axial Load: <30N

Physical Specification

  • Motor Size: Φ27.7 x 38mm
  • Gearbox Size: Φ28 x 29mm
  • Shaft Diameter: Φ6mm
  • Shaft Length: 18mm
  • D-cut Length: 12mm
Electrical Specification
Motor Type Brushed DC Motor
Rated Current(A) 0.19
Rated Power(W) 2.45
Rated Speed(rpm) 334
Rated Torque(kg.cm) 0.57
Rated Torque(oz.in) 3.33
Rated Voltage(V) 24
Physical Specification
Gear Ratio(xx:1) 13.7
Gearbox Shape Round
Gearbox Type Planetary Gearbox
Output Shaft Type D
Shaft Diameter(mm) 6
Shaft Length(mm) 18

Write a review

Not published. We only use it to follow up on your review.
Note: HTML is not translated!
Rating
Bad Good
Quickview

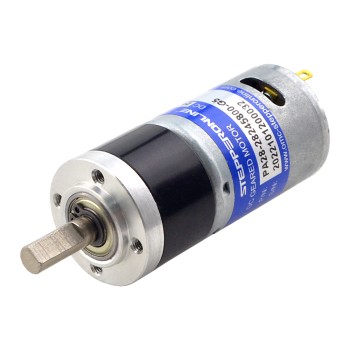

CN On Sale - Brushed 24V DC Gear Motor 0.24Kg.cm/888RPM w/ 5.18:1 Planetary Gearbox
