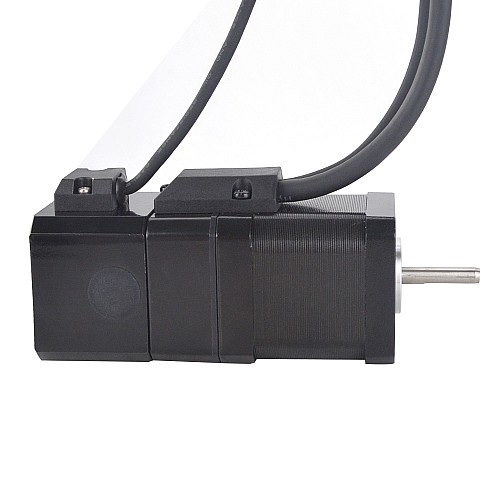

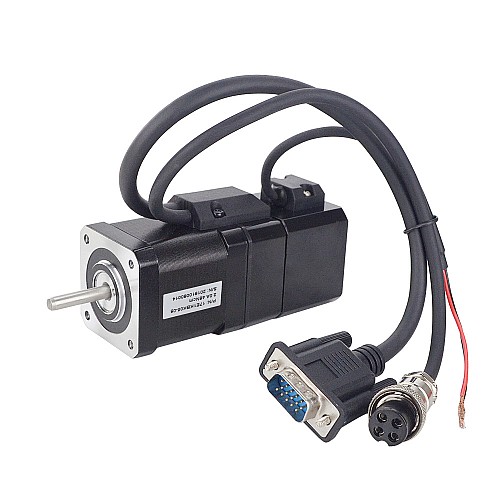

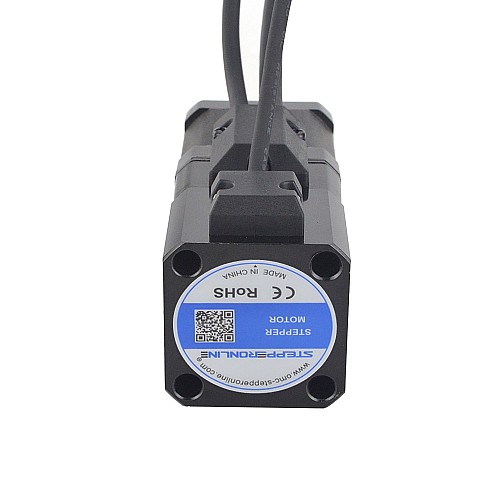

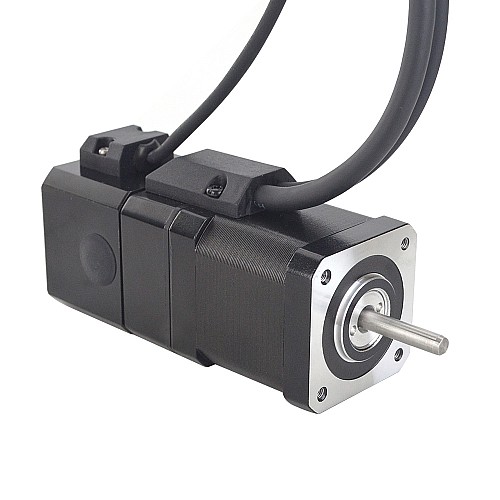

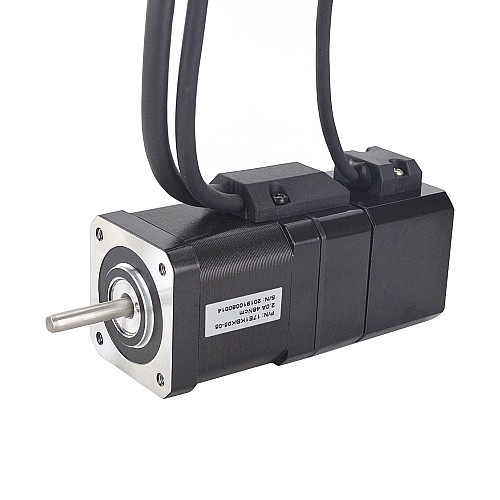

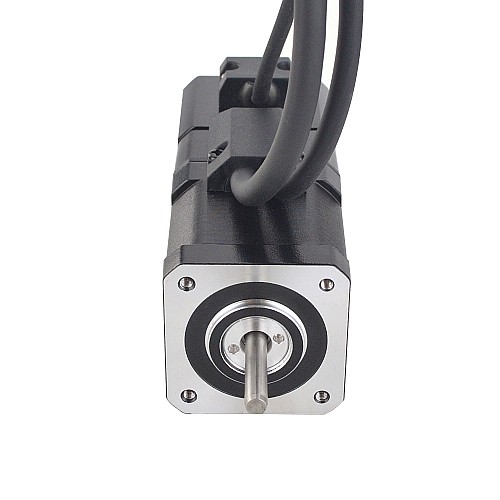

P Series Nema 17 Closed Loop Stepper Motor 48Ncm(67.99oz.in) with Electromagnetic Brake

0 reviews - Write a review

€79.74

5 + €75.99

10 + €72.58

50 + €69.45

100 + €66.59

In Stock: 10000
Model: 17E1KBK05-05
Gross Weight: 0.77kg
Certificated: ISO, CE, UKCA, RoHS

Sold: 180

Click country for real-time stock

Ships from

China

United States

Qty

Add to Cart

Question

Add to Wish List Compare this Product

Ships within 24 hours!

Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.

Choose a Local Warehouse, Get More Benefits!

Customers in US, UK, EU, Australia & Russia: Please choose local warehouses first (German warehouse for EU). This ensures faster delivery and avoids customs duties, reducing total costs.

Electrical Specification

Manufacturer Part Number: 17E1KBK05-05
Number of phase: 2
Step Angle: 1.8deg
Holding Torque: 48Ncm(67.99oz.in)
Rated Current/phase: 2.0A
Phase Resistance: 1.35ohms
Inductance: 2.8mH±20%(1KHz)
Insulation Class: B 130°C[266°F]

Physical Specification

Frame Size: 42 x 42mm
Body Length: 48mm
Shaft Diameter: Φ5mm
Shaft Length: 24mm
D-Cut Shaft Length: 15mm
Lead Length: 270mm
Weight: 0.36kg

Encoder Specification

Output Circuit Type: Differential type
Encoder Type: Incremental
Output Signal Channels: 2channels
Supply Voltage Min: 5V
Supply Voltage Max: 5V
Output High Voltage: ＜4V
Output Low Voltage: ＜1V

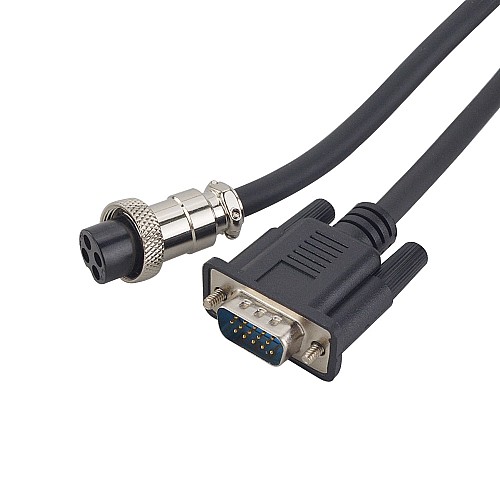

Connection

PIN	1	2	3	4
Motor	A+	A-	B+	B-

PIN	2	3	1	13	11	12
Encoder	VCC	EGND	EA+	EA-	EB+	EB-

Brake Connection
24V 0.5N.m
+	-
Red	Black

The motor comes with a highly flexible cable that can be bent 8 million times without failure.

Product Type
Product Type	Motor w/ Encoder & Brake & Gearbox
Electrical Specification
Encoder Resolution	1000PPR
Encoder Type	Optical Incremental
Holding Torque(Ncm)	48
Inductance(mH)	2.8
Output Circuit Type	Differential
Output Signal Channels	2
Phase Resistance(ohms)	1.35
Rated Current(A)	2
Stepper Motor with	Encoder/Brake
Brake Specification
Brake Current(A)	0.16
Brake Power(W)	3.96
Brake Rated Voltage(V)	24
Brake Torque(Ncm)	50
Brake Type	Power Off Brake
Response Time(ms)	50
Physical Specification
Body Length(mm)	48.1
Frame Size(mm)	Nema 17 (42 x 42)
Inventory Method	Dedicated Inventory
Output Shaft Type	D
Shaft Diameter(mm)	5
Shaft Length(mm)	24
