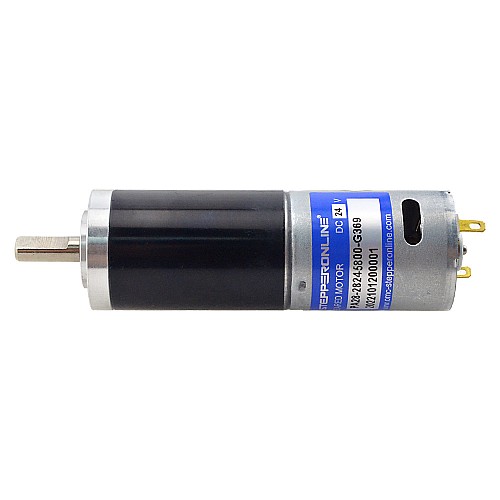

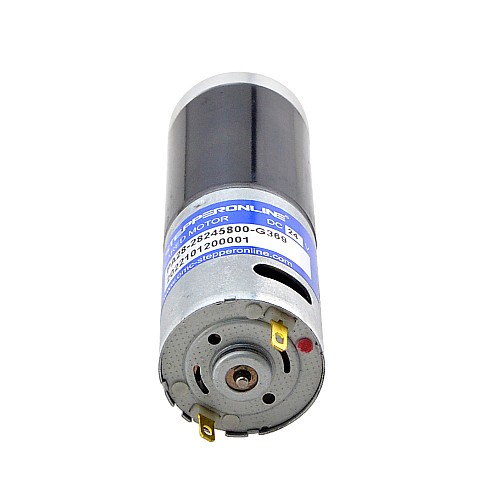

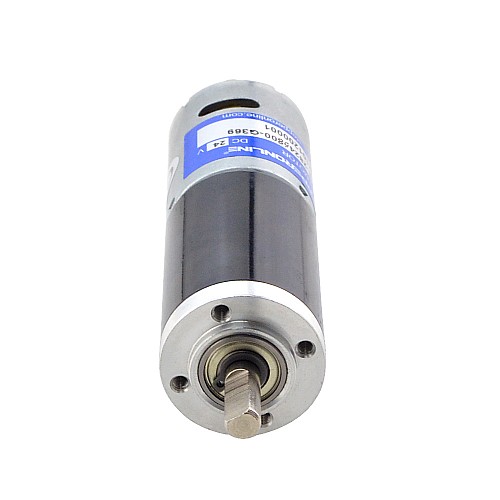

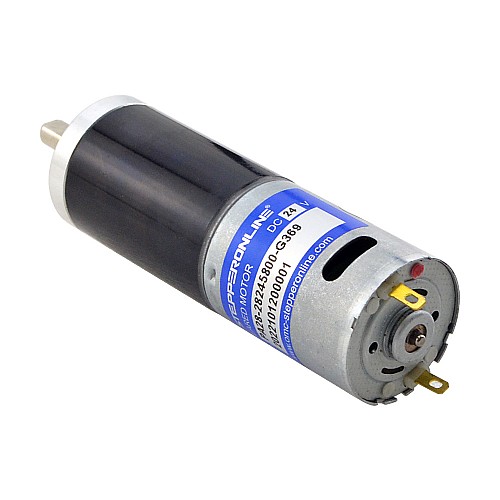

Brushed 24V DC Gear Motor 11.5Kg.cm/12RPM w/ 369:1 Planetary Gearbox

0 reviews - Write a review

C$20.59

5 + C$19.88

10 + C$19.23

50 + C$18.60

100 + C$18.03

In Stock: 10000
Model: PA28-28245800-G369
Gross Weight: 0.26kg
Certificated: ISO

Available Options

Ships from

China

Qty

Add to Cart

Question

Add to Wish List Compare this Product

How to Choose a Shipping Warehouse？

For customers in the US, the UK, EU, Australia and Russia, please prioritize selecting a local warehouse. For the EU countries, choose the German warehouse.
The benefits of this selection include faster delivery times and lower overall costs, as no customs duties are incurred.

Ships within 24 hours!

Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.

This is a standard 24 volt brushed DC gear motor, generating 11.5kg.cm of torque at 12rpm. It's a small, inexpensive motor suitable for low torque, high speed applications. Combined with a 369 :1 planetary gearbox, this motor will provide greater efficiency, higher torque, and quieter motor operation.

Electrical Specification

Part Number: PA28-28245800-G369
Rated Voltage: 24V
Rated Torque: 11.5kg.cm(159.7oz.in)
Rated Current: 190mA
Rated Speed: 12rpm
Rated Power: 2.45W
No-load Current: 80mA
No-load Speed: 16rpm
Rotation Direction: CW/CCW
Motor Type: Brushed DC Motor

Gearbox Specification

Gearbox Type: Planetary
Gear Ratio: 369 : 1
Max. Permissible Torque: 20kg.cm
Moment Permissible Torque(within 30S): 60kg.cm
Max. Permissible Radial Load: <=20N
Max. Permissible Axial Load: <=10N

Physical Specification

Motor Size: Φ27.7 x 38mm
Gearbox Size: Φ28 x 44.5mm
Shaft Diameter: Φ6mm
Shaft Length: 18mm
D-cut Length: 12mm

Electrical Specification
Motor Type	Brushed DC Motor
Rated Current(A)	0.19
Rated Power(W)	2.45
Rated Speed(rpm)	12
Rated Torque(kg.cm)	11.5
Rated Torque(oz.in)	159.7
Rated Voltage(V)	24
Physical Specification
Gear Ratio(xx:1)	369
Gearbox Shape	Round
Gearbox Type	Planetary Gearbox
Inventory Method	Dedicated Inventory
Output Shaft Type	D
Shaft Diameter(mm)	6
Shaft Length(mm)	18
