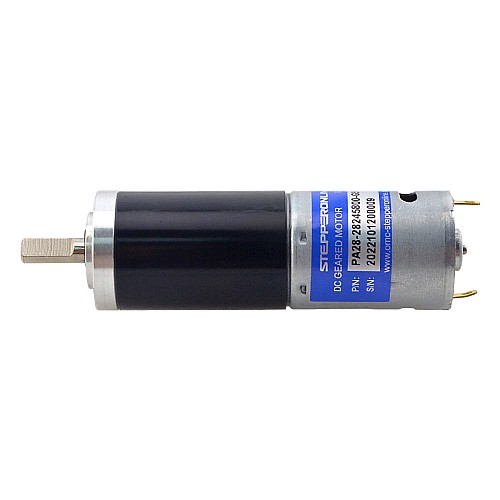

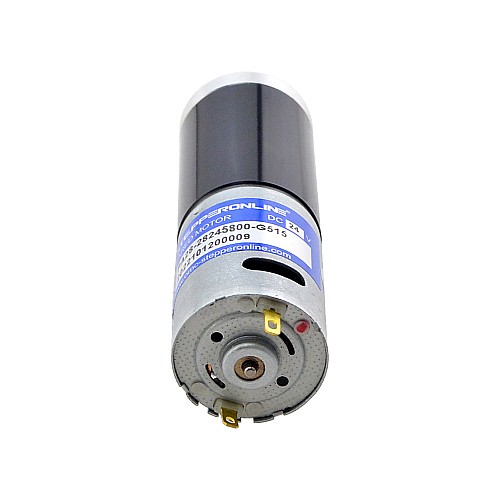

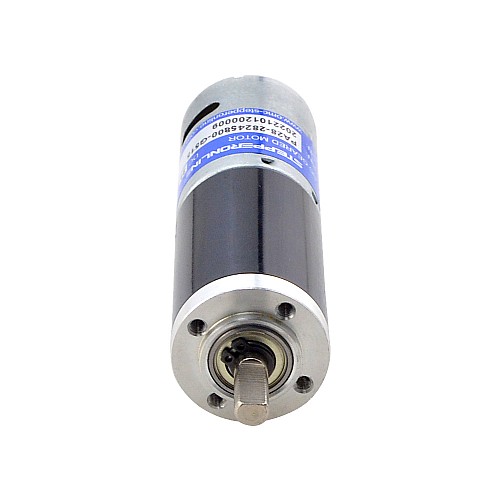

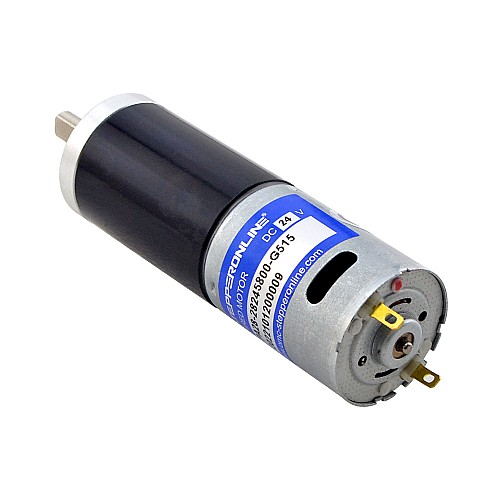

Brushed 24V DC Gear Motor 16Kg.cm/8.9RPM w/ 515:1 Planetary Gearbox

0 reviews - Write a review

C$0.00

In Stock: 1
Model: PA28-28245800-G515
Gross Weight: 0.26kg
Certificated: ISO

Qty

Add to Cart

Question

Add to Wish List Compare this Product

This product has a minimum quantity of 999

Choose a Local Warehouse, Get More Benefits!

Customers in US, UK, EU, Australia & Russia: Please choose local warehouses first (German warehouse for EU). This ensures faster delivery and avoids customs duties, reducing total costs.

This is a standard 24 volt brushed DC gear motor, generating 16kg.cm of torque at 8.9rpm. It's a small, inexpensive motor suitable for low torque, high speed applications. Combined with a 515 :1 planetary gearbox, this motor will provide greater efficiency, higher torque, and quieter motor operation.

Electrical Specification

Part Number: PA28-28245800-G515
Rated Voltage: 24V
Rated Torque: 16kg.cm(222.2oz.in)
Rated Current: 190mA
Rated Speed: 8.9rpm
Rated Power: 2.45W
No-load Current: 80mA
No-load Speed: 11rpm
Rotation Direction: CW/CCW
Motor Type: Brushed DC Motor

Gearbox Specification

Gearbox Type: Planetary
Gear Ratio: 515 : 1
Max. Permissible Torque: 20kg.cm
Moment Permissible Torque(within 30S): 60kg.cm
Max. Permissible Radial Load: <=20N
Max. Permissible Axial Load: <=10N

Physical Specification

Motor Size: Φ27.7 x 38mm
Gearbox Size: Φ28 x 44.5mm
Shaft Diameter: Φ6mm
Shaft Length: 18mm
D-cut Length: 12mm

Electrical Specification
Motor Type	Brushed DC Motor
Rated Current(A)	0.19
Rated Power(W)	2.45
Rated Speed(rpm)	8.9
Rated Torque(kg.cm)	16
Rated Torque(oz.in)	222.2
Rated Voltage(V)	24
Physical Specification
Gear Ratio(xx:1)	515
Gearbox Shape	Round
Gearbox Type	Planetary Gearbox
Inventory Method	Dedicated Inventory
Output Shaft Type	D
Shaft Diameter(mm)	6
Shaft Length(mm)	18
