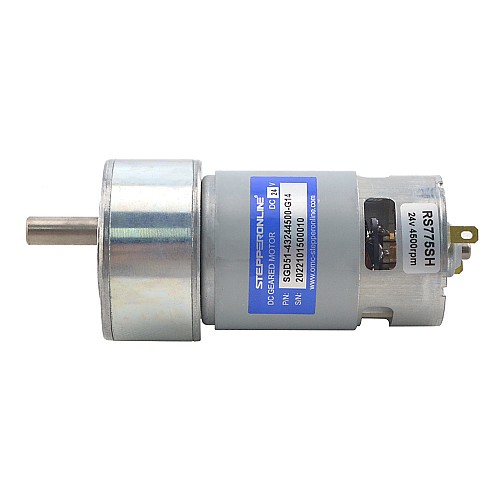

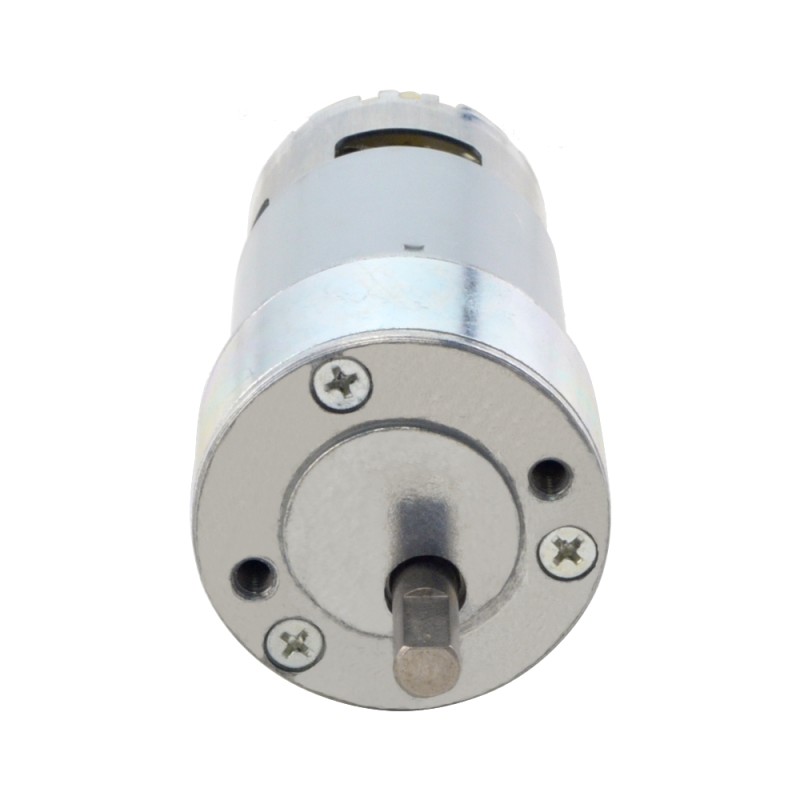

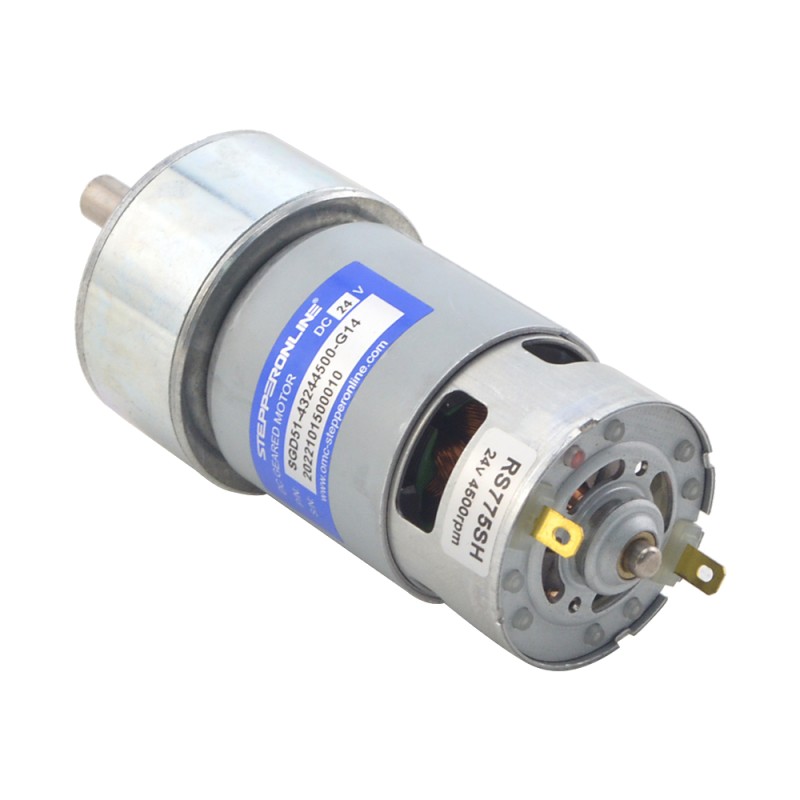

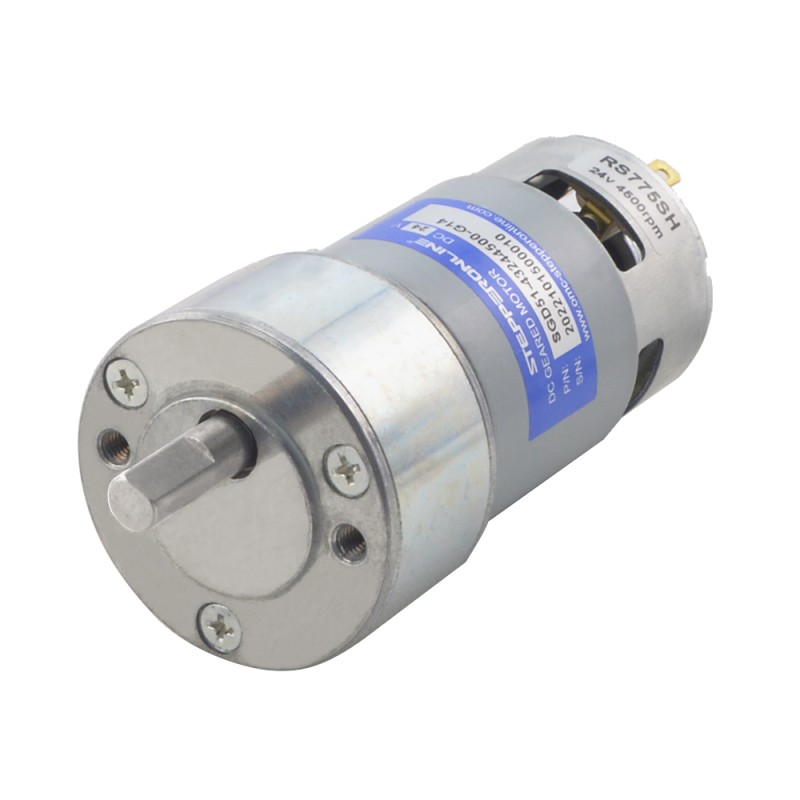

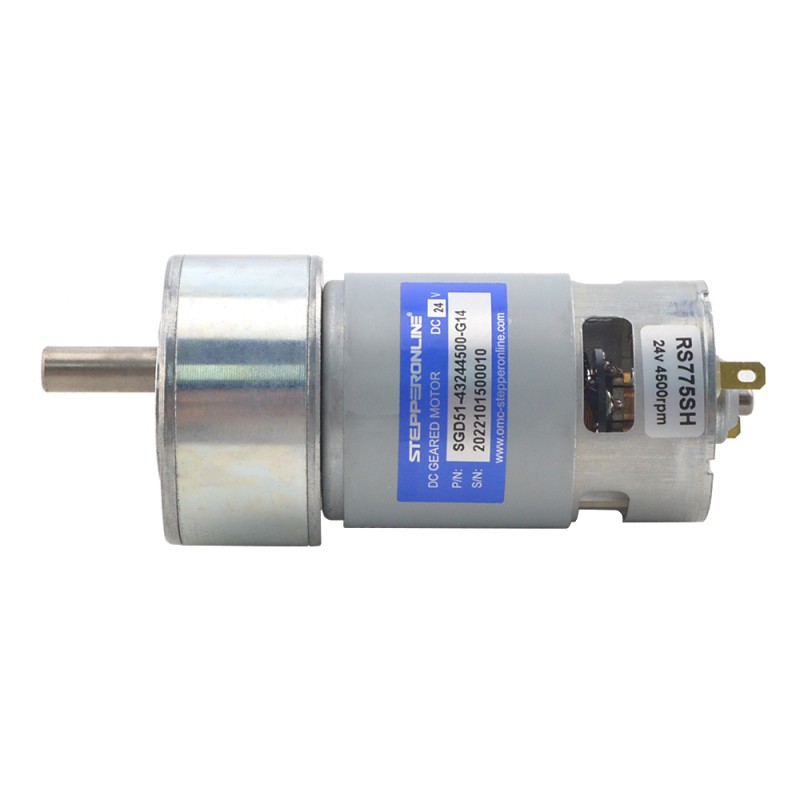

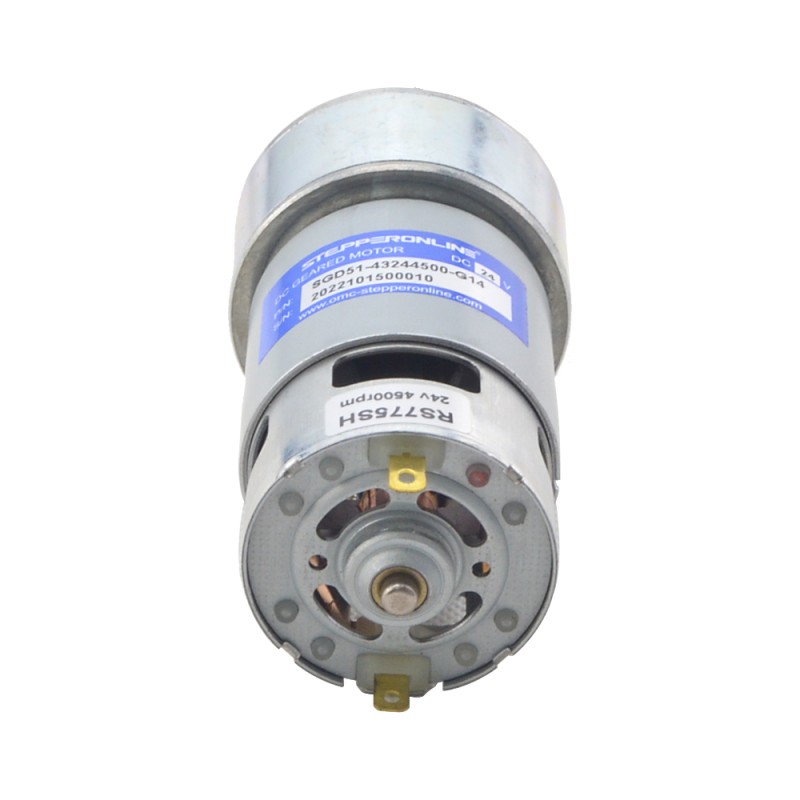

Brushed 24V DC Gear Motor 5Kg.cm/245RPM 14:1 Spur Gearbox

0 reviews - Write a review

C$0.00

In Stock: 1
Model: SGD51-43244500-G14
Gross Weight: 0.62kg
Certificated: ISO, CE

Qty

Add to Cart

Question

Add to Wish List Compare this Product

This product has a minimum quantity of 999

How to Choose a Shipping Warehouse？

For customers in the US, the UK, EU, Australia and Russia, please prioritize selecting a local warehouse. For the EU countries, choose the German warehouse.
The benefits of this selection include faster delivery times and lower overall costs, as no customs duties are incurred.

This is a standard 24 volt brushed DC gear motor, generating 5kg.cm of torque at 245rpm. It's a small, inexpensive motor suitable for low torque, high speed applications. Combined with a 14 : 1 spur gearbox, this motor will provide greater efficiency, higher torque, and quieter motor operation.

Electrical Specification

Part Number: SGD51-43244500-G14
Rated Voltage: 24V
Rated Torque: 5kg.cm(69.15oz.in)
Rated Current: <=3500mA
Rated Speed: 245rpm
No-load Current: <=600mA
No-load Speed: 326rpm
Rotation Direction: CW/CCW
Motor Type: Brushed DC Motor

Gearbox Specification

Gearbox Type: Spur Gearbox
Gear Ratio: 14 : 1

Physical Specification

Motor Size: Φ42.8 x 68mm
Gearbox Size: Φ50.8 x 26.4mm
Shaft Diameter: Φ8mm
Shaft Length: 21.5mm
D-cut Length: 13mm

Electrical Specification
Motor Type	Brushed DC Motor
Rated Current(A)	3.5
Rated Speed(rpm)	245
Rated Torque(kg.cm)	5
Rated Torque(oz.in)	69.15
Rated Voltage(V)	24
Physical Specification
Gear Ratio(xx:1)	14
Gearbox Shape	Round
Gearbox Type	Spur Gearbox
Inventory Method	Dedicated Inventory
Output Shaft Type	D
Shaft Diameter(mm)	8
Shaft Length(mm)	21.5
