Nema 17 Closed Loop Stepper Motor 42Ncm(59.48oz.in) with Encoder 1000PPR(4000CPR)

8 reviews - Write a review

C$26.27

5 + C$25.19

10 + C$24.20

50 + C$23.27

100 + C$22.42

In Stock: 10000
Model: 17HS15-1504D-E1K
Gross Weight: 0.41kg
Certificated: ISO, CE, UKCA, RoHS

Available Options

Ships from

China

United States

Germany

Qty

Add to Cart

Question

Add to Wish List Compare this Product

How to Choose a Shipping Warehouse？

For customers in the US, the UK, EU, Australia and Russia, please prioritize selecting a local warehouse. For the EU countries, choose the German warehouse.
The benefits of this selection include faster delivery times and lower overall costs, as no customs duties are incurred.

Ships within 24 hours!

Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.

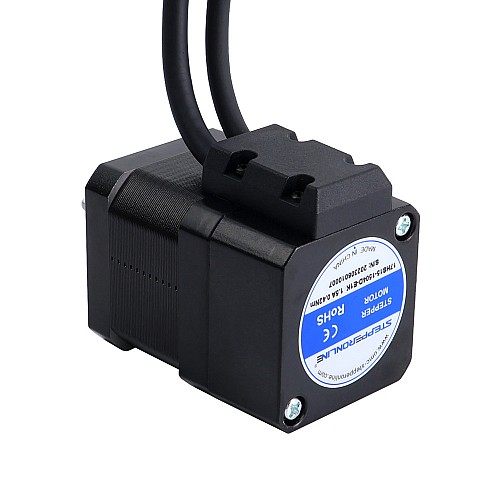

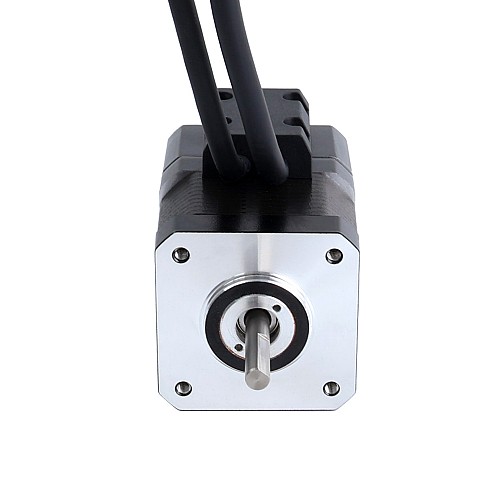

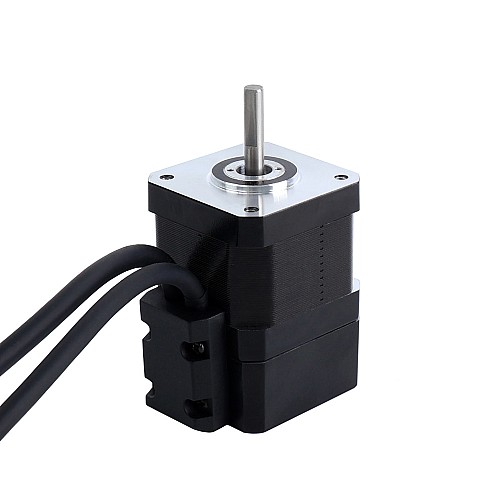

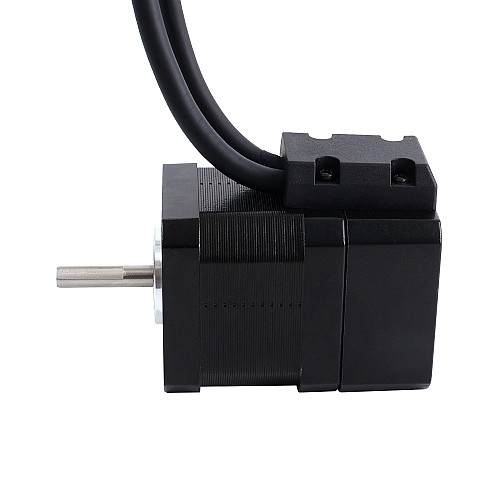

This is a Nema 17 closed-loop stepper motor with a 1000ppr(4000cpr) incremental optical encoder, a rated current of 1.5A, and a holding torque of 42Ncm(59.48oz.in). Compared with open-loop stepper motors, it has higher precision, higher torque, less motor heat, lower power consumption, and better response to external factors.

Electrical Specification

Manufacturer Part Number: 17HS15-1504D-E1K
Number of phase: 2
Step Angle: 1.8deg
Holding Torque: 42Ncm(59.48oz.in)
Rated Current/Phase: 1.5A
Phase Resistance: 1.65ohms
Inductance: 2.5mH ± 20%(1KHz)
Insulation Class: B 130°C[266°F]

Physical Specification

Frame Size: 42 x 42mm
Body Length: 60mm
Shaft Diameter: Φ5mm
Shaft Length: 24mm
D-Cut Shaft Length: 15mm
Lead Length: 500mm
Weight: 0.4kg

Encoder Specification

Output Circuit Type: Differential type
Encoder Type: Optical Incremental
Encoder Resolution: 1000PPR(4000CPR)
Output Signal Channels: 2 channels
Supply Voltage Min: 5V
Supply Voltage Max: 5V
Output High Voltage: >4V
Output Low Voltage: <1V

Connection

Pin	A+	A-	B+	B-
Color	Black	Green	Red	Blue

Encoder	VCC	GND	EA+	EA-	EB+	EB-
Lead Color	Red	White	Black	Blue	Yellow	Green

The motor comes with a highly flexible cable that can be bent 8 million times without failure.

Product Type
Product Type	Closed Loop Stepper Motor
Electrical Specification
Encoder Resolution	1000PPR
Encoder Type	Optical Incremental
Has Torque/Thrust Curve?	Yes
Holding Torque(Ncm)	42
Holding Torque(oz.in)	59.48
Inductance(mH)	2.5
Output Circuit Type	Differential
Output Signal Channels	2
Phase Resistance(ohms)	1.65
Rated Current(A)	1.5
Physical Specification
Body Length(mm)	60
Frame Size(mm)	Nema 17 (42 x 42)
Inventory Method	Dedicated Inventory
IP Rating	40
Shaft Diameter(mm)	5
Shaft Length(mm)	24
