CN On Sale - Brushed 24V DC Gear Motor 7Kg.cm/100RPM w/ 36:1 Rectangular Spur Gearbox

Brushed 24V DC Gear Motor 7Kg.cm/100RPM w/ 36:1 Rectangular Spur Gearbox - FGF-36244500-G36 | StepperOnline CA

-33 %

CN On Sale - Brushed 24V DC Gear Motor 7Kg.cm/100RPM w/ 36:1 Rectangular Spur Gearbox

0 reviews - Write a review

C$30.93

C$20.57

In Stock: 10000
Model: CN-FGF-36244500-G36
Gross Weight: 0.69kg
Certificated: ISO, CE

Sold: 10

Click country for real-time stock

Ships from

China

Qty

Add to Cart

Question

Add to Wish List Compare this Product

Ships within 24 hours!

Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.

Choose a Local Warehouse, Get More Benefits!

Customers in US, UK, EU, Australia & Russia: Please choose local warehouses first (German warehouse for EU). This ensures faster delivery and avoids customs duties, reducing total costs.

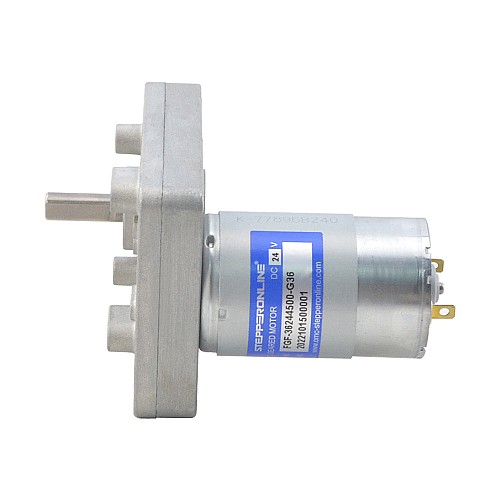

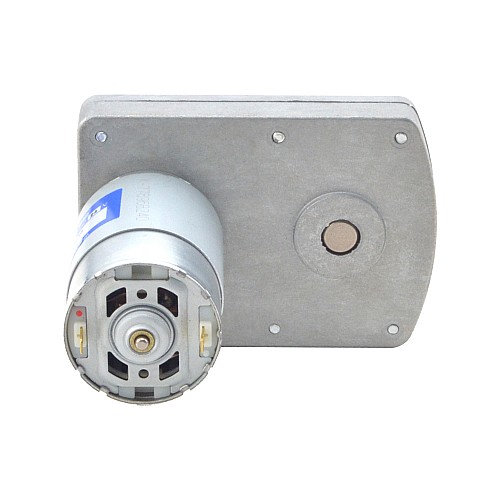

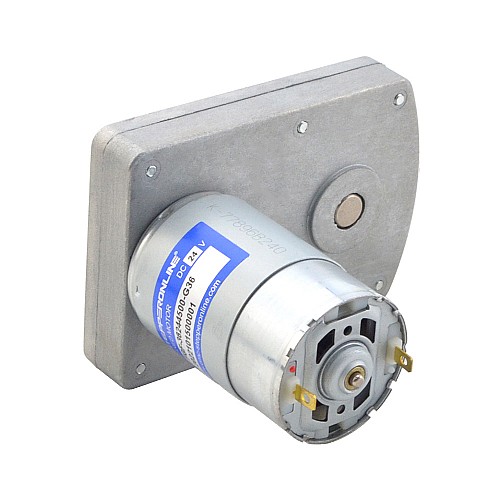

This is a standard 24 volt brushed DC gear motor, generating 7kg.cm of torque at 100rpm. It's a small, inexpensive motor suitable for low torque, high speed applications. Combined with a 36 : 1 rectangular gearbox, this motor will provide greater efficiency, higher torque, and quieter motor operation.

Electrical Specification

Part Number: FGF-36244500-G36
Rated Voltage: 24V
Rated Torque: 7kg.cm(96.81oz.in)
Rated Current: <=1200mA
Rated Speed: 100rpm
No-load Current: <=200mA
No-load Speed: >=125rpm
Rotation Direction: CW/CCW
Motor Type: Brushed DC Motor

Gearbox Specification

Gearbox Type: Spur Gearbox
Gear Ratio: 36 : 1

Physical Specification

Motor Length: 57.5mm
Gearbox Size: 90.2 x 63.5 x 16mm
Shaft Diameter: Φ7.92mm
Shaft Length: 19mm

Electrical Specification
Motor Type	Brushed DC Motor
Rated Current(A)	1.2
Rated Speed(rpm)	100
Rated Torque(kg.cm)	7
Rated Torque(oz.in)	96.81
Rated Voltage(V)	24
Physical Specification
Gear Ratio(xx:1)	36
Gearbox Shape	Rectangular
Gearbox Type	Spur Gearbox
Inventory Method	Dedicated Inventory
Output Shaft Type	D
Shaft Diameter(mm)	7.92
Shaft Length(mm)	19
