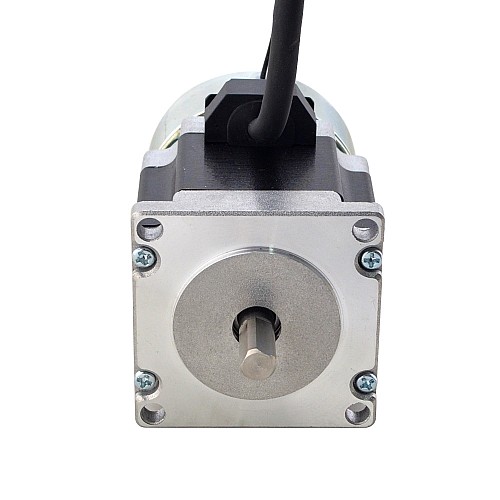

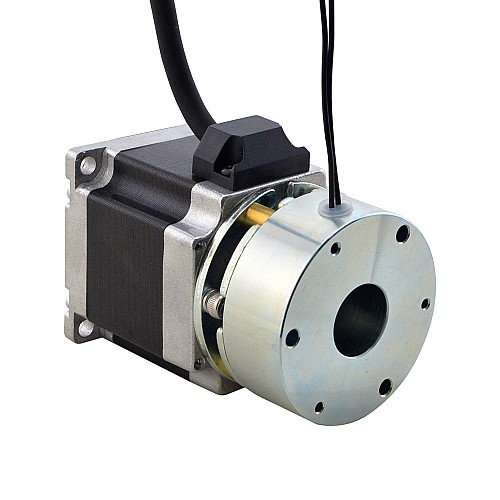

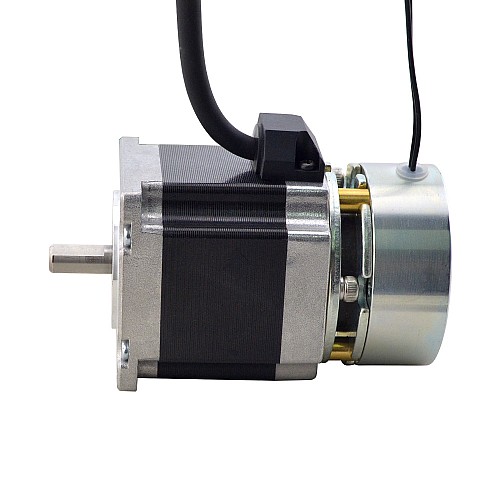

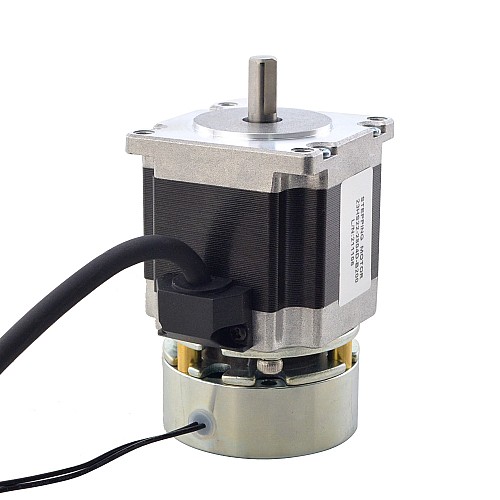

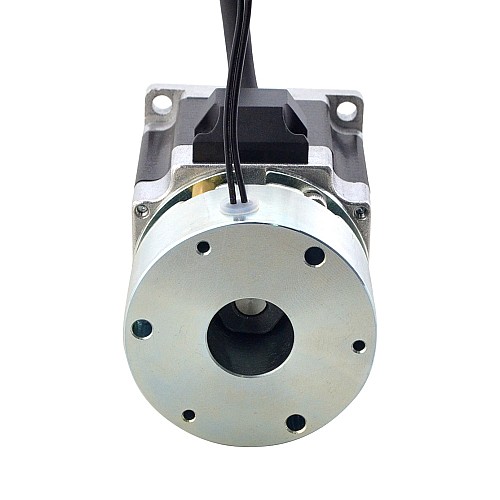

Nema 23 Stepper 1.26Nm(178oz.in) w/ Brake Friction Torque 2.0Nm(283oz.in)

0 reviews - Write a review

C$75.04

5 + C$71.94

10 + C$69.10

50 + C$66.47

100 + C$64.02

In Stock: Pre-order
Model: 23HS22-2804D-B200
Gross Weight: 1.15kg
Certificated: ISO, CE, UKCA, RoHS

Click country for real-time stock

Ships from

China

Qty

Add to Cart

Question

Add to Wish List Compare this Product

This product has a minimum quantity of 5

What Does Pre-order Mean?

A pre-order product is an item not currently in stock. When you place your order, we will begin production or procurement specifically for your purchase.

Motor Specification

Manufacturer Part Number: 23HS22-2804D-B200
Motor Type: Bipolar Stepper
Step Angle: 1.8deg
Holding Torque: 1.26Nm(178.4oz.in)
Rated Current/phase: 2.8A
Voltage: 2.5V
Phase Resistance: 0.9ohms
Inductance: 2.5mH±20%(1KHz)
Insulation Class: B 130°C[266°F]
Frame Size: 57 x 57mm
Body Length: 88mm
Shaft Diameter: Φ8mm
Shaft Length: 21mm
D-cut Length: 15mm
Number of Leads: 4
Lead Length: 500mm
Weight: 0.7kg

Brake Specification

Brake Type: Non-excited
Static Friction Torque: 2Nm(283.22oz.in)
Moment of Inertia : 3.8x10^-6kg.cm²
Voltage: 24V
Power: 11.5W
Heat-resistance Class: F
Max. Speed : 5000rpm
Weight : 0.4kg

Connection

A+	A-	B+	B-
Black	Green	Yellow	Blue

The motor comes with a highly flexible cable that can be bent 8 million times without failure.

Product Type
Product Type	Motor w/ Encoder & Brake & Gearbox
Electrical Specification
Holding Torque(Ncm)	126
Holding Torque(oz.in)	178.4
Phase Resistance(ohms)	0.9
Rated Current(A)	2.8
Stepper Motor with	Brake
Brake Specification
Brake Power(W)	11.5
Brake Rated Voltage(V)	24
Brake Torque(Ncm)	200
Brake Torque(oz.in)	283.22
Brake Type	Power Off Brake
Physical Specification
Frame Size(mm)	Nema 23 (57 x 57)
Inventory Method	Dedicated Inventory
IP Rating	40
Shaft Diameter(mm)	8
Shaft Length(mm)	21
