DSY Series 1000W CANopen DC Servo Motor 24-70VDC 3.20Nm 3000rpm 17-Bit Incremental Encoder IP65

This is the latest DSY series DC servo system, consisting of a 48VDC 1000W servo motor and a 24-70VDC 1200W CANopen servo driver. The servo motor has a rated torque of 3.20Nm, a peak torque of 9.60Nm, and a rated speed of 3000rpm.
The DSY-C servo system supports CANopen communication control, featuring built-in error detection and retransmission mechanisms. Compared to RS485, it delivers faster response times, enhanced noise immunity, and multi-master network support.
It can be widely used in various applications such as mobile robots (AMR, AGV), service robots, special robots, logistics warehousing and sorting, medical equipment, instruments, and light textile industries, where voltage and size constraints are important.

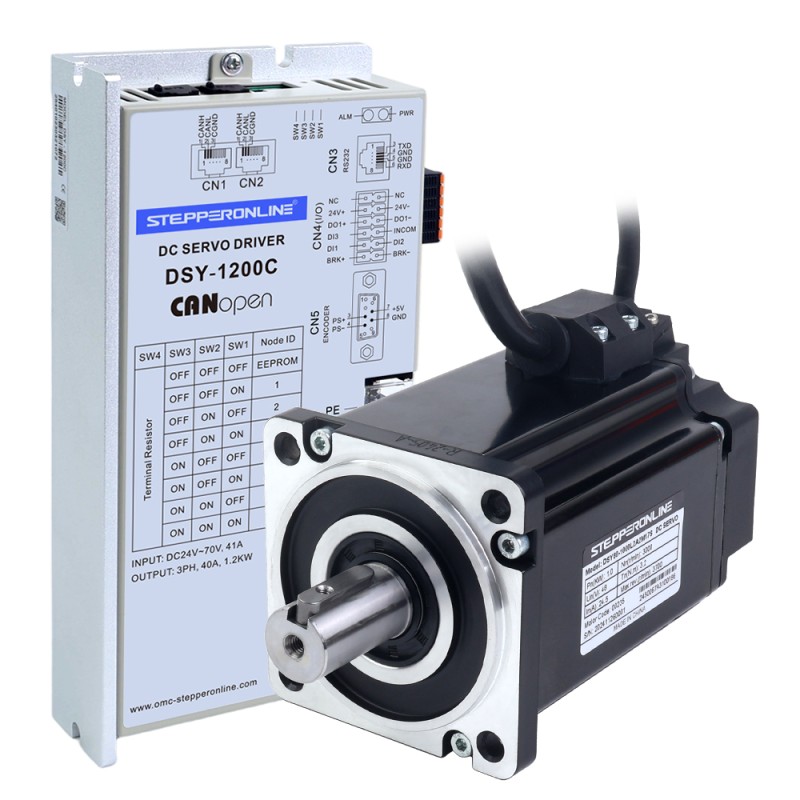

Items in Kit

• 1 x DSY-1200C: 1200W CANopen DC Servo Motor Driver
• 1 x DSY80-1000L2A2M17S: 1000W 48V DC Servo Motor 3000rpm 3.20Nm 17-Bit Encoder IP65

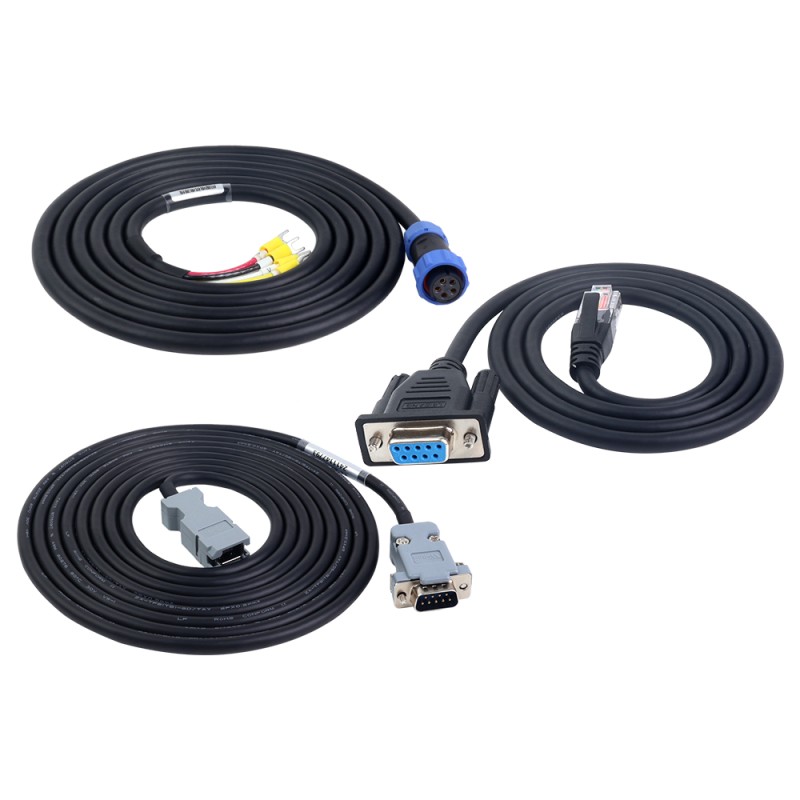

• 1 x P2-DS-03P30M: 3.0m Motor Cable
• 1 x E2-DS-03AM: 3.0m Encoder Cable
• 1 x RS232-5: 1.0m Debugging Cable

Servo Driver Specification

• Part Number: DSY-1200C
• Control method: CANopen
• Continuous Output Current: 40.0A
• Maximum Output Current: 120.0A
• Power Supply Input: 24-70VDC
• Rated power 1200W
• Dimension: 200*100*35.8mm

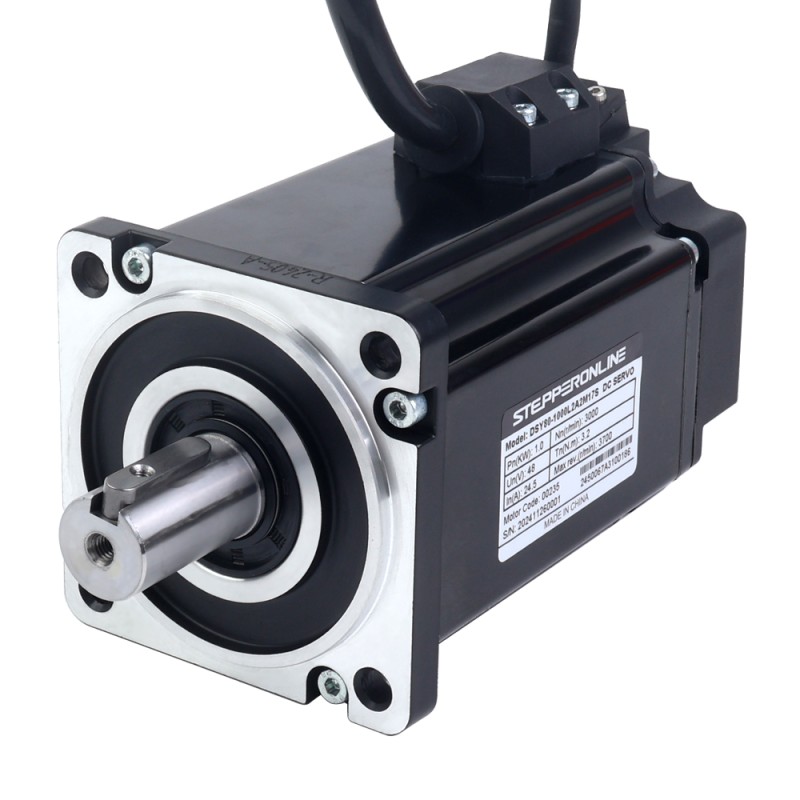

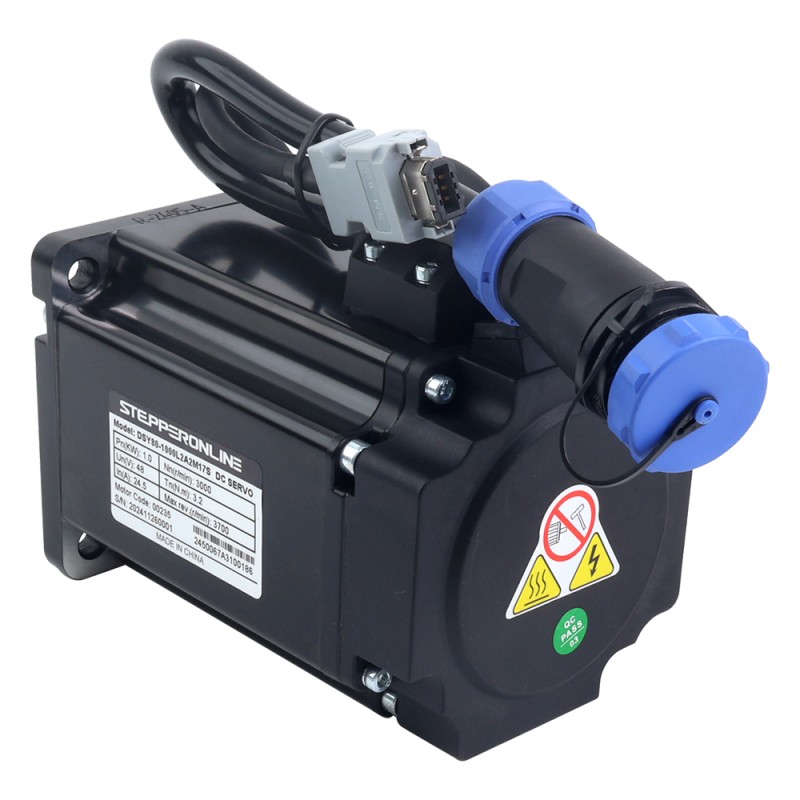

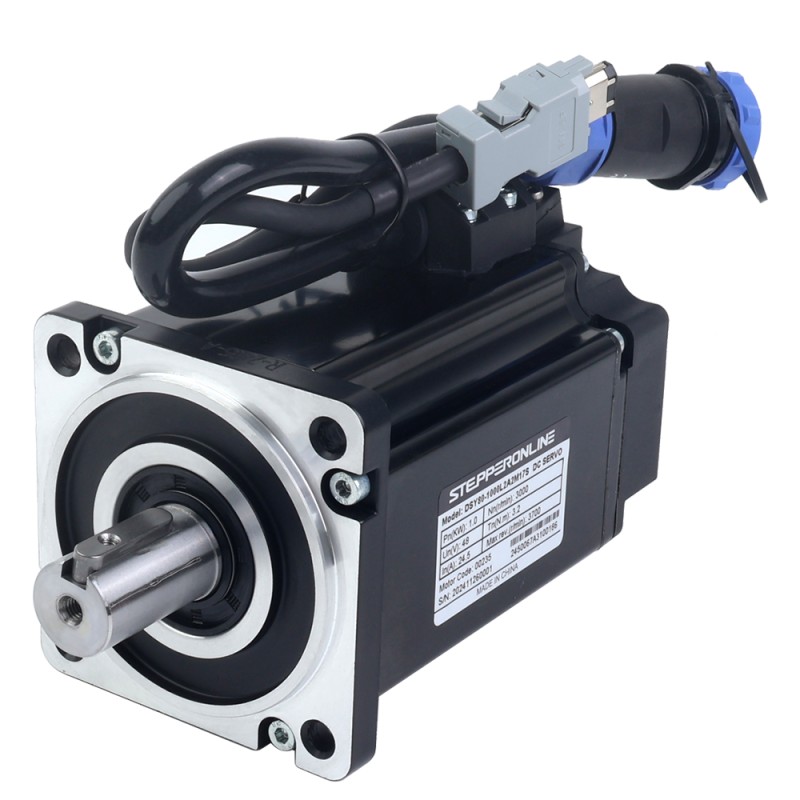

Servo Motor Specification

• Part Number: DSY80-1000L2A2M17S
• Rated Power: 1000W
• Rated Voltage: 48VDC
• Rated Torque: 3.20Nm
• Peak Torque: 9.60Nm
• Rated Current: 24.5A
• Rated Speed: 3000rpm
• Torque Const: 0.13N.m/A
• Line-line Resistance: 0.08ohms ± 10%
• Line-line Inductance: 0.30mH ± 20%
• Inertia: 1.92kg*m²*10^-4
• Encoder: 17-bit single-turn magnetic incremental encoder
• Poles: 10
• IP Rating: IP65
• Shaft diameter: 19mm
• Cable Length: 3m(optional lengths are 1.5m and 5m)
