DSY Series 200W RS485 DC Servo Motor 24-70VDC 0.637Nm w/ Brake 3000rpm 17-Bit Incremental Encoder IP65

0 reviews - Write a review

C$244.95

5 + C$236.58

10 + C$228.76

50 + C$221.44

100 + C$214.57

In Stock: 10000
Model: DSY-RS200L2B2-M17S
Gross Weight: 2.45kg
Certificated: ISO, CE

Available Options

Ships from

China

Germany

Qty

Add to Cart

Question

Add to Wish List Compare this Product

How to Choose a Shipping Warehouse？

For customers in the US, the UK, EU, Australia and Russia, please prioritize selecting a local warehouse. For the EU countries, choose the German warehouse.
The benefits of this selection include faster delivery times and lower overall costs, as no customs duties are incurred.

Ships within 24 hours!

Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.

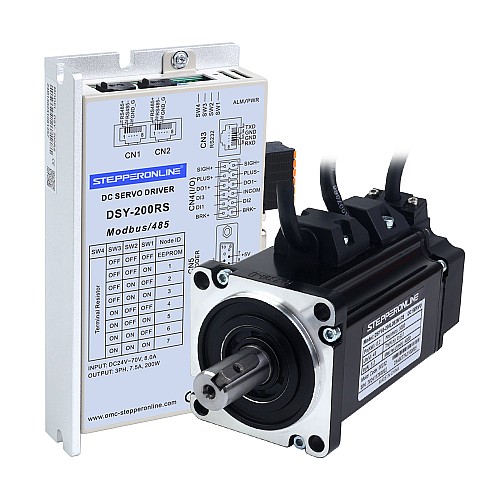

This is the latest DSY series DC servo system, consisting of a 48VDC 200W servo motor with a 24V 7.3W brake and a 24-70VDC 200W servo driver. The servo motor has a rated torque of 0.637Nm, a peak torque of 1.91Nm, and a rated speed of 3000rpm.
It comes standard with a 17-bit single-turn magnetic incremental encoder and adopts a high power density design, allowing it to deliver strong power in a compact size, achieving 3 times the instantaneous overload. The new magnetic circuit design reduces torque ripple, minimizing vibration during operation and providing smoother torque output.
It can be widely used in various applications such as mobile robots (AMR, AGV), service robots, special robots, logistics warehousing and sorting, medical equipment, instruments, and light textile industries, where voltage and size constraints are important.

Items in Kit

1 x DSY-200RS: 200W Pulse/RS485 DC Servo Motor Driver
1 x DSY60-200L2B2M17S: 200W 48V DC Servo Motor 3000rpm 0.637Nm with Brake 17-Bit Encoder IP65

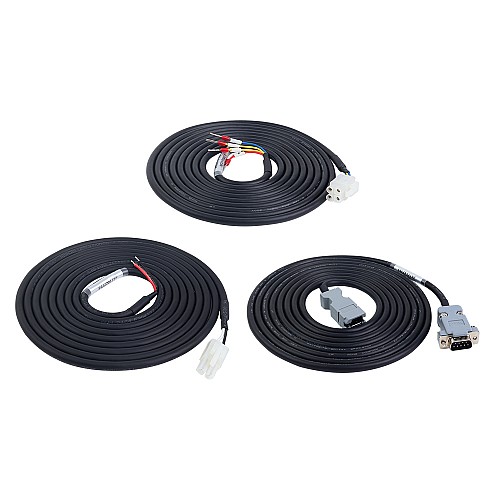

1 x P1-DS-03P08M: 3.0m Motor Cable
1 x P1-DS-03M-S: 3.0m Brake Cable
1 x E2-DS-03AM: 3.0m Encoder Cable

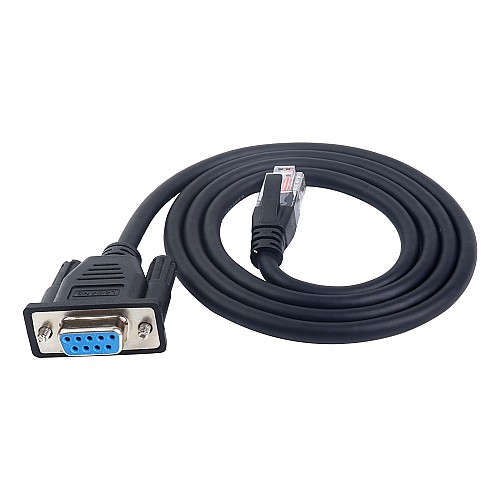

1 x RS232-5: 1.0m Debugging Cable

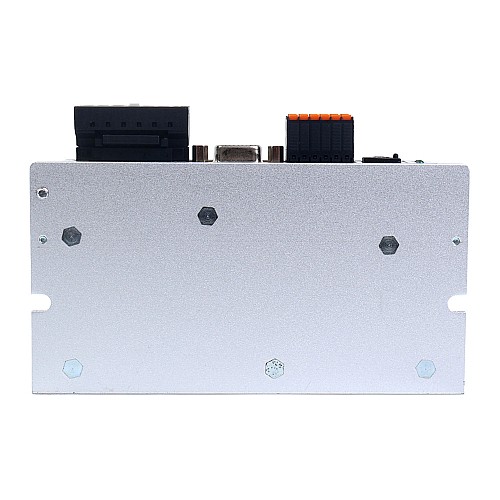

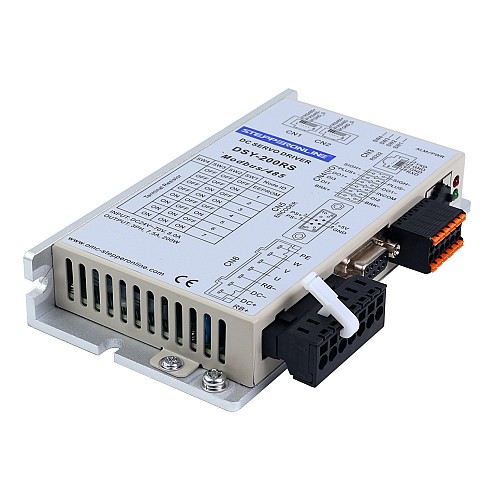

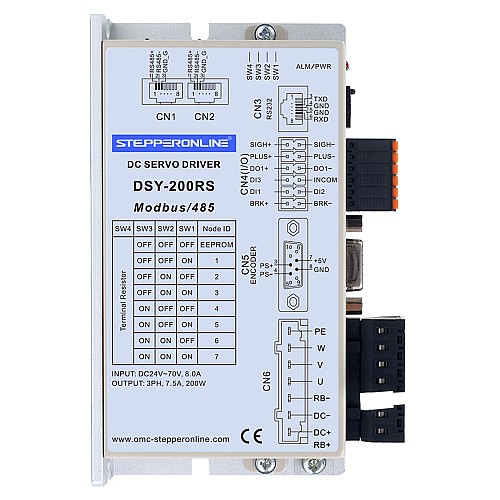

Servo Driver Specification

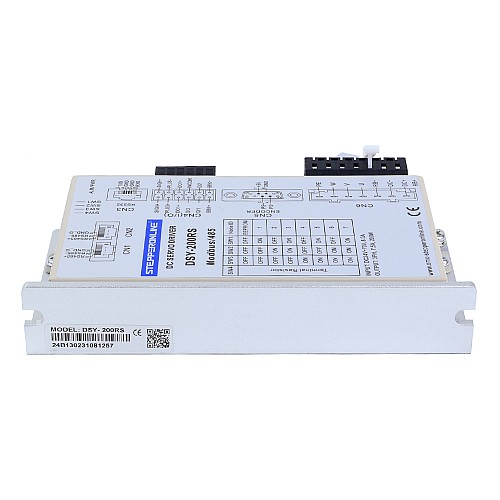

Part Number: DSY-200RS
Continuous Output Current: 7.5A
Maximum Output Current: 24.0A
Power Supply Input: 24-70VDC
Rated power 200W
Dimension: 141*75.5*25.4mm

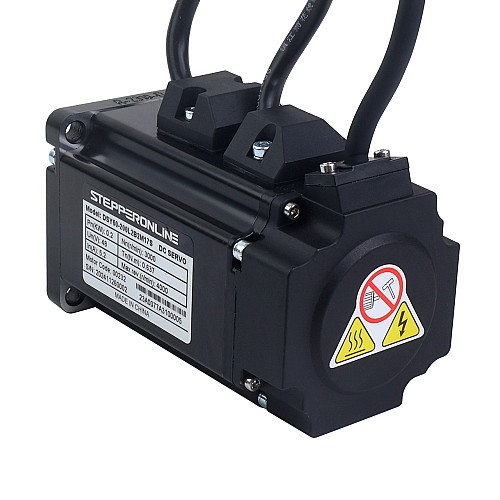

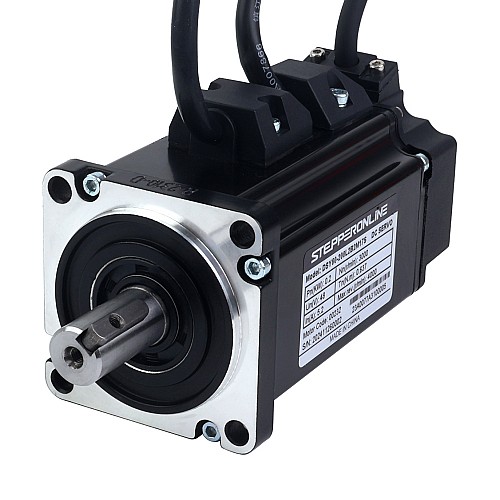

Servo Motor Specification

Part Number: DSY60-200L2B2M17S
Rated Power: 200W
Rated Voltage: 48VDC
Rated Torque: 0.637Nm
Peak Torque: 1.91Nm
Rated Current: 5.2A
Rated Speed: 3000rpm
Torque Const: 0.123N.m/A
Line-line Resistance: 0.86ohms ± 10%
Line-line Inductance: 1.46mH ± 20%
Inertia: 0.29kg*m²*10^-4
Encoder: 17-bit single-turn magnetic incremental encoder
Poles: 10
IP Rating: IP65
Shaft diameter: 14mm
Brake Holding Torque: 1.52Nm
Brake Voltage: 24VDC
Brake Power: 7.3W
Brake Current: 0.32A
Cable Length: 3m(optional lengths are 1.5m and 5m)

Please download DSY series servo debug software here.

To learn more about the differences between all servo motors sold on STEPPERONLINE, please refer to this article.

The DSY series debugging software by STEPPERONLINE was developed and tested on Windows 10. Using other Windows versions may cause compatibility issues (e.g., garbled text) or affect software functionality.

Electrical Specification
Control Modes	Pulse/RS485
Encoder Resolution	17bit
Encoder Type	Magnetic Incremental
Input Voltage(V)	24 - 70VDC
Peak Speed(rpm)	4000
Peak Torque(Nm)	1.91
Rated Power(W)	200
Rated Speed(rpm)	3000
Rated Torque(Nm)	0.637
Rated Voltage(V)	48VDC
With Brake	Yes
Physical Specification
Aviation Plug or Not	No
Frame Size(mm)	60 x 60
Integrated or Not	No
Inventory Method	Dedicated Inventory
IP Rating	65
Shaft Diameter(mm)	14

File	Size
DSY-200RS.STEP	16.58MB	Download
DSY60-200L2B2M17S.STEP	2.59MB	Download
DSY60-200L2B2M17S_Full_Datasheet.pdf	134.71KB	Download
DSY-RS_Series_Low_Voltage_Servo_Drive_User_manual_(V1.0).pdf	14.58MB	Download
