Dual Shaft Nema 17 Bipolar 1.8deg 65Ncm(92oz.in) 2.1A 42x42x60mm 4 Wires

Hot

Dual Shaft Nema 17 Bipolar 1.8deg 65Ncm(92oz.in) 2.1A 42x42x60mm 4 Wires

1 reviews - Write a review

C$19.31

5 + C$18.40

10 + C$17.57

50 + C$16.81

100 + C$16.12

In Stock: 10000
Model: 17HS24-2104D
Gross Weight: 0.58kg
Certificated: ISO, CE, UKCA, RoHS

Available Options

Ships from

China

United States

Germany

Qty

Add to Cart

Question

Add to Wish List Compare this Product

How to Choose a Shipping Warehouse？

For customers in the US, the UK, EU, Australia and Russia, please prioritize selecting a local warehouse. For the EU countries, choose the German warehouse.
The benefits of this selection include faster delivery times and lower overall costs, as no customs duties are incurred.

Ships within 24 hours!

Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.

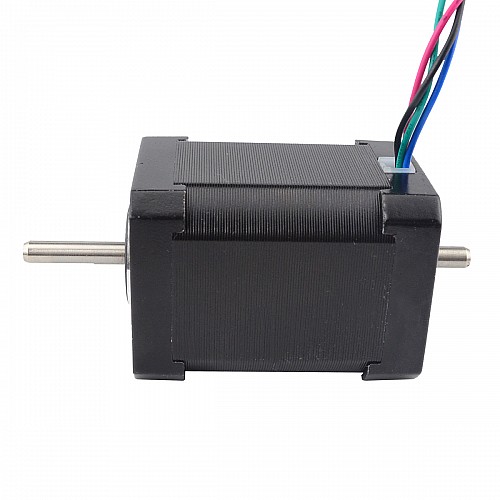

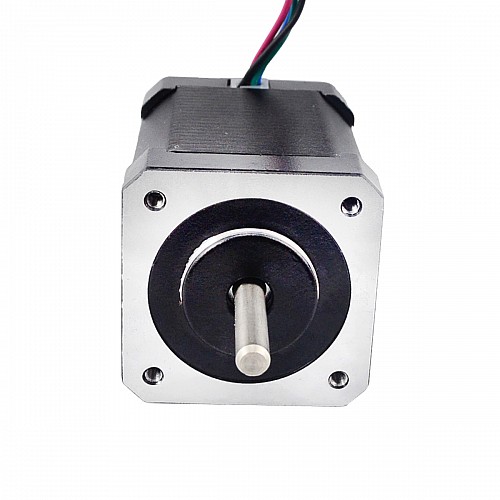

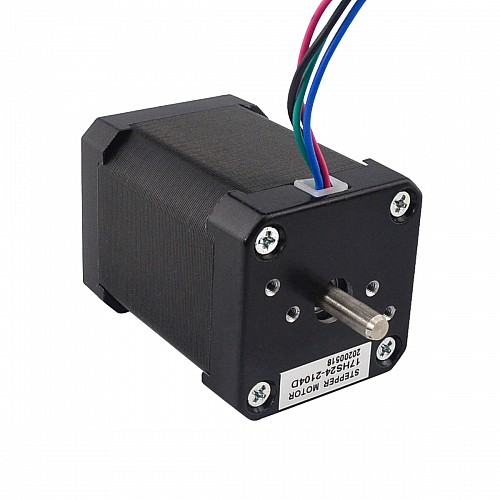

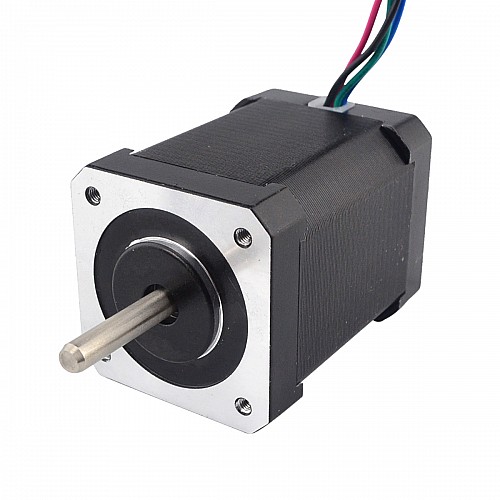

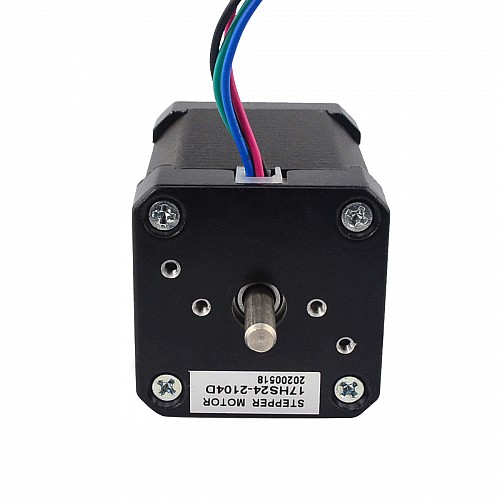

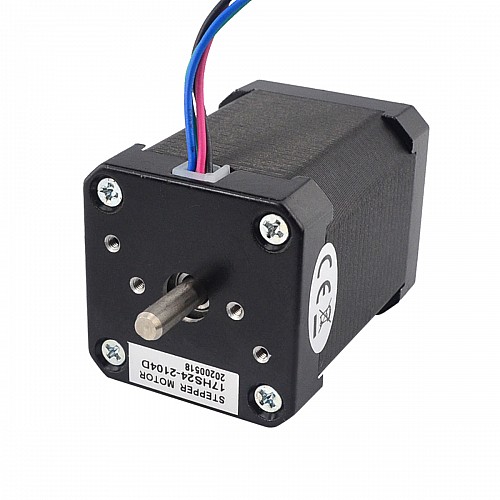

This model is dual shaft Nema 17 Bipolar stepper motor,it with step angle 1.8deg and size 42x42x60mm. It has 4 wires, each phase draws 2.10A at 3.36V, with holding torque 65Ncm(92oz.in).

Electrical Specification

Manufacturer Part Number: 17HS24-2104D
Motor Type: Bipolar Stepper
Step Angle: 1.8deg
Holding Torque: 65Ncm(92oz.in)
Rated Current/phase: 2.10A
Phase Resistance: 1.60ohms
Inductance: 3.00mH±20%(1KHz)
Insulation Class: B 130°C[266°F]

Physical Specification

Frame Size: 42 x 42mm
Body Length: 60mm
Shaft Diameter: Φ5mm
Front Shaft Length: 24mm
Rear Shaft Length:13mm
D-cut Length: 15mm
Number of Leads: 4
Lead Length: 500mm
Weight: 500g

Connection

A+	A-	B+	B-
Black	Green	Red	Blue

Product Type
Product Type	Hybrid Stepper Motor
Electrical Specification
Bipolar/Unipolar	Bipolar
Has Torque/Thrust Curve?	Yes
Holding Torque(Ncm)	65
Holding Torque(oz.in)	92
Inductance(mH)	3.0
Phase Resistance(ohms)	1.60
Rated Current(A)	2.10
Step Angle(deg.)	1.8
Physical Specification
Body Length(mm)	60
Frame Size(mm)	Nema 17 (42 x 42)
Inventory Method	Dedicated Inventory
IP Rating	40
Lead Length(mm)	500
No. of Lead	4
Output Shaft Type	D
Product Series	S
Shaft Diameter(mm)	5
Shaft Length(mm)	24
Single Shaft/Dual Shaft	Dual Shaft
Weight(g)	500
