Dual Shaft Nema 17 Bipolar 45Ncm(63.74oz.in) 2A 42x42x40mm 4 Wires

Hot

Dual Shaft Nema 17 Bipolar 45Ncm(63.74oz.in) 2A 42x42x40mm 4 Wires

1 reviews - Write a review

C$13.51

5 + C$12.88

10 + C$12.30

50 + C$11.77

100 + C$11.29

In Stock: 10000
Model: 17HS16-2004D
Gross Weight: 0.32kg
Certificated: ISO, CE, UKCA, RoHS

Sold: 1392

Click country for real-time stock

Ships from

China

United States

Germany

Qty

Add to Cart

Question

Add to Wish List Compare this Product

Ships within 24 hours!

Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.

Choose a Local Warehouse, Get More Benefits!

Customers in US, UK, EU, Australia & Russia: Please choose local warehouses first (German warehouse for EU). This ensures faster delivery and avoids customs duties, reducing total costs.

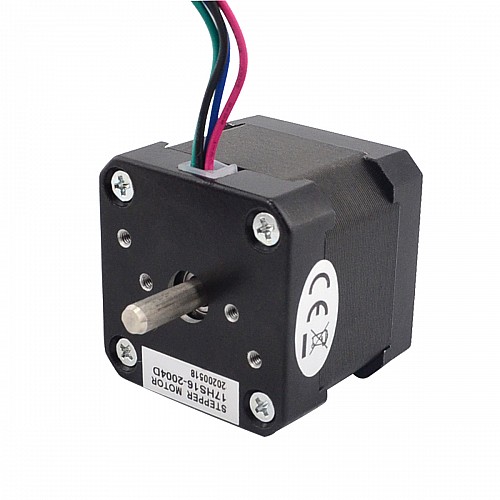

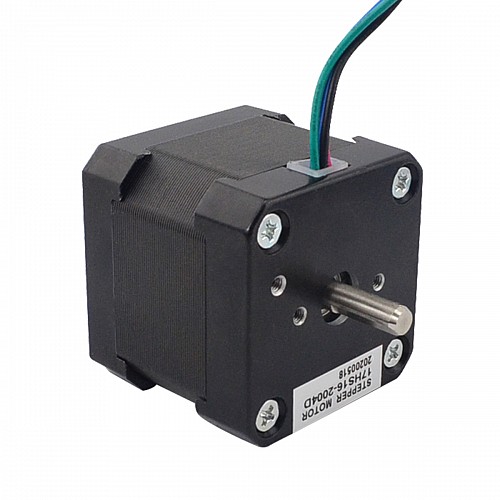

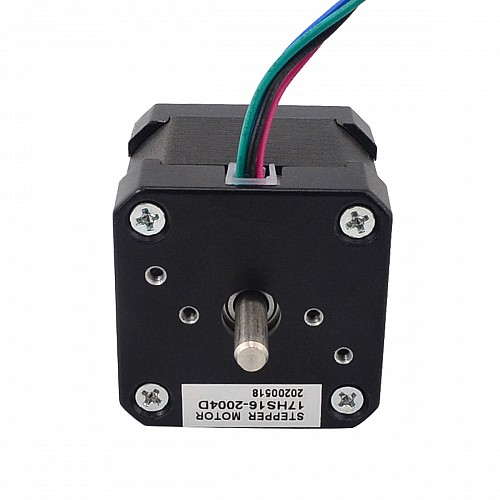

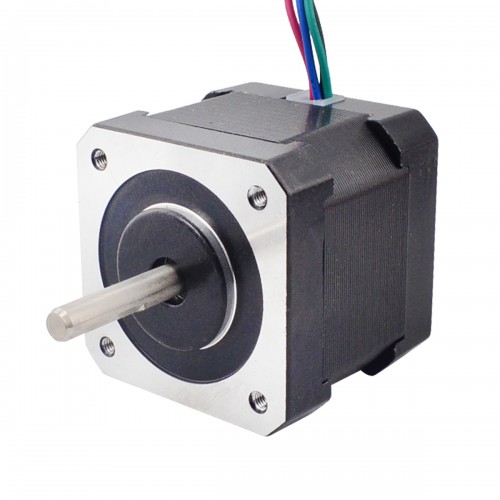

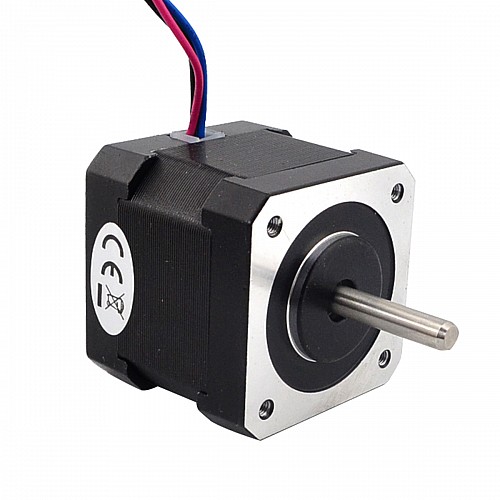

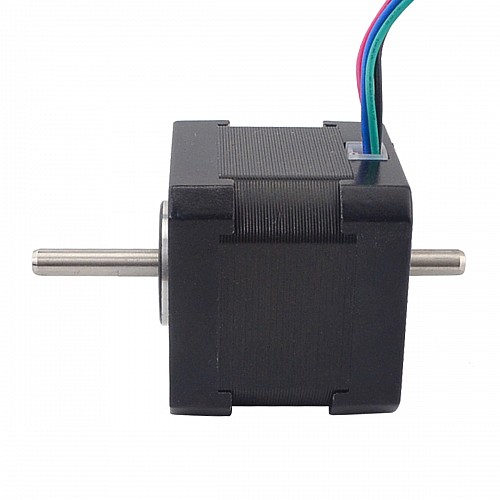

This model is dual shaft Nema 17 Bipolar stepper motor,it with step angle 1.8deg and size 42x42x40mm. It has 4 wires, each phase draws 2.00A at 2.2V, with holding torque 45Ncm(63.74oz.in).

Electrical Specification

Manufacturer Part Number: 17HS16-2004D
Motor Type: Bipolar Stepper
Step Angle: 1.8deg
Holding Torque: 45Ncm(63.74oz.in)
Rated Current/phase: 2A
Phase Resistance: 1.10ohms
Inductance: 2.60mH±20%(1KHz)
Insulation Class: B 130°C[266°F]

Physical Specification

Frame Size: 42 x 42mm
Body Length: 40mm
Shaft Diameter: Φ5mm
Front Shaft Length: 24mm
Front Shaft D-Cut Length: 15mm
Rear Shaft Length:13mm
Number of Leads: 4
Lead Length: 500mm
Weight: 300g

Connection

A+	A-	B+	B-
Black	Green	Red	Blue

Product Type
Product Type	Hybrid Stepper Motor
Electrical Specification
Bipolar/Unipolar	Bipolar
Has Torque/Thrust Curve?	Yes
Holding Torque(Ncm)	45
Holding Torque(oz.in)	63.74
Inductance(mH)	2.6
Phase Resistance(ohms)	1.1
Rated Current(A)	2.0
Step Angle(deg.)	1.8
Physical Specification
Body Length(mm)	40
Frame Size(mm)	Nema 17 (42 x 42)
Inventory Method	Dedicated Inventory
IP Rating	40
Lead Length(mm)	500
No. of Lead	4
Output Shaft Type	D
Product Series	S
Shaft Diameter(mm)	5
Shaft Length(mm)	24
Single Shaft/Dual Shaft	Dual Shaft
Weight(g)	300
