Name: EG Series Planetary Gearbox Gear Ratio 50:1 Backlash 15arc-min for 12.7mm Shaft Nema 34 Stepper Motor
Brand: STEPPERONLINE
SKU: EG34-G50-D13
Price: 127.69 CAD
Availability: InStock

EG Series Planetary Gearbox Gear Ratio 50:1 Backlash 15arc-min for 12.7mm Shaft Nema 34 Stepper Motor - EG34-G50-D13 | StepperOnline CA

EG34-G50-D13

Output Shaft TypeKeyway

Gear Ratio(xx:1)50

Backlash at No-load<=15 arcmin

Input Shaft Diameter(mm)19

Question

Downloads

EG34-G50-D13.STEPSTEP · 2.26MBLog in to download EG34-G50-D13_Full_Datasheet.pdfPDF · 170.71KB

Same series

Model	Output Shaft Type	Gear Ratio(xx:1)	Backlash at No-load	Input Shaft Diameter(mm)	Price	Stock
EG34-G10	Keyway	10	<=10 arcmin	14	C$86.49	In stock
EG34-G10-D13	Keyway	10	<=10 arcmin	19	C$90.61	In stock
EG34-G20	Keyway	20	<=15 arcmin	14	C$123.55	In stock
EG34-G20-D13	Keyway	20	<=15 arcmin	19	C$127.69	In stock
EG34-G5	Keyway	5	<=10 arcmin	14	C$86.49	In stock
EG34-G5-D13	Keyway	5	<=10 arcmin	19	C$90.61	In stock
EG34-G5-USED	Keyway	5	<=10 arcmin	14	C$51.90	In stock
EG34-G50	Keyway	50	<=15 arcmin	14	C$123.55	In stock
EG34-G50-D13	Keyway	50	<=15 arcmin	19	C$127.69	In stock

EG Series Planetary Gearbox Gear Ratio 50:1 Backlash 15arc-min for 12.7mm Shaft Nema 34 Stepper Motor

The size of this gearbox is 90 x 90mm and the input shaft diameter is 12.7mm. This high-precision pl... Read More

0 reviews • Write a review

from

C$127.69

5 or more: C$122.41

10 or more: C$117.57

50 or more: C$113.09

100 or more: C$108.94

Select a country to see live inventory

Ships from

China

United States (+C$26.96)

Qty

Add to Cart

Add to Wish List Compare this Product

Easy Returns

Return within 30 days of delivery. Contact us first and we'll take it from there.

Ships within 24 hours!

Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.

The size of this gearbox is 90 x 90mm and the input shaft diameter is 12.7mm. This high-precision planetary gearbox is belong to EG series gearbox, it with gear ratio 50:1 and a maximum 15arc-min backlash. It's an excellent choice for applications that require good accuracy and reliability at an exceptional value. This inline planetary gearbox built-in an input shaft coupling which can match any standard Nema 34 stepper motor and brushless dc motor.

Gearbox Specifications

Part Number: EG34-G50-D13
Gearbox Type: Spur Planetary
Gear Material: Alloy Steel
Gear Ratio: 50:1
Efficiency: 94%
Rotor Inertia: 0.44kg·cm²
Backlash at No-load: <=15arcmin
Max.Permissible Torque: 100Nm(885.07lb-in)
Moment Permissible Torque: 200Nm(1770.15lb-in)
Noise: <=55dB(1000rpm)/65dB(3000rpm)
Waterproof Rating: IP54
Lifetime: 20000hours

Physical Specifications

Frame Size: 90 x 90mm
Gearbox Length: 132mm
Output Shaft Type: Key way
Output Shaft Diameter: Φ20mm
Output Shaft Length: 40mm

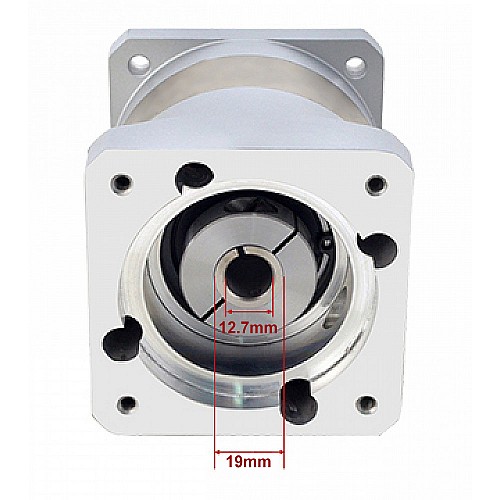

Input Shaft Diameter: Φ19mm(By default, we offer a free shaft sleeve with 12.7mm diameter)
Input Shaft Length: 30-40mm

Physical Specification
Backlash at No-load	<=15 arcmin
Frame Size(mm)	90 x 90
Gear Material	Alloy Steel
Gear Ratio(xx:1)	50
Gearbox Length(mm)	132
Gearbox Type	Spur Planetary
Input Shaft Diameter(mm)	19
Input Shaft Length(mm)	30 - 40
IP Rating	54
Matching Motor Size	Nema 34 Stepper Motor
Output Shaft Diameter(mm)	20
Output Shaft Length(mm)	40
Output Shaft Type	Keyway
Product Series	EG
Weight(g)	3742
