EG17-G7
Output Shaft TypeKeyway
Gear Ratio(xx:1)7
Backlash at No-load<=15 arcmin
Gearbox Length(mm)55
Question

Downloads

EG17-G7_Full_Datasheet.pdfPDF · 62.93KB
Same series
ModelOutput Shaft TypeGear Ratio(xx:1)Backlash at No-loadGearbox Length(mm)PriceStock
EG17-G10Keyway10<=15 arcmin55C$42.43In stock
EG17-G100Keyway100<=20 arcmin66C$52.72In stock
EG17-G20Keyway20<=20 arcmin67C$52.72In stock
EG17-G5Keyway5<=15 arcmin55C$42.43In stock
EG17-G50Keyway50<=20 arcmin66C$52.72In stock
EG17-G7Keyway7<=15 arcmin55C$42.01In stock
EG Series Planetary Gearbox Gear Ratio 7:1 Backlash 15arc-min for Nema 17 Stepper Motor
The size of this gearbox is 42 x 42mm and the input shaft diameter is 5mm. This high-precision plane... Read More
0 reviews • Write a review
from
C$42.01
5 + C$40.28
10 + C$38.69
50 + C$37.21
100 + C$35.84

Click country for real-time stock

Add to Cart
Add to Wish List Compare this Product
Easy Returns

Return within 30 days of delivery. Contact us first and we'll take it from there.

Read more
Ships within 24 hours!
Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.

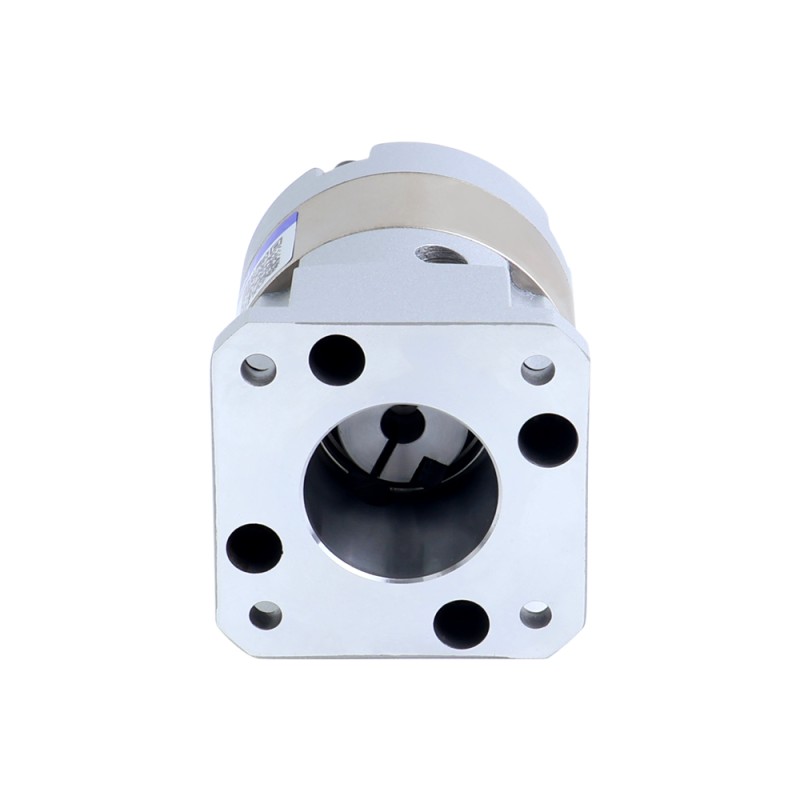

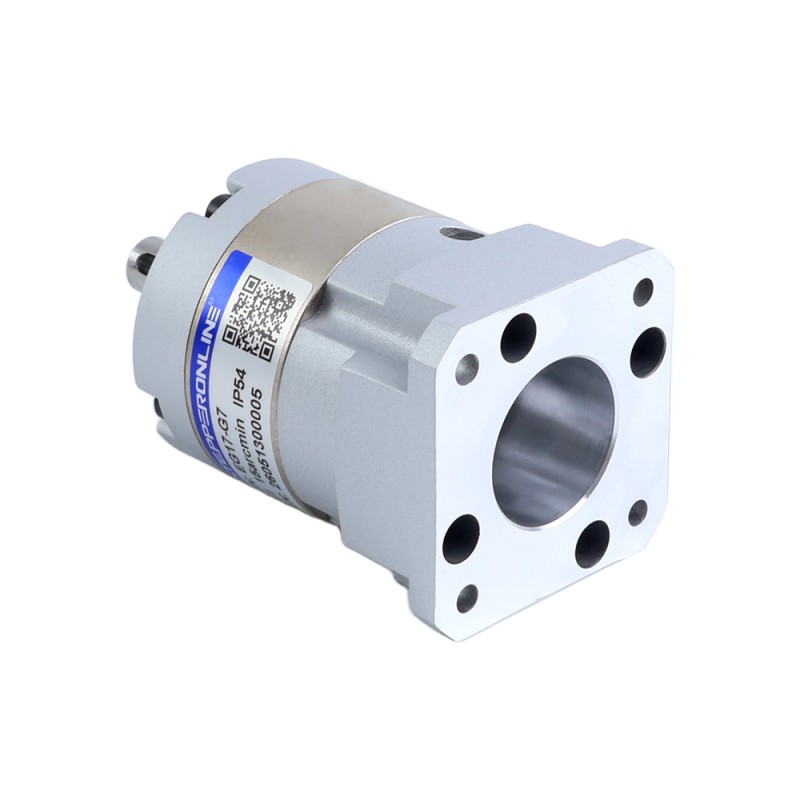

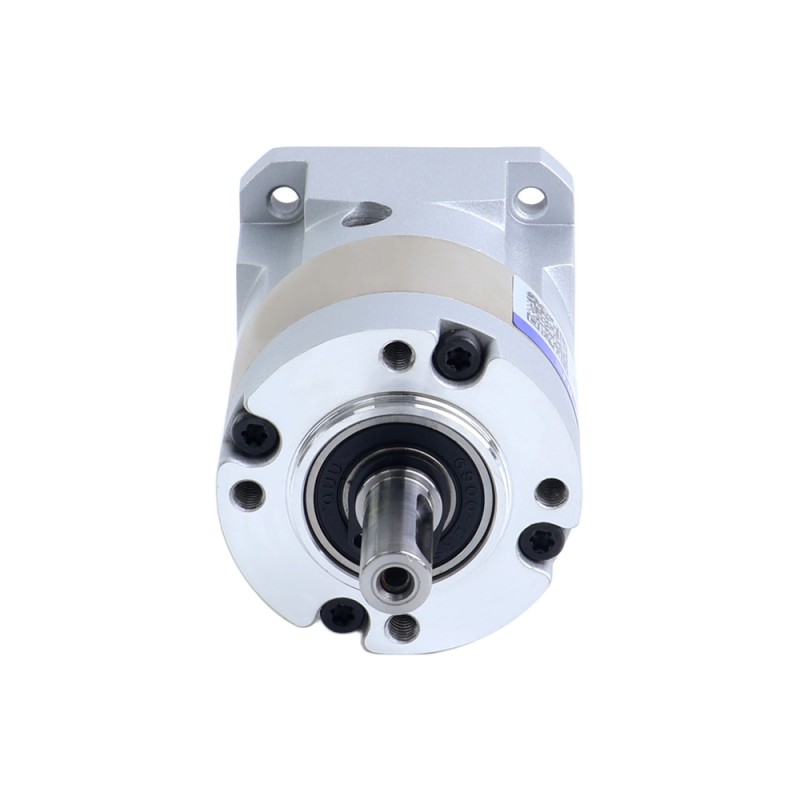

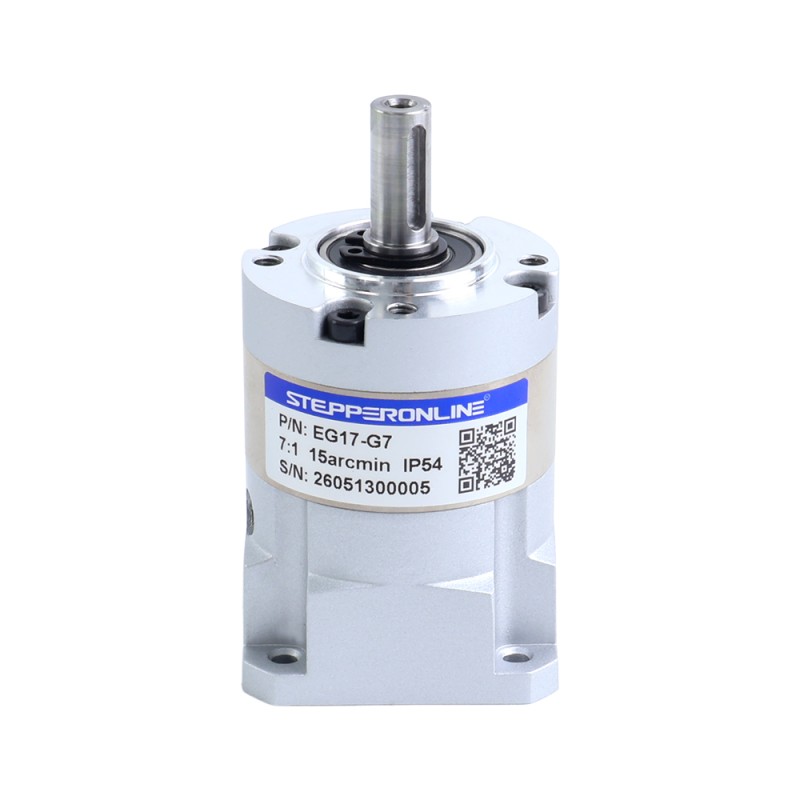

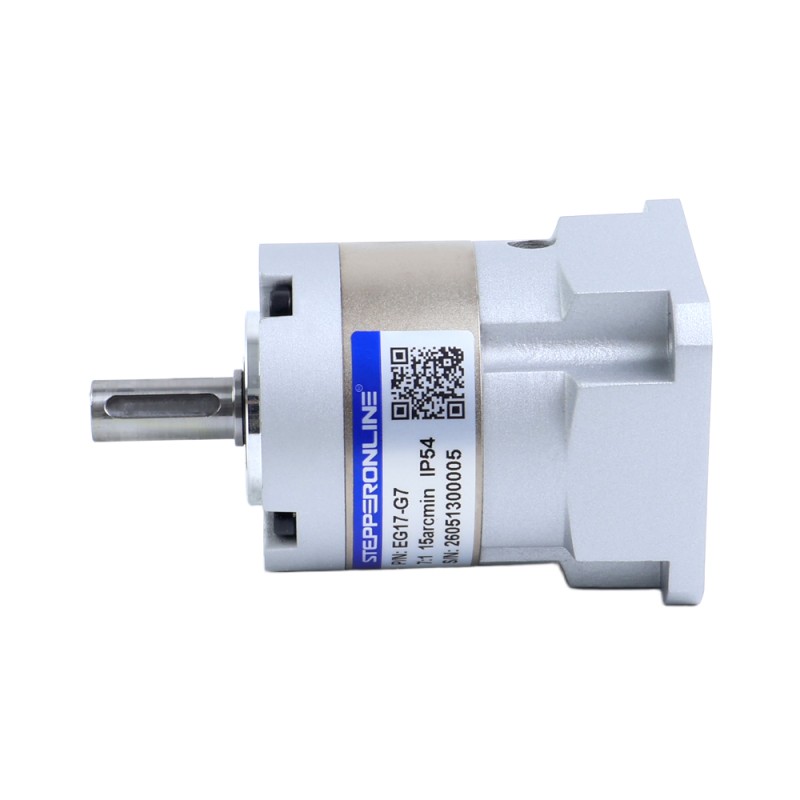

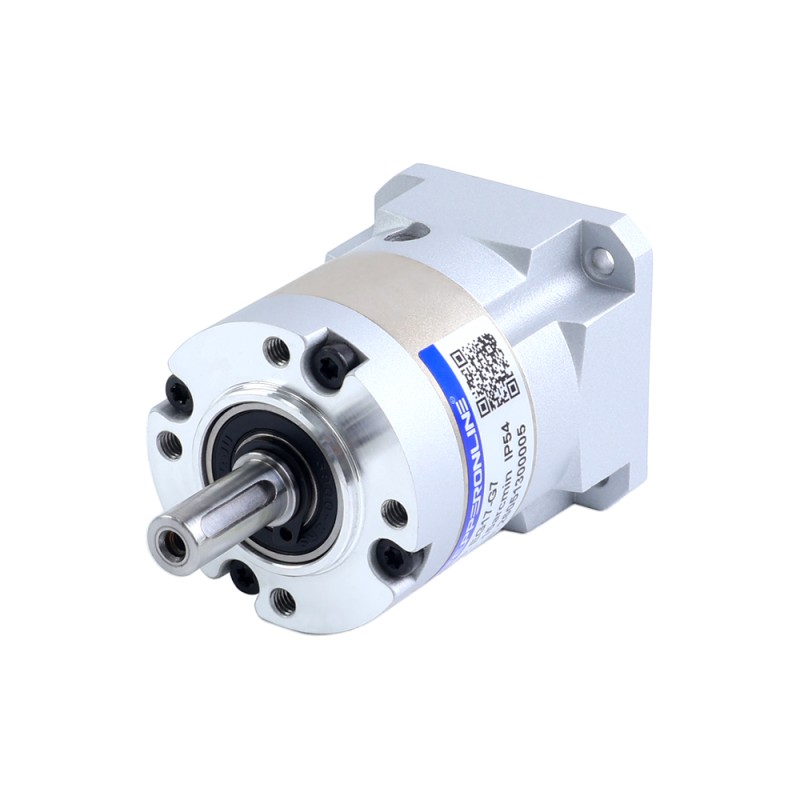

The size of this gearbox is 42 x 42mm and the input shaft diameter is 5mm. This high-precision planetary gearbox is belong to EG series gearbox, it with gear ratio 7:1 and a maximum 15arc-min backlash. It's an excellent choice for applications that require good accuracy and reliability at an exceptional value. This inline planetary gearbox built-in an input shaft coupling which can match any standard Nema 17 stepper motor and brushless dc motor.

Gearbox Specifications

  • PN: EG17-G7
  • Gearbox Type: Spur Planetary
  • Gear Material: Alloy Steel
  • Gear Ratio: 7:1
  • Efficiency: 96%
  • Rotor Inertia: 0.03kg·cm²
  • Backlash at No-load: <=15arcmin
  • Max.Permissible Torque: 5Nm(44.25lb-in)
  • Moment Permissible Torque: 10Nm(88.51lb-in)
  • Noise: <=65dB
  • Waterproof Rating: IP54
  • Lifetime: 20000hours

Physical Specifications

  • Frame Size: 42 x 42mm
  • Gearbox Length: 55mm
  • Output Shaft Type: Keyway
  • Output Shaft Diameter: Φ8mm
  • Output Shaft Length: 21.5mm
  • Input Shaft Diameter: Φ5mm
  • Input Shaft Length: 21.5-25mm
Physical Specification
Backlash at No-load <=15 arcmin
Frame Size(mm) 42 x 42
Gear Material Alloy Steel
Gear Ratio(xx:1) 7
Gearbox Length(mm) 55
Gearbox Type Spur Planetary
Input Shaft Diameter(mm) 5
Input Shaft Length(mm) 21.5 - 25
IP Rating 54
Matching Motor Size Nema 17 Stepper Motor
Output Shaft Diameter(mm) 8
Output Shaft Length(mm) 21.5
Output Shaft Type Keyway
Product Series EG

Write a review

Not published. We only use it to follow up on your review.
Note: HTML is not translated!
Rating
Bad Good
Quickview
EG Series Planetary Gearbox Gear Ratio 10:1 Backlash 15arc-min for Nema 17 Stepper Motor
EG Series Planetary Gearbox Gear Ratio 10:1 Backlash 15arc-min for Nema 17 Stepper Motor
The size of this gearbox is 42 x 42mm and the input shaft diameter is 5mm. This high-precision planetary gearbox is belong to EG series gearbox, it wi..
from
C$42.43
Add to Cart
Add to Wish List Compare this Product
Quickview
MG Series Planetary Gearbox Gear Ratio 5:1 Backlash 30arc-min for 8mm Shaft Nema 23 Stepper Motor
MG Series Planetary Gearbox Gear Ratio 5:1 Backlash 30arc-min for 8mm Shaft Nema 23 Stepper Motor
This high-precision planetary gearbox is belong to MG series gearbox, with gear ratio 5:1 and a maximum 30arc-min backlash. Different with the EG seri..
from
C$27.83
Add to Cart
Add to Wish List Compare this Product
Quickview

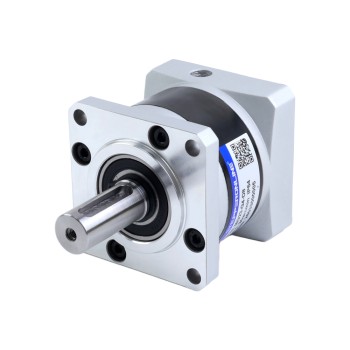

MG Series Planetary Gearbox Gear Ratio 4:1 Backlash 30arc-min for 8mm Shaft Nema 23 Stepper Motor
