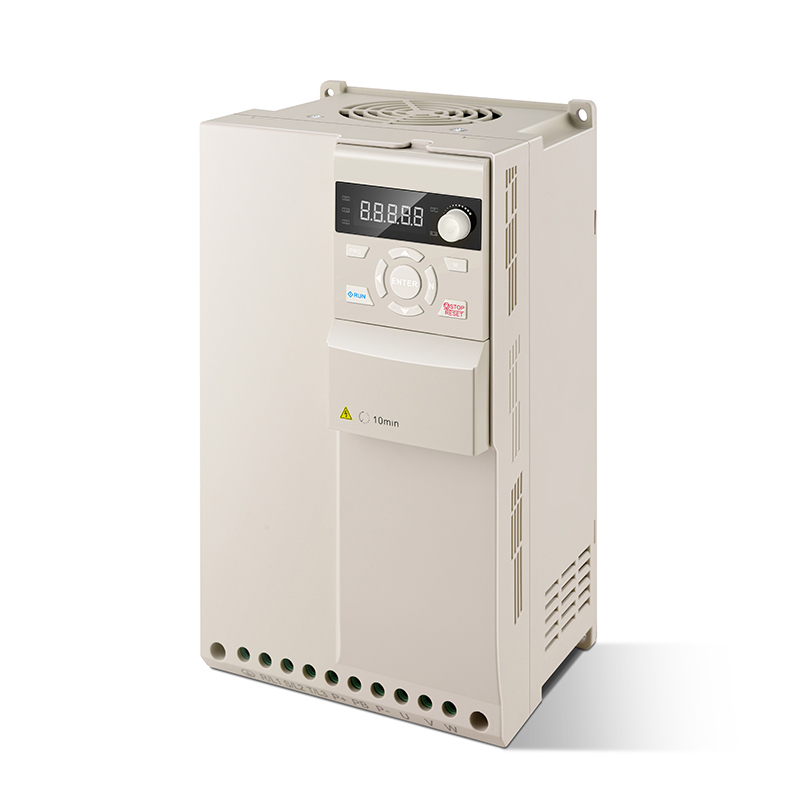

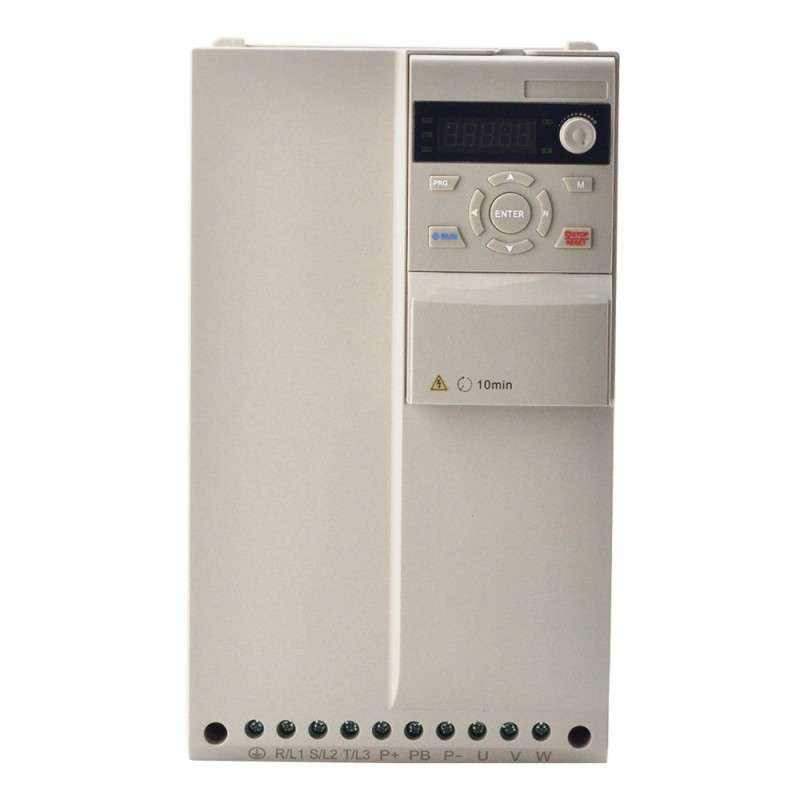

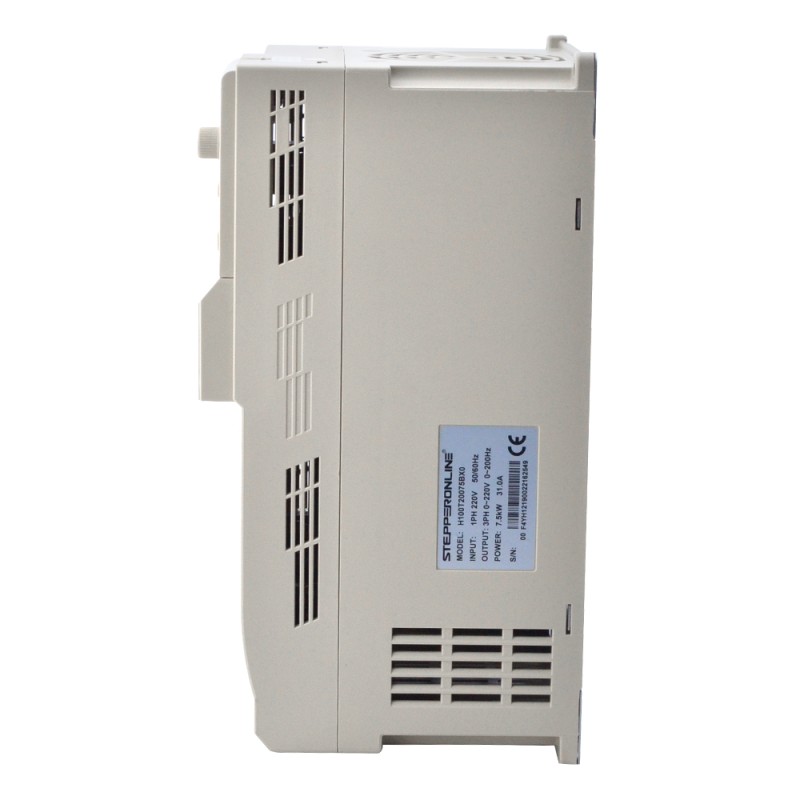

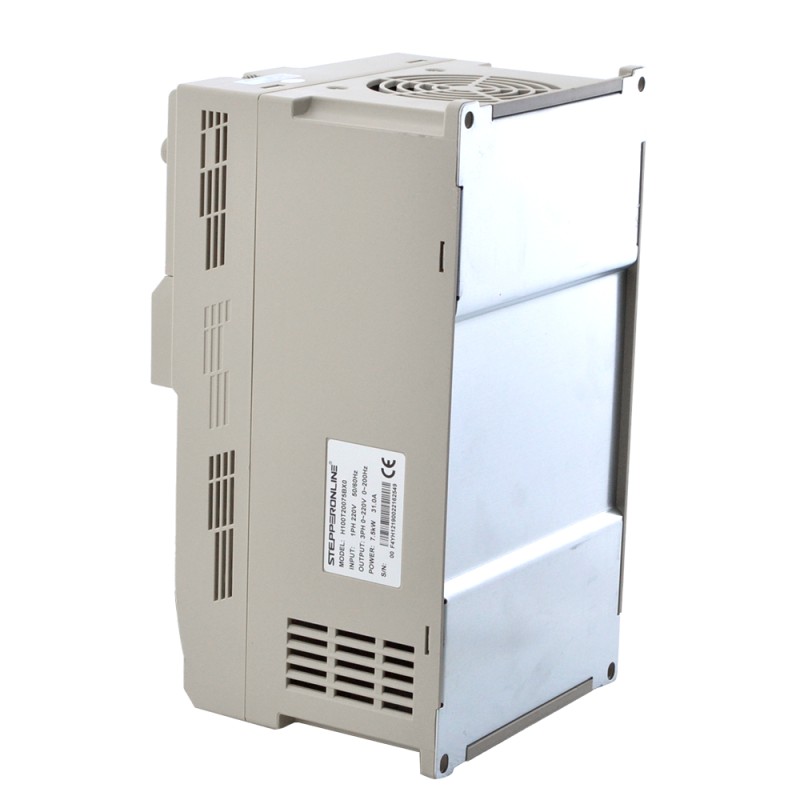

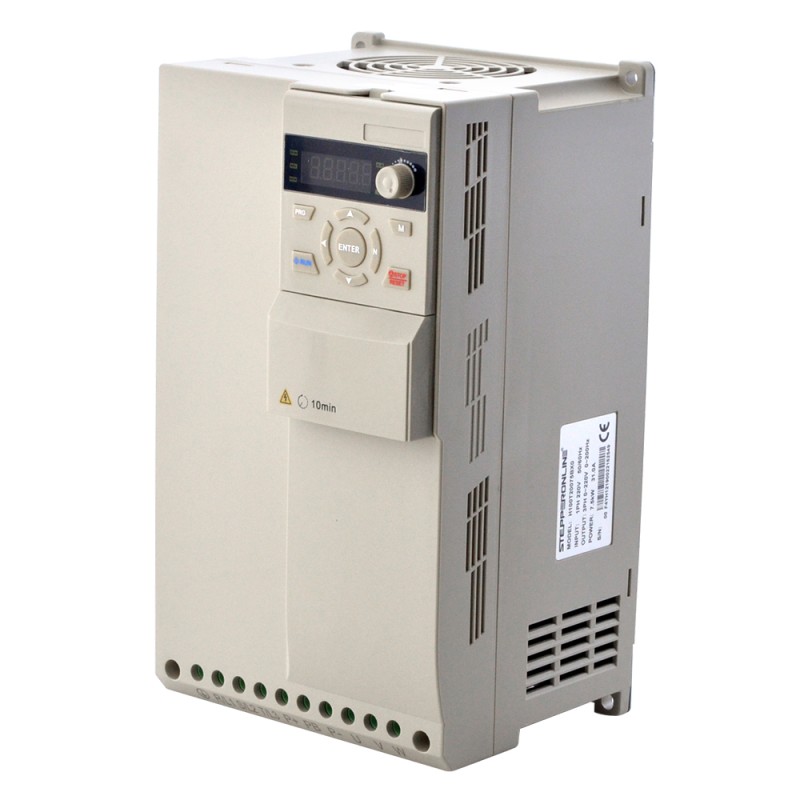

H100 Series VFD 10HP 7.5KW 31A Three Phase 220V Variable Frequency Drive
This VFD with power 10HP(7.5KW) and three phase 220V input voltage. The H100 series is General Var... Read More
Easy Returns

Return within 30 days of delivery. Contact us first and we'll take it from there.

Read more

This VFD with power 10HP(7.5KW) and three phase 220V input voltage. The H100 series is General Variable Frequency Drive(VFD), they are widely used in application of: Textile machines, Packaging machines, Engraving machines, Printing machines, Food machinery, Woodworking machinery, Pump fans, Ceramic machinery, Solar pumps and others.


Key Specification

  • Rated Input Voltage: 3-Phase 220V
  • Allowed Input Voltage: 180~260VAC
  • Input Frequency: 50/60Hz(+/-5%)
  • Input Current: 37A
  • Power: 10HP(7.5KW)
  • Output Current: 31A
  • Output Voltage: 0~Rated Input Voltage
  • Output Frequency: 0~1000Hz
  • Output Capacity: 150% Rated Current 60s, 180% Rated Current 2s
Operating Environment
Humidity 5%~95%RH, No condensation
Store Temperature -40℃ ~ +70℃
Variable Frequency Drive Specification
Acceleration/Deceleration Curve Line / S-curve
Allowed Input Voltage 180~260VAC
Altitude Derating use abouve 1000M, derating 10% per 1000M
Command Source Keypad, Terminal, Communication
Control Modes V/F, SVC
Environment Temperature -10℃ ~+40℃ (environment temperature around 40℃~50℃, please derating use)
External Keypad Yes
Frequency Accuracy Digital (Max. Frequency+/-0.01%) / Anolog (Max. Frequency+/-1%)
Frequency Resolution Digital (0.1Hz) / Anolog (Max. Frequency+/-1%)
Input Current 37A(1PH)
Input Frequency 50 - 60Hz
Input Voltage 3PH 220VAC
LED Display Can display: Output frequency, Output voltage, Output current, Bus voltage, Display value 1, Display value 2, Error, Alarm
Modulation Mode SVPWM
Motor Type Asynchronous Motor, Synchronour Motor, Single Phase Motor
None-stop When Instantaneous Power Off None-stop when instantaneous power off, automatic frequency drop
Output Capacity 150% Rated Current 60s, 180% Rated Current 2s
Output Current 31A(3PH)
Output Frequency 1000Hz
Output Power 10HP / 7.5KW
Output Voltage 0 - Rated Input Voltage
PID Support main setting + PID
Protection Function Over-current protection, Over-voltage protection, Under-voltage protection, Overheating protection, Over-load protection, Phase lose protection, Earth leakage, etc
Rapid Current Limit Limit current rapidly within the current protection value, to ensure the safety of the equipment
Set Value Source Digital, Analog, Multi-speed, Communication
Speed Range 1 : 100(SVC)
Start Torque 1Hz / 150%
Store Environment Indoor, away from direct sunlight, no dust, no corrosive gas, no inflammable gas, no oil mist, no vapour, no drip and no salinity, etc
Vibration <5.9M/S (0.6g)
