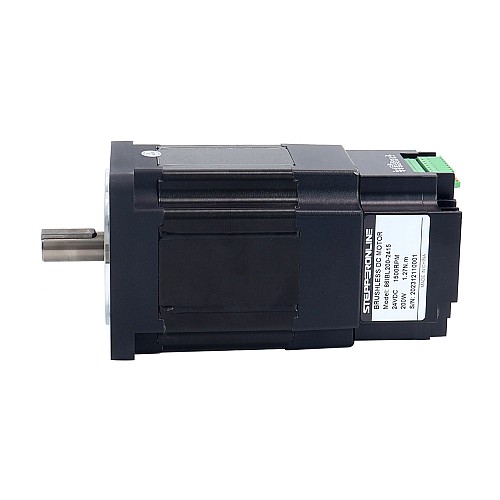

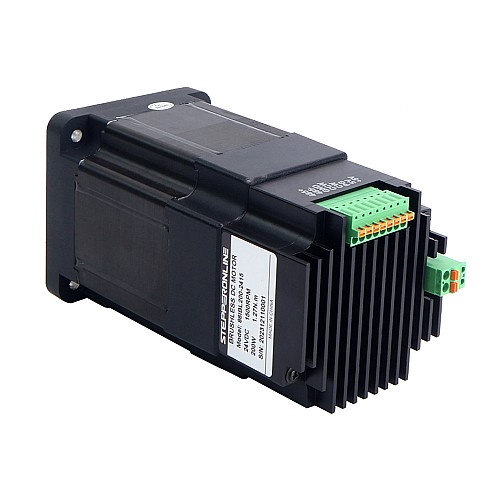

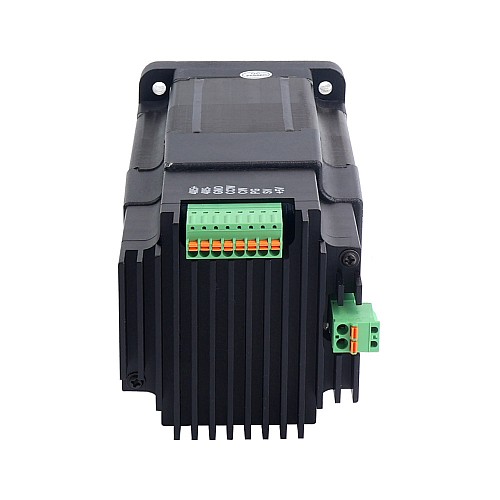

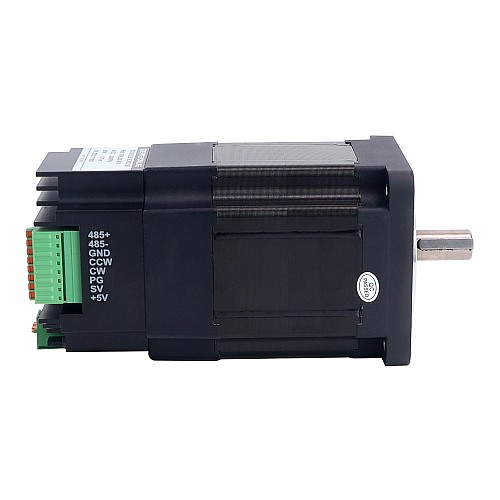

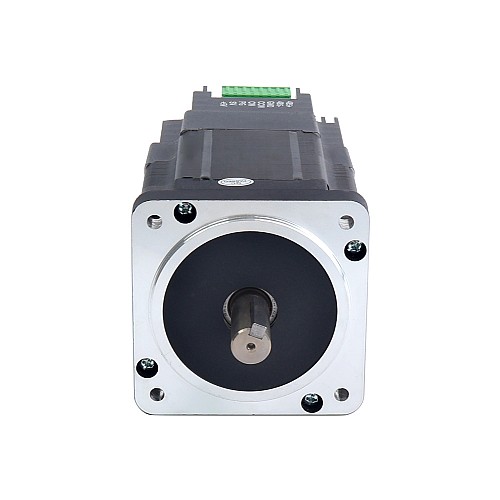

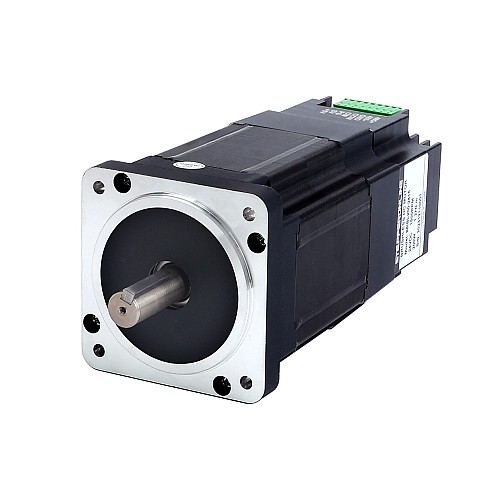

Nema 34 86x86x168mm Integrated Brushless DC Motor 200W 24V 1500RPM 1.27Nm 8.33A w/ Driver

0 reviews - Write a review

C$212.90

5 + C$204.79

10 + C$197.27

50 + C$190.30

100 + C$183.79

In Stock: 10000
Model: 86IBL200-2415
Gross Weight: 3.37kg
Certificated: ISO, CE

Sold: 69

Click country for real-time stock

Ships from

China

United States

Qty

Add to Cart

Question

Add to Wish List Compare this Product

Ships within 24 hours!

Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.

Choose a Local Warehouse, Get More Benefits!

Customers in US, UK, EU, Australia & Russia: Please choose local warehouses first (German warehouse for EU). This ensures faster delivery and avoids customs duties, reducing total costs.

The 86IBL series of integrated brushless motors are mechatronics products developed to cooperate with the field of industrial automatic control. This motor is equipped with a high-performance dedicated brushless DC motor driver chip, which has a series of advantages such as high integration, small size, complete protection, simple and clear wiring, and high reliability. This series includes a variety of integrated motors ranging from 100 to 400W. In addition, the built-in driver is equipped with new PWM technology, which enables the brushless motor to run at high speed, with small vibration, low noise, good stability and high reliability.

Key Features

20KHZ chopper frequency
High performance at a low price
PID speed and current dual-loop regulator
Integrated, saving space and reducing wiring
Over-voltage, under-voltage, over-current, current peak value, Hall signal and other fault alarm functions
The communication mode adopts the standard Modbus protocol, uses a two-wire serial link communication based on RS485, and the transmission mode is RTU.

Electrical Specifications

Manufacturer Part Number: 86IBL200-2415
Phase: 3
Poles: 8
Rated Power: 200W
Rated Voltage: 24VDC
Rated Speed: 1500±10%RPM
Rated Current: 8.33±10%A
Rated Torque: 1.27Nm(179.85oz.in)
Insulation Class: B 130°C[266°F]
Resistance/phase: 0.21±10%Ohms
Inductance/phase: 0.51±20%mH
Sensor: HALL

Physical Specifications

Frame Size: Nema 34 (86 x 86mm)
Body Length: 152mm
Shaft Diameter: 14mm
Shaft Length: 32mm
Weight: 3.09kg

Product Type
Product Type	Integrated BLDC Motor
Electrical Specification
Holding Torque(Ncm)	127
Holding Torque(oz.in)	179.85
Inductance(mH)	0.51
Input Voltage(V)	24
No. of Phase	3
Phase Resistance(ohms)	0.21
Rated Current(A)	8.33
Rated Power(W)	200
Rated Speed(rpm)	1500
Physical Specification
Body Length(mm)	152
Frame Size(mm)	Nema 34 (86 x 86)
Inventory Method	Shared Inventory
Shaft Diameter(mm)	14
Shaft Length(mm)	32
