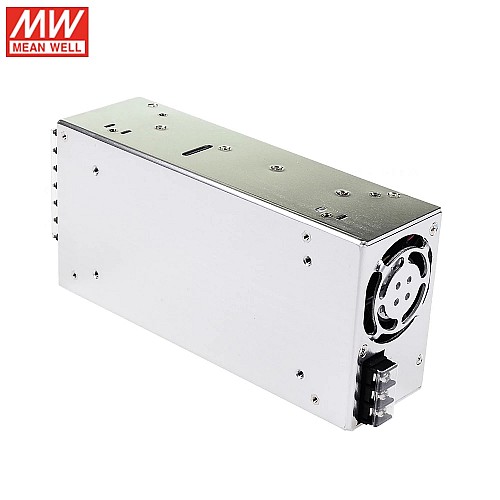

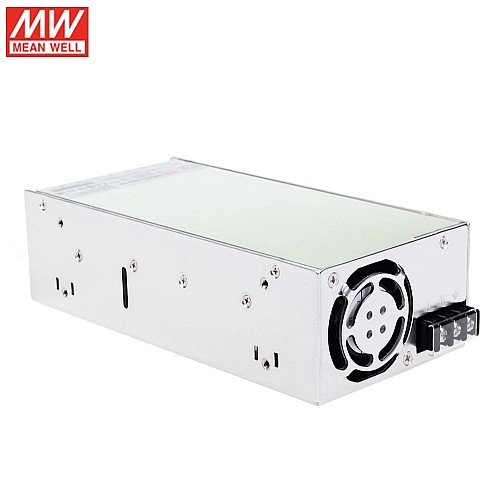

HRPG-1000-24 MEANWELL 24V 42A 1008W Single Output With PFC Function

0 reviews - Write a review

C$279.26

5 + C$271.11

10 + C$263.41

50 + C$256.14

100 + C$249.28

In Stock: 10000
Brand: MEANWELL
Model: HRPG-1000-24
Gross Weight: 1.66kg
Certificated: ISO, CE, RoHS

Sold: 13

Click country for real-time stock

Ships from

China

Qty

Add to Cart

Question

Add to Wish List Compare this Product

Ships within 24 hours!

Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.

Choose a Local Warehouse, Get More Benefits!

Customers in US, UK, EU, Australia & Russia: Please choose local warehouses first (German warehouse for EU). This ensures faster delivery and avoids customs duties, reducing total costs.

Features

Brand MEANWELL
24V DC 42A output
AC input voltage range: 90 ~ 264VAC
Rated power: 1008W
Universal AC input / Full range
Built-in active PFC function, PF >0.95
High efficiency up to 94%
Withstand 300VAC surge input for 5 seconds
Protections: Short circuit / Overload / Over voltage / Over temperature
Built-in cooling Fan ON-OFF control
Current sharing up to 4000W(3+1)
Built-in DC OK signal
Built-in remote ON-OFF control
Stand by [email protected]
Built-in remote sense function
No load power consumption < 0.75W(Note.6)
5 years warranty

Electrical Specification
Efficiency(%)	93
Max. Output Current(A)	42
Power Supply Specification
Brand	MEANWELL
Dim.(LxWxH)(mm)	218 x 105 x 63.5
Input Frequency(Hz)	47 - 63
Input Voltage(VAC/VDC)	90 - 264 / 127 - 370
Output Voltage(VDC)	24
PFC Function	Yes
Power Type	Switching Power Supply
Power(W)	1008
Physical Specification
Diameter of Hollow Section(mm)	28
Inventory Method	Dedicated Inventory
