HSS Series Harmonic Drive Gearbox Φ138mm Ratio 50:1 Backlash 20arcsec 19mm Input Diameter

HSS Series Harmonic Drive Gearbox Φ138mm Ratio 50:1 Backlash 20arcsec 19mm Input Diameter - HSS-32-50-I-D19 | StepperOnline CA
HSS Series Harmonic Drive Gearbox Φ138mm Ratio 50:1 Backlash 20arcsec 19mm Input Diameter - HSS-32-50-I-D19 | StepperOnline CA
HSS Series Harmonic Drive Gearbox Φ138mm Ratio 50:1 Backlash 20arcsec 19mm Input Diameter - HSS-32-50-I-D19 | StepperOnline CA
HSS Series Harmonic Drive Gearbox Φ138mm Ratio 50:1 Backlash 20arcsec 19mm Input Diameter - HSS-32-50-I-D19 | StepperOnline CA
Pre-order
HSS Series Harmonic Drive Gearbox Φ138mm Ratio 50:1 Backlash 20arcsec 19mm Input Diameter - HSS-32-50-I-D19 | StepperOnline CA
HSS Series Harmonic Drive Gearbox Φ138mm Ratio 50:1 Backlash 20arcsec 19mm Input Diameter - HSS-32-50-I-D19 | StepperOnline CA
HSS Series Harmonic Drive Gearbox Φ138mm Ratio 50:1 Backlash 20arcsec 19mm Input Diameter - HSS-32-50-I-D19 | StepperOnline CA
HSS Series Harmonic Drive Gearbox Φ138mm Ratio 50:1 Backlash 20arcsec 19mm Input Diameter - HSS-32-50-I-D19 | StepperOnline CA
HSS-32-50-I-D19
Frame Size(mm)Φ138
Gear Ratio(xx:1)50
Input Shaft Diameter(mm)19
Gearbox Length(mm)60
Question

Downloads

HSS-32-50-I-D19.stpSTP · 958.53KBLog in to downloadHarmonic_Gearbox_User_Manual.pdfPDF · 1.69MBHSS-32-50-I-D19_Full_Datasheet.pdfPDF · 206.24KB
Same series
ModelFrame Size(mm)Gear Ratio(xx:1)Input Shaft Diameter(mm)Gearbox Length(mm)PriceStock
HSS-14-100-I-D8Φ73100836C$322.03Backorder
HSS-14-50-I-D8Φ7350836C$322.03Backorder
HSS-17-100-I-D8Φ79100839C$355.92Backorder
HSS-17-50-I-D8Φ7950839C$355.92Backorder
HSS-20-100-I-D14Φ931001441C$372.87Backorder
HSS-20-50-I-D14Φ93501441C$372.87Backorder
HSS-25-100-I-D14Φ1071001449C$389.82Backorder
HSS-25-50-I-D14Φ107501449C$389.82Backorder
HSS-32-100-I-D19Φ1381001960C$457.62Backorder
HSS-32-50-I-D19Φ138501960C$457.62Backorder
HSS-40-100-I-D19Φ1601001970.5C$627.10Backorder
HSS-40-50-I-D19Φ160501970.5C$627.10Backorder
HSS Series Harmonic Drive Gearbox Φ138mm Ratio 50:1 Backlash 20arcsec 19mm Input Diameter
This harmonic gearbox has a gear ratio of 50, a frame size of Φ138mm and an input shaft diameter of ... Read More
0 reviews • Write a review
from
C$457.62
5 + C$441.97
10 + C$427.36
50 + C$413.69
100 + C$400.85

Click country for real-time stock

Add to Cart
Add to Wish List Compare this Product
Easy Returns

Return within 30 days of delivery. Contact us first and we'll take it from there.

Read more

This harmonic gearbox has a gear ratio of 50, a frame size of Φ138mm and an input shaft diameter of 19mm and a maximum backlash of 20arcsec.
The HSS series harmonic gearboxes have a flexspline structure in the form of a standard drum and highly rigid, full-roller cross bearings that can be used directly to support external loads and are characterized by high functionality, high speed and high mobility.
The simple structure with high rigidity and low backlash makes it possible to withstand high torques and achieve excellent positioning and rotation accuracy. This harmonic gearbox is widely used in robots, CNC machine tools, textile machines, printing machines, packaging machines and other fields.

Key Feartures

  • Coaxial Input and Output
  • Excellent positioning and rotation accuracy
  • Cup-shaped flexspline and high rigidity full roller cross bearing
  • LS tooth profile design, high transmission efficiency and low noise
  • Compact and simple structure design with low to zero backlash, directly connected to the motor and easy to install
  • Adopting self-developed CMP heat treatment process and 1um trajectory fine grinding with high precision and good reliability

Gearbox Specifications

  • Part Number: HSS-32-50-I-D19
  • Gearbox Type: Harmonic Gearbox
  • Gear Material: Alloy Steel
  • Gear Ratio: 50:1
  • Backlash at No-load: <=20arcsec
  • Rated Torque(Input Speed 2000rpm): 76.00Nm(10762.49oz.in)
  • Moment Permissible Torque: 382.00Nm(54095.65oz.in)
  • Peak Start-stop Torque: 216.00Nm(30588.12oz.in)
  • Maximum Input Speed Allowed: 4800rpm
  • Average Input Speed Allowed: 3500rpm
  • Maximum Axial Load: 6KN
  • Maximum Radial Load: 15KN
  • Lifetime: 10000hours

Physical Specifications

  • Frame Size: Φ138mm
  • Gearbox Length: 60mm
  • Input Shaft Type: Keyway
  • Input Shaft Diameter: Φ19mm

Operating Environment(Tj = 25℃/77℉)

  • Amient temperature: 0-40℃
  • No splashing of water or oil
  • Do not expose to corrosive or explosive gas
  • No dust such as metal powder
Electrical Specification
Average Input Speed Allowed(rpm) 3500
Rated Torque/2000rpm(Nm) 76.00
Physical Specification
Backlash at No-load <=20 arcsec
Frame Size(mm) Φ138
Gear Material Alloy Steel
Gear Ratio(xx:1) 50
Gearbox Length(mm) 60
Gearbox Type Harmonic Gearbox
Input Shaft Diameter(mm) 19
IP Rating 65
Product Series HSS

Write a review

Not published. We only use it to follow up on your review.
Note: HTML is not translated!
Rating
Bad Good
Quickview

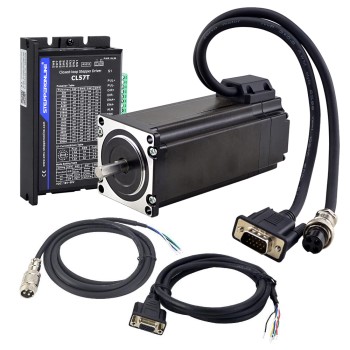

TS Series 3.0Nm(424.83oz.in) 1 Axis Closed Loop Stepper CNC Kit Nema 23 Motor & Driver
TS Series 3.0Nm(424.83oz.in) 1 Axis Closed Loop Stepper CNC Kit Nema 23 Motor & Driver
Items in Kit 1 x 23HS45-4204D-E1000: 3.0Nm Closed loop stepper motor 1 x CL57T-V41: Nema 23/Nema 24 Closed loop stepper motor driver V4.1 1 x..
from
C$93.29
Add to Cart
Add to Wish List Compare this Product
Quickview

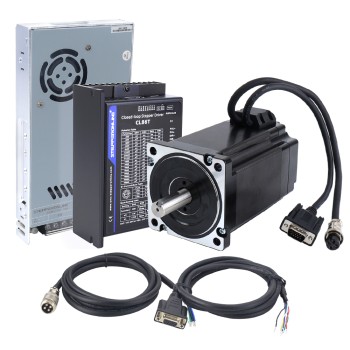

TS Series 1 Axis 9.0Nm(1274.5oz.in) Nema 34 Closed Loop Stepper Kit w/ Power Supply
TS Series 1 Axis 9.0Nm(1274.5oz.in) Nema 34 Closed Loop Stepper Kit w/ Power Supply
Items in Kit 1 x 34HS46-6004D-E1000: 9.0Nm Closed loop stepper motor 1 x CL86T-V41: Closed Loop Stepper Driver V4.1 0~8.0A 18~80VAC/24~110VDC ..
from
C$151.06
Add to Cart
Add to Wish List Compare this Product
Quickview
25W 110VAC 60Hz 45RPM 3.90Nm(552.29oz.in) Flange 80mm Right Angle Gearbox Hollow Shaft Single-phase AC Induction Motor
25W 110VAC 60Hz 45RPM 3.90Nm(552.29oz.in) Flange 80mm Right Angle Gearbox Hollow Shaft Single-phase AC Induction Motor
This 80x80mm hollow shaft single-phase AC induction gear motor is powered by 110VAC and has a gear ratio of 30, a torque of 3.90Nm(552.29oz.in) and a ..
from
C$77.92
Add to Cart
Add to Wish List Compare this Product
Quickview
25W 220/380VAC 27/31RPM 6.74Nm(954.46oz.in)/5.46Nm(773.20oz.in) Flange 80mm Spur Gearbox Three-phase AC Induction Motor
25W 220/380VAC 27/31RPM 6.74Nm(954.46oz.in)/5.46Nm(773.20oz.in) Flange 80mm Spur Gearbox Three-phase AC Induction Motor
This 80x80mm three-phase AC induction gear motor can be powered by either 220VAC or 380VAC and has a gear ratio of 50. The simple brushless structure,..
from
C$50.72
Add to Cart
Add to Wish List Compare this Product
Quickview
350W 60V 5.9A 115/230V Switching Power Supply Stepper Motor CNC Router Kits
350W 60V 5.9A 115/230V Switching Power Supply Stepper Motor CNC Router Kits
This professional 350W 60V 5.9A Switching CNC Power Supply can be widely used in Industrial Automation and CNC Stepper/Servo System. 115V and 230V c..
from
C$37.29
Add to Cart
Add to Wish List Compare this Product
Quickview

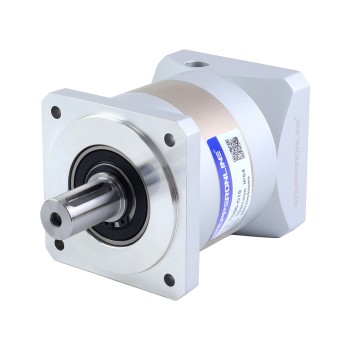

TG Series 90mm 10:1 Planetary Gearbox Backlash 10arc-min for Servo Motors
TG Series 90mm 10:1 Planetary Gearbox Backlash 10arc-min for Servo Motors
This high-precision 90mm planetary gearbox is belong to TG series gearbox, with a gear ratio 10:1 and a maximum 10arc-min backlash. It's an excellent ..
from
C$86.49
Add to Cart
Add to Wish List Compare this Product
Quickview

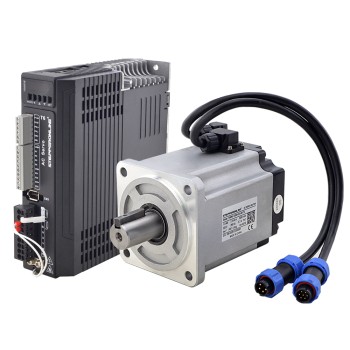

T6 Series 1000W AC Servo Motor Kit 3000rpm 3.19Nm 17-Bit Encoder IP65
