HSS Series Harmonic Drive Gearbox Φ160mm Ratio 50:1 Backlash 20arcsec 19mm Input Diameter

HSS Series Harmonic Drive Gearbox Φ160mm Ratio 50:1 Backlash 20arcsec 19mm Input Diameter - HSS-40-50-I-D19 | StepperOnline CA
HSS Series Harmonic Drive Gearbox Φ160mm Ratio 50:1 Backlash 20arcsec 19mm Input Diameter - HSS-40-50-I-D19 | StepperOnline CA
HSS Series Harmonic Drive Gearbox Φ160mm Ratio 50:1 Backlash 20arcsec 19mm Input Diameter - HSS-40-50-I-D19 | StepperOnline CA
HSS Series Harmonic Drive Gearbox Φ160mm Ratio 50:1 Backlash 20arcsec 19mm Input Diameter - HSS-40-50-I-D19 | StepperOnline CA
Pre-order
HSS Series Harmonic Drive Gearbox Φ160mm Ratio 50:1 Backlash 20arcsec 19mm Input Diameter - HSS-40-50-I-D19 | StepperOnline CA
HSS Series Harmonic Drive Gearbox Φ160mm Ratio 50:1 Backlash 20arcsec 19mm Input Diameter - HSS-40-50-I-D19 | StepperOnline CA
HSS Series Harmonic Drive Gearbox Φ160mm Ratio 50:1 Backlash 20arcsec 19mm Input Diameter - HSS-40-50-I-D19 | StepperOnline CA
HSS Series Harmonic Drive Gearbox Φ160mm Ratio 50:1 Backlash 20arcsec 19mm Input Diameter - HSS-40-50-I-D19 | StepperOnline CA
HSS-40-50-I-D19
Frame Size(mm)Φ160
Gear Ratio(xx:1)50
Input Shaft Diameter(mm)19
Gearbox Length(mm)70.5
Question

Downloads

Harmonic_Gearbox_User_Manual.pdfPDF · 1.69MBHSS-40-50-I-D19_Full_Datasheet.pdfPDF · 88.22KBHSS-40-50-I-D19.stpSTP · 947.38KBLog in to download
Same series
ModelFrame Size(mm)Gear Ratio(xx:1)Input Shaft Diameter(mm)Gearbox Length(mm)PriceStock
HSS-14-100-I-D8Φ73100836C$322.03Backorder
HSS-14-50-I-D8Φ7350836C$322.03Backorder
HSS-17-100-I-D8Φ79100839C$355.92Backorder
HSS-17-50-I-D8Φ7950839C$355.92Backorder
HSS-20-100-I-D14Φ931001441C$372.87Backorder
HSS-20-50-I-D14Φ93501441C$372.87Backorder
HSS-25-100-I-D14Φ1071001449C$389.82Backorder
HSS-25-50-I-D14Φ107501449C$389.82Backorder
HSS-32-100-I-D19Φ1381001960C$457.62Backorder
HSS-32-50-I-D19Φ138501960C$457.62Backorder
HSS-40-100-I-D19Φ1601001970.5C$627.10Backorder
HSS-40-50-I-D19Φ160501970.5C$627.10Backorder
HSS Series Harmonic Drive Gearbox Φ160mm Ratio 50:1 Backlash 20arcsec 19mm Input Diameter
This harmonic gearbox has a gear ratio of 50, a frame size of Φ160mm and an input shaft diameter of ... Read More
0 reviews • Write a review
from
C$627.10
5 + C$605.67
10 + C$585.64
50 + C$566.91
100 + C$549.32

Click country for real-time stock

Add to Cart
Add to Wish List Compare this Product
Easy Returns

Return within 30 days of delivery. Contact us first and we'll take it from there.

Read more

This harmonic gearbox has a gear ratio of 50, a frame size of Φ160mm and an input shaft diameter of 19mm and a maximum backlash of 20arcsec.
The HSS series harmonic gearboxes have a flexspline structure in the form of a standard drum and highly rigid, full-roller cross bearings that can be used directly to support external loads and are characterized by high functionality, high speed and high mobility.
The simple structure with high rigidity and low backlash makes it possible to withstand high torques and achieve excellent positioning and rotation accuracy. This harmonic gearbox is widely used in robots, CNC machine tools, textile machines, printing machines, packaging machines and other fields.

Key Feartures

  • Coaxial Input and Output
  • Excellent positioning and rotation accuracy
  • Cup-shaped flexspline and high rigidity full roller cross bearing
  • LS tooth profile design, high transmission efficiency and low noise
  • Compact and simple structure design with low to zero backlash, directly connected to the motor and easy to install
  • Adopting self-developed CMP heat treatment process and 1um trajectory fine grinding with high precision and good reliability

Gearbox Specifications

  • Part Number: HSS-40-50-I-D19
  • Gearbox Type: Harmonic Gearbox
  • Gear Material: Alloy Steel
  • Gear Ratio: 50:1
  • Backlash at No-load: <=20arcsec
  • Rated Torque(Input Speed 2000rpm): 137.00Nm(19400.8oz.in)
  • Moment Permissible Torque: 686.00Nm(97145.59oz.in)
  • Peak Start-stop Torque: 402.00Nm(56927.88oz.in)
  • Maximum Input Speed Allowed: 4000rpm
  • Average Input Speed Allowed: 3000rpm
  • Maximum Axial Load: 8.4KN
  • Maximum Radial Load: 21KN
  • Lifetime: 10000hours

Physical Specifications

  • Frame Size: Φ160mm
  • Gearbox Length: 70.5mm
  • Input Shaft Type: Keyway
  • Input Shaft Diameter: Φ19mm

Operating Environment(Tj = 25℃/77℉)

  • Amient temperature: 0-40℃
  • No splashing of water or oil
  • Do not expose to corrosive or explosive gas
  • No dust such as metal powder
Electrical Specification
Average Input Speed Allowed(rpm) 3000
Rated Torque/2000rpm(Nm) 137.00
Physical Specification
Backlash at No-load <=20 arcsec
Frame Size(mm) Φ160
Gear Material Alloy Steel
Gear Ratio(xx:1) 50
Gearbox Length(mm) 70.5
Gearbox Type Harmonic Gearbox
Input Shaft Diameter(mm) 19
IP Rating 65
Product Series HSS

Write a review

Not published. We only use it to follow up on your review.
Note: HTML is not translated!
Rating
Bad Good
Quickview
25W 220/380VAC 90RPM 1.90Nm(269.06oz.in) Flange 80mm Right Angle Gearbox Hollow Shaft Three-phase AC Induction Motor
25W 220/380VAC 90RPM 1.90Nm(269.06oz.in) Flange 80mm Right Angle Gearbox Hollow Shaft Three-phase AC Induction Motor
This 80x80mm hollow shaft three-phase AC induction gear motor can be powered by either 220VAC or 380VAC and has a gear ratio of 15. The right angle ge..
from
C$77.92
Add to Cart
Add to Wish List Compare this Product
Quickview

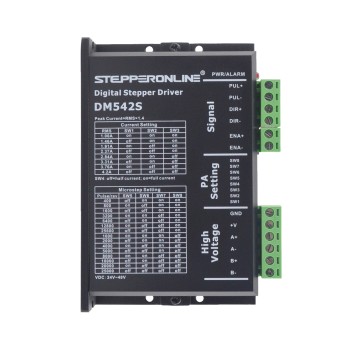

Digital Stepper Driver 1.0-4.2A 24-48VDC for Nema 17, 23, 24 Stepper Motor
Digital Stepper Driver 1.0-4.2A 24-48VDC for Nema 17, 23, 24 Stepper Motor
The DM542S is a two phase digital stepper driver based on ARM. Its microstep resolution and output current are programmable. And it has advanced contr..
from
C$0.00
Add to Cart
Add to Wish List Compare this Product
Quickview
Digital Stepper Driver 1.0-4.5A 18-50VDC for Nema 17, 23, 24 Stepper Motor
🔥 Bestseller
Digital Stepper Driver 1.0-4.5A 18-50VDC for Nema 17, 23, 24 Stepper Motor
The DM542T is a fully digital stepper driver developed with advanced DSP control algorithm based on the latest motion control technology. It has achie..
from
C$28.49
Add to Cart
Add to Wish List Compare this Product
Quickview
Nema 23 Closed Loop Stepper Motor 1.85Nm(261.98oz.in) with Magnetic Encoder 1000PPR(4000CPR)
Nema 23 Closed Loop Stepper Motor 1.85Nm(261.98oz.in) with Magnetic Encoder 1000PPR(4000CPR)
This nema 23 closed loop stepper motor with torque of 1.85Nm(261.98oz.in). The encoder is a magnetic encoder with 3 channels and 1000PPR(4000CPR) reso..
from
C$40.93
Add to Cart
Add to Wish List Compare this Product
Quickview
LRS-350-36 MEANWELL 350W 36VDC 9.7A 115/230VAC Enclosed Switching Power Supply
LRS-350-36 MEANWELL 350W 36VDC 9.7A 115/230VAC Enclosed Switching Power Supply
This is a 350W 36VDC 9.7A power supply. LRS-350 series is a 350W single-output enclosed type power supply with 30mm of low profile design. Adopting th..
from
C$29.74
Add to Cart
Add to Wish List Compare this Product
Quickview

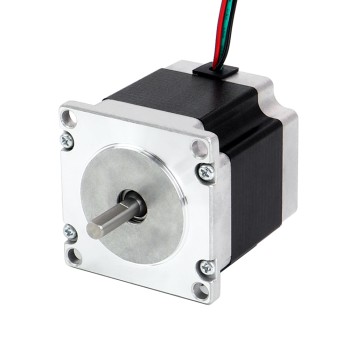

Nema 23 Bipolar 1.26Nm(178.4oz.in) 2.8A 57x57x56mm 4 Wires Φ6mm Shaft
Nema 23 Bipolar 1.26Nm(178.4oz.in) 2.8A 57x57x56mm 4 Wires Φ6mm Shaft
This bipolar Nema 23 stepper motor with step angle 1.8deg and size 57x57x56mm. It has 4 wires, each phase draws 2.8A, with holding torque 1.26Nm(178.4..
from
C$19.39
Add to Cart
Add to Wish List Compare this Product
Quickview

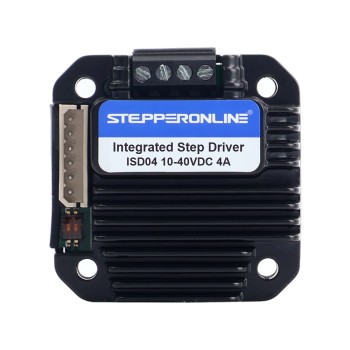

Integrated Stepper Motor Driver 1.5-4A 10-40VDC for NEMA 17,23 Stepper Motor
Integrated Stepper Motor Driver 1.5-4A 10-40VDC for NEMA 17,23 Stepper Motor
The ISD04 is a parallel port control series of miniature high performance stepper motor drivers.Its biggest feature is its small size and strong drivi..
from
C$67.70
Add to Cart
Add to Wish List Compare this Product
Quickview

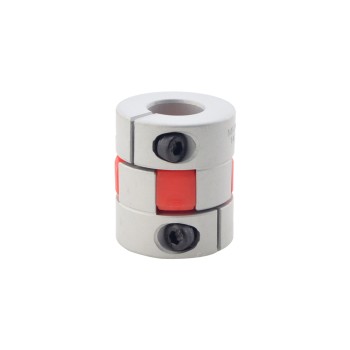

14mm - 14mm Flexible Jaw Coupling 30x35mm CNC Stepper Motor Shaft Coupler
