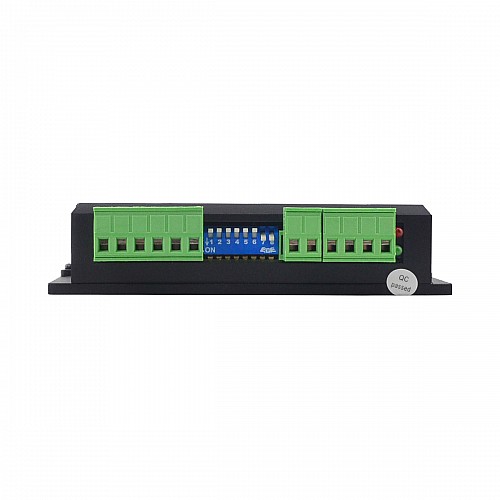

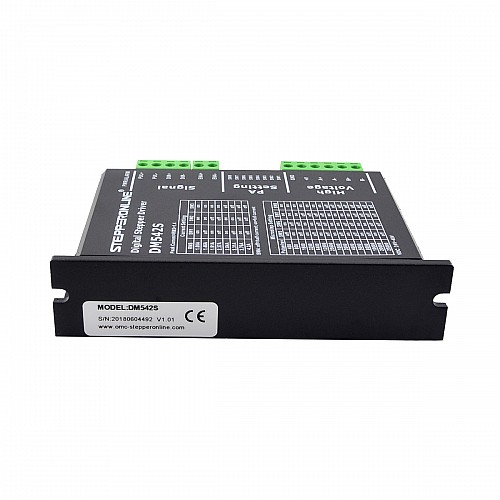

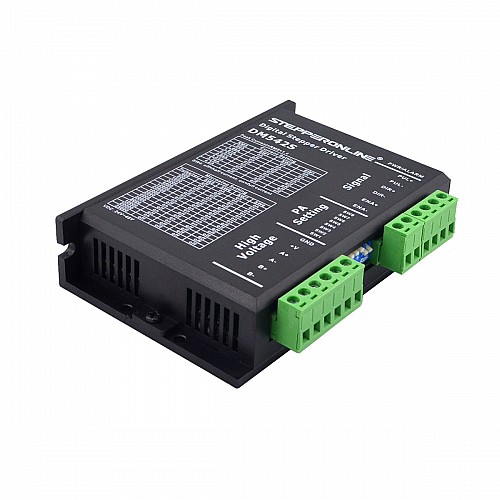

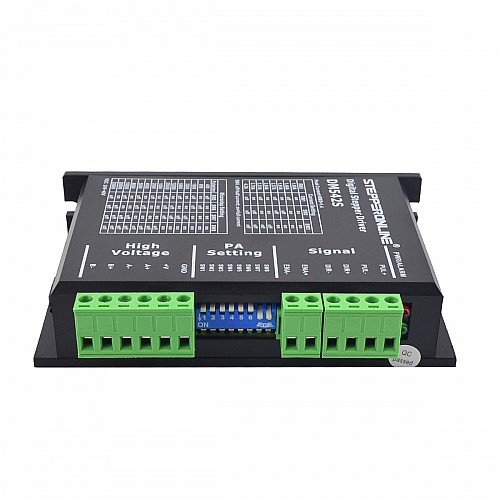

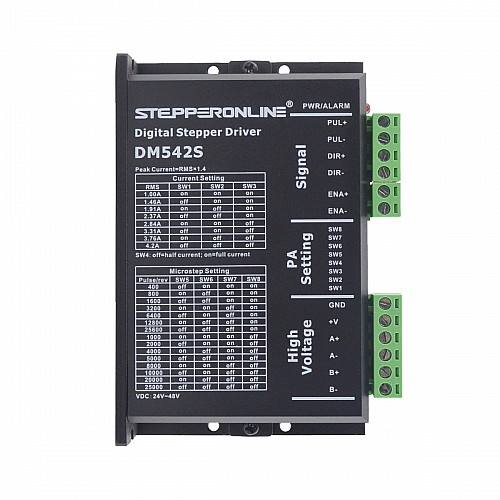

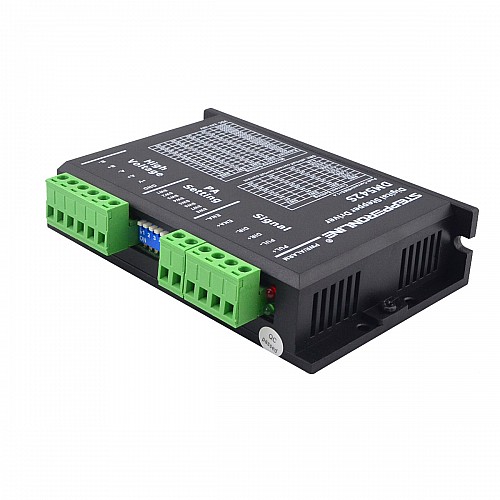

Digital Stepper Driver 1.0-4.2A 24-48VDC for Nema 17, 23, 24 Stepper Motor

The DM542S is a two phase digital stepper driver based on ARM. Its microstep resolution and output current are programmable. And it has advanced control algorithm which brings a unique level of system smoothness, provides optimum torque and mid-range instability. Compared with traditional analog drives, DM542S can drive a stepper motor at much lower noise, lower heating, and smoother movement. Its unique features make DM542S an ideal choice for high requirement applications. It is highly recommended to work as nema 17 and nema 23 driver.

Key Features:

• Input voltage 24-48VDC
• Parameter auto-setup and motor self-test
• Multi-Stepping inside, Small noise, low heat, smooth movement
• Torque compensation at high speed
• 15 selectable microstep resolutions including 400, 800, 1600, 3200, 6400, 12800, 25600, 1000, 2000, 4000, 5000, 8000, 10000, 20000, 25000
• Variable current control technology, High current efficiency
• 8 selectable peak current including 1.00A, 1.46A, 1.91A, 2.37A, 2.84A, 3.31A, 3.76A, 4.20A
• Pulse input frequency up to 200 KHz, TTL compatible and optically isolated input
• Accelerate and decelerate control inside, Great improvement in smoothness of starting or stopping the motor
• Suitable for 2-phase and 4-phase motors, works well as nema 17 driver, nema 23 driver
• Storage the position of motor
• Optically isolated input and compatible with 5V ~ 24V
• User-defined microsteps
• Over current and over voltage protection

Electrical Specifications:

• Output Peak Current: 1.0~4.2A (3.0 RMS)
• Input Voltage: +24~48VDC
• Pulse Input Frequency: 0~200kHz

Operating Environment and other Specifications(Tj = 25℃/77℉):

• Cooling: Natural Cooling or Forced cooling
• Environment: Avoid dust, oil fog and corrosive gases
• Humidity: 40%RH－90%RH
• Operating Temperature: 0℃ － 70℃
• Vibration: 10-55Hz / 0.15mm
• Storage Temperature: -20℃ － 80℃
• Weight: Approx.260g (7.4oz)
