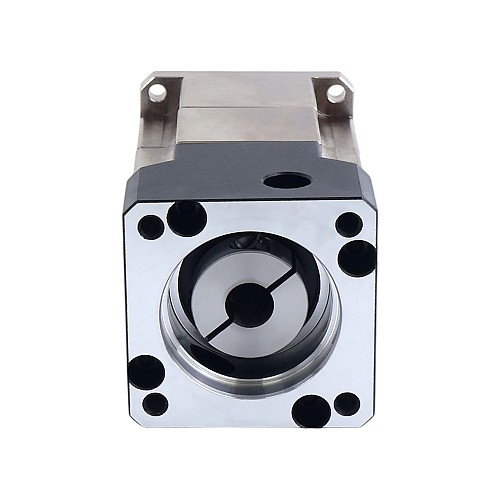

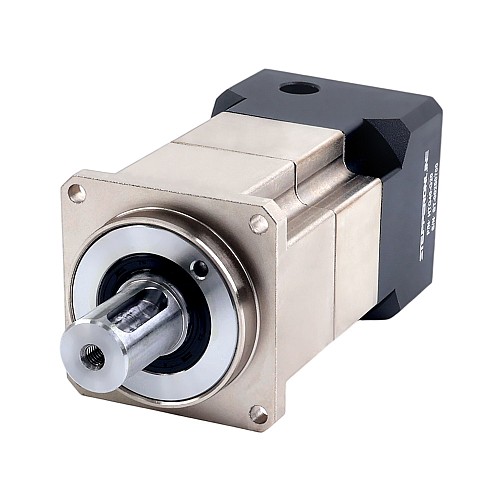

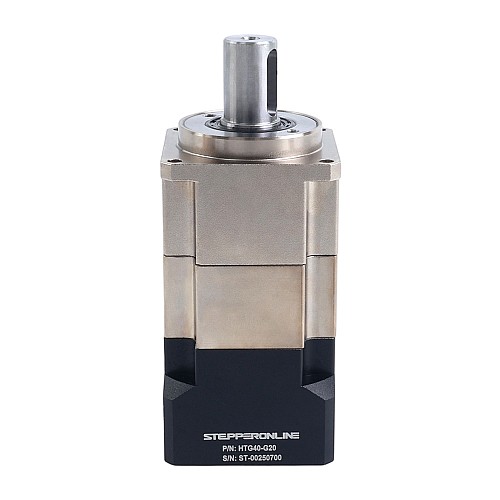

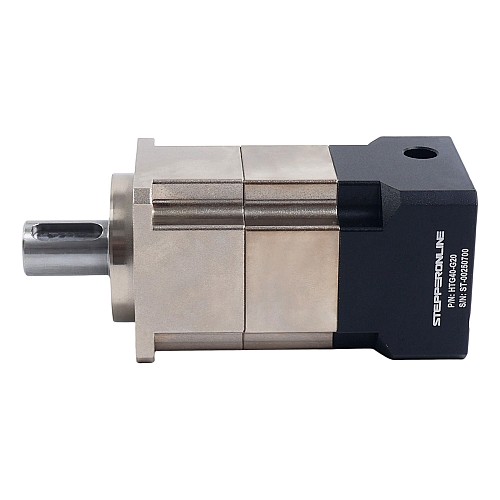

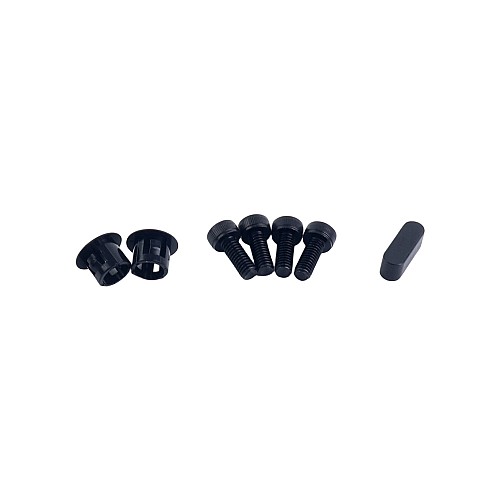

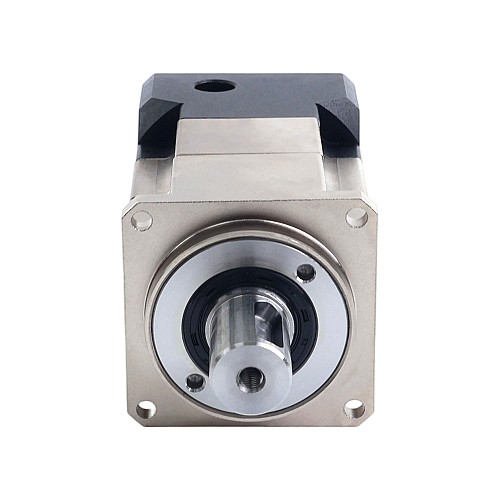

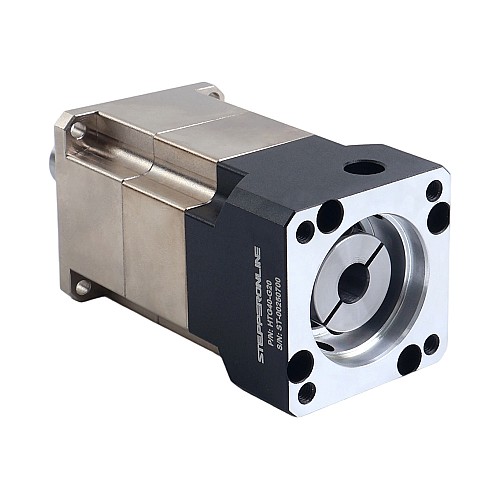

HTG Series 42mm 20:1 Helical Planetary Gearbox Backlash 5arcmin for Servo Motors IP65

0 reviews - Write a review

C$130.33

5 + C$125.53

10 + C$121.09

50 + C$116.95

100 + C$113.09

In Stock: 10000
Model: HTG40-G20
Gross Weight: 0.71kg
Certificated: ISO, CE, REACH

Available Options

Ships from

China

Qty

Add to Cart

Question

Add to Wish List Compare this Product

How to Choose a Shipping Warehouse？

For customers in the US, the UK, EU, Australia and Russia, please prioritize selecting a local warehouse. For the EU countries, choose the German warehouse.
The benefits of this selection include faster delivery times and lower overall costs, as no customs duties are incurred.

Ships within 24 hours!

Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.

The HTG series helical planetary gearbox features a 20:1 gear ratio with 5arcmin backlash. It is designed for servo motors with a size of 40mm and a shaft diameter of 8mm. It delivers stable transmission, low-noise operation, precision helical gearing design, high power density, enhanced load capacity and efficient torque transfer, etc.
Ideal for high-speed/high-torque scenarios: Automotive transmissions, heavy truck drivetrains, aerospace systems, and other demanding industrial uses.

Gearbox Specifications

Part Number: HTG40-G20
Gearbox Type: Helical Planetary
Gear Material: Alloy Steel
Gear Ratio: 20:1
Efficiency: 97%
Backlash at No-load: <=5arcmin
Rated Input Speed: 3000rpm
Maximum Input Speed: 6000rpm
Max.Permissible Torque: 17Nm(150.46lb-in)
Moment Permissible Torque: 34Nm(300.93lb-in)
Shaft Maximum Axial Load: 390N
Shaft Maximum Radial Load: 780N
Waterproof Rating: IP65
Lifetime: 20000hours

Physical Specifications

Frame Size: 42 x 42mm
Gearbox Length: 76mm
Output Shaft Diameter: Φ13mm
Output Shaft Length: 26mm
Output Shaft Type: Keyway
Input Shaft Diameter: Φ8mm
Input Shaft Length: Max. 28mm

Physical Specification
Backlash at No-load	<=5arcmin
Frame Size(mm)	42 x 42
Gear Material	Alloy Steel
Gear Ratio(xx:1)	20
Gearbox Length(mm)	76
Gearbox Type	Helical Planetary
Input Shaft Diameter(mm)	8
Input Shaft Length(mm)	28
Inventory Method	Dedicated Inventory
Matching Motor Size	Frame 40 Servo Motor
Output Shaft Diameter(mm)	13
Output Shaft Length(mm)	26
Output Shaft Type	Keyway
Product Series	HTG
