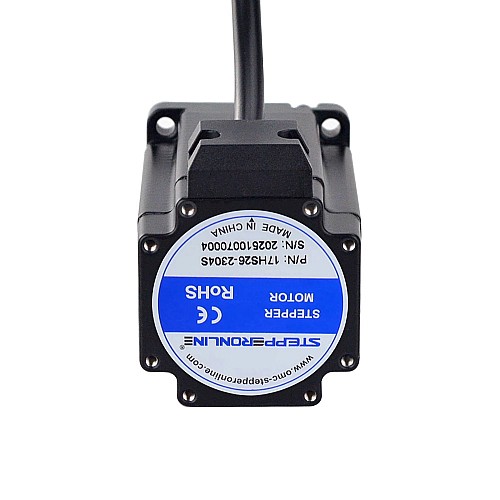

Nema 17 Bipolar 1.8deg 79Ncm(111.896oz.in) 2.3A 42x42x67mm 4 Wires

Hot

Nema 17 Bipolar 1.8deg 79Ncm(111.896oz.in) 2.3A 42x42x67mm 4 Wires

1 reviews - Write a review

C$34.22

5 + C$32.44

10 + C$30.84

50 + C$29.39

100 + C$28.08

In Stock: 10000
Model: 17HS26-2304S
Gross Weight: 0.65kg
Certificated: ISO, CE, UKCA, RoHS

Available Options

Ships from

China

Germany

Qty

Add to Cart

Question

Add to Wish List Compare this Product

How to Choose a Shipping Warehouse？

For customers in the US, the UK, EU, Australia and Russia, please prioritize selecting a local warehouse. For the EU countries, choose the German warehouse.
The benefits of this selection include faster delivery times and lower overall costs, as no customs duties are incurred.

Ships within 24 hours!

Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.

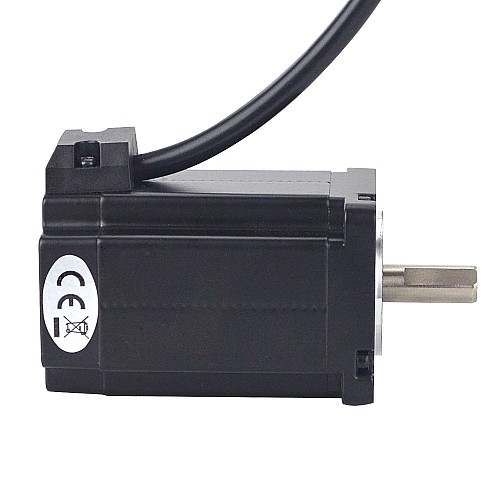

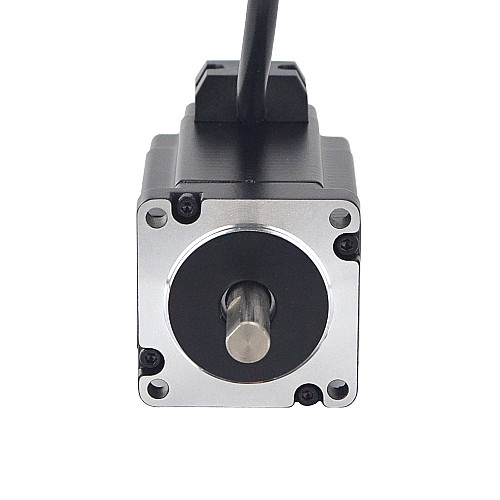

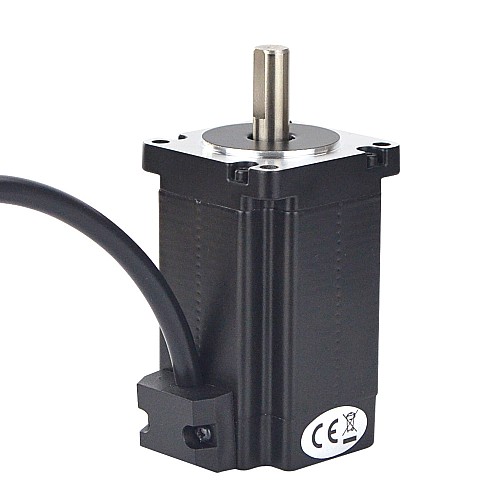

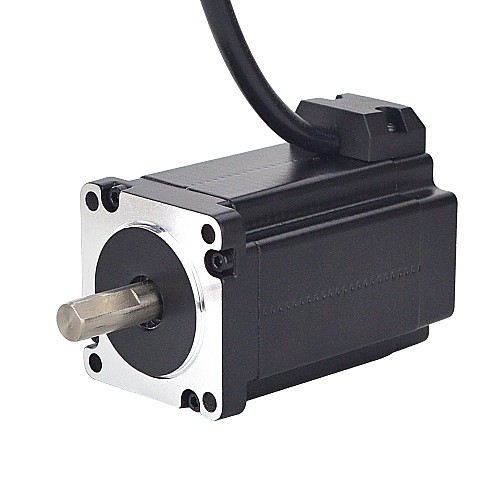

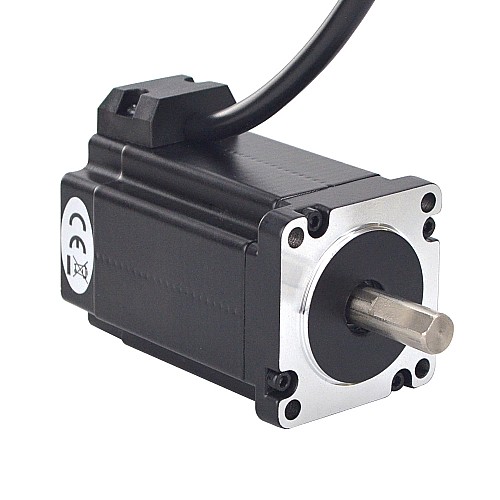

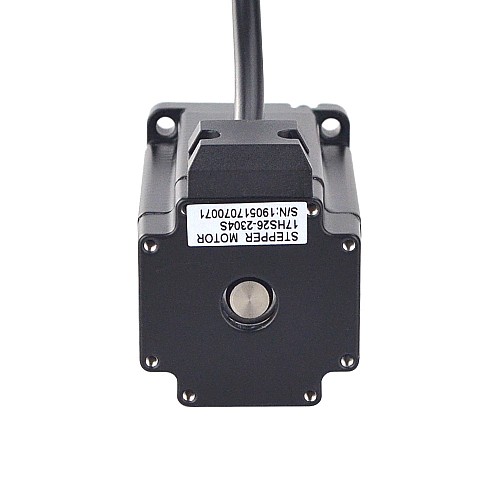

This bipolar Nema 17 stepper motor with step angle 1.8deg and size 42x42x67mm. It has 4 wires, each phase draws 2.3A, with holding torque 79Ncm(111.896oz.in).

Electrical Specification

Manufacturer Part Number: 17HS26-2304S
Motor Type: Bipolar Stepper
Step Angle: 1.8deg
Holding Torque: 79Ncm(111.896oz.in)
Rated Current/phase: 2.3A
Phase Resistance: 1.45ohms
Inductance: 2.8mH±20%(1KHz)
Insulation Class: B 130°C[266°F]

Physical Specification

Frame Size: 42 x 42mm
Body Length: 67mm
Shaft Diameter: Φ8mm
Shaft Length: 21mm
D-Cut Shaft Length: 15mm
Number of Leads: 4
Lead Length: 300mm
Weight: 550g

Connection

A+	A-	B+	B-
Red	Blue	Black	Green

Please note that the spacing of the mounting holes of this motor differs from that of the standard NEMA 17 motor, so it will not fit into the ST-M1 bracket.

The motor comes with a highly flexible cable that can be bent 8 million times without failure.

Product Type
Product Type	Hybrid Stepper Motor
Electrical Specification
Bipolar/Unipolar	Bipolar
Has Torque/Thrust Curve?	Yes
Holding Torque(Ncm)	79
Holding Torque(oz.in)	111.896
Inductance(mH)	2.8
Phase Resistance(ohms)	1.45
Rated Current(A)	2.3
Step Angle(deg.)	1.8
Physical Specification
Body Length(mm)	67
Frame Size(mm)	Nema 17 (42 x 42)
Inventory Method	Dedicated Inventory
IP Rating	40
Lead Length(mm)	300
No. of Lead	4
Output Shaft Type	D
Product Series	S
Shaft Diameter(mm)	8
Shaft Length(mm)	21
Single Shaft/Dual Shaft	Single Shaft
Weight(g)	550
