120W 220/380VAC 135RPM 6.20Nm(877.99oz.in) Flange 90mm Right Angle Gearbox Keyway Shaft Three-phase AC Induction Motor

120W 220VAC/380VAC 50/60Hz 135RPM 6.20Nm(877.99oz.in) Flange 90mm Right Angle Gearbox Keyway Shaft Three-phase AC Induction Motor - 5IK120GU-S/S3FT/5GU10RT | StepperOnline CA
120W 220VAC/380VAC 50/60Hz 135RPM 6.20Nm(877.99oz.in) Flange 90mm Right Angle Gearbox Keyway Shaft Three-phase AC Induction Motor - 5IK120GU-S/S3FT/5GU10RT | StepperOnline CA
120W 220VAC/380VAC 50/60Hz 135RPM 6.20Nm(877.99oz.in) Flange 90mm Right Angle Gearbox Keyway Shaft Three-phase AC Induction Motor - 5IK120GU-S/S3FT/5GU10RT | StepperOnline CA
120W 220VAC/380VAC 50/60Hz 135RPM 6.20Nm(877.99oz.in) Flange 90mm Right Angle Gearbox Keyway Shaft Three-phase AC Induction Motor - 5IK120GU-S/S3FT/5GU10RT | StepperOnline CA
120W 220VAC/380VAC 50/60Hz 135RPM 6.20Nm(877.99oz.in) Flange 90mm Right Angle Gearbox Keyway Shaft Three-phase AC Induction Motor - 5IK120GU-S/S3FT/5GU10RT | StepperOnline CA
120W 220VAC/380VAC 50/60Hz 135RPM 6.20Nm(877.99oz.in) Flange 90mm Right Angle Gearbox Keyway Shaft Three-phase AC Induction Motor - 5IK120GU-S/S3FT/5GU10RT | StepperOnline CA
120W 220VAC/380VAC 50/60Hz 135RPM 6.20Nm(877.99oz.in) Flange 90mm Right Angle Gearbox Keyway Shaft Three-phase AC Induction Motor - 5IK120GU-S/S3FT/5GU10RT | StepperOnline CA
120W 220VAC/380VAC 50/60Hz 135RPM 6.20Nm(877.99oz.in) Flange 90mm Right Angle Gearbox Keyway Shaft Three-phase AC Induction Motor - 5IK120GU-S/S3FT/5GU10RT | StepperOnline CA
120W 220VAC/380VAC 50/60Hz 135RPM 6.20Nm(877.99oz.in) Flange 90mm Right Angle Gearbox Keyway Shaft Three-phase AC Induction Motor - 5IK120GU-S/S3FT/5GU10RT | StepperOnline CA
120W 220VAC/380VAC 50/60Hz 135RPM 6.20Nm(877.99oz.in) Flange 90mm Right Angle Gearbox Keyway Shaft Three-phase AC Induction Motor - 5IK120GU-S/S3FT/5GU10RT | StepperOnline CA
120W 220VAC/380VAC 50/60Hz 135RPM 6.20Nm(877.99oz.in) Flange 90mm Right Angle Gearbox Keyway Shaft Three-phase AC Induction Motor - 5IK120GU-S/S3FT/5GU10RT | StepperOnline CA
120W 220VAC/380VAC 50/60Hz 135RPM 6.20Nm(877.99oz.in) Flange 90mm Right Angle Gearbox Keyway Shaft Three-phase AC Induction Motor - 5IK120GU-S/S3FT/5GU10RT | StepperOnline CA
120W 220VAC/380VAC 50/60Hz 135RPM 6.20Nm(877.99oz.in) Flange 90mm Right Angle Gearbox Keyway Shaft Three-phase AC Induction Motor - 5IK120GU-S/S3FT/5GU10RT | StepperOnline CA
120W 220VAC/380VAC 50/60Hz 135RPM 6.20Nm(877.99oz.in) Flange 90mm Right Angle Gearbox Keyway Shaft Three-phase AC Induction Motor - 5IK120GU-S/S3FT/5GU10RT | StepperOnline CA
120W 220VAC/380VAC 50/60Hz 135RPM 6.20Nm(877.99oz.in) Flange 90mm Right Angle Gearbox Keyway Shaft Three-phase AC Induction Motor - 5IK120GU-S/S3FT/5GU10RT | StepperOnline CA
120W 220VAC/380VAC 50/60Hz 135RPM 6.20Nm(877.99oz.in) Flange 90mm Right Angle Gearbox Keyway Shaft Three-phase AC Induction Motor - 5IK120GU-S/S3FT/5GU10RT | StepperOnline CA
120W 220VAC/380VAC 50/60Hz 135RPM 6.20Nm(877.99oz.in) Flange 90mm Right Angle Gearbox Keyway Shaft Three-phase AC Induction Motor - 5IK120GU-S/S3FT/5GU10RT | StepperOnline CA
120W 220VAC/380VAC 50/60Hz 135RPM 6.20Nm(877.99oz.in) Flange 90mm Right Angle Gearbox Keyway Shaft Three-phase AC Induction Motor - 5IK120GU-S/S3FT/5GU10RT | StepperOnline CA
5IK120GU-S/S3FT/5GU10RT
Output Shaft TypeKeyway
Input Voltage(V)3PH 220VAC/380VAC
Frame Size(mm)90 x 90
Current(A)0.60,0.70,0.42,0.40
Question

Downloads

5IK120GU-XXFT_5GUXXRX_manual.pdfPDF · 1.74MB
Same series
ModelOutput Shaft TypeInput Voltage(V)Frame Size(mm)Current(A)PriceStock
5IK120GU-CFT/5GU180RTKeyway1PH 220VAC90 x 900.87C$114.65In stock
5IK120GU-CFT/5GU20RCHollow1PH 220VAC90 x 900.87C$111.74In stock
5IK120GU-CFT/5GU20RTKeyway1PH 220VAC90 x 900.87C$111.74In stock
5IK120GU-CFT/5GU30RCHollow1PH 220VAC90 x 900.87C$111.74In stock
5IK120GU-CFT/5GU30RTKeyway1PH 220VAC90 x 900.87C$111.74In stock
5IK120GU-CFT/5GU50RCHollow1PH 220VAC90 x 900.87C$114.65In stock
5IK120GU-CFT/5GU50RTKeyway1PH 220VAC90 x 900.87C$114.65In stock
5IK120GU-S/S3FT/5GU100RCHollow3PH 220VAC/380VAC90 x 900.60,0.70,0.42,0.40C$114.65In stock
5IK120GU-S/S3FT/5GU100RTKeyway3PH 220VAC/380VAC90 x 900.60,0.70,0.42,0.40C$114.65In stock
5IK120GU-S/S3FT/5GU10RCHollow3PH 220VAC/380VAC90 x 900.60,0.70,0.42,0.40C$111.74In stock
5IK120GU-S/S3FT/5GU10RTKeyway3PH 220VAC/380VAC90 x 900.60,0.70,0.42,0.40C$111.74In stock
5IK120GU-S/S3FT/5GU10RT-SALEKeyway3PH 220VAC/380VAC90 x 900.60,0.70,0.42,0.40C$113.52In stock
5IK120GU-S/S3FT/5GU10RT-SALEKeyway3PH 220VAC/380VAC90 x 900.60,0.70,0.42,0.40C$113.52In stock
5IK120GU-S/S3FT/5GU15RCHollow3PH 220VAC/380VAC90 x 900.60,0.70,0.42,0.40C$111.74In stock
5IK120GU-S/S3FT/5GU15RTKeyway3PH 220VAC/380VAC90 x 900.60,0.70,0.42,0.40C$111.74In stock
5IK120GU-S/S3FT/5GU180RCHollow3PH 220VAC/380VAC90 x 900.60,0.70,0.42,0.40C$114.65In stock
5IK120GU-S/S3FT/5GU180RTKeyway3PH 220VAC/380VAC90 x 900.60,0.70,0.42,0.40C$114.65In stock
5IK120GU-S/S3FT/5GU20RCHollow3PH 220VAC/380VAC90 x 900.60,0.70,0.42,0.40C$111.74In stock
5IK120GU-S/S3FT/5GU20RTKeyway3PH 220VAC/380VAC90 x 900.60,0.70,0.42,0.40C$111.74In stock
5IK120GU-S/S3FT/5GU30RCHollow3PH 220VAC/380VAC90 x 900.60,0.70,0.42,0.40C$111.74In stock
5IK120GU-S/S3FT/5GU30RTKeyway3PH 220VAC/380VAC90 x 900.60,0.70,0.42,0.40C$111.74In stock
5IK120GU-S/S3FT/5GU50RCHollow3PH 220VAC/380VAC90 x 900.60,0.70,0.42,0.40C$114.65In stock
5IK120GU-S/S3FT/5GU50RTKeyway3PH 220VAC/380VAC90 x 900.60,0.70,0.42,0.40C$114.65In stock
5IK90GU-AFT/5GU100RCHollow1PH 110VAC90 x 901.4C$110.42In stock
5IK90GU-AFT/5GU100RC-SALEHollow1PH 110VAC90 x 901.4C$112.17In stock
5IK90GU-AFT/5GU100RTKeyway1PH 110VAC90 x 901.4C$110.42In stock
5IK90GU-AFT/5GU10RCHollow1PH 110VAC90 x 901.4C$107.52In stock
5IK90GU-AFT/5GU10RTKeyway1PH 110VAC90 x 901.4C$107.52In stock
5IK90GU-AFT/5GU15RCHollow1PH 110VAC90 x 901.4C$107.52In stock
5IK90GU-AFT/5GU15RTKeyway1PH 110VAC90 x 901.4C$107.52In stock
View all in category
120W 220/380VAC 135RPM 6.20Nm(877.99oz.in) Flange 90mm Right Angle Gearbox Keyway Shaft Three-phase AC Induction Motor
This 90x90mm keyway shaft three-phase AC induction gear motor can be powered by either 220VAC or 380... Read More
0 reviews • Write a review
from
C$111.74
5 + C$108.74
10 + C$105.89
50 + C$103.20
100 + C$100.64

Click country for real-time stock

Add to Cart
Add to Wish List Compare this Product
Easy Returns

Return within 30 days of delivery. Contact us first and we'll take it from there.

Read more
Ships within 24 hours!
Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.

This 90x90mm keyway shaft three-phase AC induction gear motor can be powered by either 220VAC or 380VAC and has a gear ratio of 10. The right angle gearboxes are compact in size, run smoothly and can handle high torques. The simple brushless structure, high reliability, relatively high efficiency and long service life make it an excellent cost-effective choice for constant speed applications like industrial equipments, household appliances, power supply systems, transportation, mechanical equipment, etc.

Electrical Specifications

  • P/N: 5IK120GU-S/S3FT/5GU10RT
  • Gearbox Type: Right Angle Gearbox
  • Output Power: 120W
  • Voltage: 3PH 220VAC/3PH 380VAC
  • Frequency: 50/60Hz
  • Current(220VAC): 0.60A(50Hz)/0.70A(60Hz)
  • Current(380VAC): 0.42A(50Hz)/0.40A(60Hz)
  • Gear Ratio: 10:1
  • Speed: 135rpm
  • Torque: 6.20Nm(877.99oz.in)

Physical Specifications

  • Frame Size: 90x90mm
  • Body Length: 278mm
  • Shaft Type: Keyway
  • Shaft Diameter: Φ15mm
  • Shaft Length: 38mm
  • Weight: 6.6kg

Wiring

Electrical Specification
Current(A)0.60,0.70,0.42,0.40
Frequency(Hz)50,60
Input Voltage(V)3PH 220VAC/380VAC
Output Power(W)120
Speed(rpm)135
Torque(Nm)6.2
Physical Specification
Frame Size(mm)90 x 90
Gear Ratio(xx:1)10
Gearbox TypeRight Angle Gearbox
Output Shaft TypeKeyway

Write a review

Not published. We only use it to follow up on your review.
Note: HTML is not translated!
Rating
Bad Good
Quickview
4.7m(185") AWG20 Motor and Encoder Extension Cable Kit for Nema 23 and 24 Closed Loop Stepper Motors
4.7m(185") AWG20 Motor and Encoder Extension Cable Kit for Nema 23 and 24 Closed Loop Stepper Motors
4.7m(185") Motor Extension Cable and 4.7m(185") Encoder Extension Cable for Nema 23 and 24 Closed Loop Stepper Motors.This Cable Kit included:1 x ..
from
C$34.63
Add to Cart
Add to Wish List Compare this Product
Quickview

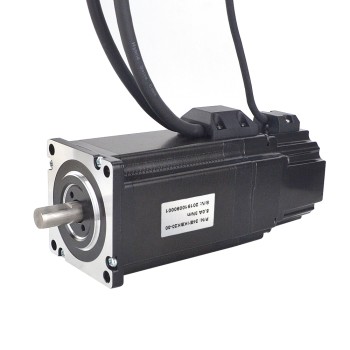

P Series Nema 24 Closed Loop Stepper Motor 3Nm(424.92oz.in) with Electromagnetic Brake
P Series Nema 24 Closed Loop Stepper Motor 3Nm(424.92oz.in) with Electromagnetic Brake
Electrical SpecificationManufacturer Part Number: 24E1KBK20-30 Number of phase: 2 Step Angle: 1.8deg Holding Torque: 3Nm(424.92oz.in) Rated C..
from
C$154.06
Add to Cart
Add to Wish List Compare this Product
Quickview
EG Series Planetary Gearbox Gear Ratio 5:1 Backlash 15arc-min for Nema 24 Stepper Motor
EG Series Planetary Gearbox Gear Ratio 5:1 Backlash 15arc-min for Nema 24 Stepper Motor
The size of this gearbox is 60 x 60mm and the input shaft diameter is 10mm. This high-precision planetary gearbox is belong to EG series gearbox, it w..
from
C$49.43
Add to Cart
Add to Wish List Compare this Product
Quickview

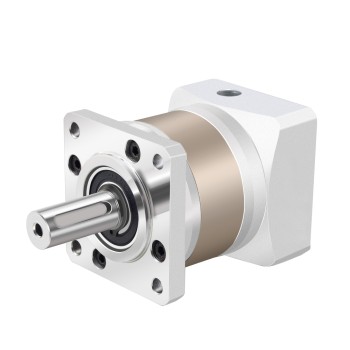

EG Series Planetary Gearbox Gear Ratio 10:1 Backlash 15arc-min for Nema 24 Stepper Motor
EG Series Planetary Gearbox Gear Ratio 10:1 Backlash 15arc-min for Nema 24 Stepper Motor
The size of this gearbox is 60 x 60mm and the input shaft diameter is 10mm. This high-precision planetary gearbox is belong to EG series gearbox, it w..
from
C$49.43
Add to Cart
Add to Wish List Compare this Product
Quickview

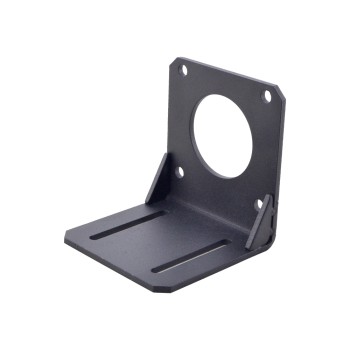

Nema 24 Bracket for Closed Loop Stepper Motor Alloy Steel Bracket
Nema 24 Bracket for Closed Loop Stepper Motor Alloy Steel Bracket
Manufacturer P/N: ST-M13 It's a new nema 24 size stepper motor bracket, it suit for standard Nema 24 open loop and closed loop stepper motor. Please..
from
C$2.38
Add to Cart
Add to Wish List Compare this Product
Quickview

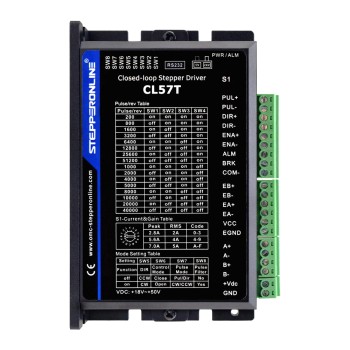

Closed Loop Stepper Driver V4.1 0-8.0A 24-48VDC for Nema 17, 23, 24 Stepper Motor
Closed Loop Stepper Driver V4.1 0-8.0A 24-48VDC for Nema 17, 23, 24 Stepper Motor
This CL57T-V41 closed-loop stepper driver offers an alternative for applications requiring high performance and high reliability when the servo was th..
from
C$52.77
Add to Cart
Add to Wish List Compare this Product
Quickview

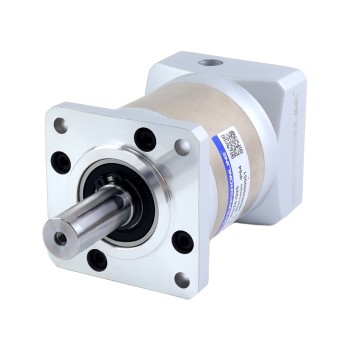

EG Series Planetary Gearbox Gear Ratio 20:1 Backlash 20arc-min for Nema 24 Stepper Motor
