EG Series Planetary Gearbox Gear Ratio 10:1 Backlash 15arc-min for Nema 24 Stepper Motor

0 reviews - Write a review

C$41.51

5 + C$40.09

10 + C$38.78

50 + C$37.53

100 + C$36.36

In Stock: 10000
Model: EG24-G10
Gross Weight: 0.93kg
Certificated: ISO, CE, REACH

Available Options

Ships from

China

United States

Germany

Qty

Add to Cart

Question

Add to Wish List Compare this Product

How to Choose a Shipping Warehouse？

For customers in the US, the UK, EU, Australia and Russia, please prioritize selecting a local warehouse. For the EU countries, choose the German warehouse.
The benefits of this selection include faster delivery times and lower overall costs, as no customs duties are incurred.

Ships within 24 hours!

Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.

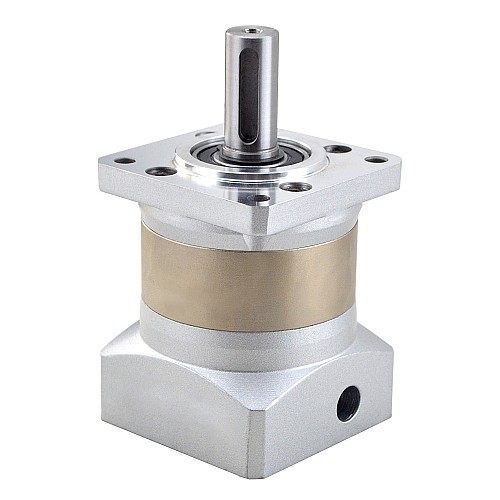

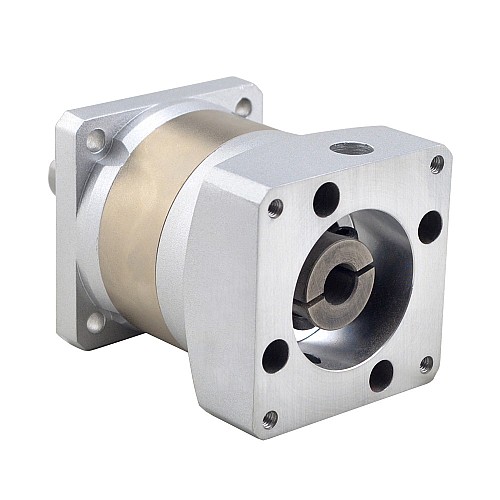

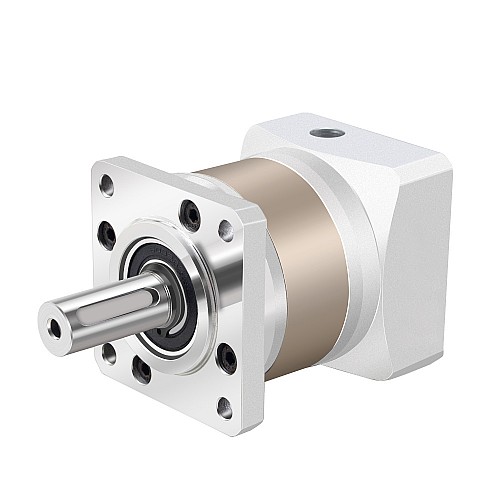

The size of this gearbox is 60 x 60mm and the input shaft diameter is 10mm. This high-precision planetary gearbox is belong to EG series gearbox, it with gear ratio 10:1 and a maximum 15arc-min backlash. It's an excellent choice for applications that require good accuracy and reliability at an exceptional value. This inline planetary gearbox built-in an input shaft coupling which can match any standard Nema 24 stepper motor and brushless dc motor.

Gearbox Specifications

Part Number: EG24-G10
Gearbox Type: Spur Planetary
Gear Material: Alloy Steel
Gear Ratio: 10:1
Efficiency: 96%
Rotor Inertia: 0.13kg·cm²
Backlash at No-load: <=15arcmin
Max.Permissible Torque: 10Nm(88.51lb-in)
Moment Permissible Torque: 20Nm(177.01lb-in)
Noise: <=55dB(1000rpm)/65dB(3000rpm)
Waterproof Rating: IP54
Lifetime: 20000hours

Physical Specifications

Frame Size: 60 x 60mm
Gearbox Length: 73.5mm
Output Shaft Type: Key way
Output Shaft Diameter: Φ14mm
Output Shaft Length: 35mm
Input Shaft Diameter: Φ10mm
Input Shaft Length: 12-31mm

Typically, the mounting holes for Nema 24 motors are 50mm, but some are 47.1mm. Therefore, please note that our reducer can only match Nema 24 motors with a hole spacing of 50mm.

Physical Specification
Backlash at No-load	<=15arcmin
Frame Size(mm)	60 x 60
Gear Material	Alloy Steel
Gear Ratio(xx:1)	10
Gearbox Length(mm)	73.5
Gearbox Type	Spur Planetary
Input Shaft Diameter(mm)	10
Input Shaft Length(mm)	12 - 31
Inventory Method	Dedicated Inventory
Matching Motor Size	Nema 24 Stepper Motor
Output Shaft Diameter(mm)	14
Output Shaft Length(mm)	35
Output Shaft Type	Keyway
Product Series	EG
Weight(g)	930
