LK2A40 Series Ball Screw Driven Linear Module Max. Speed 500mm/s Position Accuracy 0.003mm Stroke 136mm
The LK2A40 series ball screw driven linear actuator delivers a positioning accuracy of 0.003mm, ... Read More
0 reviews • Write a review
Add to Wish List Compare this Product
Easy Returns

Return within 30 days of delivery. Contact us first and we'll take it from there.

Read more

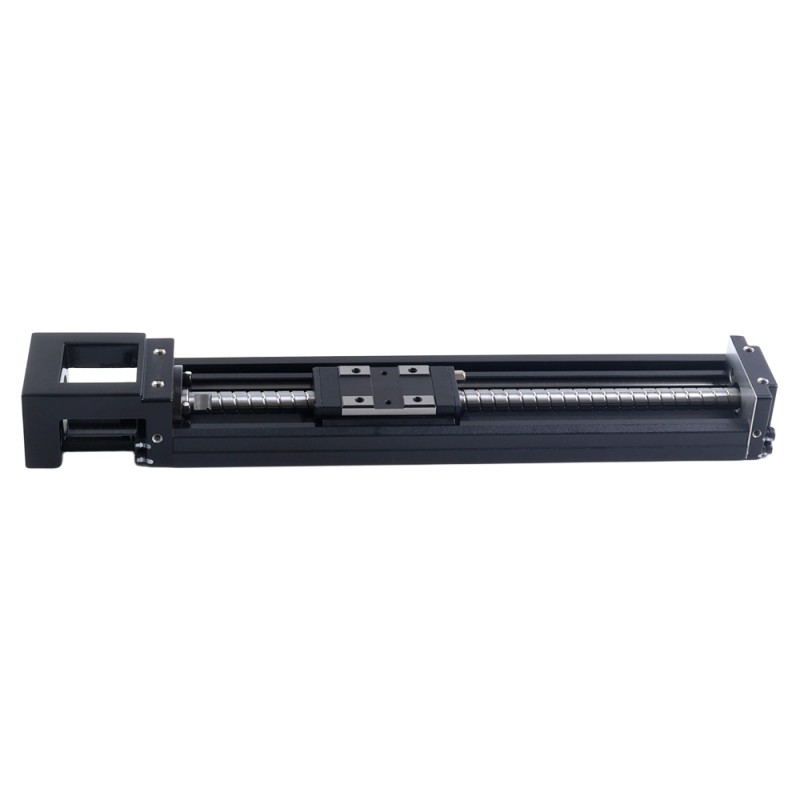

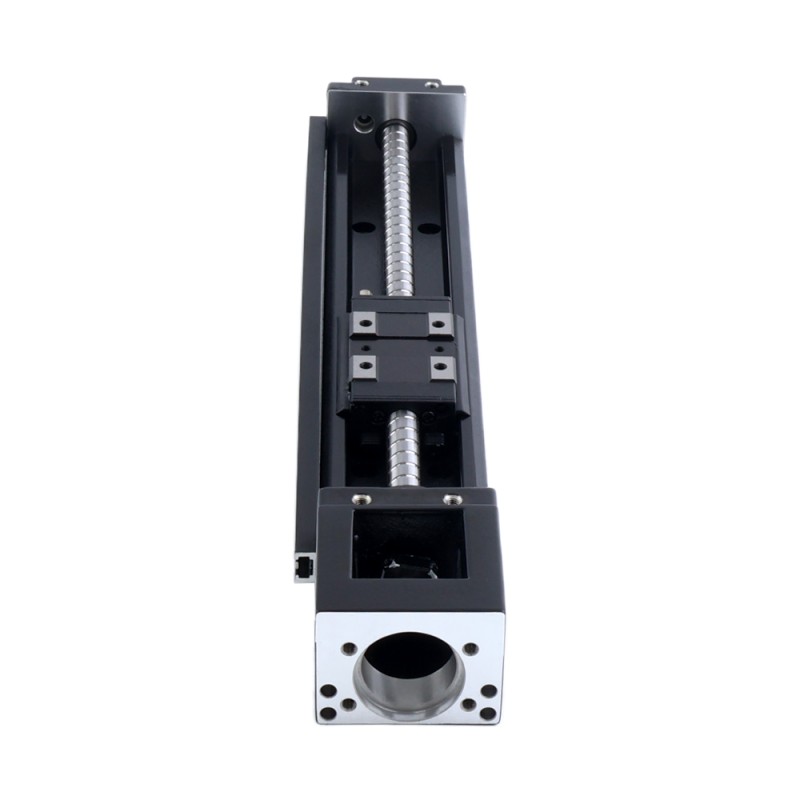

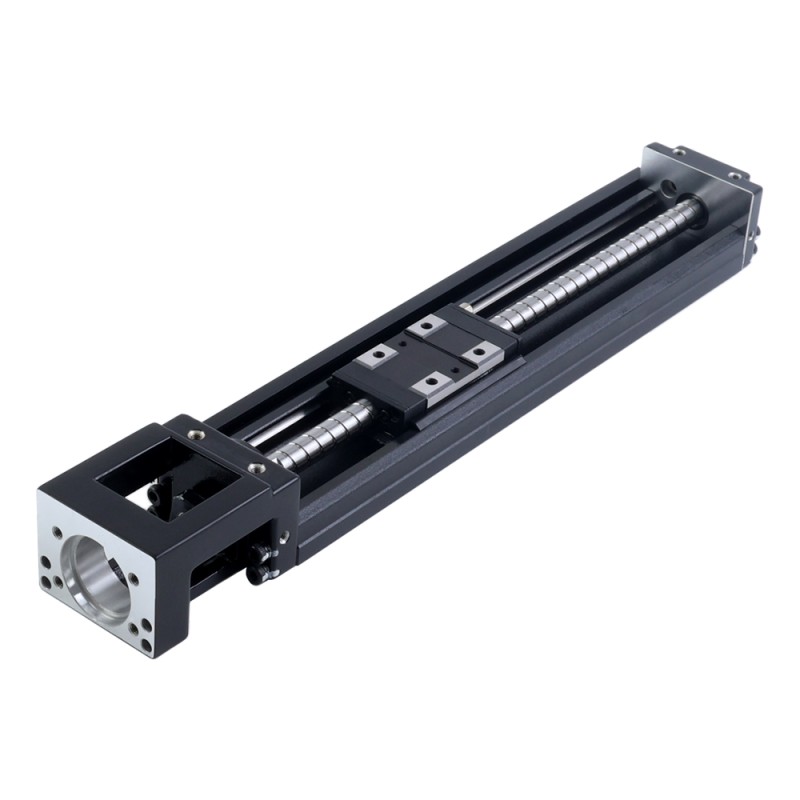

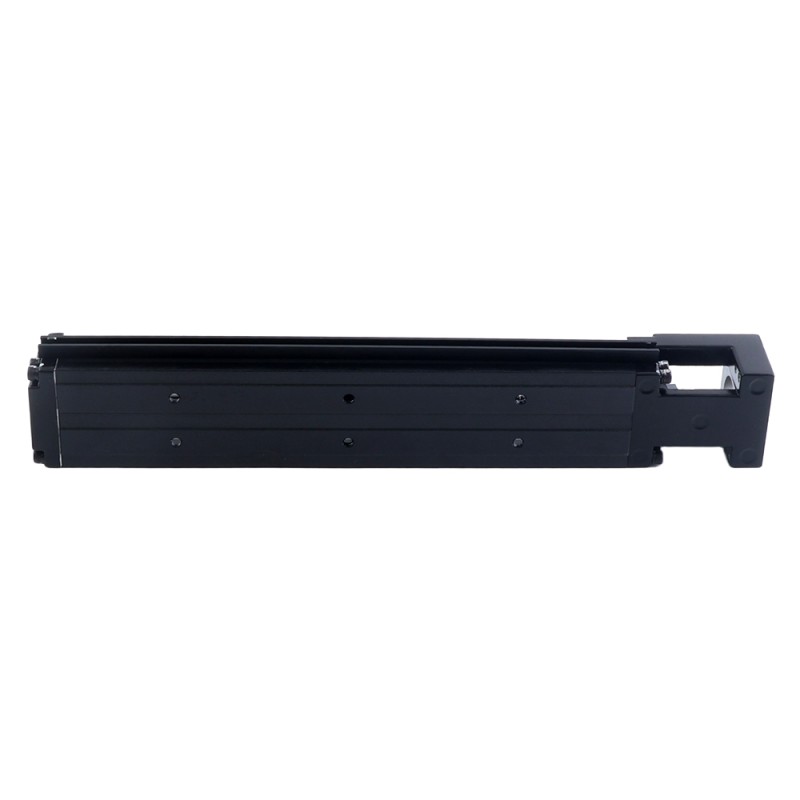

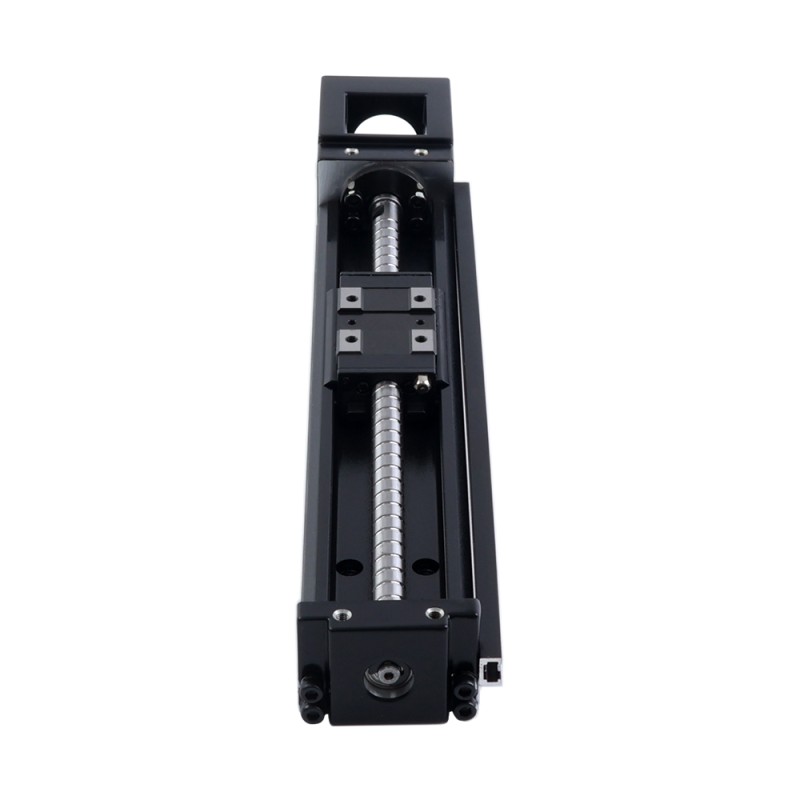

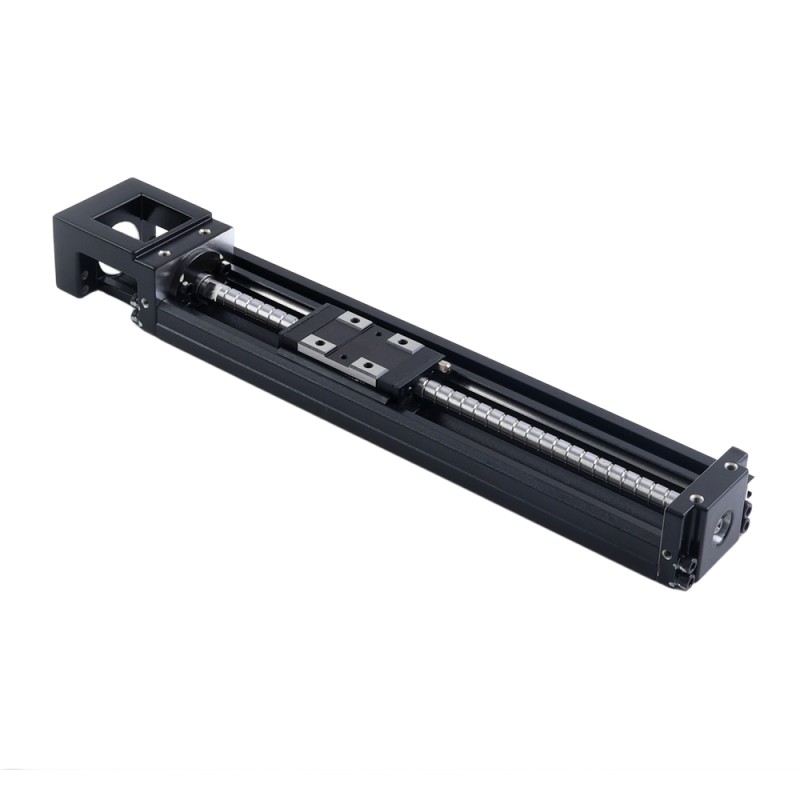

The LK2A40 series ball screw driven linear actuator delivers a positioning accuracy of 0.003mm, with a ball screw lead of 5mm(0.0164ft), a stroke length of 136mm(0.45ft), and a maximum speed of 500mm/s(1.64ft/s).

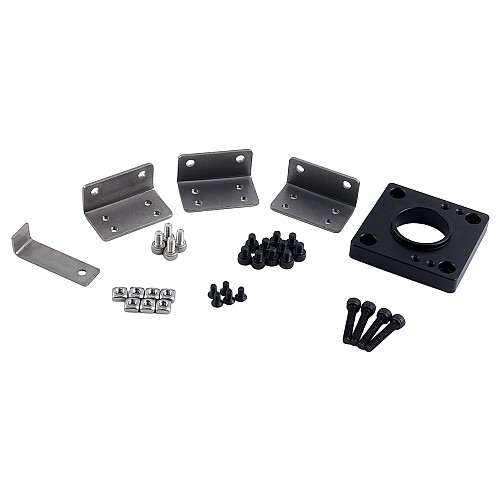

The LK2A series ball screw driven linear actuator adopts a stripped-down architecture that eliminates unnecessary components—such as sensors, protective covers, and couplings—resulting in a compact, lightweight design ideal for space-constrained automation. This streamlined approach reduces weight and installation footprint while delivering reliable linear motion with simplified assembly. To support application flexibility, it features sensor mounting rails, sensor fixing brackets, and light-blocking plates on the sliders. Engineered for applications demanding efficiency and economy, the LK2A provides dependable performance in high-cycle environments without the complexity of added hardware.

Specifications

  • Part Number: LK2A40-17DL050-136
  • Screw Type: Ball Screw
  • Stroke Length: 136mm(0.45ft)
  • Position Accuracy: ± 0.003mm
  • Ball Screw Lead: 5mm(0.0164ft)
  • Maximum Speed: 500mm/s(1.64ft/s)
  • Ball Screw Diameter: Φ8mm
  • Ball Screw Grade: C5
  • Ball Screw Basic Dynamic Rated Load: 1374N
  • Ball Screw Basic Static Rated Load: 2657N
  • Linear Guide Basic Dynamic Rated Load: 3920N
  • Linear Guide Basic Static Rated Load: 6468N
  • Motor Frame: Nema 17 Closed Loop Stepper Motor
Physical Specification
Lead(mm/ft) 5/0.0164
Linear Motor Type Steel Body
Max. Speed(ft/s) 1.64
Max. Speed(mm/s) 500
Motor Mounting Flange Nema 17 Closed Loop Stepper Motor
Motor Mounting Position Direct Connect
Stroke Length(mm/ft) 136/0.45
Transmission Method Ball Screw Driven

Write a review

Not published. We only use it to follow up on your review.
Note: HTML is not translated!
Rating
Bad Good
Quickview
5mm - 5mm Flexible Shaft Coupling 18x25mm CNC Stepper Motor Shaft Coupler
5mm - 5mm Flexible Shaft Coupling 18x25mm CNC Stepper Motor Shaft Coupler
Shaft: 5mm - 5mm Diameter: 18mm Length: 25mm Body Material: Aluminum Alloy..
from
C$1.58
Add to Cart
Add to Wish List Compare this Product
Quickview
Nema 17 Closed Loop Stepper Motor 56Ncm(79.3oz.in) with Magnetic Encoder 1000PPR(4000CPR)
Nema 17 Closed Loop Stepper Motor 56Ncm(79.3oz.in) with Magnetic Encoder 1000PPR(4000CPR)
This nema 17 closed loop stepper motor with 51.5mm thickness include encoder. The encoder is a magnetic encoder with 3 channels and 1000PPR(4000CPR) r..
from
C$27.19
Add to Cart
Add to Wish List Compare this Product
Quickview
Digital Stepper Drive 1.0-3.2A 10-30VDC for Nema 17, 23 Stepper Motor
🔥 Bestseller
Digital Stepper Drive 1.0-3.2A 10-30VDC for Nema 17, 23 Stepper Motor
This is a digital stepper drive implemented with advanced stepper control technology. It is easy to use and it can be used to drive 2-phase and 4-phas..
from
C$23.27
Add to Cart
Add to Wish List Compare this Product
Quickview

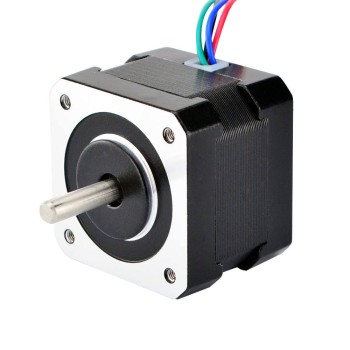

Dual Shaft Nema 17 Bipolar 1.8deg 22Ncm(31.15oz.in) 1.33A 42x42x34mm 4 Wires
Dual Shaft Nema 17 Bipolar 1.8deg 22Ncm(31.15oz.in) 1.33A 42x42x34mm 4 Wires
This bipolar Nema 17 stepper motor with step angle 1.8deg and size 42x42x34mm. It has 4 wires, each phase draws current 1.33A, with holding torque 22N..
from
C$12.30
Add to Cart
Add to Wish List Compare this Product
Quickview
5mm - 5mm Flexible Jaw Coupling 20x25mm CNC Stepper Motor Shaft Coupler
5mm - 5mm Flexible Jaw Coupling 20x25mm CNC Stepper Motor Shaft Coupler
Specification Part Number: MH2025-5-5 Type: Jaw Type Rated Torque: 2.8Nm(396.42oz.in) Max. Torque: 5.6Nm(792.84oz.in) Max. ..
from
C$4.73
Add to Cart
Add to Wish List Compare this Product
Quickview
Aluminium Alloy Motor Handwheel 25mm OD 5mm Bore Diameter
Aluminium Alloy Motor Handwheel 25mm OD 5mm Bore Diameter
This handwheel has an outer diameter of 25mm and a bore diameter of 5mm. It is made of a reliable aluminum alloy for maximum durability and reliabilit..
from
C$6.55
Add to Cart
Add to Wish List Compare this Product
Quickview
5mm - 5mm Flexible Double Disc Coupling 19x26mm CNC Stepper Motor Shaft Coupler
5mm - 5mm Flexible Double Disc Coupling 19x26mm CNC Stepper Motor Shaft Coupler
Specification Part Number: MP1926-5-5 Type: Double Disc Rated Torque: 1Nm(141.58oz.in) Max. Torque: 2Nm(283.16oz.in) Max. S..
from
C$11.69
Add to Cart
Add to Wish List Compare this Product
Quickview

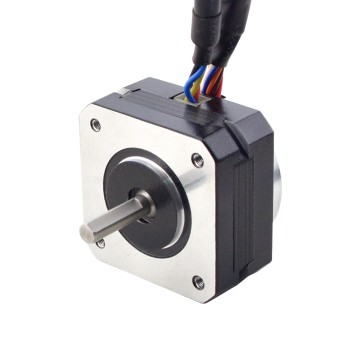

Nema 17 Closed Loop Stepper Motor 16Ncm(22.7oz.in) with Magnetic Encoder 1000PPR(4000CPR)
