Aluminium Alloy Motor Handwheel 25mm OD 5mm Bore Diameter
C$6.69
5 + C$6.35
10 + C$6.04
50 + C$5.74
100 + C$5.49
  • In Stock: 10000
  • Model: HWA25-D5
  • Gross Weight: 0.07kg
  • Certificated: ISO

Available Options

How to Choose a Shipping Warehouse
For customers in the US, the UK, EU, Australia and Russia, please prioritize selecting a local warehouse. For the EU countries, choose the German warehouse.
The benefits of this selection include faster delivery times and lower overall costs, as no customs duties are incurred.
Ships within 24 hours!
Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.

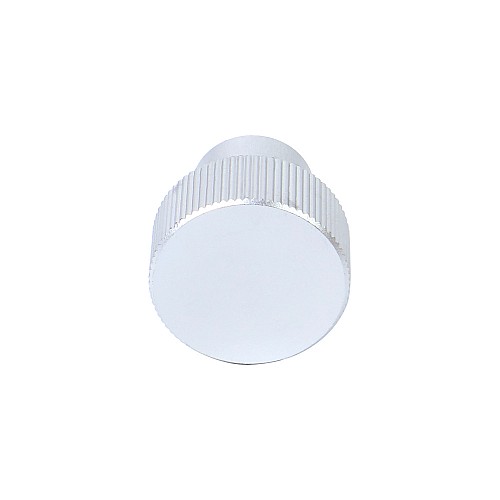

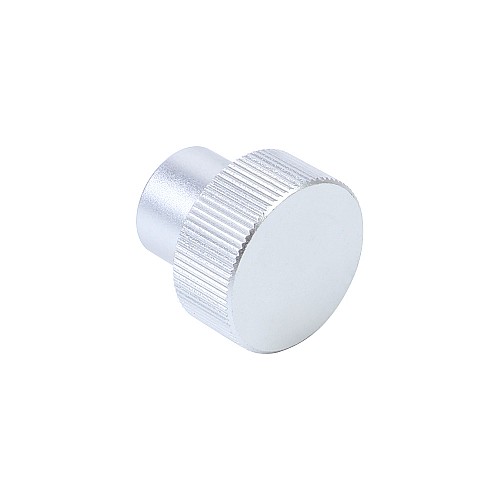

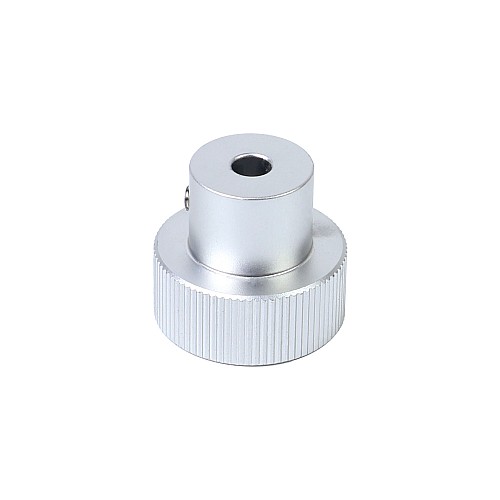

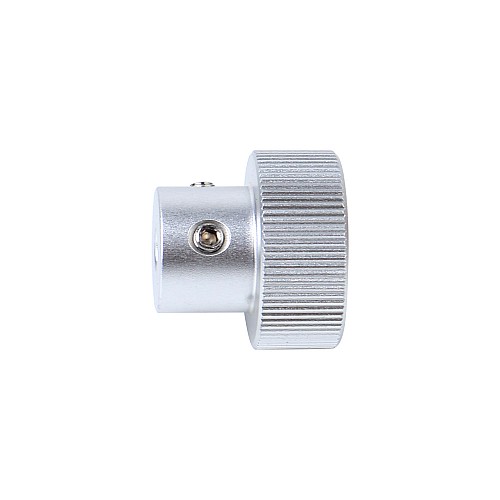

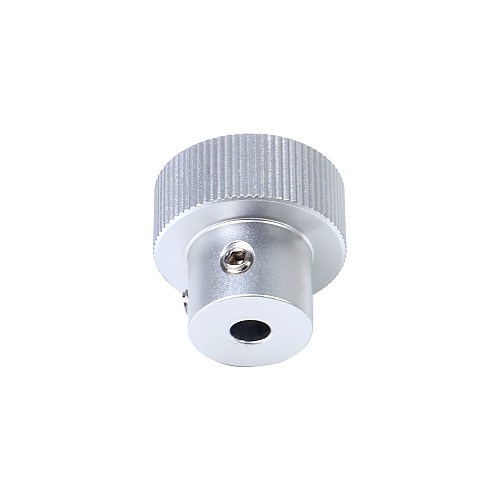

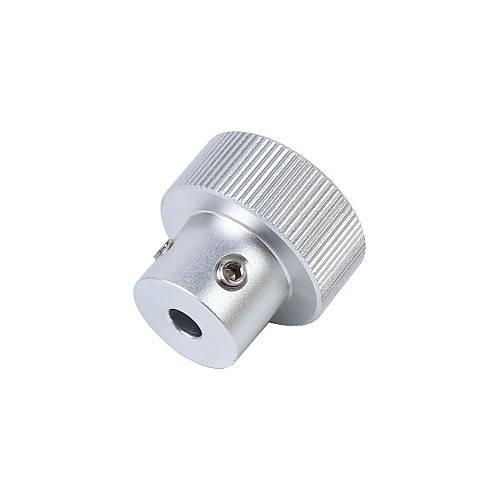

This handwheel has an outer diameter of 25mm and a bore diameter of 5mm. It is made of a reliable aluminum alloy for maximum durability and reliability. Widely used in instruments, machines and appliances where precise adjustments are required.

Specifications

  • Part Number: HWA25-D5
  • Material: Aluminum Alloy
  • Outside Diameter: Φ25mm
  • Bore Diameter: Φ5mm

Installation Requirements

  • The motor must have a rear shaft
  • The rear shaft diameter and length matche the handwheel bore
Physical Specification
Body Length(mm) 23
Input Shaft Diameter(mm) 5
Outside Diameter(mm) 25


File Size
HWA25-D5_Full_Datasheet.pdf 100.86KB Download
HWA25-D5.STEP 2.8MB Download
