LK2A60 Series Ball Screw Driven Linear Module Max. Horizontal/Vertical Payload 30kg/10kg Stroke 210mm
0 reviews - Write a review
C$161.76
5 + C$156.59
10 + C$151.73
50 + C$147.18
100 + C$142.87
  • In Stock: 200
  • Model: LK2A60-23DL100-210
  • Gross Weight: 2.50kg

Click country for real-time stock

Add to Cart
Question
Add to Wish List Compare this Product

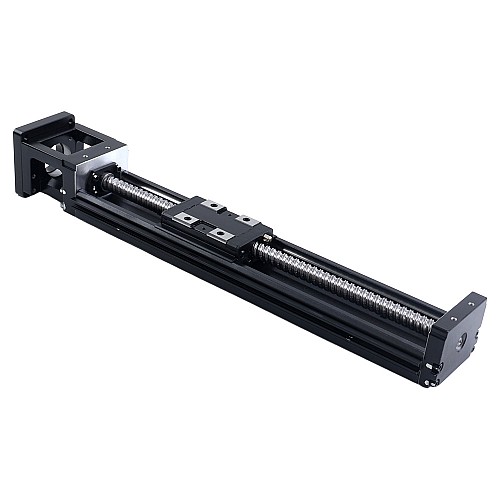

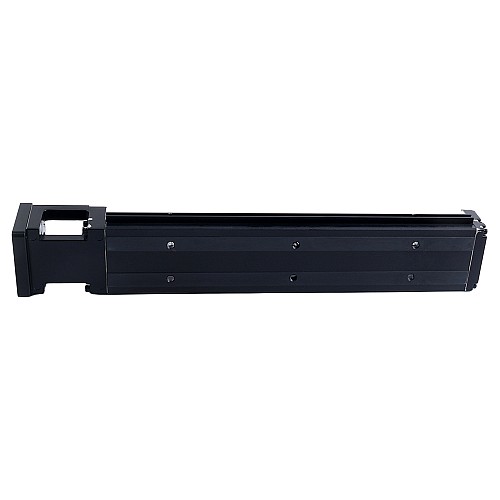

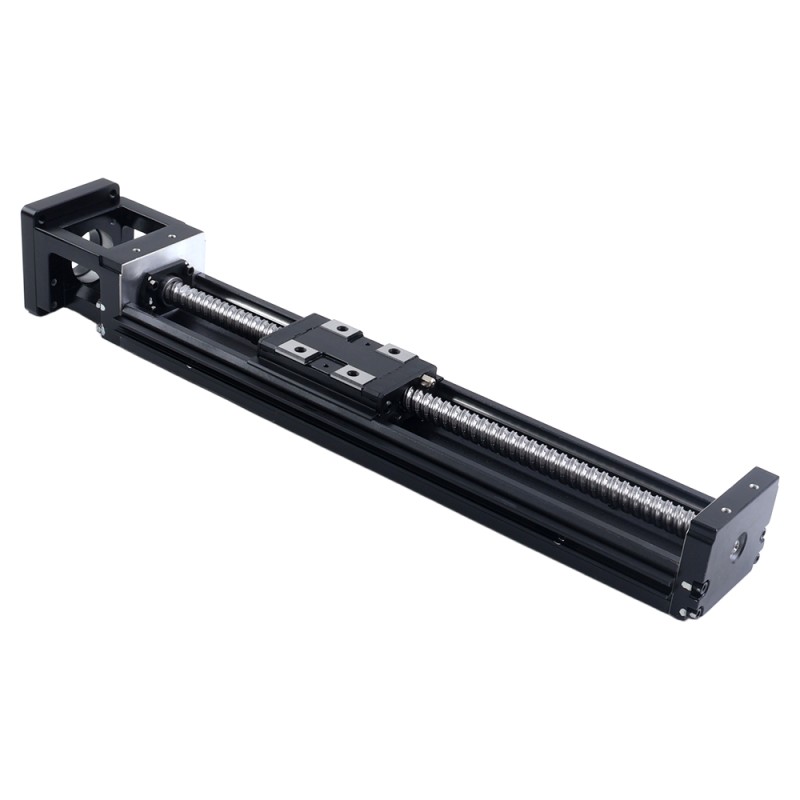

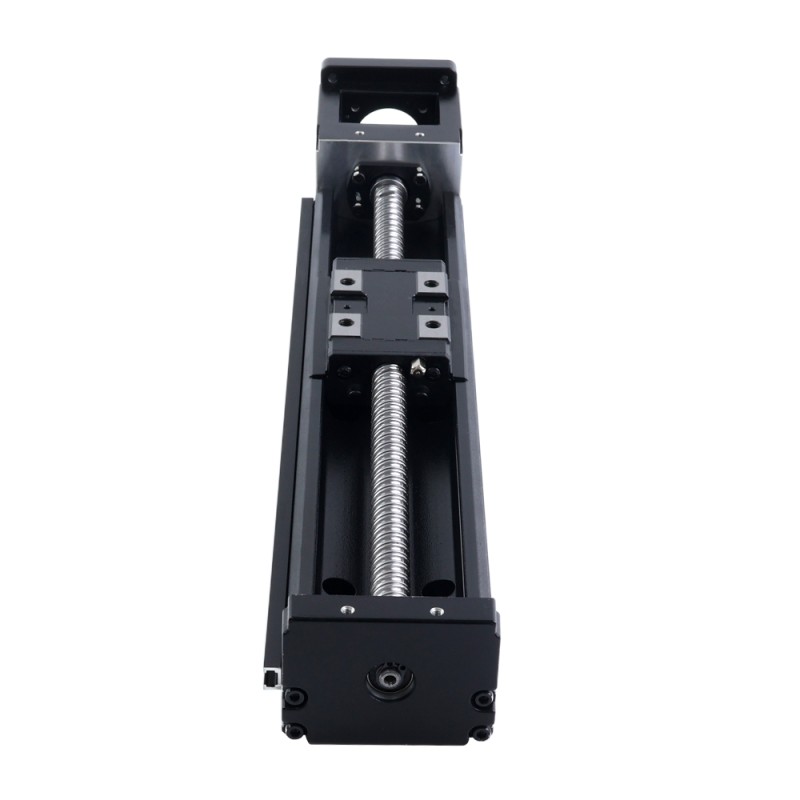

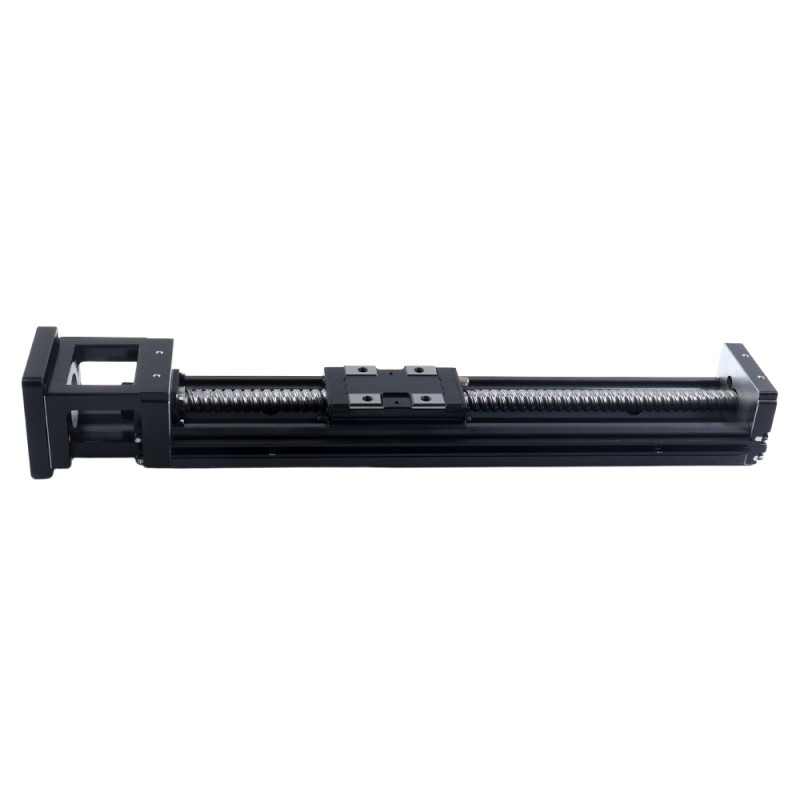

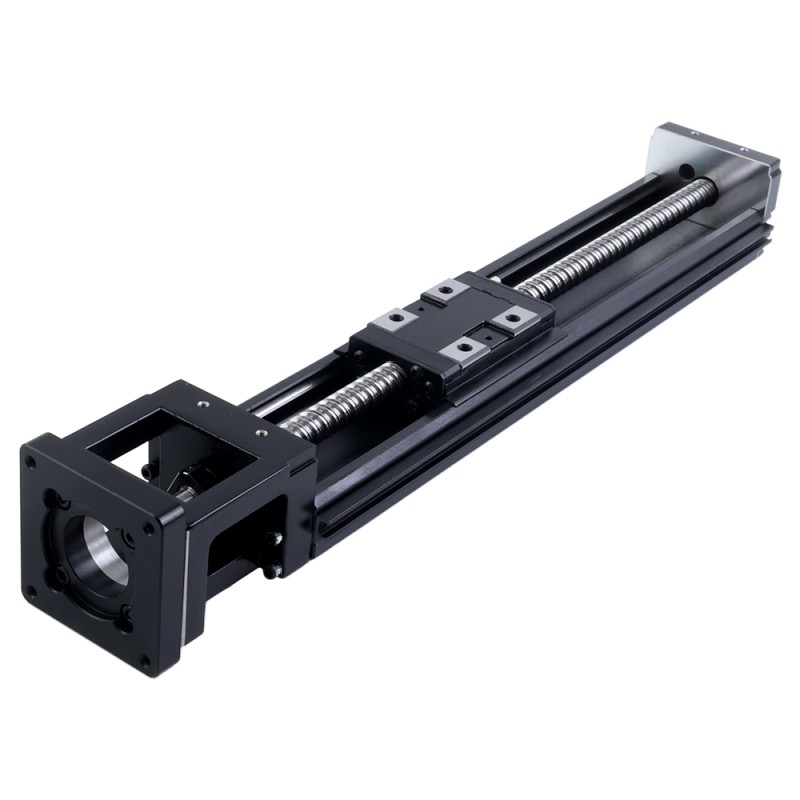

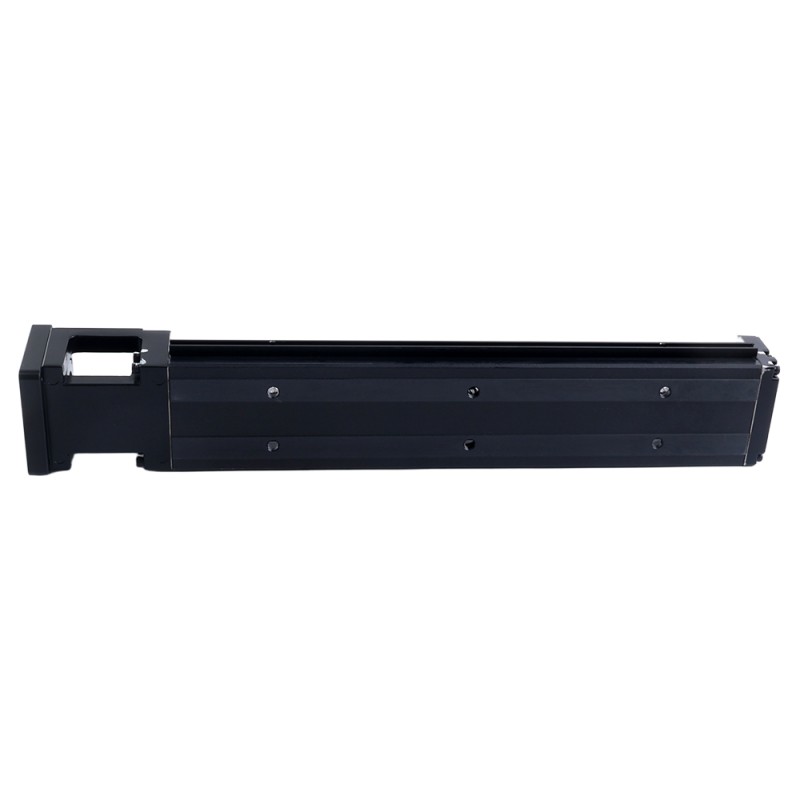

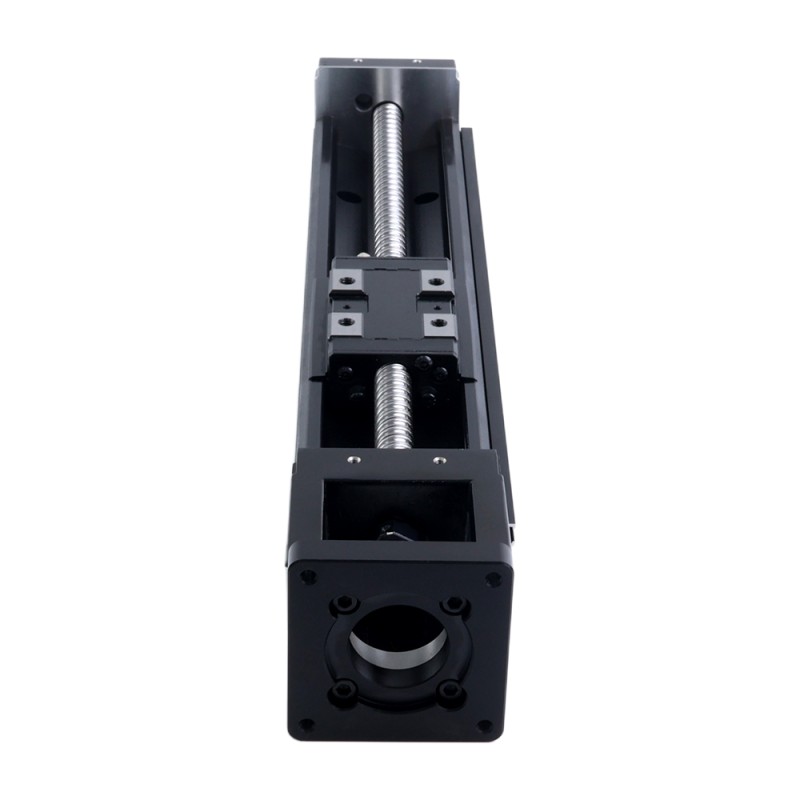

This LK2A60 series ball screw driven linear actuator offers a maximum horizontal payload of 30kg(66.14lb) and maximum vertical payload of 10kg(22.05lb), a stroke length of 210mm(0.69ft) and maximum speed of 800mm/s(2.62ft/s).
The LK2A features a stripped-down architecture that eliminates unnecessary components, including sensors, protective covers, and couplings, resulting in a compact, lightweight design ideal for space-constrained automation. This streamlined approach reduces both weight and installation footprint while delivering reliable linear motion with simplified assembly. Engineered for applications that demand efficiency and economy, it provides dependable performance in high-cycle environments without the complexity of added hardware.

Specifications

  • Part Number: LK2A60-23DL100-210
  • Screw Type: Ball Screw
  • Stroke Length: 210mm(0.69ft)
  • Position Accuracy: ± 0.01mm
  • Ball Screw Lead: 10mm(0.0328ft)
  • Maximum Speed: 800mm/s(2.62ft/s)
  • Maximum Horizontal Payload: 30kg(66.14lb)
  • Maximum Vertical Payload: 10kg(22.05lb)
  • Rated Thrust: 341N
  • Ball Screw Grade: C7
  • Ball Screw Diameter: Φ12mm
  • Motor Frame: Nema 23 Closed Loop Stepper Motor

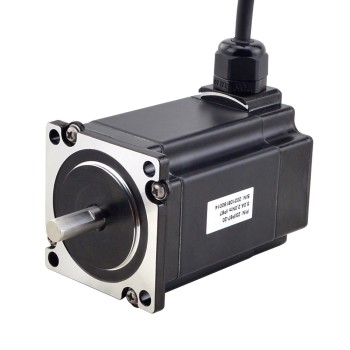

Adapting Motors: Standard NEMA 23 closed-loop stepper motor with a shaft diameter of 8mm and a shaft length of 21mm.

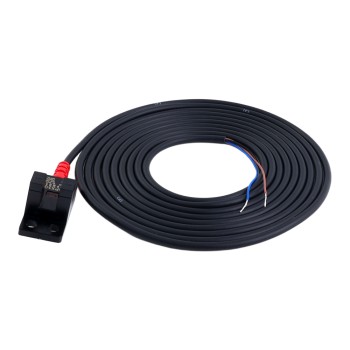

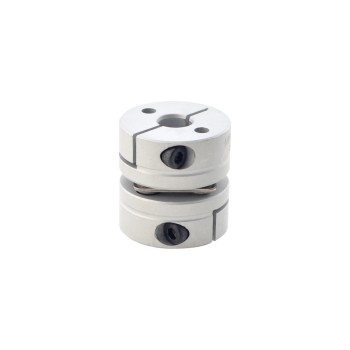

Please note: this linear actuator does not include a sensor, which can be purchased via this link. And the compatible coupling is MP2626-8-8.
Physical Specification
Lead(mm/ft) 10/0.033
Linear Motor Type Steel Body
Max. Horizontal Payload(kg/lb) 30/66.14
Max. Speed(ft/s) 2.62
Max. Speed(mm/s) 800
Max. Vertical Payload(kg/lb) 10/22.05
Motor Mounting Flange Nema 23 Closed Loop Stepper Motor
Motor Mounting Position Direct Connect
Rated Thrust(N) 341
Stroke Length(mm/ft) 210/0.69
Transmission Method Ball Screw Driven



File Size
LK2A60-23DL100-210_Full_Datasheet.pdf 153.32KB Download
