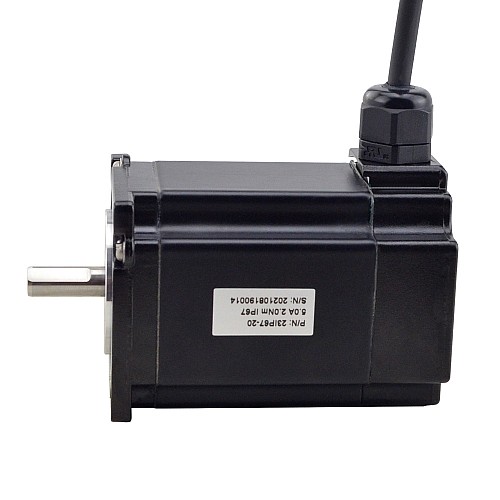

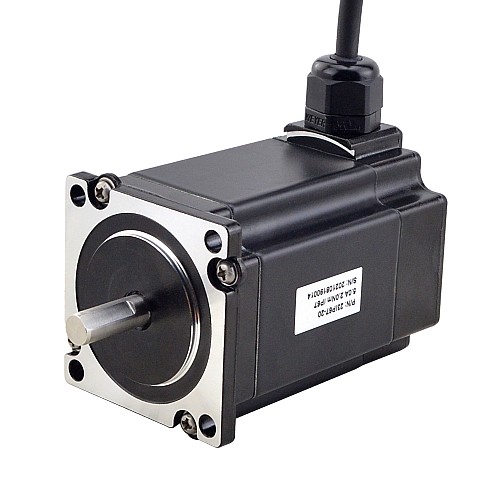

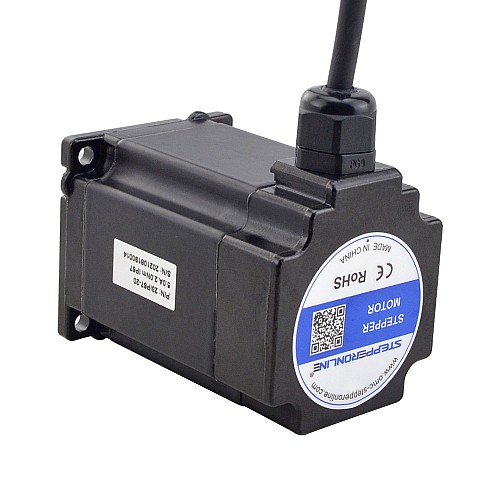

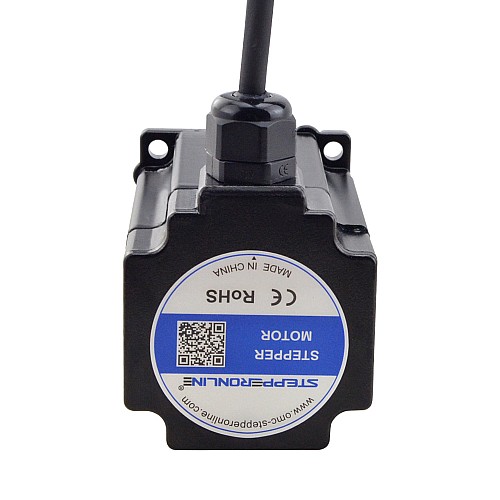

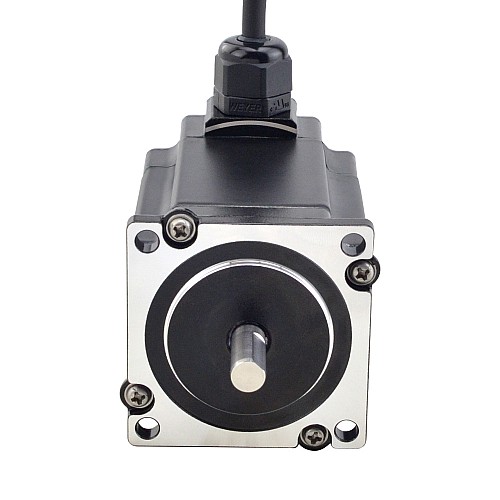

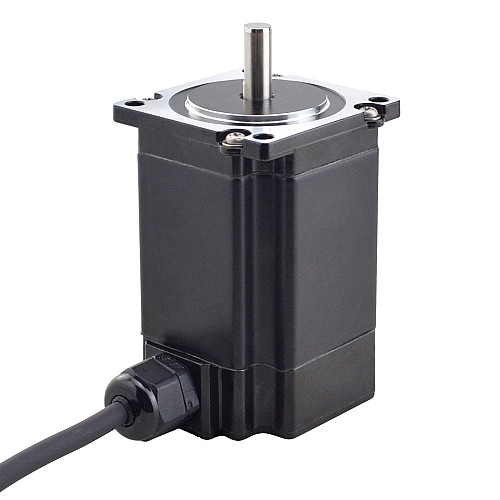

P Series IP67 Waterproof Nema 23 Stepper Motor 5.0A 1.8Nm(254.90oz.in)

0 reviews - Write a review

C$107.06

5 + C$100.86

10 + C$95.33

50 + C$90.38

100 + C$85.91

In Stock: 10000
Model: 23IP67-20
Gross Weight: 1.29kg
Certificated: ISO, CE, UKCA

Sold: 183

Click country for real-time stock

Ships from

China

Qty

Add to Cart

Question

Add to Wish List Compare this Product

Ships within 24 hours!

Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.

Choose a Local Warehouse, Get More Benefits!

Customers in US, UK, EU, Australia & Russia: Please choose local warehouses first (German warehouse for EU). This ensures faster delivery and avoids customs duties, reducing total costs.

This P series Nema 23 stepper motor with IP67 waterproof ratings and 2Nm(254.95oz.in), that meaning this IP67 stepper motor can be totally protected against dust, and can be protected against the effects of temporary immersion between 15cm and 1m and duration of test 30 minutes.

Electrical Specification

Manufacturer Part Number: 23IP67-20
Number of phase: 2
Step Angle: 1.8deg
Holding Torque: 2Nm(254.90oz.in)
Rated Current/phase: 5.0A
Phase Resistance: 0.44ohms
Inductance: 1.8mH±20%(1KHz)
Insulation Class: B 130°C[266°F]

Physical Specification

Frame Size: 57 x 57mm
Body Length: 85.8mm
Shaft Diameter: Φ8mm
Shaft Length: 21mm
D-Cut Shaft Length: 15mm
Lead Length: 1000mm
IP Rating: IP67
Weight: 1.25kg

Connection

A+	A-	B+	B-
Black	Green	Red	Blue

Product Type
Product Type	Waterproof Stepper Motor
Electrical Specification
Bipolar/Unipolar	Bipolar
Holding Torque(Ncm)	200
Holding Torque(oz.in)	254.95
Inductance(mH)	1.8
Insulation Class	B 130C(266F)
Open-loop/Closed-loop	Open-loop
Phase Resistance(ohms)	0.44
Rated Current(A)	5.0
Physical Specification
Body Length(mm)	85.8
Frame Size(mm)	Nema 23 (57 x 57)
Inventory Method	Dedicated Inventory
IP Rating	67
Lead Length(mm)	1000
Output Shaft Type	D
Shaft Diameter(mm)	8
Shaft Length(mm)	21
Single Shaft/Dual Shaft	Single Shaft
Weight(Kg)	1.25
