LK2A60-23DL100-510 Discontinued

This product has been discontinued and is no longer available for purchase. Please contact us for a replacement.

Question

Downloads

LK2A60-23DL100-510_Full_Datasheet.pdfPDF · 153.91KBLK2A60-23DL100-510.stpSTP · 1.53MBLog in to download
Same series
ModelPriceStock
1-CL57Y-S12 Discontinued—————
1-CL57Y-S20 Discontinued—————
1-CL57Y-S30A Discontinued—————
1-CLYS20 Discontinued—————
1-CLYS30 Discontinued—————
1-CLYS30-1M5 Discontinued—————
1-CLYS30S-V20 Discontinued—————
1-CLYS40 Discontinued—————
1-DM542T-24HS34 Discontinued—————
1-DM542T-24HS39 Discontinued—————
1-DM556S-24HS39 Discontinued—————
11C13S0754ED3-013RS Discontinued—————
11E13S0754ED2-100RS Discontinued—————
11E18S0754ED2-101RS Discontinued—————
11E18S0754FD3-250RS Discontinued—————
11E18S0754GD3-250RS Discontinued—————
11E20S0674AA2-100RS Discontinued—————
11E20S0674ED2-100RS Discontinued—————
11HS12-0674D2-PG27 Discontinued—26.85Economy Planetary——
11HS12-0674S-PG100 Discontinued—99.548Economy Planetary——
11HS20-0674D-PG14-AR3 Discontinued—13.73Economy Planetary——
11HS20-0714S-PG100 Discontinued—99.05Economy Planetary——
11N13S0754AA2-100RS Discontinued—————
11N13S0754QE2-150RS Discontinued—————
11N18S0754ED3-250RS Discontinued—————
11N20S0674AA2-100RS Discontinued—————
14E13S0574JE3-150RS Discontinued—————
14E13S0574QE3-150RS Discontinued—————
14E17S0914JE3-250RS Discontinued—————
14E17S0914QE3-250RS Discontinued—————
View all in category

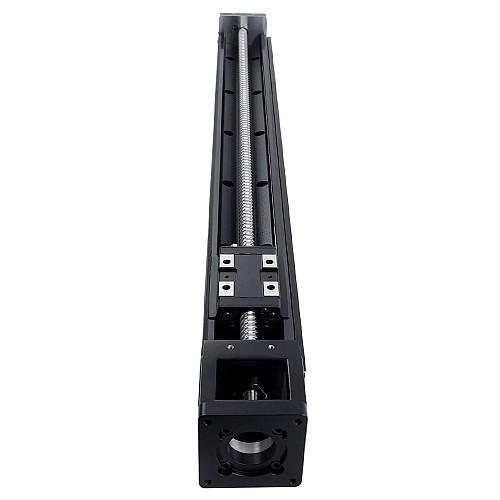

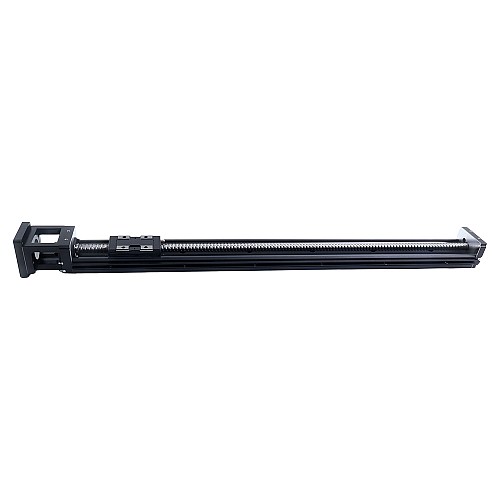

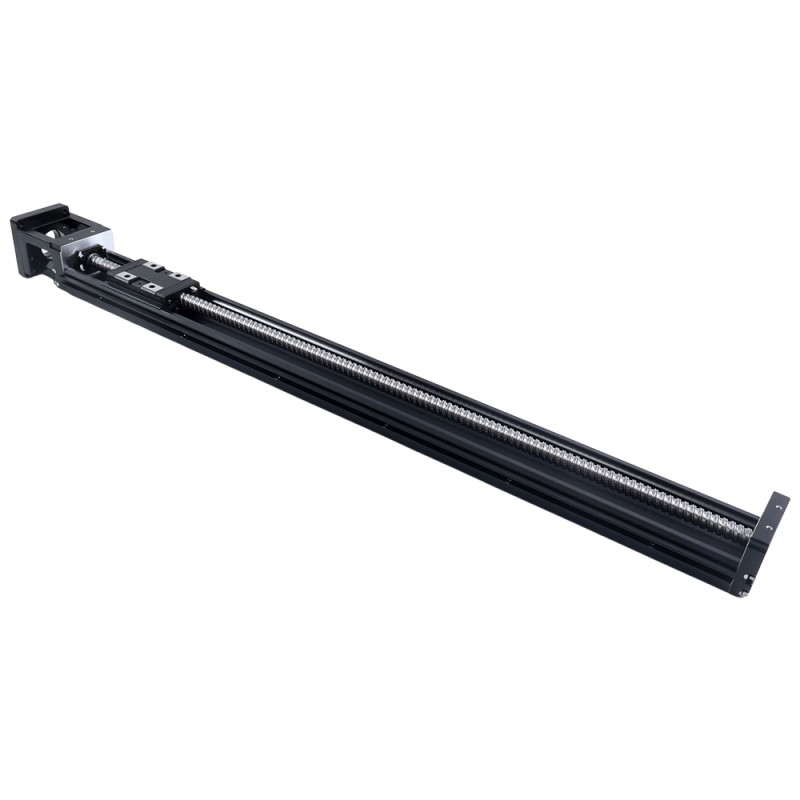

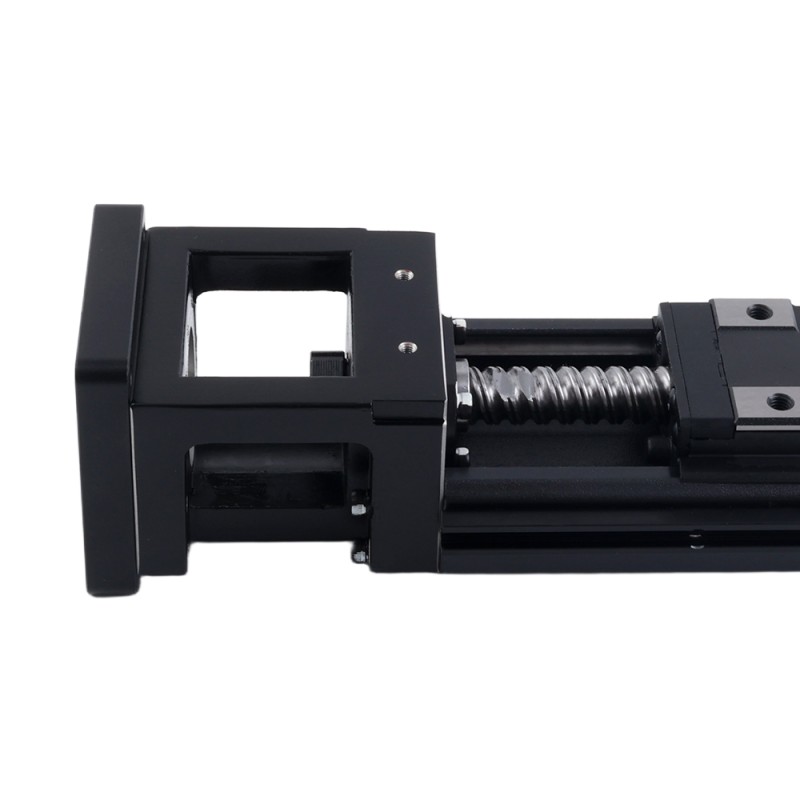

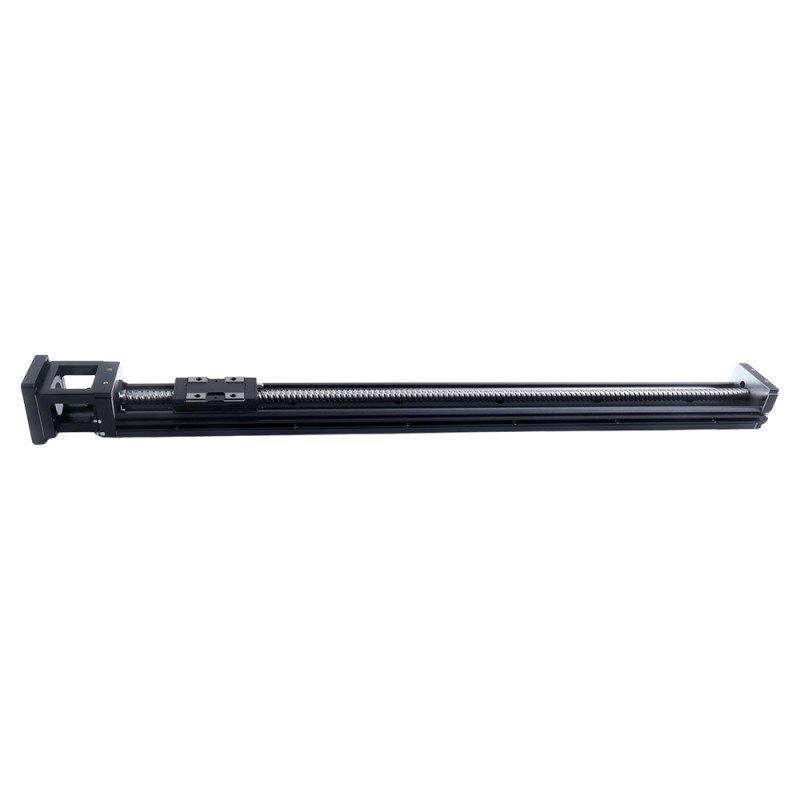

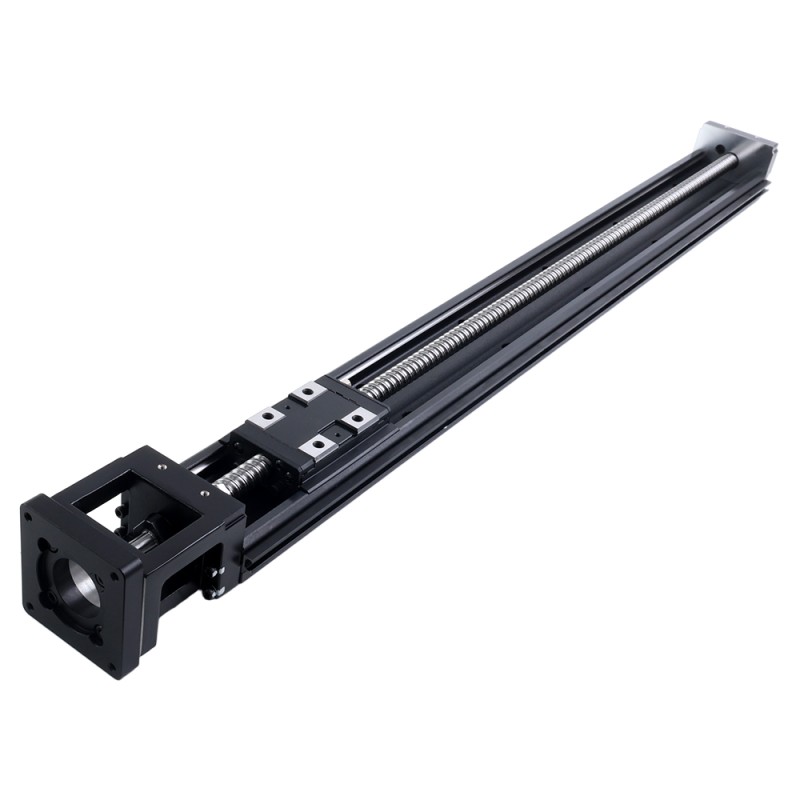

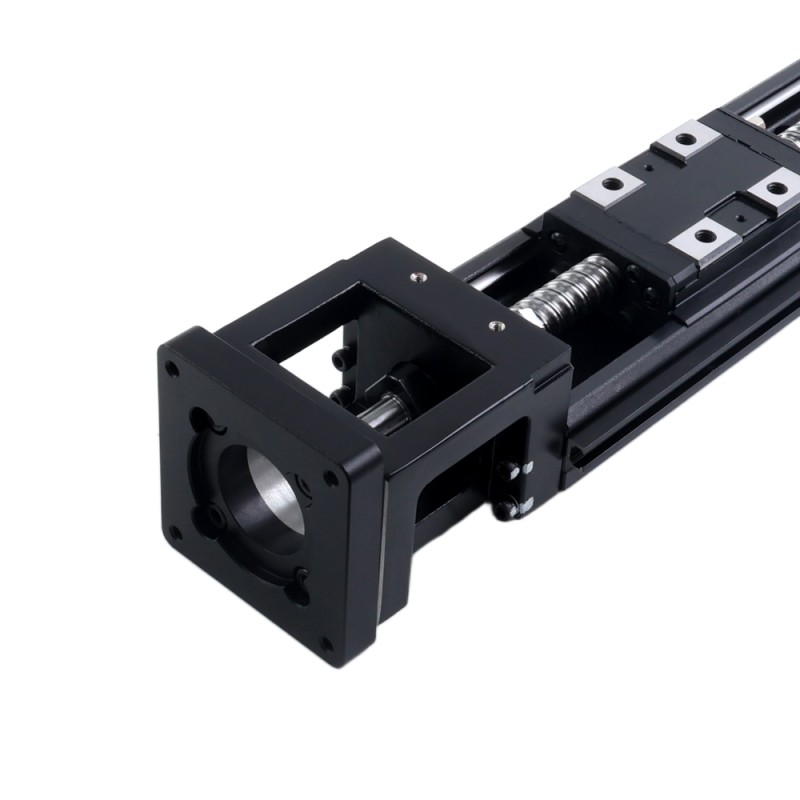

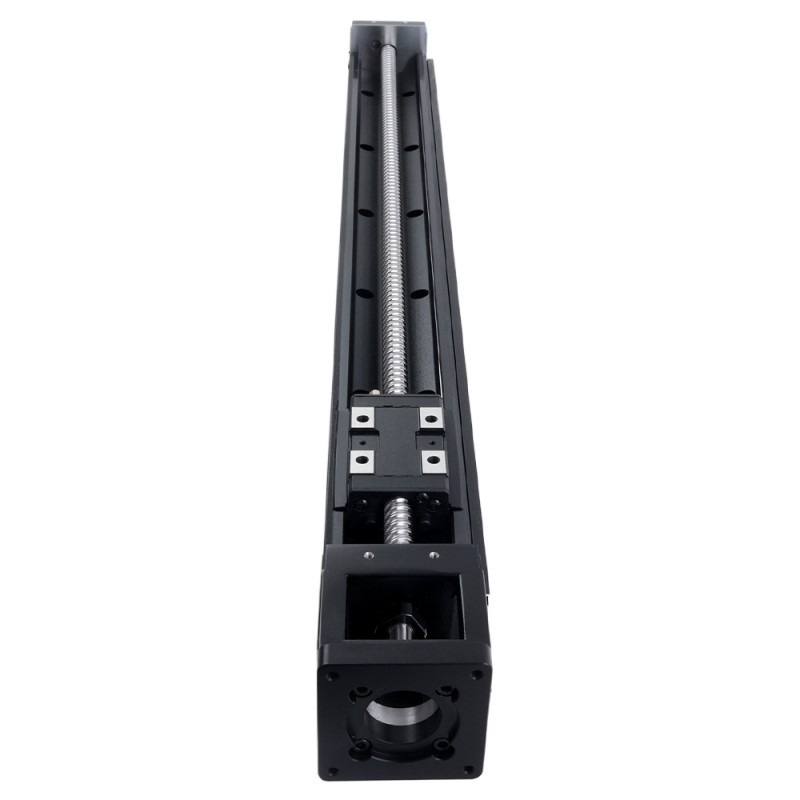

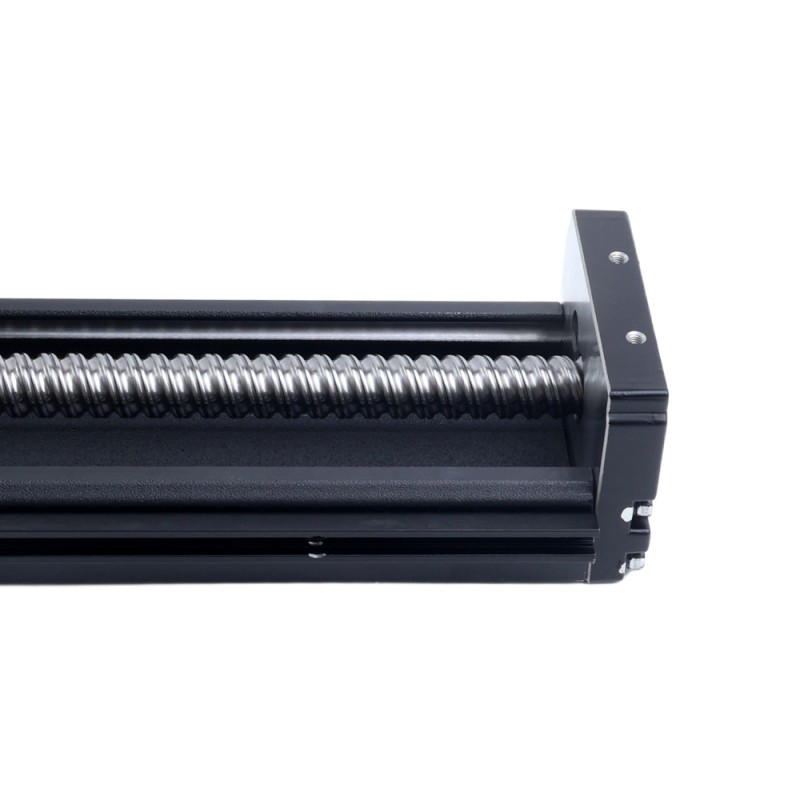

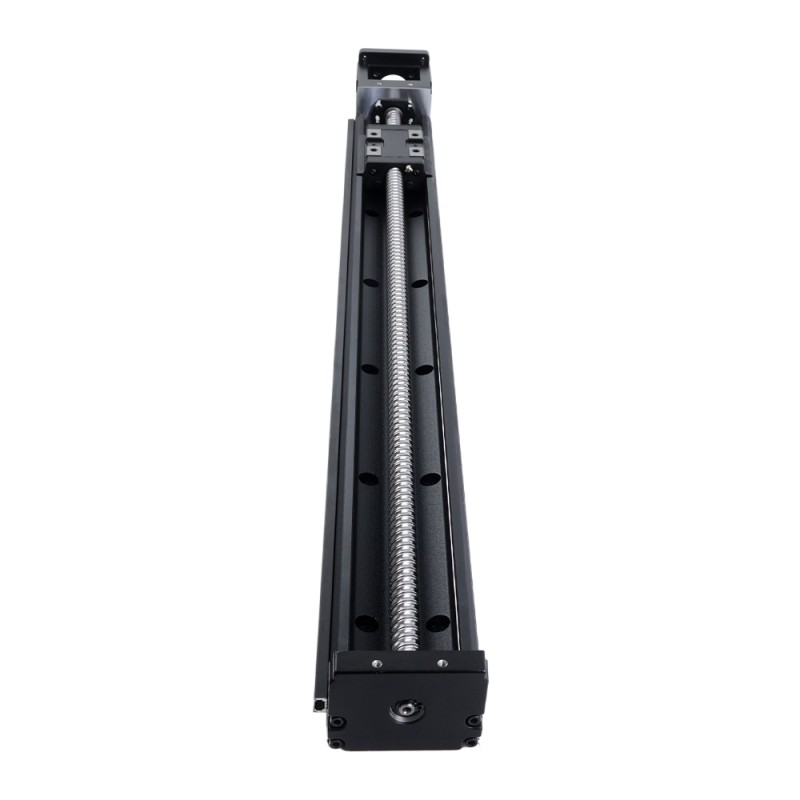

LK2A60 Series Ball Screw Driven Linear Module Max. Horizontal/Vertical Payload 30kg/10kg Stroke 510mm
This LK2A60 series ball screw driven linear actuator offers a maximum horizontal payload of 30kg... Read More
0 reviews • Write a review
Add to Wish List Compare this Product
Easy Returns

Return within 30 days of delivery. Contact us first and we'll take it from there.

Read more

This LK2A60 series ball screw driven linear actuator offers a maximum horizontal payload of 30kg(66.14lb) and maximum vertical payload of 10kg(22.05lb), a stroke length of 510mm(1.67ft) and maximum speed of 540mm/s(1.77ft/s).
The LK2A features a stripped-down architecture that eliminates unnecessary components, including sensors, protective covers, and couplings, resulting in a compact, lightweight design ideal for space-constrained automation. This streamlined approach reduces both weight and installation footprint while delivering reliable linear motion with simplified assembly. Engineered for applications that demand efficiency and economy, it provides dependable performance in high-cycle environments without the complexity of added hardware.

Specifications

  • Part Number: LK2A60-23DL100-510
  • Screw Type: Ball Screw
  • Stroke Length: 510mm(1.67ft)
  • Position Accuracy: ± 0.01mm
  • Ball Screw Lead: 10mm(0.0328ft)
  • Maximum Speed: 540mm/s(1.77ft/s)
  • Maximum Horizontal Payload: 30kg(66.14lb)
  • Maximum Vertical Payload: 10kg(22.05lb)
  • Rated Thrust: 341N
  • Ball Screw Grade: C7
  • Ball Screw Diameter: Φ12mm
  • Motor Frame: Nema 23 Closed Loop Stepper Motor
Physical Specification
Lead(mm/ft) 10/0.0328
Linear Motor Type Steel Body
Max. Horizontal Payload(kg/lb) 30/66.14
Max. Speed(ft/s) 1.77
Max. Speed(mm/s) 540
Max. Vertical Payload(kg/lb) 10/22.05
Motor Mounting Flange Nema 23 Closed Loop Stepper Motor
Motor Mounting Position Direct Connect
Rated Thrust(N) 341
Stroke Length(mm/ft) 510/1.67
Transmission Method Ball Screw Driven

Write a review

Not published. We only use it to follow up on your review.
Note: HTML is not translated!
Rating
Bad Good
Quickview

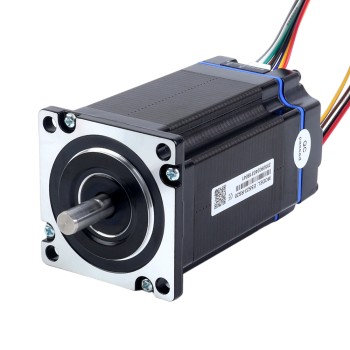

ESS Series 2.2Nm(311.55oz.in) Nema 23 Integrated RS485 Closed Loop Stepper Servo Motor 24-48VDC 1000PPR
ESS Series 2.2Nm(311.55oz.in) Nema 23 Integrated RS485 Closed Loop Stepper Servo Motor 24-48VDC 1000PPR
The NEMA 23 integrated stepper motor features a holding torque of 2.2Nm(311.55oz.in), peak current range of 1.0 to 4.0A, input voltage of 24 - 48VDC, ..
from
C$92.05
Add to Cart
Add to Wish List Compare this Product
Quickview
8mm - 8mm Flexible Coupling 18x25mm CNC Stepper Motor Shaft Coupler
8mm - 8mm Flexible Coupling 18x25mm CNC Stepper Motor Shaft Coupler
Shaft: 8mm - 8mm P/N: ST-FC08 Diameter: 18mm Length: 25mm Body Material: Aluminum Alloy..
from
C$1.84
Add to Cart
Add to Wish List Compare this Product
Quickview

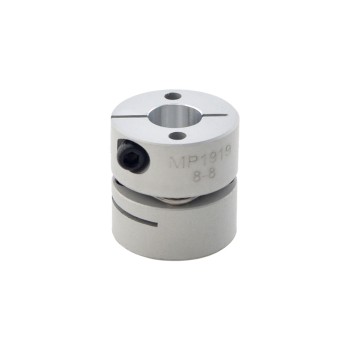

8mm - 8mm Flexible Single Disc Coupling 19x19mm CNC Stepper Motor Shaft Coupler
8mm - 8mm Flexible Single Disc Coupling 19x19mm CNC Stepper Motor Shaft Coupler
Specification Part Number: MP1919-8-8 Type: Single Disc Rated Torque: 1Nm(141.57oz.in) Max. Torque: 2Nm(283.14oz.in) Max. S..
from
C$7.71
Add to Cart
Add to Wish List Compare this Product
Quickview
8mm - 8mm Flexible Double Disc Coupling 26x35mm CNC Stepper Motor Shaft Coupler
8mm - 8mm Flexible Double Disc Coupling 26x35mm CNC Stepper Motor Shaft Coupler
Specification Part Number: MP2635-8-8 Type: Double Disc Rated Torque: 1.4Nm(198.21oz.in) Max. Torque: 2.8Nm(396.42oz.in) Ma..
from
C$10.70
Add to Cart
Add to Wish List Compare this Product
Quickview
12mm - 14mm Flexible Jaw Coupling 30x35mm CNC Stepper Motor Shaft Coupler
12mm - 14mm Flexible Jaw Coupling 30x35mm CNC Stepper Motor Shaft Coupler
Specification Part Number: MH3035-12-14 Type: Jaw Type Rated Torque: 6.5Nm(919.29oz.in) Max. Torque: 13Nm(1840.52oz.in) Max..
from
C$5.97
Add to Cart
Add to Wish List Compare this Product
Quickview
RS232 Adapter Cable to USB 2.0
RS232 Adapter Cable to USB 2.0
RS232 Adapter Cable to USB 2.0 Support Windows XP / 7 / 10..
from
C$20.18
Add to Cart
Add to Wish List Compare this Product
Quickview

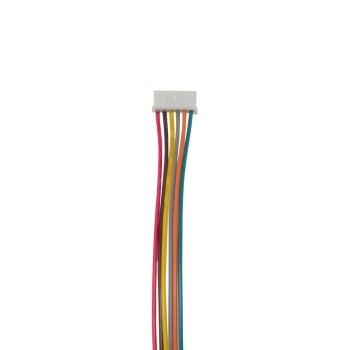

Stepper motor 6 wires 400mm cable with pitch connector
Stepper motor 6 wires 400mm cable with pitch connector
Stepper motor 6 wires 400mm cable with pitch connector..
from
C$0.78
Add to Cart
Add to Wish List Compare this Product
Quickview

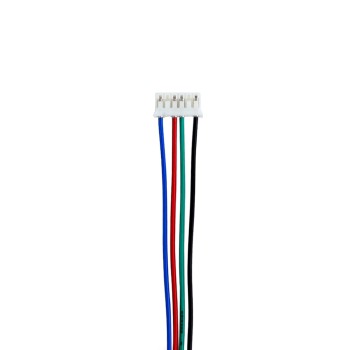

0.5m(19.69") Stepper Motor Cable 4 Wires with 6-Pin PHR-6 Connector
