MP1919-8-8
Body Length(mm)19
Matching Shaft Diameter(mm)8 - 8
Diameter(mm)19
Question

Downloads

Same series
ModelBody Length(mm)Matching Shaft Diameter(mm)Diameter(mm)PriceStock
MP1919-8-8198 - 819C$7.71In stock
MP1926-8-8268 - 819C$11.69In stock
MP2626-8-10268 - 1026C$7.21In stock
MP2626-8-8268 - 826C$7.21In stock
MP2635-8-10358 - 1026C$10.70In stock
MP2635-8-8358 - 826C$10.70In stock
MP3229-8-14298 - 1432C$8.21In stock
MP3241-8-14418 - 1432C$11.69In stock

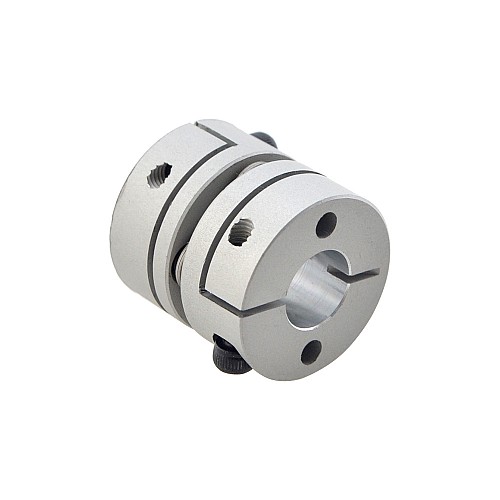

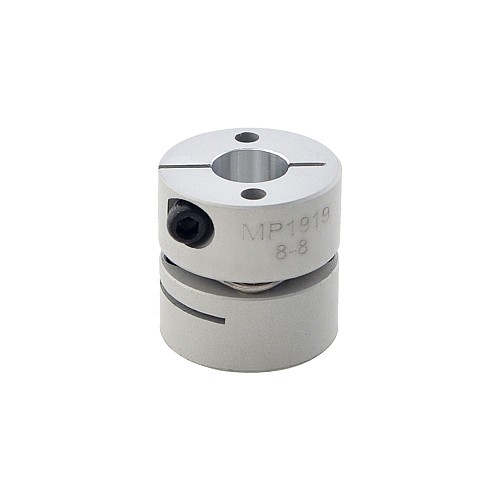

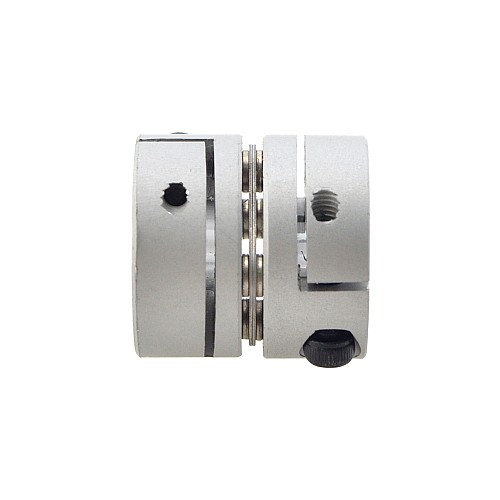

8mm - 8mm Flexible Single Disc Coupling 19x19mm CNC Stepper Motor Shaft Coupler
Specification Part Number: MP1919-8-8 Type: Single Disc Rated Torque: 1Nm(141.57oz.... Read More
from
C$7.71
5 or more: C$7.34
10 or more: C$6.99
50 or more: C$6.67
100 or more: C$6.38

Select a country to see live inventory

Easy Returns

Return within 30 days of delivery. Contact us first and we'll take it from there.

Read more
Ships within 24 hours!
Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.

Specification

  • Part Number: MP1919-8-8
  • Type: Single Disc
  • Rated Torque: 1Nm(141.57oz.in)
  • Max. Torque: 2Nm(283.14oz.in)
  • Max. Speed: 10000rpm
  • Moment of Inertia: 6.7*10-7kg*m2
  • Static Torsional Spring Constant: 880Nm/rad
  • Bore Diameter(d1-d2): 8mm - 8mm
  • Body Outside Diameter(D): 19mm
  • Body Length(L): 19mm
  • Material Type: Aluminum
  • Weight: 24g
Coupling Specification
Coupling Type Disc Shaft Coupling
Body Length(mm) 19
Diameter(mm) 19
Matching Shaft Diameter(mm) 8 - 8
