LK60 Series Ball Screw Driven Max. Horizontal/Vertical Payload 20kg/6kg Stroke 510mm for Servo Motor

0 reviews - Write a review

C$230.17

5 + C$223.45

10 + C$217.12

50 + C$211.12

100 + C$205.45

In Stock: 10000
Model: LK60-40DL10S3-510
Gross Weight: 5.60kg

Sold: 2

Click country for real-time stock

Ships from

China

United States

Germany

Qty

Add to Cart

Question

Add to Wish List Compare this Product

Choose a Local Warehouse, Get More Benefits!

Customers in US, UK, EU, Australia & Russia: Please choose local warehouses first (German warehouse for EU). This ensures faster delivery and avoids customs duties, reducing total costs.

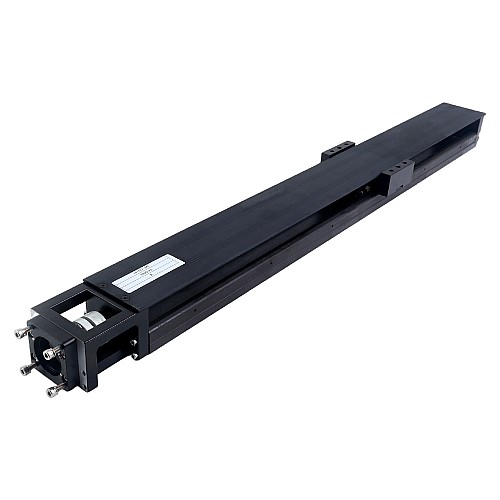

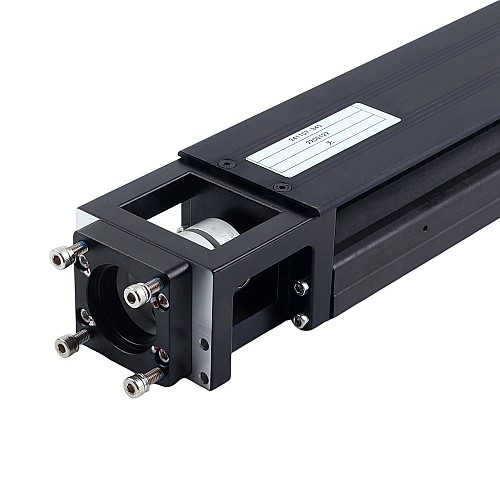

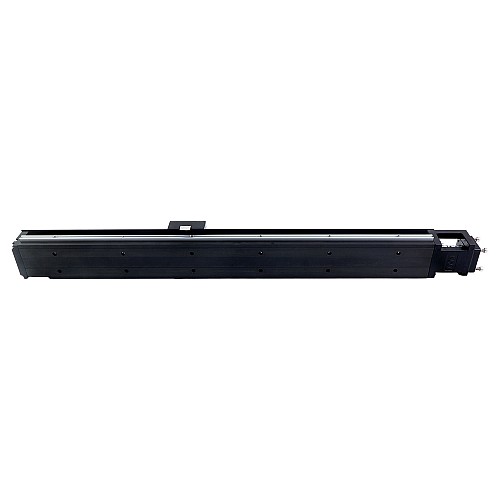

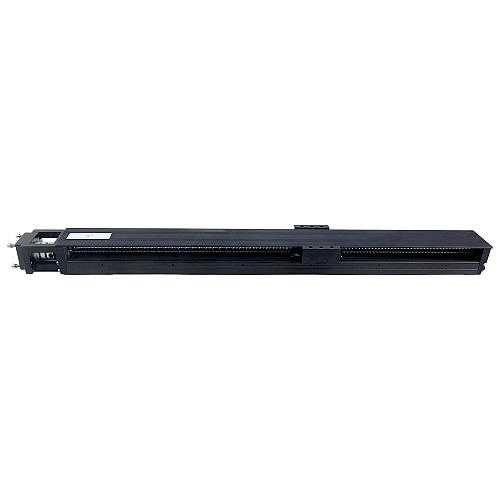

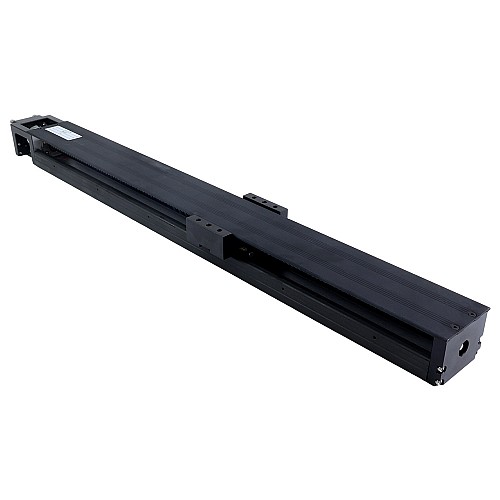

This LK60 series ball screw driven dustproof linear actuator offers a maximum horizontal payload of 20kg(44.09lb) and maximum vertical payload of 6kg(13.23lb), a stroke length of 510mm(1.67ft) and maximum speed of 500mm/s(1.64ft/s).
Different from the linear actuators with exposed lead screws on the market, we have adopted a semi - enclosed dustproof design, which can effectively prevent debris during production from entering the actuator.
The LK series linear actuators feature a simple design and high cost-effectiveness. They are highly suitable for replacing pneumatic actuators in applications that demand a higher level of performance and control. They have advantages such as high precision, good efficiency, excellent heat dissipation, easy installation and low maintenance costs.

Part Number: LK60-40DL10S3-510
Screw Type: Ball Screw
Position Accuracy: ± 0.01mm
Ball Screw Lead: 10mm(0.033ft)
Maximum Speed: 500mm/s(1.64ft/s)
Maximum Horizontal Payload: 20kg(44.09lb)
Maximum Vertical Payload: 6kg(13.23lb)
Rated Thrust: 170N

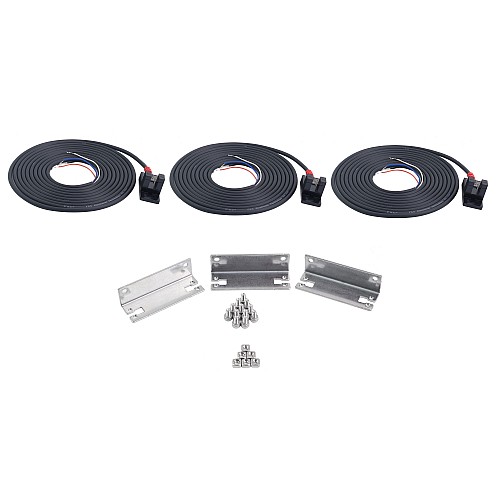

Sensor Type: NPN
Number of Sensors：3
Ball Screw Grade: C7
Ball Screw Diameter: Φ12mm
Motor Frame: 40mm Servo Motor(100W)
Stroke Lengths: 510mm(1.67ft)
Input Shaft Length: 25mm
Input Shaft Diameter: 8mm

Adapting Motors:

1. AC Servo Motors

RS Series: A6-RS100L2A1-M17 and A6-RS100L2B1-M17(with brake)
EC Series: A6-EC100L2A1-M17 and A6-EC100L2B1-M17(with brake)

2. DC Servo Motors

RS Series: DSY-RS100L2A2-M17S and DSY-RS100L2B2-M17S(with brake)
C Series: DSY-C100L2A2-M17S and DSY-C100L2B2-M17S(with brake)

Physical Specification
Input Shaft Diameter(mm)	8
Input Shaft Length(mm)	25
Inventory Method	Dedicated Inventory
Lead(mm/ft)	10/0.033
Linear Motor Type	Steel Body
Max. Horizontal Payload(kg/lb)	20/44.09
Max. Speed(ft/s)	1.64
Max. Speed(mm/s)	500
Max. Vertical Payload(kg/lb)	6/13.23
Motor Mounting Flange	40mm Servo Motor
Motor Mounting Position	Direct Connect
Rated Thrust(N)	170
Stroke Length(mm/ft)	510/1.67
Transmission Method	Ball Screw Driven
